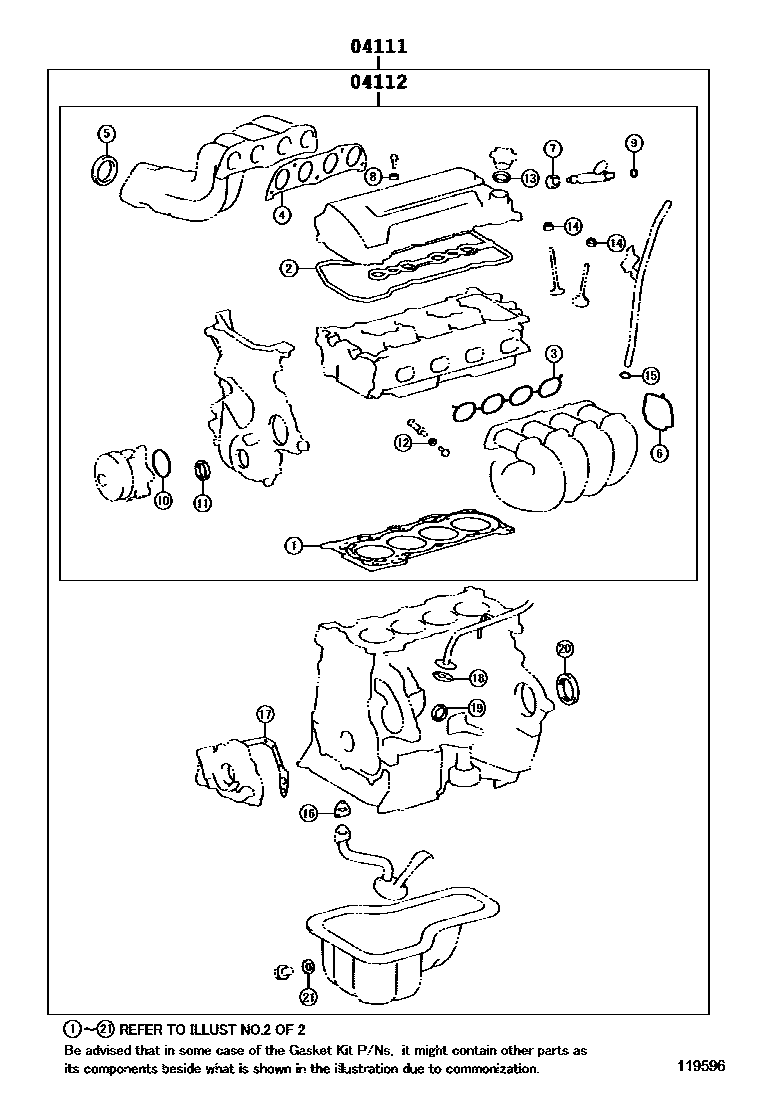

ENGINE OVERHAUL GASKET KIT

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

04111GASKET KIT, ENGINE OVERHAUL

main04111-22060i1ZZFE..ZZT230199908-200206

sub04111-22061

main04111-22061i1ZZFE..ZZT230200206-200302

sub04111-22062

main04111-22062i1ZZFE..ZZT230200302-200303

main04111-22070i2ZZGE..ZZT231199908-200208

sub04111-22071

main04111-22200i2ZZGE..ZZT231200208-200302

sub04111-22201

main04111-22201i2ZZGE..ZZT231200302-200303

main04111-22660i2ZZGE..ZZT231200303-200507

main04111-22800i1ZZFE..ZZT230200303-200507

sub04111-22711

04112GASKET KIT, ENGINE VALVE GRIND

main04112-22060i1ZZFE..ZZT230199908-200206

sub04112-22061

main04112-22061i1ZZFE..ZZT230200206-200302

sub04112-22062

main04112-22062i1ZZFE..ZZT230200302-200303

main04112-22070i2ZZGE..ZZT231199908-200208

sub04112-22071

main04112-22200i2ZZGE..ZZT231200208-200302

sub04112-22201

main04112-22201i2ZZGE..ZZT231200302-200303

main04112-22550i2ZZGE..ZZT231200303-200507

main04112-22650i1ZZFE..ZZT230200303-200507

sub04112-22680

2 parts on this diagram · 6 diagrams in section
