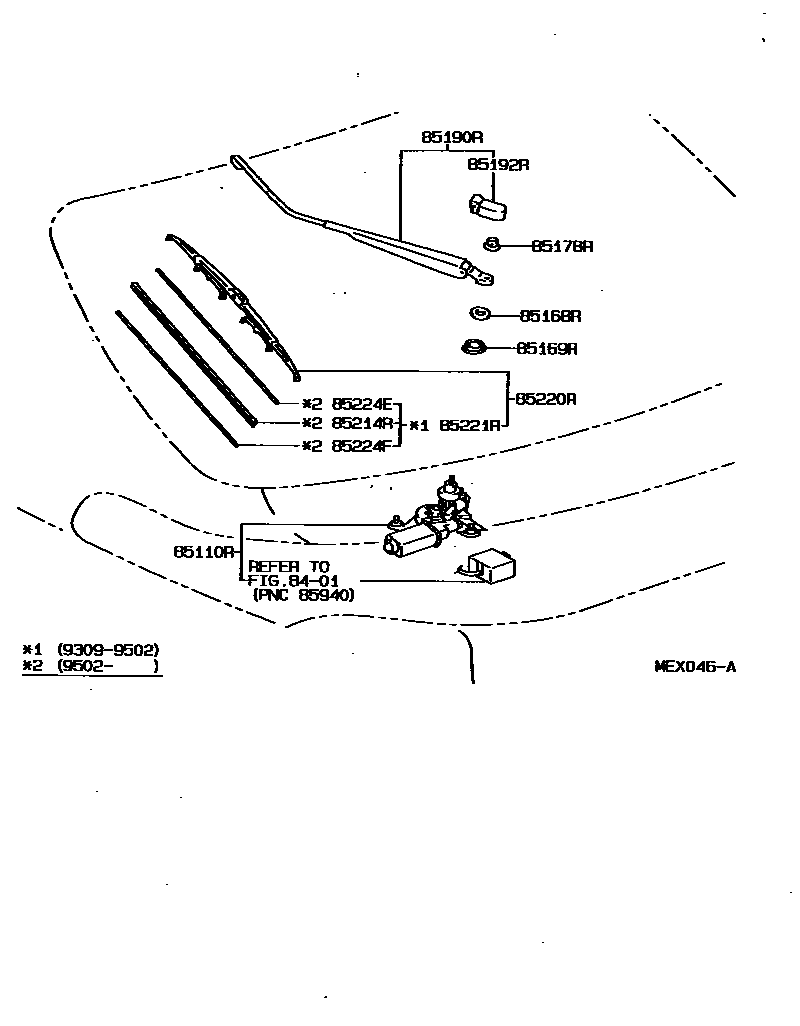

REAR WIPER

8401

85110RMOTOR ASSY, REAR WIPER

main85130-20720iAT200,ST204..LB199309

85168RNUT, REAR WIPER LINK PIVOT, NO.1

main90099-05157iAT200,ST204..LB199309

85169RWASHER, REAR WIPER LINK PIVOT, NO.1

main85134-20710iAT200,ST204..LB199309

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iAT200,ST204..LB199309

85190RARM ASSY, REAR WIPER

main85241-20070iAT200,ST204..LB199309-199701

sub85241-20071

main85241-20071iAT200,ST204..LB199701-199712

sub85241-20072

main85241-20072iST204..LB199712

85192RCOVER, REAR WIPER ARM

main85245-20020iAT200,ST204..LB199309

85214RRUBBER, REAR WIPER

main85214-20290iAT200,ST204..LB199502-199508

sub85214-30260

main85214-20360iAT200,ST204..LB199508

85220RBLADE ASSY, REAR WIPER

main85242-20030iAT200,ST204..LB199309-199508

main85242-20050iAT200,ST204..LB199508-199701

sub85242-20080

main85242-20080iAT200,ST204..LB199701

85221RBLADE, REAR WIPER

main85243-20020iAT200,ST204..LB199309-199502

sub85214-20290

85224EPLATE, REAR WIPER RUBBER BACKING, NO.1

main85224-20360iAT200,ST204..LB199508

main85224-30380iAT200,ST204..LB199502-199508

85224FPLATE, REAR WIPER RUBBER BACKING, NO.2

main85224-20360iAT200,ST204..LB199508

main85224-30380iAT200,ST204..LB199502-199508

12 parts on this diagram · 1 diagram in section
