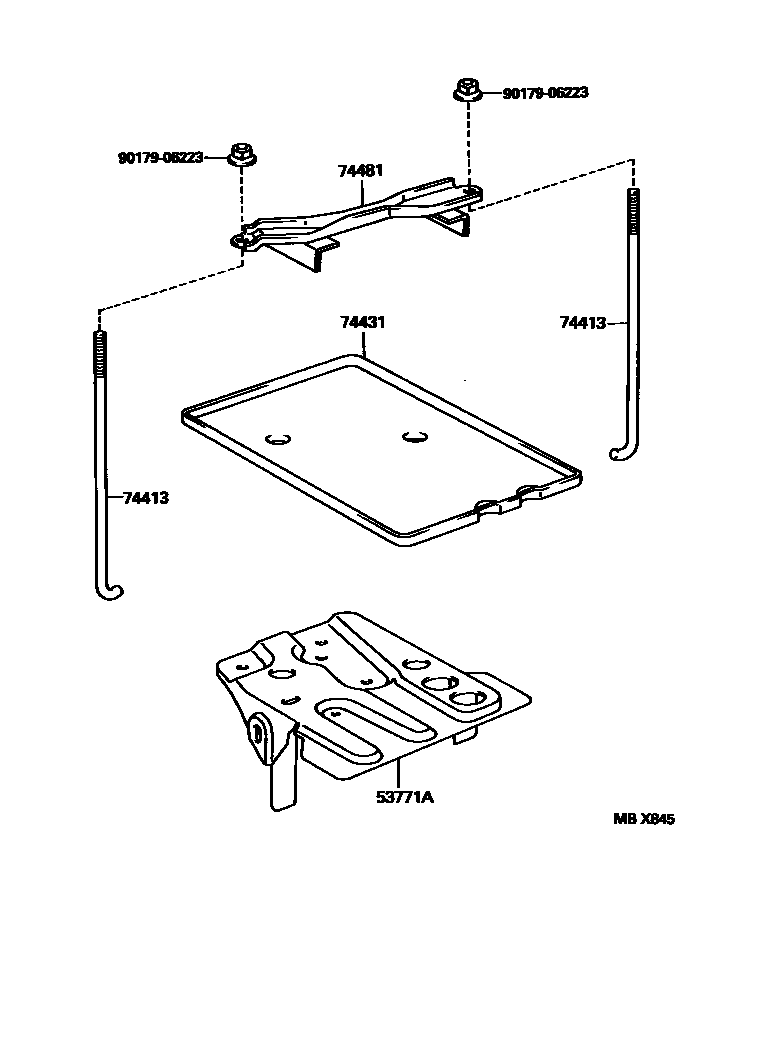

BATTERY CARRIER

53771ASUPPORT, BATTERY CARRIER

main53771-20070iAT200,ST204199309

74413BOLT, BATTERY CLAMP

main74451-10060iAT200,ST204199309

74431TRAY, BATTERY

main74431-20060iAT200,ST204199309

74481CLAMP, BATTERY HOLD DOWN

main74404-20460iAT200,ST204199309

main74404-20470iAT200..USA199309-199508

W(BATTERY=32C24L)

main74404-20480iAT200..USA199508-199712

W(BATTERY=32C24L)

9017906223

main90179-06223

5 parts on this diagram · 1 diagram in section
