FRONT SEAT & SEAT TRACK

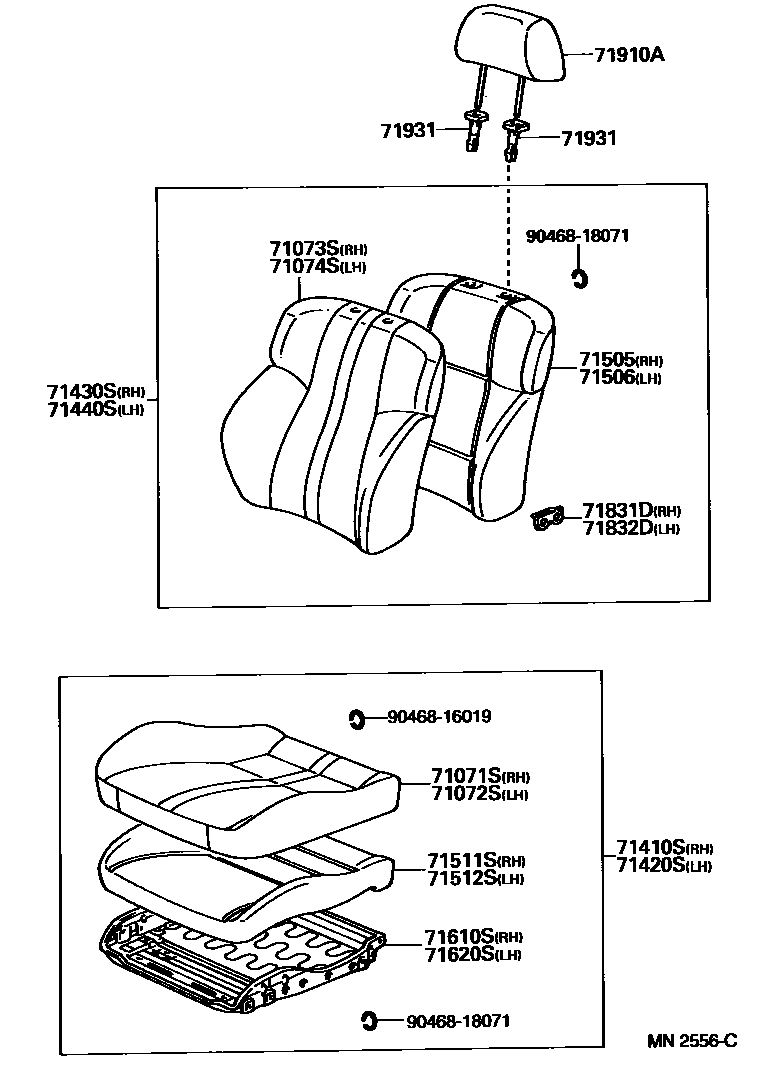

Parts diagram
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-2G500-A0i199309-199508
IV0RY,TRIM0#
main71071-2G500-C0i199508-199510
BLACK,TRIM2#
main71071-2G510-A0i199309-199508
1V0RY,TRIM0#
main71071-2G510-C0i199309-199508
BLACK,TRIM2#
main71071-2G530-A0i199309-199311
W(LEATHER SEAT),IV0RY,TRIM0#; W(SPORTS SEAT & LEATHER SEAT),IV0RY,TRIM0#
main71071-2G530-C0i199309-199311
W(LEATHER SEAT),BLACK,TRIM2#; W(SPORTS SEAT & LEATHER SEAT),BLACK,TRIM2#
main71071-2G540-C0i199309-199508
W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#
main71071-2G620-A0i199508-199712
IVORY,TRIM0#; W(FABRIC SEAT),IVORY,TRIM0#
main71071-2G620-A1i199611-199704
LIMITED EDITION,IVORY,TRIM0#
main71071-2G620-C0i199510-199712
BLACK,TRIM2#
main71071-2G630-A0i199311-199508
IVORY,TRIM0#
main71071-2G630-C0i199508-199510
W(LEATHER SEAT),BLACK,TRIM2#
main71071-2G640-A0i199508-199712
IVORY,TRIM0#
main71071-2G640-C0i199508-199712
BLACK,TRIM2#
main71071-2G640-C1i199601-199602
25TH ANNIVERSARY,BLACK,TRIM20
main71071-2G700-A0i199508-199712
W(LEATHER SEAT),IVORY,TRIM0#
main71071-2G700-A1i199712
W(LEATHER SEAT),IVORY,TRIM0#
main71071-2G700-C0i199508-199712
W(LEATHER SEAT),BLACK,TRIM2#
main71071-2G700-C3i199712
W(LEATHER SEAT),BLACK,TRIM2#
main71071-2G730-C1i199508-199712
W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#
main71071-2G730-C4i199712
W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#
main71071-2H140-C0i199712
W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#
main71071-2H200-A0i199712
IVORY,TRIM0#
main71071-2H200-C0i199712
BLACK,TRIM2#
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71071-2G530-A0i199309-199311
W(LEATHER SEAT),IV0RY,TRIM0#; W(SPORTS SEAT & LEATHER SEAT),IV0RY,TRIM0#
main71071-2G530-C0i199309-199311
W(LEATHER SEAT),BLACK,TRIM2#; W(SPORTS SEAT & LEATHER SEAT),BLACK,TRIM2#
main71071-2G630-A0i199311-199508
W(LEATHER SEAT),IVORY,TRIM0#; W(SPORTS SEAT & LEATHER SEAT),IVORY,TRIM0#
main71071-2G630-C0i199311-199508
W(LEATHER SEAT),BLACK,TRIM2#; W(SPORTS SEAT & LEATHER SEAT),BLACK,TRIM2#
main71072-2D870-C0i199309-199508
W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#
main71072-2G020-A0i199309-199508
IVORY,TRIM0#
main71072-2G020-C2i199508-199510
BLACK,TRIM2#
main71072-2G060-A0i199309-199508
IVORY,TRIM0#
main71072-2G060-C0i199309-199508
BLACK,TRIM2#
main71072-2G070-A0i199508-199712
W(LEATHER SEAT),IVORY,TRIM0#
main71072-2G070-A1i199712
W(LEATHER SEAT),IVORY,TRIM0#
main71072-2G070-C0i199508-199712
W(LEATHER SEAT),BLACK,TRIM2#
main71072-2G070-C2i199510-199712
W(LEATHER SEAT),BLACK,TRIM2#
main71072-2G080-C0i199508-199712
W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#
main71072-2G080-C2i199712
W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#
main71072-2G140-A0i199508-199712
IVORY,TRIM0#; W(FABRIC SEAT),IVORY,TRIM0#
main71072-2G140-A1i199611-199704
LIMITED EDITION,IVORY,TRIM0#
main71072-2G140-C0i199508-199510
BLACK,TRIM2#
main71072-2G160-A0i199508-199712
IVORY,TRIM0#
main71072-2G160-C0i199508-199712
BLACK,TRIM2#
main71072-2G160-C1i199601-199602
25TH ANNIVERSARY,BLACK,TRIM20
main71072-2G390-A0i199712
IVORY,TRIM0#
main71072-2G390-C0i199712
SHADOW GRAY,TRIM2#
main71072-2G430-C0i199712
W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-2G350-A0i199309-199508
IVORY,TRIM0#
main71073-2G350-C0i199508-199510
BLACK,TRIM2#
main71073-2G360-A0i199309-199508
IVORY,TRIM0#
main71073-2G360-C0i199309-199508
BLACK,TRIM2#
main71073-2G380-A0i199309-199311
IV0RY,TRIM0#
main71073-2G380-C0i199309-199311
W(LEATHER SEAT),BLACK,TRIM2#; W(SPORTS SEAT & LEATHER SEAT),BLACK,TRIM2#
main71073-2G390-C0i199309-199508
W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#
main71073-2G480-A0i199311-199508
W(LEATHER SEAT),IVORY,TRIM0#; W(SPORTS SEAT & LEATHER SEAT),IVORY,TRIM0#
main71073-2G480-C0i199311-199508
W(LEATHER SEAT),BLACK,TRIM2#; W(SPORTS SEAT & LEATHER SEAT),BLACK,TRIM2#
main71073-2G580-A0i199508-199712
W(LEATHER SEAT),IVORY,TRIM0#
main71073-2G580-A1i199712
W(LEATHER SEAT),IVORY,TRIM0#
main71073-2G580-C0i199508-199712
W(LEATHER SEAT),BLACK,TRIM2#
main71073-2G580-C3i199712
W(LEATHER SEAT),BLACK,TRIM2#
main71073-2G590-C1i199508-199712
BLACK,TRIM2#; W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#
main71073-2G611-C5i199712
BLACK,TRIM2#
main71073-2G630-A0i199508-199712
W(FABRIC SEAT),IVORY,TRIM0#
main71073-2G630-A1i199611-199704
LIMITED EDITION,IVORY,TRIM0#
main71073-2G630-C0i199510-199712
W(FABRIC SEAT),BLACK,TRIM2#
main71073-2G640-A0i199606-199712
IVORY,TRIM0#
main71073-2G640-C0i199606-199712
BLACK,TRIM2#
main71073-2G870-B0i199701-199705
LIMITED EDITION,SHADOW GRAY,TRIM2#
main71073-2G870-C0i199601-199602
25TH ANNIVERSARY,BLACK,TRIM20
main71073-2H140-C0i199712
W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#
main71073-2H220-A0i199712
IVORY,TRIM0#
main71073-2H220-C0i199712
SHADOW GRAY,TRIM2#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71073-2G360-A0i199309-199508
IVORY,TRIM0#
main71073-2G360-C0i199309-199508
BLACK,TRIM2#
main71073-2G380-A0i199309-199311
IV0RY,TRIM0#
main71073-2G380-C0i199309-199311
W(LEATHER SEAT),BLACK,TRIM2#; W(SPORTS SEAT & LEATHER SEAT),BLACK,TRIM2#
main71073-2G480-A0i199311-199508
W(LEATHER SEAT),IVORY,TRIM0#; W(SPORTS SEAT & LEATHER SEAT),IVORY,TRIM0#
main71073-2G480-C0i199311-199508
W(LEATHER SEAT),BLACK,TRIM2#; W(SPORTS SEAT & LEATHER SEAT);W(LEATHER SEAT),BLACK,TRIM2#
main71073-2G800-C1i199508-199712
W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#
main71073-2G810-A0i199508-199712
W(LEATHER SEAT),IVORY,TRIM0#
main71073-2G810-A1i199712
W(LEATHER SEAT),IVORY,TRIM0#
main71073-2G810-C0i199508-199712
W(LEATHER SEAT),BLACK,TRIM2#
main71073-2G810-C3i199510-199712
W(LEATHER SEAT),BLACK,TRIM2#
main71073-2G820-A0i199508-199712
IVORY,TRIM0#; W(FABRIC SEAT),IVORY,TRIM0#
main71073-2G820-A1i199611-199704
LIMITED EDITION,IVORY,TRIM0#
main71073-2G820-C0i199510-199712
BLACK,TRIM2#
main71073-2G830-A0i199508-199712
IVORY,TRIM0#
main71073-2G830-C0i199508-199712
BLACK,TRIM2#
main71073-2G880-B0i199701-199705
LIMITED EDITION,SHADOW GRAY,TRIM2#
main71073-2G880-C0i199601-199602
25TH ANNIVERSARY,BLACK,TRIM20
main71073-2H130-C0i199712
W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#
main71073-2H150-C0i199712
BLACK,TRIM2#
main71073-2H230-A0i199712
IVORY,TRIM0#
main71073-2H230-C0i199712
SHADOW GRAY,TRIM2#
main71074-2D840-C0i199504-199508
W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#
main71074-2D840-C1i199309-199504
W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#
main71074-2D870-A0i199309-199508
IVORY,TRIM0#
main71074-2D870-C2i199309-199508
BLACK,TRIM2#
71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71410-2G580-C1i199608-199712
***,W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#
main71410-2G580-C4i199712
***,XXXX,TRIM2#
main71410-2H070-A0i199608-199712
***,W(LEATHER SEAT),IVORY,TRIM0#
main71410-2H070-A1i199712
***,W(LEATHER SEAT),IVORY,TRIM0#
main71410-2H070-C2i199608
***,W(LEATHER SEAT),BLACK,TRIM2#
main71410-2H360-A0i199608-199712
***,IVORY,TRIM0#; ***,W(FABRIC SEAT),IVORY,TRIM0#
main71410-2H360-A1i199611-199704
LIMITED EDITION,IVORY,TRIM0#
main71410-2H360-C0i199608-199712
***,GRAY,TRIM2#
main71410-2H370-A0i199608-199712
***,IVORY,TRIM0#
main71410-2H370-C0i199608-199712
***,BLACK,TRIM2#
main71410-2H660-C0i199712
***,BLACK,TRIM2#
main71410-2H740-A0i199712
***,IVORY,TRIM0#
main71410-2H740-C0i199712
***,SHADOW GRAY,TRIM2#
71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
main71420-2G840-A0i199608-199712
***,W(LEATHER SEAT),IVORY,TRIM0#
main71420-2G840-A1i199712
***,W(LEATHER SEAT),IVORY,TRIM0#
main71420-2G840-C0i199608-199712
***,W(LEATHER SEAT),BLACK,TRIM2#
main71420-2G840-C2i199608-199712
***,W(LEATHER SEAT),XXXX,TRIM2#
main71420-2G890-A0i199608-199712
***,IVORY,TRIM0#; ***,W(FABRIC SEAT),IVORY,TRIM0#
main71420-2G890-A1i199611-199704
LIMITED EDITION,IVORY,TRIM0#
main71420-2G890-C0i199608-199712
***,GRAY,TRIM2#
main71420-2H010-A0i199608-199712
***,IVORY,TRIM0#
main71420-2H010-C0i199608-199712
***,BLACK,TRIM2#
main71420-2H030-C0i199608-199712
***,BLACK,TRIM2#; ***,W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#
main71420-2H030-C2i199712
***,XXXX,TRIM2#
main71420-2H280-A0i199712
***,IVORY,TRIM0#
main71420-2H280-C0i199712
***,SHADOW GRAY,TRIM2#
main71420-2H330-C0i199712
***,W(SPORTS SEAT & FABRIC SEAT),XXXX,TRIM2#
71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71040-20020-C0i199712
***,BLACK,TRIM2#
main71040-20120-A0i199712
***,IVORY,TRIM0#
main71040-20120-C0i199712
***,SHADOW GRAY,TRIM2#
main71430-2H211-C5i199712
***,XXXX,TRIM2#
main71430-2H250-C1i199608-199712
***,W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#
main71430-2H270-A0i199608-199712
***,IVORY,TRIM0#; ***,W(FABRIC SEAT),IVORY,TRIM0#
main71430-2H270-A1i199611-199704
LIMITED EDITION,IVORY,TRIM0#
main71430-2H270-C2i199608-199712
***,BLACK,TRIM2#; ***,W(FABRIC SEAT),BLACK,TRIM2#
main71430-2H280-A0i199608-199712
***,IVORY,TRIM0#
main71430-2H280-C0i199608-199712
***,BLACK,TRIM2#
main71430-2H290-A1i199712
***,W(LEATHER SEAT),IVORY,TRIM0#
main71430-2H290-C2i199608
***,W(LEATHER SEAT),BLACK,TRIM2#
main71430-2H650-B0i199701-199705
LIMITED EDITION,SHADOW GRAY,TRIM2#
71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
main71040-20040-C0i199712
***,BLACK,TRIM2#
main71040-20110-C0i199712
***,BLACK,TRIM2#
main71040-20130-A0i199712
***,IVORY,TRIM0#
main71040-20130-C0i199712
***,SHADOW GRAY,TRIM2#
main71430-2H280-A0i199608-199712
***,IVORY,TRIM0#
main71430-2H280-C0i199608-199712
***,BLACK,TRIM2#
main71430-2H580-C0i199608-199712
***,BLACK,TRIM2#; ***,W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#
main71430-2H590-A0i199608-199712
***,W(LEATHER SEAT),IVORY,TRIM0#
main71430-2H590-A1i199712
***,W(LEATHER SEAT),IVORY,TRIM0#
main71430-2H590-C0i199608-199712
***,W(LEATHER SEAT),BLACK,TRIM2#
main71430-2H590-C2i199712
***,W(LEATHER SEAT),BLACK,TRIM2#
main71430-2H600-A0i199608-199712
***,IVORY,TRIM0#; ***,W(FABRIC SEAT),IVORY,TRIM0#
main71430-2H600-A1i199611-199704
LIMITED EDITION,IVORY,TRIM0#
main71430-2H600-C0i199608-199712
***,GRAY,TRIM2#
main71430-2H610-A0i199608-199712
***,IVORY,TRIM0#
main71430-2H610-C0i199608-199712
***,BLACK,TRIM2#
main71430-2H660-B0i199701-199705
LIMITED EDITION,SHADOW GRAY,TRIM2#
71505PAD SUB-ASSY, FRONT SEATBACK W/FRAME, RH
main71505-20280i199508-199510
main71505-20290i199309-199508
W(LEATHER SEAT); W(SPORTS SEAT)
main71505-20360i199508-199510
W(LEATHER SEAT)
main71505-20370i199508-199510
71506PAD SUB-ASSY, FRONT SEATBACK W/FRAME, LH
main71505-20280i199508-199510
main71505-20290i199309-199508
W(LEATHER SEAT); W(SPORTS SEAT)
main71505-20360i199508-199510
W(LEATHER SEAT)
main71505-20370i199508-199510
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71511-20680i199309-199508
main71511-20730i199508-199510
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71511-20680i199309-199508
main71511-20720i199508-199510
71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71610-20520i199309-199508
main71610-20550i199508-199510
71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71610-20530i199309-199508
main71610-20540i199508-199510
71831DCOVER, FRONT SEAT HINGE, RH
main71831-20030×2i199508-199510
71832DCOVER, FRONT SEAT HINGE, LH
main71832-20010×2i199309-199508
71910AHEADREST ASSY, FRONT SEAT
main71910-2B760-C0×2i199508
W(SPORTS SEAT & FABRIC SEAT & *80),BLACK,TRIM2#; W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#
main71910-2B770-A0×2i199507-199508
IVORY,TRIM0#
main71910-2B770-C0×2i199309-199507
BLACK,TRIM0#,2#; BLACK,TRIM2#
main71910-2B771-A0×2i199507-199508
IVORY,TRIM0#
main71910-2B771-C0×2i199507-199508
BLACK,TRIM0#,2#; BLACK,TRIM2#
main71910-2B790-A0×2i199309-199311
W(LEATHER SEAT),IVORY,TRIM0#; W(SPORTS SEAT & LEATHER SEAT),IVORY,TRIM0#
main71910-2B790-C0×2i199309-199311
W(LEATHER SEAT),BLACK,TRIM2#; W(SPORTS SEAT & LEATHER SEAT),BLACK,TRIM2#
main71910-2B800-C1×2i199309-199507
W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#
main71910-2B801-C1×2i199507-199508
W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#
main71910-2B860-A0×2i199508
IVORY,TRIM0#
main71910-2B860-C0×2i199508-199510
BLACK,TRIM2#
main71910-2B880-A0×2i199311-199508
W(LEATHER SEAT),IVORY,TRIM0#; W(SPORTS SEAT & LEATHER SEAT),IVORY,TRIM0#
main71910-2B880-C0×2i199311-199508
W(LEATHER SEAT),BLACK,TRIM2#; W(SPORTS SEAT & LEATHER SEAT),BLACK,TRIM2#
main71910-2D150-A0×2i199508
W(LEATHER SEAT),IVORY,TRIM0#
main71910-2D150-C0×2i199510
W(LEATHER SEAT),BLACK,TRIM2#
71931SUPPORT, FRONT SEAT HEADREST
main71930-12070-A0×2i199309-199412
W(LOCK),IVORY,TRIM0#
main71930-12070-C0×2i199309-199412
W(LOCK),BLACK,TRIM0#,2#; W(LOCK),BLACK,TRIM2#
main71930-20120-A0×2i199508-199703
W(LOCK),IVORY,TRIM0#
main71930-20120-C0×2i199510-199703
W(LOCK),BLACK,TRIM2#
main71930-21050-A0×2i199703
W(LOCK),IVORY,TRIM0#
main71930-21050-C0×2i199703
W(LOCK),BLACK,TRIM2#
main71930-32020-A0×2i199412-199703
W(LOCK),W(KAIPER VERTICAL ADJUSTER),IVORY,TRIM0#
main71930-32020-C0×2i199412-199508
W(LOCK),W(KAIPER VERTICAL ADJUSTER),BLACK,TRIM0#,2#; W(LOCK),W(KAIPER VERTICAL ADJUSTER),BLACK,TRIM2#
main71930-44010-A0×2i199703
W(LOCK),W(KAIPER VERTICAL ADJUSTER),IVORY,TRIM0#
main71930-44010-C0×2i199703
W(LOCK),W(KAIPER VERTICAL ADJUSTER),BLACK,TRIM2#
main71931-12040-A0×2i199309-199412
W/O(LOCK),IVORY,TRIM0#
main71931-12040-C0×2i199309-199412
W/O(LOCK),BLACK,TRIM0#,2#; W/O(LOCK),BLACK,TRIM2#
main71931-20080-A0×2i199508
W/O(LOCK),IVORY,TRIM0#
main71931-20080-C0×2i199508-199510
W/O(LOCK),BLACK,TRIM2#
main71931-32020-A0×2i199508
W/O(LOCK),W(KAIPER VERTICAL ADJUSTER),IVORY,TRIM0#
main71931-32020-C0×2i199412-199508
W/O(LOCK),W(KAIPER VERTICAL ADJUSTER),BLACK,TRIM0#,2#; W/O(LOCK),W(KAIPER VERTICAL ADJUSTER),BLACK,TRIM2#
9046816019
main90468-16019
9046818071
main90468-18071

20 parts on this diagram · 3 diagrams in section

FRONT SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
