FRONT DOOR PANEL & GLASS

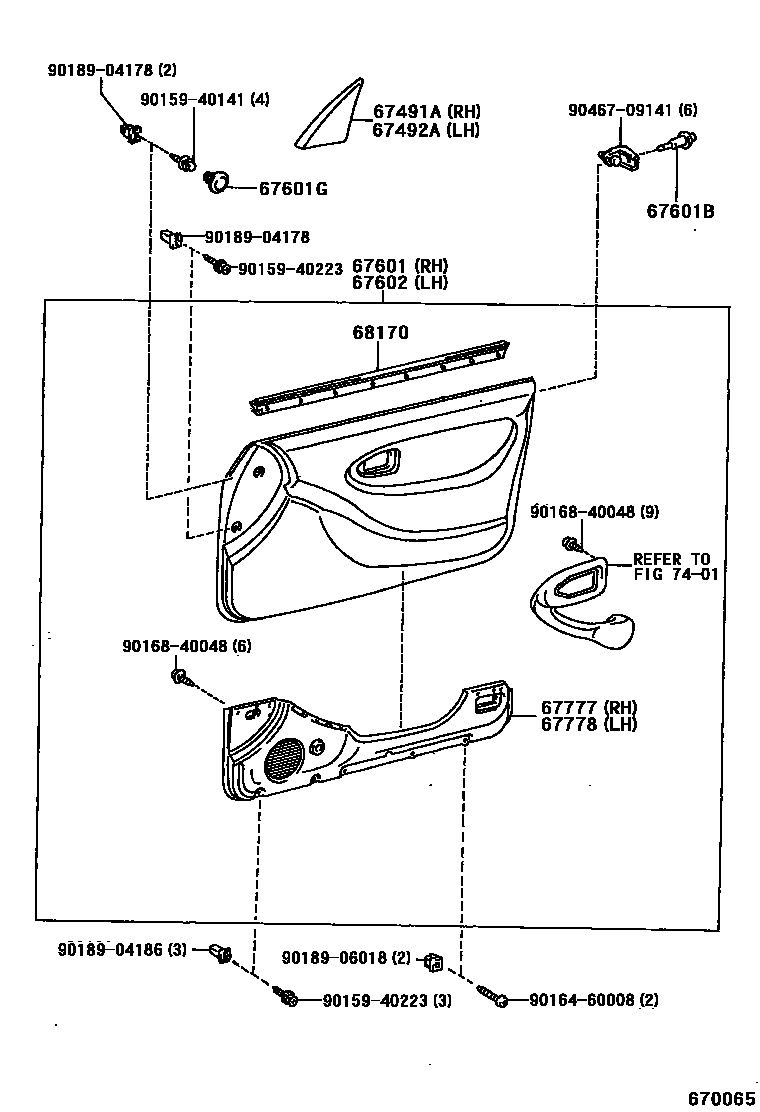

Parts diagram
67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
main67491-20320i199309
main67491-20330i199309
W(SPEAKER)
67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
main67492-20320i199309
main67492-20330i199309
W(SPEAKER)
67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH
main67610-2G090-C1i199309-199508
BLACK,TRIM0#,2#
sub67610-2G090
main67610-2G100-C1i199309-199508
W(POWER WINDOW),BLACK,TRIM0#,2#
sub67610-2G100
main67610-2G120-C1i199309-199508
BLACK,TRIM0#,2#
sub67610-2G120
main67610-2G120-C1i199408-199510
BLACK,TRIM2#
sub67610-2G120
main67610-2G130-A0i199309-199508
W(LEATHER SEAT),IVORY,TRIM0#
main67610-2G130-C1i199309-199510
W(LEATHER SEAT),BLACK,TRIM2#
main67610-2G150-C1i199309-199508
W(8 SPEAKER),BLACK,TRIM0#,2#
sub67610-2G150
main67610-2G150-C1i199408-199510
W(8 SPEAKER),BLACK,TRIM2#
sub67610-2G150
main67610-2G160-A0i199309-199508
W(LEATHER SEAT & 8 SPEAKER),IVORY,TRIM0#
main67610-2G160-C1i199309-199510
W(LEATHER SEAT & 8 SPEAKER),BLACK,TRIM2#
main67610-2G650-A0i199712-199908
IVORY,TRIM0#
main67610-2G650-C0i199712-199908
BLACK,TRIM2#
main67650-2D400-A0i199508-199712
IBORY,TRIM0#
sub67650-2D400
sub67650-2D401
main67650-2D400-C0i199508-199712
BLACK,TRIM2#
sub67650-2D400
sub67650-2D401
main67650-2D420-A0i199508-199712
W(POWER WINDOW),IVORY,TRIM0#
sub67650-2D420
sub67650-2D421
main67650-2D420-C0i199508-199712
W(POWER WINDOW),BLACK,TRIM2#
sub67650-2D420
sub67650-2D421
main67650-2D500-A0i199508-199609
IVORY,TRIM0#
sub67650-2D501
main67650-2D500-C0i199508-199609
BLACK,TRIM2#
sub67650-2D501
main67650-2D501-A0i199611-199704
LIMITED EDITION,IVORY,TRIM0#
sub67650-2D501
main67650-2D501-A0i199508-199712
IVORY,TRIM0#
sub67650-2D501
main67650-2D501-A3i199712-199908
W(POWER WINDOW),IVORY,TRIM0#
sub67650-2D501
main67650-2D501-C0i199508-199510
BLACK,TRIM2#
sub67650-2D501
main67650-2D501-C4i199712-199908
W(POWER WINDOW),BLACK,TRIM2#
sub67650-2D501
main67650-2D520-A0i199508-199609
W(LEATHER SEAT),IVORY,TRIM0#
sub67650-2D521
main67650-2D520-C0i199609-199712
BLACK,TRIM2#
sub67650-2D521
main67650-2D520-C0i199508-199609
W(LEATHER SEAT),BLACK,TRIM2#
sub67650-2D521
main67650-2D521-A1i199609-199908
W(LEATHER SEAT),IVORY,TRIM0#
sub67650-2D521
main67650-2D521-C1i199609-199712
BLACK,TRIM2#
sub67650-2D521
main67650-2D521-C1i199609-199908
W(LEATHER SEAT),BLACK,TRIM2#
sub67650-2D521
main67650-2D530-A0i199508-199712
W(8 SPEAKER),IVORY,TRIM0#
sub67650-2D531
main67650-2D530-C0i199510-199609
BLACK,TRIM2#
sub67650-2D531
main67650-2D530-C0i199508-199712
W(8 SPEAKER),BLACK,TRIM2#
sub67650-2D531
main67650-2D531-A2i199609-199908
W(8 SPEAKER),IVORY,TRIM0#
sub67650-2D531
main67650-2D531-C3i199712-199908
W(8 SPEAKER),BLACK,TRIM2#
sub67650-2D531
main67650-2D550-A0i199508-199712
W(LEATHER SEAT & 8 SPEAKER),IVORY,TRIM0#
sub67650-2D551
main67650-2D550-C0i199508-199712
W(LEATHER SEAT & 8 SPEAKER),BLACK,TRIM2#
sub67650-2D551
main67650-2D551-A1i199609-199908
W(LEATHER SEAT & 8 SPEAKER),IVORY,TRIM0#
sub67650-2D551
main67650-2D551-C1i199609-199908
W(LEATHER SEAT & 8 SPEAKER),BLACK,TRIM2#
sub67650-2D551
67601BCLIP(FOR FRONT DOOR TRIM BOARD)
main90467-07066-22i199309
BLACK,TRIM0#,2#
sub90467-07066
main90467-07066-22i199408
BLACK,TRIM2#
sub90467-07066
67601GPLUG, HOLE(FOR FRONT DOOR TRIM BOARD)
main90950-01800-C0i199309-199402
BLACK,TRIM0#,2#
sub90950-01800
main90950-01800-C0i199408
BLACK,TRIM2#
sub90950-01800
67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH
main67620-2L060-A0i199508-199712
IVORY,TRIM0#
sub67620-2L060
sub67620-2L061
main67620-2L060-C0i199508-199712
BLACK,TRIM2#
sub67620-2L060
sub67620-2L061
main67620-2L080-A0i199508-199712
W(POWER WINDOW),IVORY,TRIM0#
sub67620-2L080
sub67620-2L081
main67620-2L080-C0i199508-199712
W(POWER WINDOW),BLACK,TRIM2#
sub67620-2L080
sub67620-2L081
main67620-2L090-C1i199309-199508
BLACK,TRIM0#,2#
sub67620-2L090
main67620-2L100-C1i199309-199508
W(POWER WINDOW),BLACK,TRIM0#,2#
sub67620-2L100
main67620-2L120-C1i199408-199510
BLACK,TRIM2#
sub67620-2L120
main67620-2L120-C1i199309-199508
BLACK,TRIM0#,2#
sub67620-2L120
main67620-2L130-A0i199309-199508
W(LEATHER SEAT),IVORY,TRIM0#
main67620-2L130-C1i199309-199510
W(LEATHER SEAT),BLACK,TRIM2#
main67620-2L150-C1i199408-199510
W(8 SPEAKER),BLACK,TRIM2#
sub67620-2L150
main67620-2L150-C1i199309-199508
W(8 SPEAKER),BLACK,TRIM0#,2#
sub67620-2L150
main67620-2L160-A0i199309-199508
W(LEATHER SEAT & 8 SPEAKER),IVORY,TRIM0#
main67620-2L160-C1i199309-199510
W(LEATHER SEAT & 8 SPEAKER),BLACK,TRIM2#
main67620-2L360-A0i199508-199712
IVORY,TRIM0#
sub67620-2L361
main67620-2L360-C0i199508-199712
BLACK,TRIM2#
sub67620-2L361
main67620-2L361-A0i199611-199704
LIMITED EDITION,IVORY,TRIM0#
sub67620-2L361
main67620-2L361-A3i199712-199908
W(POWER WINDOW),IVORY,TRIM0#
sub67620-2L361
main67620-2L361-C3i199712-199908
W(POWER WINDOW),BLACK,TRIM2#
sub67620-2L361
main67620-2L520-A0i199508-199712
W(LEATHER SEAT),IVORY,TRIM0#
sub67620-2L521
main67620-2L520-C0i199508-199712
W(LEATHER SEAT),BLACK,TRIM2#
sub67620-2L521
main67620-2L521-A0i199609-199712
W(LEATHER SEAT),IVORY,TRIM0#
sub67620-2L521
main67620-2L521-A1i199609-199908
W(LEATHER SEAT),IVORY,TRIM0#
sub67620-2L521
main67620-2L521-C1i199609-199908
W(LEATHER SEAT),BLACK,TRIM2#
sub67620-2L521
main67620-2L530-A0i199508-199712
W(8 SPEAKER),IVORY,TRIM0#
sub67620-2L531
main67620-2L530-C0i199510-199712
W(8 SPEAKER),BLACK,TRIM2#
sub67620-2L531
main67620-2L531-A2i199609-199908
W(8 SPEAKER),IVORY,TRIM0#
sub67620-2L531
main67620-2L531-C3i199712-199908
W(8 SPEAKER),BLACK,TRIM2#
sub67620-2L531
main67620-2L550-A0i199508-199712
W(LEATHER SEAT & 8 SPEAKER),IVORY,TRIM0#
sub67620-2L551
main67620-2L550-C0i199508-199712
W(LEATHER SEAT & 8 SPEAKER),BLACK,TRIM2#
sub67620-2L551
main67620-2L551-A1i199609-199908
W(LEATHER SEAT & 8 SPEAKER),IVORY,TRIM0#
sub67620-2L551
main67620-2L551-C1i199609-199908
W(LEATHER SEAT & 8 SPEAKER),BLACK,TRIM2#
sub67620-2L551
main67660-20020-A0i199712-199908
IVORY,TRIM0#
main67660-20020-C0i199712-199908
BLACK,TRIM2#
67777POCKET, FRONT DOOR TRIM, RH
main67777-20220-C0i199309
W/O(POWER WINDOW),BLACK,TRIM0#,2#
main67777-20230-C0i199309
BLACK,TRIM0#,2#
sub67777-20230
main67777-20230-C0i199408
BLACK,TRIM2#
sub67777-20230
main67777-20250-C0i199309
W(8 SPEAKER),BLACK,TRIM0#,2#
sub67777-20250
main67777-20250-C0i199408
W(8 SPEAKER),BLACK,TRIM2#
sub67777-20250
67778POCKET, FRONT DOOR TRIM, LH
main67778-20220-C0i199309
W/O(POWER WINDOW),BLACK,TRIM0#,2#
main67778-20230-C0i199309
BLACK,TRIM0#,2#
sub67778-20230
main67778-20230-C0i199408
BLACK,TRIM2#
sub67778-20230
main67778-20250-C0i199309
W(8 SPEAKER),BLACK,TRIM0#,2#
sub67778-20250
main67778-20250-C0i199408
W(8 SPEAKER),BLACK,TRIM2#
sub67778-20250
68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
main68170-20400i199309
RH
main68220-20300i199309
LH
7401
9015940141
main90159-40141
9015940223
main90159-40223
9016460008
main90164-60008
9016840048
main90168-40048
9018904178
main90189-04178
9018904186
main90189-04186
9018906018
main90189-06018
9046709141
main90467-09141

18 parts on this diagram · 3 diagrams in section
