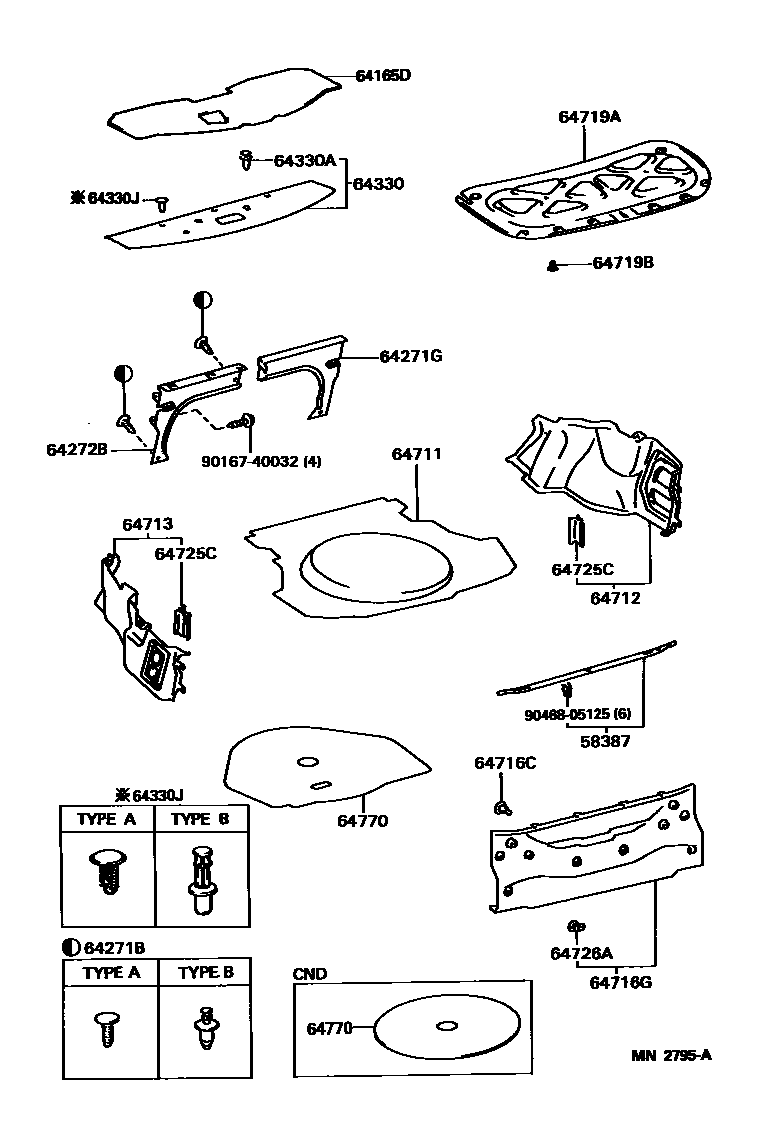

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

0001 1 0002 1

58387PLATE, REAR FLOOR FINISH

main58387-20050-C0iST204..CVT199408

BLACK,TRIM2#

main58387-20050-C0iAT200,ST204..CP199309

BLACK,TRIM0#,2#

64165DCOVER, UPPER BACK PANEL HOLE, NO.1

main64165-20070iAT200,ST204..CP199508

64271BCLIP(FOR ROOM PARTITION BOARD)

main90467-06016-C0iAT200,ST204..CP199309

BLACK,TRIM0#,2#,TYPE A

sub90467-06016

sub90467-07049

main90467-08182-C0iAT200,ST204..CP199309

BLACK,TRIM0#,2#,TYPE B

sub90467-08182

64271GBOARD, ROOM PARTITION, RH

main64271-20260-C0iAT200,ST204..CP199309

BLACK,TRIM0#,2#

64272BBOARD, ROOM PARTITION, LH

main64272-20260-C0iAT200,ST204..CP199309

BLACK,TRIM0#,2#

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-2B830-C0iAT200,ST204..CP199309-199508

BLACK,TRIM0#,2#

sub64330-2B840

main64330-2D060-C0iAT200,ST204..CP199508

BLACK,TRIM0#,2#

sub64330-2D070

64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)

main90467-09153iAT200,ST204..CP199309

64330JCLIP(FOR PACKAGE TRAY TRIM PANEL)

main90467-07042-C0iAT200,ST204..CP199508

BLACK,TRIM0#,2#,TYPE A

sub90467-07042

sub90467-06175

main90467-07073-C0iAT200,ST204..CP199309-199508

BLACK,TRIM0#,2#

sub90467-07073

main90467-07073-C0iAT200,ST204..CP199508

BLACK,TRIM0#,2#,TYPE B

sub90467-07073

64711MAT, LUGGAGE COMPARTMENT FLOOR

main64711-2B020-C0iAT200,ST204..CP..USA199309

BLACK,TRIM0#,2#

main64711-2B020-C0iST204..CVT199408

BLACK,TRIM2#

main64711-2B030-C0iST204..CP..CND199309-199508

BLACK,TRIM0#,2#

64712COVER, LUGGAGE COMPARTMENT TRIM, RH

main64712-20210-C0iST204..CVT199408

BLACK,TRIM2#

main64712-20210-C0iAT200,ST204..CP199309

BLACK,TRIM0#,2#

64713COVER, LUGGAGE COMPARTMENT TRIM, LH

main64713-20210-C0iST204..CVT199408

BLACK,TRIM2#

main64713-20210-C0iAT200,ST204..CP199309

BLACK,TRIM0#,2#

64716CCLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)

main90467-07146iAT200,ST204..CP199309

64716GCOVER, LUGGAGE COMPARTMENT TRIM, REAR

main64716-20510-C0iST204..CVT199408

BLACK,TRIM2#

main64716-20510-C0iAT200,ST204..CP199309

BLACK,TRIM0#,2#

64719ACOVER, LUGGAGE COMPARTMENT DOOR

main64719-20060-C0iAT200,ST204..CP199309-199508

BLACK,TRIM0#,2#

main64719-20060-C0iST204..CVT199408

BLACK,TRIM2#

64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)

main90467-07146iST204..CP,CVT199309-199508

64725CRETAINER, LUGGAGE COMPARTMENT COVER

main64725-20050-C1iAT200,ST204..CP199309

BLACK,TRIM0#,2#

main64725-20050-C1iST204..CVT199408

BLACK,TRIM2#

64726ACLIP, LUGGAGE TRIM, REAR

main64726-20020-C0iAT200,ST204..CP199309

BLACK,TRIM0#,2#

sub64726-20020

main64726-20020-C0iST204..CVT199408

BLACK,TRIM2#

sub64726-20020

64770COVER ASSY, SPARE WHEEL

main64770-20230iAT200,ST204..(CP,CVT)..USA199309

main64770-20240iST204..CP..CND199309-199508

9016740032

main90167-40032

9046805125

main90468-05125

20 parts on this diagram · 2 diagrams in section
