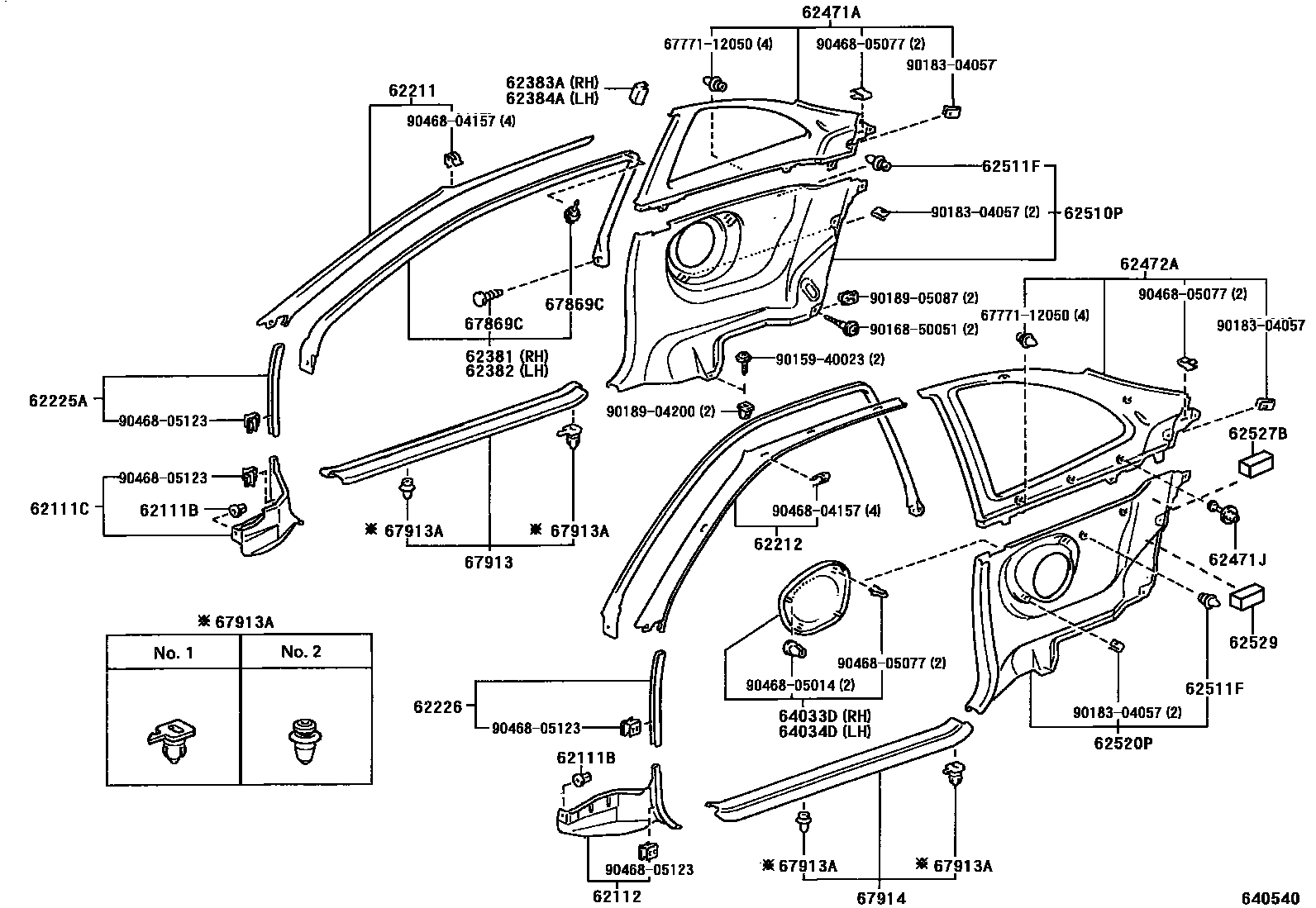

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

0001 1 0002 1

62111BCLIP(FOR COWL SIDE TRIM)

main90467-06094iAT200,ST204199612

main90467-06158-C0iST204..CVT199408-199612

BLACK,TRIM2#

main90467-06158-C0iAT200,ST204..CP,LB199309-199612

BLACK,TRIM0#,2#

62111CBOARD, COWL SIDE TRIM, RH

main62111-20310-C0iAT200,ST204..CP,LB199309

BLACK,TRIM0#,2#

main62111-20310-C0iST204..CVT199408

BLACK,TRIM2#

62112BOARD, COWL SIDE TRIM, LH

main62112-20320-C0iAT200,ST204..CP,LB199309

BLACK,TRIM0#,2#

sub62112-20310

main62112-20320-C0iST204..CVT199408

BLACK,TRIM2#

sub62112-20310

62211GARNISH, FRONT PILLAR, RH

main62211-20260-C0iAT200,ST204..CP,LB199309

BLACK,TRIM0#,2#

sub62211-20260

main62211-20260-C0iST204..CVT199408

BLACK,TRIM2#

sub62211-20260

62212GARNISH, FRONT PILLAR, LH

main62212-20260-C0iAT200,ST204..CP,LB199309

BLACK,TRIM0#,2#

sub62212-20260

main62212-20260-C0iST204..CVT199408

BLACK,TRIM2#

sub62212-20260

62225AGARNISH, FRONT PILLAR, LOWER RH

main62225-20010-C0iST204..CVT199408

BLACK,TRIM2#

sub62225-20010

main62225-20010-C0iAT200,ST204..CP,LB199309

BLACK,TRIM0#,2#

sub62225-20010

62226GARNISH, FRONT PILLAR, LOWER LH

main62226-20010-C0iAT200,ST204..CP,LB199309

BLACK,TRIM0#,2#

sub62226-20010

main62226-20010-C0iST204..CVT199408

BLACK,TRIM2#

sub62226-20010

62381WEATHERSTRIP, ROOF SIDE RAIL, FRONT RH

main62381-20090iAT200,ST204199309-199410

sub62381-20091

main62381-20091iAT200,ST204199410-199501

sub62381-20092

main62381-20092iAT200,ST204199501

62382WEATHERSTRIP, ROOF SIDE RAIL, FRONT LH

main62382-20090iAT200,ST204199309-199410

sub62382-20091

main62382-20091iAT200,ST204199410-199501

sub62382-20092

main62382-20092iAT200,ST204199501

62383AWEATHERSTRIP, ROOF SIDE RAIL, REAR RH

main67887-20020iAT200,ST204199309

62384AWEATHERSTRIP, ROOF SIDE RAIL, REAR LH

main67887-20020iAT200,ST204199309

62471AGARNISH, ROOF SIDE, INNER RH

main62470-20170-C0iAT200,ST204..LB199309

BLACK,TRIM0#,2#

main62470-20180-C0iAT200,ST204..CP199309-199808

BLACK,TRIM0#,2#

sub62470-20180

62471JCLIP (FOR ROOF SIDE GARNISH)

main90467-07146iAT200,ST204..CP199309

62472AGARNISH, ROOF SIDE, INNER LH

main62480-20170-C0iAT200,ST204..LB199309

BLACK,TRIM0#,2#

main62480-20180-C0iAT200,ST204..CP199309-199808

BLACK,TRIM0#,2#

sub62480-20180

62510PPANEL ASSY, QUARTER TRIM, FRONT RH

main62510-20570-C0iAT200,ST204..CP,LB199309-199508

BLACK,TRIM0#,2#

main62510-20580-C0iAT200,ST204..CP,LB199508

BLACK,TRIM0#,2#

62511FRETAINER (FOR QUARTER INSIDE TRIM BOARD)

main67771-12050iAT200,ST204..CP,LB199309

62520PPANEL ASSY, QUARTER TRIM, FRONT LH

main62520-20570-C0iAT200,ST204..CP,LB199309-199508

BLACK,TRIM0#,2#

main62520-20580-C0iAT200,ST204..CP,LB199508

BLACK,TRIM0#,2#

62527BPAD, QUARTER TRIM

main62527-20100iAT200,ST204..CP,LB199508

62529PAD, QUARTER TRIM, NO.2

main62529-20070iAT200,ST204..CP,LB199508

64033DGRILLE SUB-ASSY, REAR SPEAKER, RH

main64033-20320-C0iAT200,ST204..CP,LB199309

BLACK,TRIM0#,2#

64034DGRILLE SUB-ASSY, REAR SPEAKER, LH

main64034-20320-C0iAT200,ST204..CP,LB199309

BLACK,TRIM0#,2#

67869CCLIP, ROOF SIDE RAIL WEATHERSTRIP

main67869-20030iAT200,ST204199309

67913PLATE, FRONT DOOR SCUFF, RH

main67913-20250-C0iAT200,ST204..CP,LB199309

BLACK,TRIM0#,2#

sub67913-20250

main67913-20260-C0iST204..CVT199408

BLACK,TRIM2#

sub67913-20250

67913ACLIP(FOR SCUFF PLATE)

main67921-20060iST204..CVT199408

NO.2

main67921-20070iST204..CVT199408

NO.1

main90467-10123iAT200,ST204..CP,LB199309

NO.1

main90467-10162iAT200,ST204..CP,LB199309

NO.2

67914PLATE, FRONT DOOR SCUFF, LH

main67914-20250-C0iAT200,ST204..CP,LB199309

BLACK,TRIM0#,2#

sub67914-20250

main67914-20260-C0iST204..CVT199408

BLACK,TRIM2#

sub67914-20250

6777112050WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-12050

9015940023

main90159-40023

9016850051

main90168-50051

9018304057

main90183-04057

9018904200

main90189-04200

9018905087

main90189-05087

9046804157

main90468-04157

9046805014

main90468-05014

9046805077

main90468-05077

9046805123

main90468-05123

35 parts on this diagram · 2 diagrams in section
