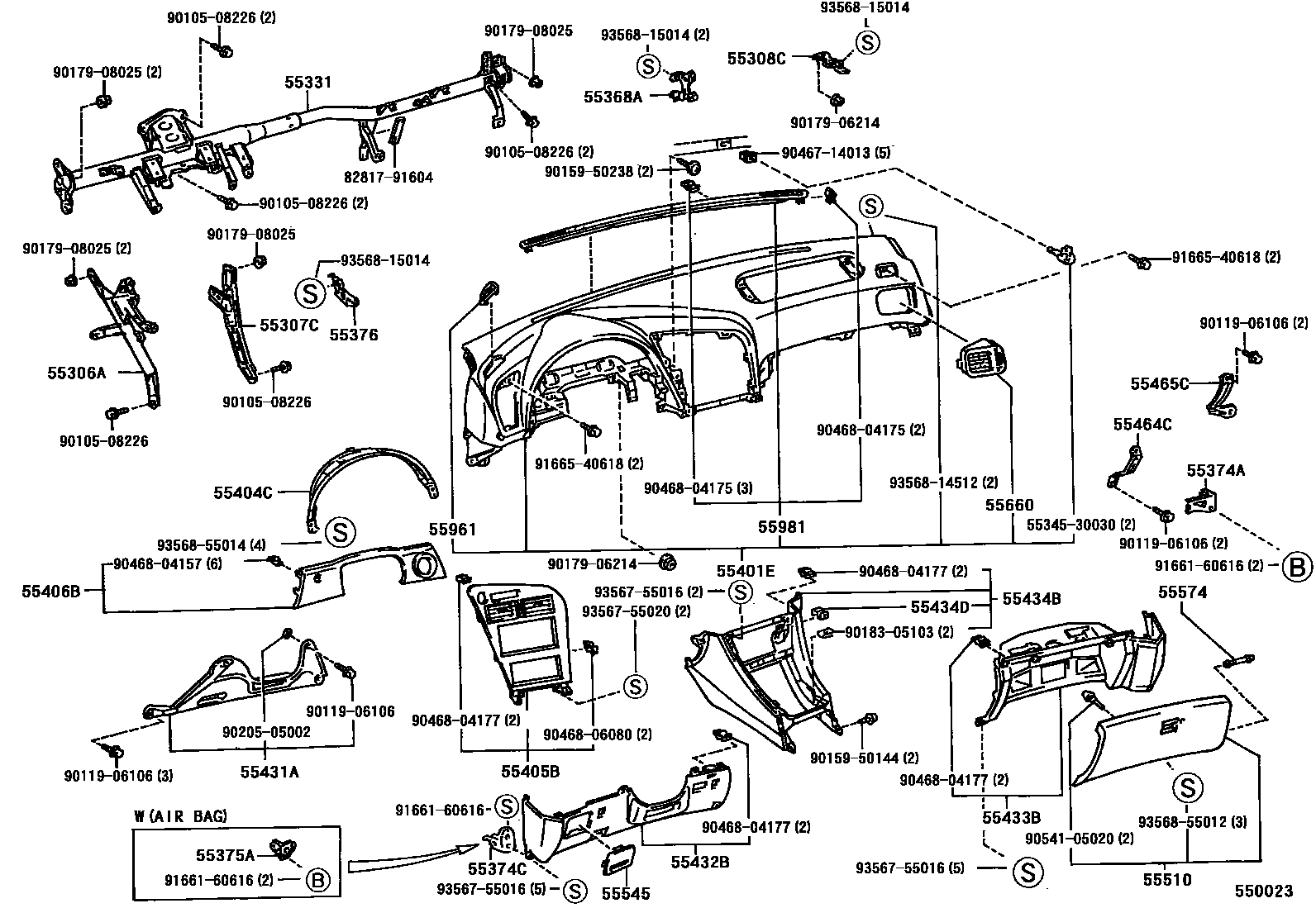

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-20240iAT200,ST204199309

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-20180iAT200;ST204..GT199309

W(*80;DRIVER SIDE & *80;FRONT PASSENGER SIDE)

main55352-20200iAT200,ST204..CND199309

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-20200iAT200,ST204199309

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-20200iAT200,ST204..CND199309-199508

main55330-20210iST204..CVT199508-199510

main55330-20230iAT200,ST204..CND199508

main55330-20240iAT200,ST204..CP,LB199508-199510

W(*80;DRIVER SIDE & *80;FRONT PASSENGER SIDE)

55368ABRACKET, RADIO MOUNTING, NO.2

main55368-20100iAT200,ST204199309

55374ABRACKET, INSTRUMENT PANEL LOWER MOUNTING, RH

main55374-20030iAT200,ST204..CND199309

main55374-20040iAT200;ST204..GT199309

W(*80;DRIVER SIDE & *80;FRONT PASSENGER SIDE)

55374CBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1

main55374-20030iAT200,ST204..CND199309

55375ABRACKET, INSTRUMENT PANEL LOWER MOUNTING, LH

main55375-20050iAT200,ST204199309

55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1

main55376-20140iAT200,ST204199309

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-20690-C0iST204..CVT199408

BLACK,TRIM2#

main55401-20710×4iAT200,ST204..CND199309-199311

main55401-20710-C0iAT200,ST204..CND199309

BLACK,TRIM0#,2#

55404CPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2

main55411-20660iAT200,ST204199309

55405BPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER

main55405-20210iAT200,ST204199309

55406BPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER

main55406-20070iAT200,ST204199309

55431APANEL, INSTRUMENT PANEL FINISH

main55431-20190iAT200,ST204199309

55432BPANEL, INSTRUMENT PANEL FINISH, LOWER

main55432-20340-C0iST204..CVT199408

BLACK,TRIM2#

55433BPANEL, INSTRUMENT PANEL FINISH, LOWER NO.2

main55433-20140-C0iST204..CVT199408

BLACK,TRIM2#

55434BPANEL, INSTRUMENT PANEL FINISH, LOWER CENTER

main55434-20180-C0iST204..CVT199408

BLACK,TRIM2#

55434DCLIP, INSTRUMENT PANEL FINISH, LOWER CENTER

main90183-05018×2iAT200,ST204199309-199402

main90183-05045×2iAT200,ST204199402

55464CINSERT, INSTRUMENT PANEL LOWER PAD, RH

main55464-20160iAT200,ST204199309

55465CINSERT, INSTRUMENT PANEL LOWER PAD, LH

main55465-20080iAT200,ST204199309

55510DOOR ASSY, GLOVE COMPARTMENT

main55501-20140-C0iAT200,ST204..CND199309

BLACK,TRIM0#,2#

main55501-20150-C0iST204..CVT199408

BLACK,TRIM2#

55545COVER, FUSE BOX OPENING

main55545-20060-C0iST204..CVT199408

BLACK,TRIM2#

55574SHAFT, GLOVE COMPARTMENT DOOR HINGE

main55574-10010×2iAT200,ST204199309

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-20240-C0iST204..CVT199408

BLACK,TRIM2#

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-20240-C0iST204..CVT199408

BLACK,TRIM2#

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-20120iAT200,ST204199309

5534530030GARNISH, GLOVE COMPARTMENT, UPPER

main55345-30030

8281791604PROTECTOR, WIRING HARNESS, NO.1

main82817-91604

9010508226

main90105-08226

9011906106

main90119-06106

9015950144

main90159-50144

9015950238

main90159-50238

9017906214

main90179-06214

9017908025

main90179-08025

9018305103

main90183-05103

9020505002

main90205-05002

9046714013

main90467-14013

9046804157

main90468-04157

9046804175

main90468-04175

9046804177

main90468-04177

9046806080

main90468-06080

9054105020

main90541-05020

9166160616

main91661-60616

9166540618

main91665-40618

9356755016

main93567-55016

9356755020

main93567-55020

9356814512

main93568-14512

9356815014

main93568-15014

9356855012

main93568-55012

9356855014

main93568-55014

50 parts on this diagram · 2 diagrams in section
