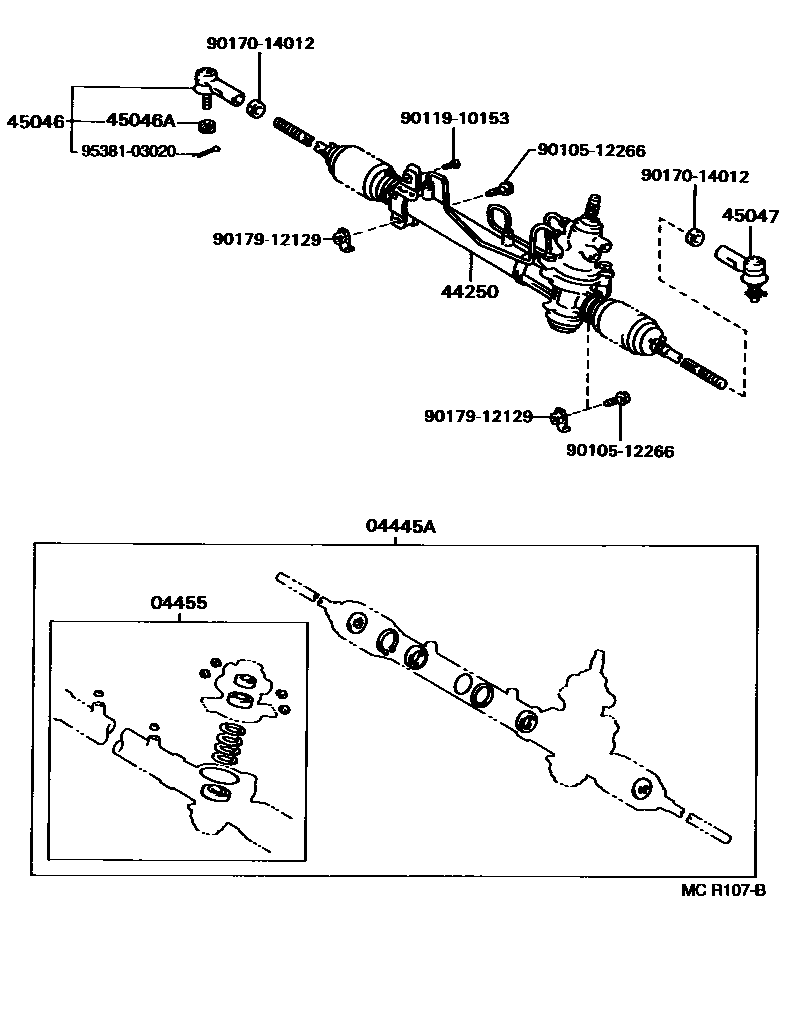

FRONT STEERING GEAR & LINK

0001 1 0002 1

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-20180iAT200,ST204199309

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-20140iAT200,ST204199309

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-20640iAT200,ST204199309

45046END SUB-ASSY, TIE ROD, RH

main45046-29305iAT200,ST204199309

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iAT200,ST204199309

45047END SUB-ASSY, TIE ROD, LH

main45046-29305iAT200,ST204199309

9010512266

main90105-12266

9011910153

main90119-10153

9017014012

main90170-14012

9017912129

main90179-12129

9538103020

main95381-03020

11 parts on this diagram · 2 diagrams in section
