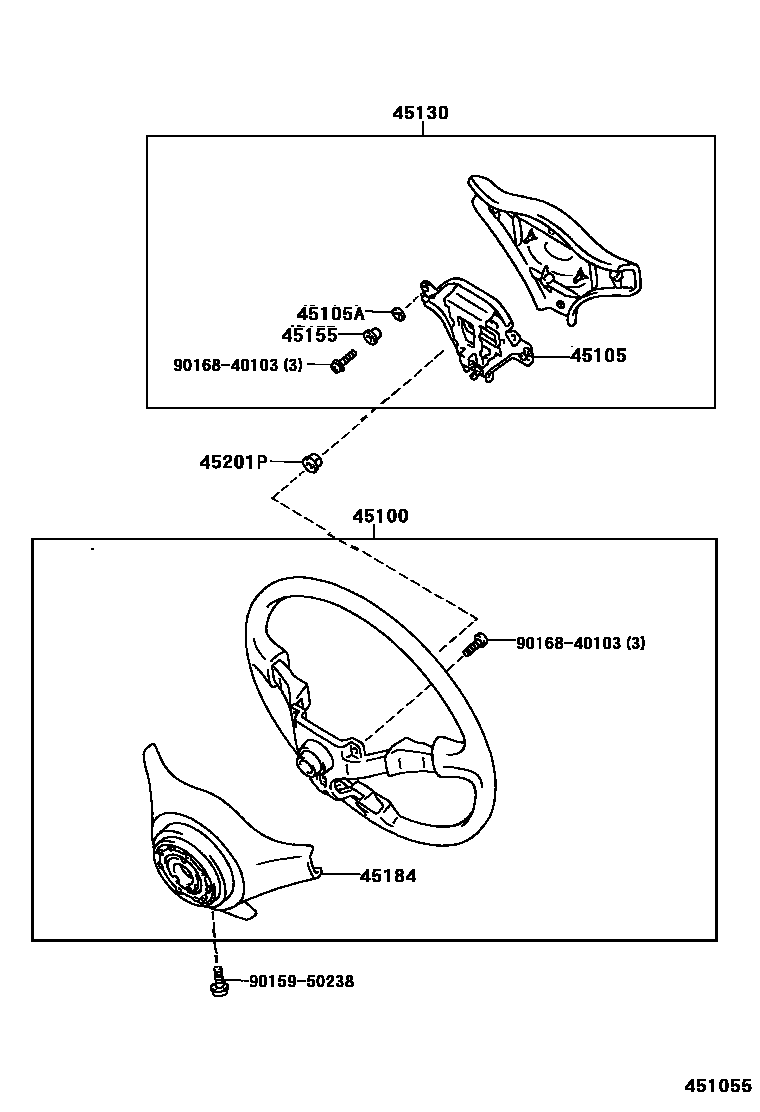

STEERING WHEEL

0001 13-SPOKE 0002 14-SPOKE;W(*80) 0003 13-SPOKE 0004 13-SPOKE;W(CRUISE CONTROL)

45100WHEEL ASSY, STEERING

main45100-12891-C1iST204..GT..USA199712-199905

3-SPOKE,LEATHER,BLACK / RED,TRIM2#

sub45100-12891

main45100-12891-C2iST204..ST199712-199908

3-SPOKE,LEATHER,BLACK,TRIM0#,2#

sub45100-12891

main45100-12891-C2iST204..GT..USA199712-199905

3-SPOKE,LEATHER,BLACK,TRIM20

sub45100-12891

main45100-14640-C0iST204..ST199712-199908

3-SPOKE,URETHANE,BLACK,TRIM0#,2#

main45100-14640-C0iST204..GT..USA199712-199905

3-SPOKE,URETHANE,BLACK,TRIM2#

main45100-14650-C1iST204..CP,LB199712-199908

3-SPOKE,LEATHER,W(CRUISE CONTROL),BLACK,TRIM0#,2#

sub45100-14650

main45100-14650-C1iST204..GT..USA199712-199905

3-SPOKE,LEATHER,W(CRUISE CONTROL),BLACK,TRIM2#

sub45100-14650

main45100-2B290-C0iAT200,ST204..CND199309-199908

3-SPOKE,URETHANE,BLACK,TRIM0#,2#

main45100-2B390-C0iST204..CVT199408-199510

4-SPOKE,URETHANE,BLACK,TRIM2#

main45100-2B390-C0iAT200,ST204..(CP,LB)..USA199309-199508

4-SPOKE,URETHANE,BLACK,TRIM0#,2#

main45100-2B400-C0iST204..CVT199408-199510

4-SPOKE,URETHANE,W(CRUISE CONTOROL),BLACK,TRIM2#

main45100-2B400-C0iAT200,ST204..CP,LB199309-199508

4-SPOKE,URETHANE,W(CRUISE CONTOROL),BLACK,TRIM0#,2#

main45100-2B410-C0iST204..CVT199408-199510

4-SPOKE,LEATHER,BLACK,TRIM2#

main45100-2B410-C0iST204..CP,LB199309-199508

4-SPOKE,LEATHER,BLACK,TRIM0#,2#

main45100-2B460-C0iAT200,ST204..(CP,LB)..USA199508-199612

4-SPOKE,URETHANE,BLACK,TRIM0#,2#

main45100-2B460-C0iST204..CVT199510-199612

4-SPOKE,URETHANE,BLACK,TRIM2#

main45100-2B470-C0iAT200,ST204..CP,LB199508-199612

4-SPOKE,URETHANE,W(CRUISE CONTOROL),BLACK,TRIM0#,2#

main45100-2B470-C0iST204..CVT199510-199612

4-SPOKE,URETHANE,W(CRUISE CONTOROL),BLACK,TRIM2#

main45100-2B490-C0iAT200,ST204..CP,LB199508-199712

4-SPOKE,LEATHER,BLACK,TRIM0#,2#

main45100-2B490-C0iST204..CVT199510-199712

4-SPOKE,LEATHER,BLACK,TRIM2#

main45100-2B590-C0iAT200,ST204..(CP,LB)..USA199612-199712

4-SPOKE,URETHANE,BLACK,TRIM2#

main45100-2B590-C0iAT200,ST204..(CP,LB)..USA199612-199712

4-SPOKE,URETHANE,BLACK,TRIM0#,2#

main45100-2B600-C0iST204..CVT199612-199712

4-SPOKE,URETHANE,W(CRUISE CONTROL),BLACK,TRIM0#,2#

main45100-2B600-C0iST204..CVT199612-199712

4-SPOKE,URETHANE,W(CRUISE CONTROL),BLACK,TRIM2#

main45100-2B670-C0iST204..GT..USA199712-199905

3-SPOKE,URETHANE,W(CRUISE CONTROL),BLACK,TRIM2#

main45100-2B670-C0iST204..CP,LB199712-199908

3-SPOKE,URETHANE,W(CRUISE CONTROL),BLACK,TRIM0#,2#

45105PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1

main45105-20500iAT200,ST204..CND199309

45105ACUSHION(FOR HORN BUTTON CONTACT PLATE)

main90540-08014iAT200,ST204..CND199309

45130BUTTON ASSY, HORN

main45130-14360-C0iST204..GT..USA199712

W(*80,DRIVER SIDE & PASSENGER SIDE),BLACK,TRIM0#,2#

sub45130-14360

main45130-14360-C0iST204..GT..USA199712

BLACK,TRIM2#

sub45130-14360

main45130-2B240-C0iAT200;ST204..(CP,LB)..GT199510

BLACK,TRIM2#

main45130-2B241-C0iST204..CVT199510-199712

BLACK,TRIM2#

main45130-2B241-C0iAT200,ST204..CP,LB199508-199712

W(*80),BLACK,TRIM0#,2#

main45130-2B270-C0iAT200,ST204..CND199309

BLACK,TRIM0#,2#

sub45130-2B270

main45130-2B300-C0iST204..CVT199408-199510

BLACK,TRIM2#

main45130-2B300-C0iAT200,ST204..CP,LB199309-199508

W(*80),BLACK,TRIM0#,2#

45155SPACER, HORN BUTTON CONTACT PLATE

main45155-22040iAT200,ST204..CND199309

45184COVER, STEERING WHEEL BOSS, LOWER

main45180-20270-C0iAT200,ST204..CND199309

BLACK,TRIM0#,2#

sub45180-20270

45201PNUT, STEERING WHEEL SET

main90179-12071iAT200,ST204199309

9015950238

main90159-50238

9016840103

main90168-40103

9 parts on this diagram · 4 diagrams in section
