ENGINE OVERHAUL GASKET KIT

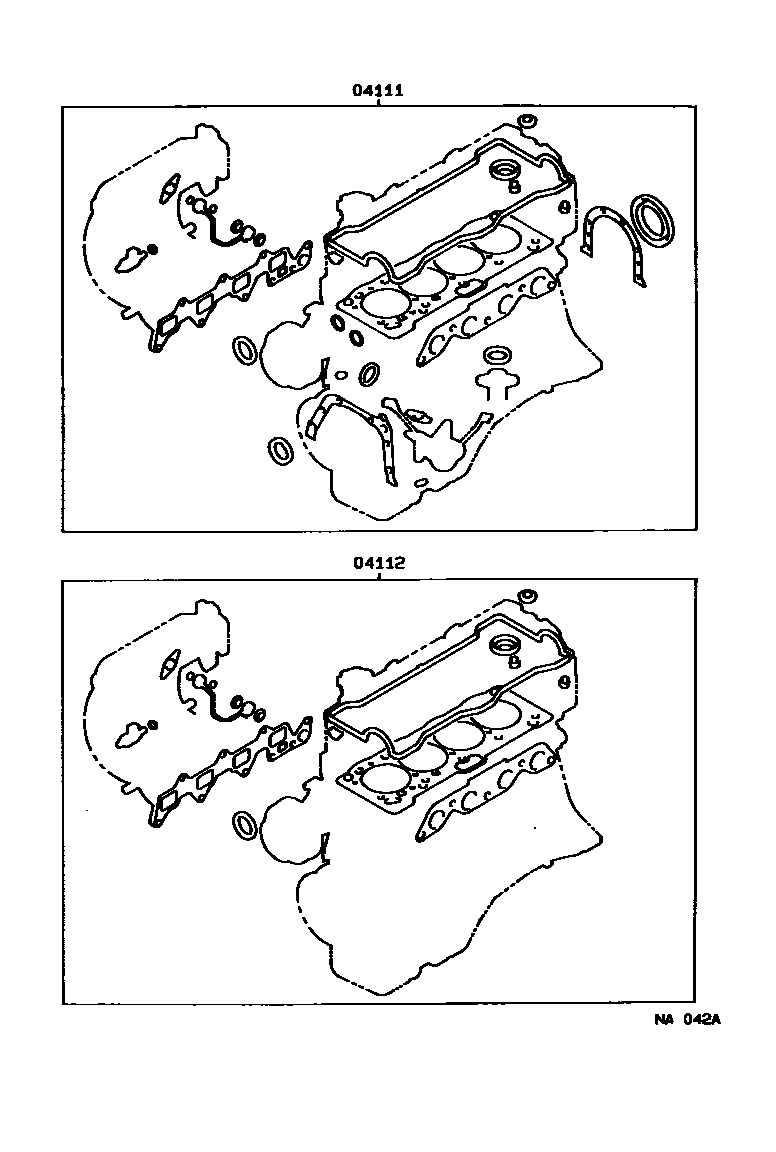

Parts diagram
04111GASKET KIT, ENGINE OVERHAUL
main04111-16281i199309-199312
sub04111-16282
main04111-16282i199312-199712
main04111-74510i199309-199508
sub04111-74512
main04111-74511i199508-199510
sub04111-74513
main04111-74620i199508-199612
sub04111-74622
main04111-74621i199612
04112GASKET KIT, ENGINE VALVE GRIND
main04112-16280i199309-199312
sub04112-16281
main04112-16281i199312-199712
main04112-74500i199309-199510
sub04112-74501
main04112-74580i199508-199612
sub04112-74582
main04112-74581i199612

2 parts on this diagram · 3 diagrams in section
