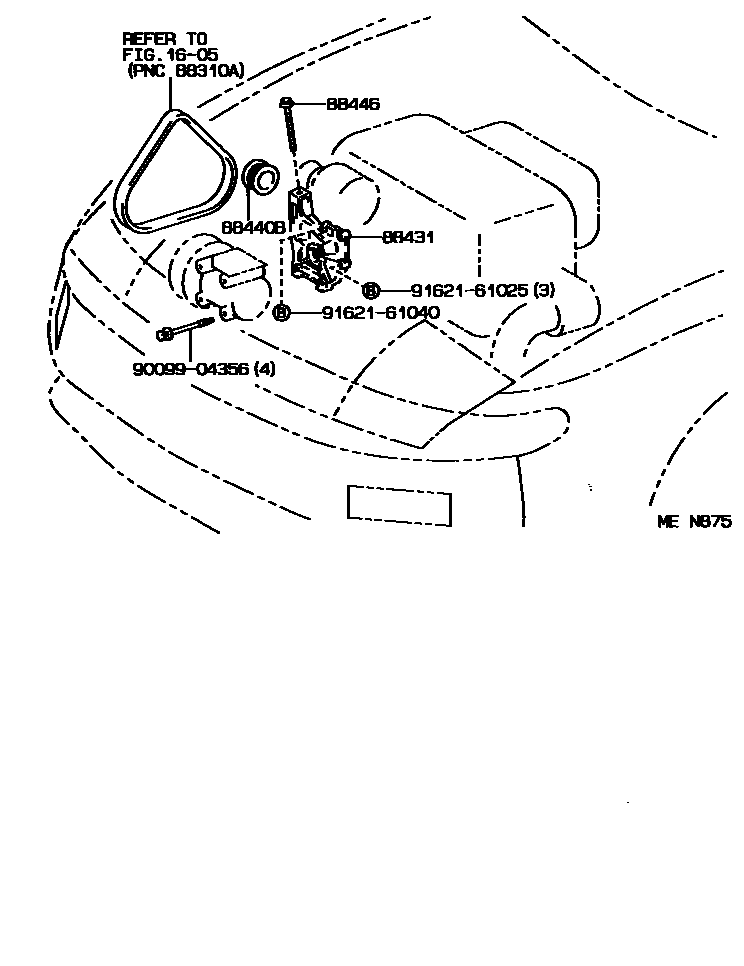

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

1605

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-12380iAT180198909-199309

88440BPULLEY ASSY, IDLE

main88440-17010iAT180198909-199309

main88440-20110iST185199108-199309

DEALER OPT

main88440-20120iST185198910-199108

main88440-20120iST185199108-199309

MAKER OPT

88446BOLT, IDLE PULLEY

main88446-12030iAT180198909-199309

9009904356

main90099-04356

9162161025

main91621-61025

9162161040

main91621-61040

7 parts on this diagram · 9 diagrams in section
