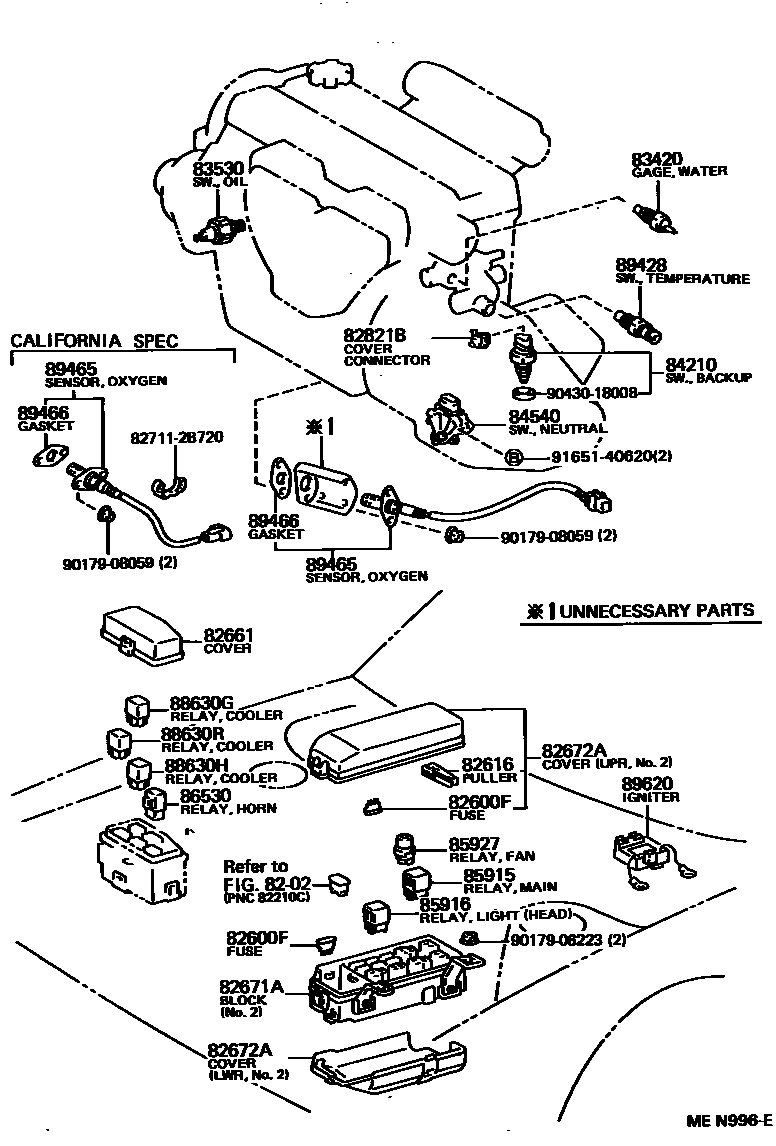

SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

8202

82600FFUSE, FUSE BLOCK

main90982-07011iAT180,ST18#198909-199309

30A,GREEN

main90982-09002iAT180,ST185;ST184..LB..MTM;ST184..ATM..GTS;ST184..ATM..GT..CND;ST184..CP..MTM..CND198909-199309

10A

main90982-09003iAT180,ST18#198909-199309

15A

main90982-09004iAT180,ST18#198909-199309

20A,YELLOW

main90982-09005iAT180,ST18#198909-199309

7.5A

82616PULLER, FUSE

main82616-12020iAT180,ST18#198909-199309

82661COVER, RELAY BLOCK, NO.1

main82662-20010iAT180,ST18#198909-199309

82671ABLOCK, JUNCTION

main82671-20150iAT180,ST18#..CND198909-199108

NO.1

main82671-20150iAT180,ST18#..CND199108-199309

main82671-20190iAT180,ST18#..USA198909-199309

NO.1

main82671-20210iAT180,ST184198909-199309

main82671-20220iST185198910-199309

82672ACOVER, JUNCTION BLOCK

main82672-20500iAT180,ST18#..CND198909-199003

NO.1

main82672-20510iAT180,ST18#198909-199309

NO.1

main82672-20520iAT180,ST184198909-199309

UPPER,NO.2

main82672-20550iST185198910-199309

UPPER,NO.2

main82672-20570iAT180,ST18#198909-199309

NO.3

main82672-20590iST184198909-199309

LOWER,NO.2

main82672-20600iST185198910-199309

LOWER,NO.2

main82672-20750iAT180198909-199309

LOWER,NO.2

82821BCOVER, CONNECTOR

main82821-12250iAT180,ST18#..(CP,LB)..MTM199108-199203

main82821-12251iAT180,ST18#..MTM199203-199309

main82821-20170iAT180..ATM199108-199309

main82821-35010iST184..(CP,LB)..ATM199108-199309

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16020iAT180198909-199309

main83420-16040iST18#199211-199309

NIPPONDENSO

main83420-20020iST18#198910-199211

main83420-20030iST18#199211-199309

YAZAKI

sub83420-16040

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-30050iAT180198909-199003

sub83530-30051

main83530-30051iAT180199003-199309

sub83530-60050

main83530-30080iST18#198909-199309

sub83530-60040

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iAT180,ST18#..MTM198909-199309

sub84210-52050

84540SWITCH ASSY, NEUTRAL START

main84540-12170iST184..(CP,LB)..ATM198909-199309

main84540-16030iAT180..ATM;ST184..CVT..ATM198909-199309

85915RELAY, MAIN

main85925-17010iAT180,ST18#198909-199309

85916RELAY, LIGHT CONTROL

main90987-02006iAT180,ST18#198909-199309

HEADLAMP

main90987-02008iAT180,ST18#198909-199309

TAIL LAMP

85927RELAY, COOLING FAN

main90987-03001iAT180,ST18#198909-199309

86530RELAY ASSY, HORN

main86530-20070iAT180,ST18#198909-199309

88630GRELAY ASSY, COOLER

main90987-04003iAT180,ST185;ST184..(CVT,LB)..GT198909-199309

88630HRELAY ASSY, COOLER

main90987-02009iST184..GTS199108-199309

MARUKO

main90987-02010iST184..CVT198909-199309

NIPPONDENSO

sub90987-02009

88630RRELAY ASSY, COOLER, NO.3

main90987-02009iAT180,ST18#199008-199309

MARUKO

main90987-02010iAT180,ST185;ST184..LB..GT198909-199309

NIPPONDENSO

sub90987-02009

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-12150iAT180199108-199309

AISHIN

sub89428-12160

main89428-12160iAT180199108-199309

NIPPONDENSO

main89428-15011iAT180198909-199108

WATER INLET

sub89428-32010

main89428-15030iST18#198909-199109

RADIATOR

main89428-33010iST18#..CP,LB199108-199309

89465SENSOR, OXYGEN

main89465-20160iST184..USA198909-199109

CALIFORNIA SPEC

main89465-20250iST184199108-199309

CALIFORNIA SPEC,REAR

main89465-29365iST185198910-199309

main89465-29375iAT180198909-199108

main89465-29395iST184198909-199109

main89465-29405iAT180..USA198909-199309

CALIFORNIA SPEC

main89465-29535iST184199108-199309

main89465-29545iAT180199108-199309

89466GASKET, OXYGEN SENSOR

main89466-20020iAT180,ST184198909-199309

main89466-20030iST185198910-199309

89620IGNITER ASSY

main89620-12430iAT180199108-199309

main89621-12010iST184..CVT198909-199109

main89621-12050iST185199108-199309

main89621-26010iST184199108-199309

827112B720WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2B720

9017906223

main90179-06223

9017908059

main90179-08059

9043018008

main90430-18008

9165140620

main91651-40620

27 parts on this diagram · 6 diagrams in section
