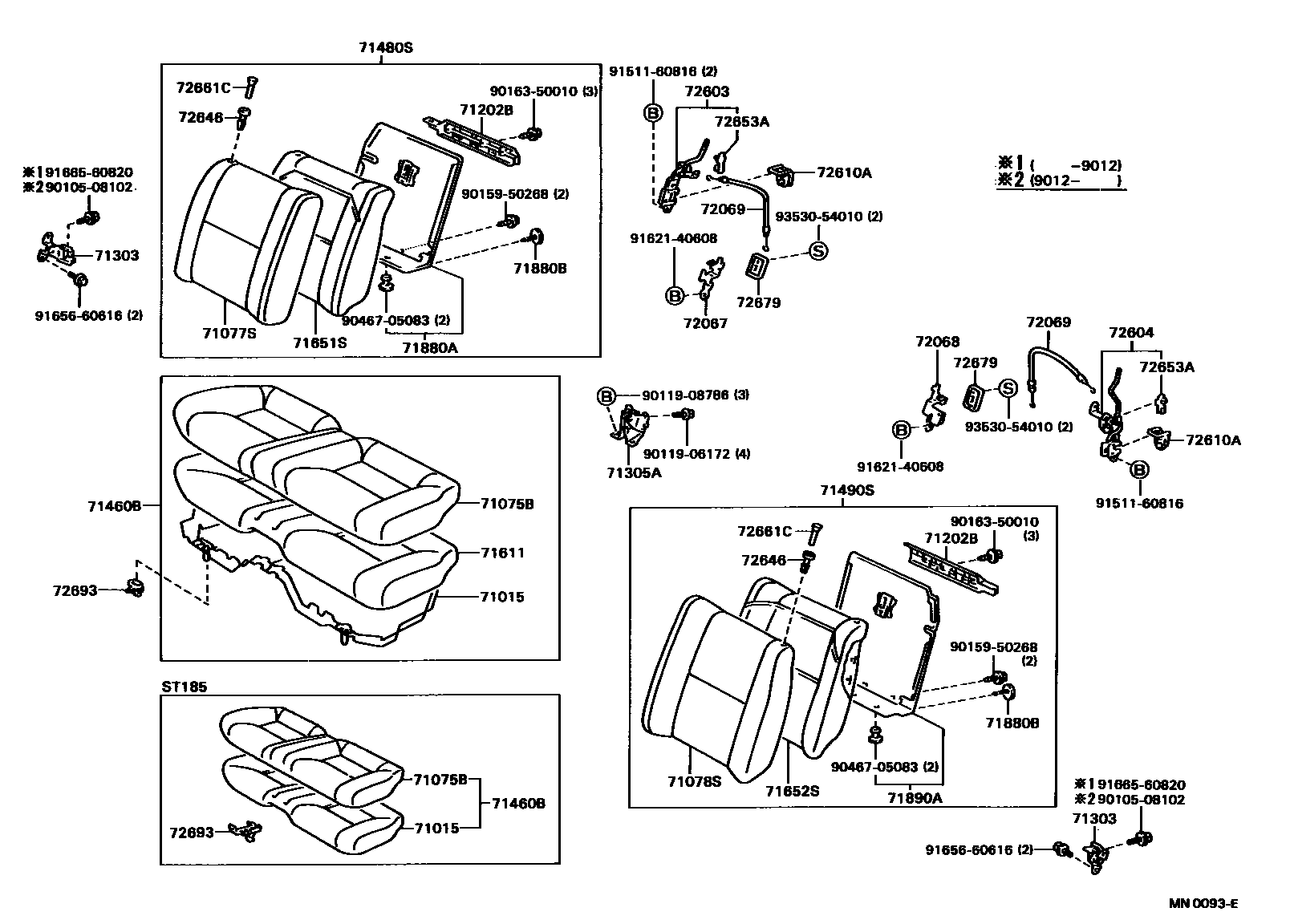

REAR SEAT & SEAT TRACK

0001 1 0002 1 0003 1

71015FRAME SUB-ASSY, REAR SEAT CUSHION

main71015-20310iAT180,ST184..CP,LB198909-199309

main71015-20330iST184..CVT199006-199309

main71503-20010iST185198910-199309

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71075-2B490-02iST184..(CP,LB)..GT198909-199008

RED,TRIM3#

sub71075-2B491

main71075-2B490-03iST184..(CP,LB)..GT198909-199009

SHADOW GRAY,TRIM1#

sub71075-2B491

main71075-2B490-04iST184..(CP,LB)..GT198909-199009

DARK BLUE,TRIM8#

sub71075-2B491

main71075-2B490-16iST184..(CP,LB)..GT199008-199009

CHOCOLATE BROWN,TRIM4#

sub71075-2B491

main71075-2B491-03iST184..(CP,LB)..GT199009-199108

SHADOW GRAY,TRIM1#

main71075-2B491-04iST184..(CP,LB)..GT199009-199108

DARK BLUE,TRIM8#

main71075-2B491-06iST184..LB..GT199009-199108

CHOCOLATE BROWN,TRIM4#

main71075-2B492-B0iST184..(CP,LB)..GT199108-199309

SHADOW GRAY,TRIM1#

main71075-2B492-J0iST184..(CP,LB)..GT199108-199309

DARK BLUE,TRIM8#

main71075-2B500-02iST184..CP;ST184..GTS198909-199008

W(LEATHER SEAT),RED,TRIM3#

main71075-2B500-03iST184..CP;ST184..GTS198909-199309

W(LEATHER SEAT),SHADOW GRAY,TRIM1#

main71075-2B500-04iST184..CP;ST184..GTS198909-199309

W(LEATHER SEAT),DARK BLUE,TRIM8#

main71075-2B500-06iST184..CP;ST184..GTS199008-199108

W(LEATHER SEAT),CHOCOLATE BROWN,TRIM4#

main71075-2B510-02iST184..GTS198909-199008

RED,TRIM3#

main71075-2B510-03iST184..GTS198909-199008

SHADOW GRAY,TRIM1#

main71075-2B510-04iST184..GTS198909-199008

DARK BLUE,TRIM8#

main71075-2B540-03iST184..CVT199006-199009

SHADOW GRAY,TRIM1#

sub71075-2B541

main71075-2B541-03iST184..CVT199009-199109

SHADOW GRAY,TRIM1#

main71075-2B542-B0iST184..CVT199109-199309

SHADOW GRAY,TRIM1#

main71075-2B590-02iST185198910-199008

RED,TRIM3#

main71075-2B590-03iST185198910-199008

SHADOW GRAY,TRIM1#

main71075-2B590-04iST185198910-199008

DARK BLUE,TRIM3#

main71075-2B600-03iST185198910-199309

W(LEATHER SEAT),SHADOW GRAY,TRIM1#

main71075-2B670-02iAT180198909-199008

RED,TRIM3#

main71075-2B670-03iAT180198909-199108

SHADOW GRAY,TRIM1#

main71075-2B670-04iAT180198909-199108

DARK BLUE,TRIM8#

main71075-2B670-06iAT180199008-199108

CHOCOLATE BROWN,TRIM4#

main71075-2B671-B0iAT180199108-199309

SHADOW GRAY,TRIM1#

main71075-2B671-J0iAT180199108-199309

DARK BLUE,TRIM8#

main71075-2B780-03iST184..GTS199008-199108

SHADOW GRAY,TRIM1#

main71075-2B780-04iST184..GTS199008-199108

DARK BLUE,TRIM8#

main71075-2B780-06iST184..GTS199008-199108

CHOCOLATE BROWN,TRIM4#

main71075-2B781-B0iST184..GTS199108-199309

SHADOW GRAY,TRIM1#

main71075-2B781-J0iST184..GTS199108-199309

DARK BLUE,TRIM8#

main71075-2B790-03iST185199008-199108

SHADOW GRAY,TRIM1#

main71075-2B790-04iST185199008-199108

DARK BLUE,TRIM8#

main71075-2B790-06iST185199008-199108

CHOCOLATE BROWN,TRIM4#

main71075-2B791-B0iST185199108-199309

SHADOW GRAY,TRIM1#

71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)

main71077-2D530-02iST184..(CP,LB)..GT198909-199008

RED,TRIM3#

sub71077-2D531

main71077-2D530-03iST184..(CP,LB)..GT198909-199009

SHADOW GRAY,TRIM1#

sub71077-2D531

main71077-2D530-04iST184..(CP,LB)..GT198909-199009

DARK BLUE,TRIM8#

sub71077-2D531

main71077-2D530-16iST184..(CP,LB)..GT199008-199009

CHOCOLATE BROWN,TRIM4#

sub71077-2D531

main71077-2D531-03iST184..(CP,LB)..GT199009-199108

SHADOW GRAY,TRIM1#

main71077-2D531-04iST184..(CP,LB)..GT199009-199108

DARK BLUE,TRIM8#

main71077-2D531-06iST184..(CP,LB)..GT199009-199108

CHOCOLATE BROWN,TRIM4#

main71077-2D532-B0iST184..(CP,LB)..GT199108-199309

SHADOW GRAY,TRIM1#

main71077-2D532-J0iST184..(CP,LB)..GT199108-199309

DARK BLUE,TRIM8#

main71077-2D580-02iST184..CP;ST184..GTS198909-199008

W(LEATHER SEAT),RED,TRIM3#

main71077-2D580-03iST184..CP;ST18#..WIB198909-199309

W(LEATHER SEAT),SHADOW GRAY,TRIM1#

main71077-2D580-04iST184..CP;ST184..GTS198909-199309

W(LEATHER SEAT),DARK BLUE,TRIM8#

main71077-2D580-06iST184..CP;ST184..GTS199008-199108

W(LEATHER SEAT),CHOCOLATE BROWN,TRIM4#

main71077-2D590-02iST18#..WIB198909-199008

RED,TRIM3#

main71077-2D590-03iST18#..WIB198909-199008

SHADOW GRAY,TRIM1#

main71077-2D590-04iST18#..WIB198909-199008

DARK BLUE,TRIM8#

main71077-2D790-03iST18#..WIB199008-199108

SHADOW GRAY,TRIM1#

main71077-2D790-04iST18#..WIB199008-199108

DARK BLUE,TRIM8#

main71077-2D790-06iST18#..WIB199008-199108

CHOCOLATE BROWN,TRIM4#

main71077-2D791-B0iST18#..WIB199108-199309

SHADOW GRAY,TRIM1#

main71077-2D791-J0iST184..GTS199108-199309

DARK BLUE,TRIM8#

71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71078-20540-02iST18#..WIB198909-199008

RED,TRIM3#

main71078-20540-03iST18#..WIB198909-199008

SHADOW GRAY,TRIM1#

main71078-20540-04iST18#..WIB198909-199008

DARK BLUE,TRIM8#

main71078-20730-02iST184..(CP,LB)..GT198909-199008

RED,TRIM3#

sub71078-20731

main71078-20730-03iST184..(CP,LB)..GT198909-199009

SHADOW GRAY,TRIM1#

sub71078-20731

main71078-20730-04iST184..(CP,LB)..GT198909-199009

DARK BLUE,TRIM8#

sub71078-20731

main71078-20730-16iST184..(CP,LB)..GT199008-199009

CHOCOLATE BROWN,TRIM4#

sub71078-20731

main71078-20731-03iST184..(CP,LB)..GT199009-199108

SHADOW GRAY,TRIM1#

main71078-20731-04iST184..(CP,LB)..GT199009-199108

DARK BLUE,TRIM8#

main71078-20731-06iST184..(CP,LB)..GT199009-199108

CHOCOLATE BROWN,TRIM4#

main71078-20732-B0iST184..(CP,LB)..GT199108-199309

SHADOW GRAY,TRIM1#

main71078-20732-J0iST184..(CP,LB)..GT199108-199309

DARK BLUE,TRIM8#

main71078-20740-02iST184..CP;ST184..GTS198909-199008

W(LEATHER SEAT),RED,TRIM3#

main71078-20740-03iST184..CP;ST18#..WIB198909-199309

W(LEATHER SEAT),SHADOW GRAY,TRIM1#

main71078-20740-04iST184..CP;ST184..GTS198909-199309

W(LEATHER SEAT),DARK BLUE,TRIM8#

main71078-20740-06iST184..CP;ST184..GTS199008-199108

W(LEATHER SEAT),CHOCOLATE BROWN,TRIM4#

main71078-20860-03iST18#..WIB199008-199108

SHADOW GRAY,TRIM1#

main71078-20860-04iST18#..WIB199008-199108

DARK BLUE,TRIM8#

main71078-20860-06iST18#..WIB199008-199108

CHOCOLATE BROWN,TRIM4#

main71078-20861-B0iST18#..WIB199108-199309

SHADOW GRAY,TRIM1#

main71078-20861-J0iST184..GTS199108-199309

DARK BLUE,TRIM8#

71202BPANEL, REAR SEATBACK

main71202-20010iST18#..CP,LB198909-199309

RH

main71203-20020iST18#..CP,LB198909-199309

LH

71303HINGE SUB-ASSY, REAR SEATBACK

main71303-16010iST184..CVT199006-199309

main71303-20080iST18#..CP,LB198909-199309

71305AHINGE SUB-ASSY, REAR SEATBACK, CENTER

main71305-20120iST18#..CP,LB198909-199309

71460BCUSHION ASSY, REAR SEAT (FOR BENCH TYPE)

main71460-2B450-02iST184..GTS198909-199008

***,RED,TRIM3#

main71460-2B450-03iST184..GTS198909-199008

***,SHADOW GRAY,TRIM1#

main71460-2B450-04iST184..GTS198909-199008

***,DARK BLUE,TRIM8#

main71460-2B460-02iST184..CP198909-199008

***,RED,TRIM3#

main71460-2B460-02iST184..CP198909-199008

***,W(LEATHER SEAT),RED,TRIM3#

main71460-2B460-03iST184..GTS198909-199309

***,W(LEATHER SEAT),SHADOW GRAY,TRIM1#

main71460-2B460-03iST184..CP198909-199309

***,SHADOW GRAY,TRIM1#

main71460-2B460-04iST184..GTS198909-199309

***,W(LEATHER SEAT),DARK BLUE,TRIM8#

main71460-2B460-04iST184..CP198909-199309

***,DARK BLUE,TRIM8#

main71460-2B460-06iST184..GTS199008-199108

***,CHOCOLATE BROWN,TRIM4#

main71460-2B460-06iST184..GTS199008-199108

***,W(LEATHER SEAT),CHOCOLATE BROWN,TRIM4#

main71460-2B490-03iST185198910-199108

***,W(LEATHER SEAT),SHADOW GRAY,TRIM1#

main71460-2B500-02iST185198910-199008

***,RED,TRIM3#

main71460-2B500-03iST185198910-199008

***,SHADOW GRAY,TRIM1#

main71460-2B500-04iST185198910-199008

***,DARK BLUE,TRIM8#

main71560-2B070-03iST184..GTS199008-199108

***,SHADOW GRAY,TRIM1#

main71560-2B070-04iST184..GTS199008-199108

***,DARK BLUE,TRIM8#

main71560-2B070-06iST184..GTS199008-199108

***,CHOCOLATE BROWN,TRIM4#

main71560-2B071-B0iST184..GTS199108-199309

***,SHADOW GRAY,TRIM1#

main71560-2B071-J0iST184..GTS199108-199309

***,DARK BLUE,TRIM8#

main71560-2B080-03iST185199008-199108

***,SHADOW GRAY,TRIM1#

main71560-2B080-04iST185199008-199108

***,DARK BLUE,TRIM8#

main71560-2B080-06iST185199008-199108

***,CHOCOLATE BROWN,TRIM4#

main71560-2B081-B0iST185199108-199309

***,SHADOW GRAY,TRIM1#

71480SBACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE)

main71480-2D590-02iST184..GTS198909-199008

***,RED,TRIM3#

main71480-2D590-03iST184..GTS198909-199008

***,SHADOW GRAY,TRIM1#

main71480-2D590-04iST184..GTS198909-199008

***,DARK BLUE,TRIM8#

main71480-2D600-02iST184..GTS198909-199008

***,W(LEATHER SEAT),RED,TRIM3#

main71480-2D600-03iST184..GTS198909-199309

***,W(LEATHER SEAT),SHADOW GRAY,TRIM1#

main71480-2D600-04iST184..GTS198909-199309

***,W(LEATHER SEAT),DARK BLUE,TRIM8#

main71480-2D600-06iST184..GTS199008-199108

***,W(LEATHER SEAT),CHOCOLATE BROWN,TRIM4#

main71480-2D640-03iST185198910-199108

***,W(LEATHER SEAT),SHADOW GRAY,TRIM1#

main71480-2D650-02iST185198910-199008

***,RED,TRIM3#

main71480-2D650-03iST185198910-199008

***,SHADOW GRAY,TRIM1#

main71480-2D650-04iST185198910-199008

***,DARK BLUE,TRIM8#

main71480-2G030-02iST184..CP198909-199008

***,RED,TRIM3#

main71480-2G030-03iST184..CP198909-199309

***,SHADOW GRAY,TRIM1#

main71480-2G030-04iST184..CP198909-199309

***,DARK BLUE,TRIM8#

main71480-2G030-06iST184..CP199008-199108

***,CHOCOLATE BROWN,TRIM4#

main71480-2G240-04iST184..GTS199008-199108

***,DARK BLUE,TRIM8#

main71480-2G240-06iST184..GTS199008-199108

***,CHOCOLATE BROWN,TRIM4#

main71480-2G241-B0iST184..GTS199108-199309

***,SHADOW GRAY,TRIM1#

main71480-2G241-J0iST184..GTS199108-199309

***,DARK BLUE,TRIM8#

main71480-2G250-03iST185199008-199108

***,SHADOW GRAY,TRIM1#

main71480-2G250-04iST185199008-199108

***,DARK BLUE,TRIM8#

main71480-2G250-06iST185199008-199108

***,CHOCOLATE BROWN,TRIM4#

main71480-2G251-B0iST185199108-199309

***,SHADOW GRAY,TRIM1#

71490SBACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE)

main71490-20740-02iST184..GTS198909-199008

***,RED,TRIM3#

main71490-20740-03iST184..GTS198909-199008

***,SHADOW GRAY,TRIM1#

main71490-20740-04iST184..GTS198909-199008

***,DARK BLUE,TRIM8#

main71490-20750-02iST184..GTS198909-199008

***,W(LEATHER SEAT),RED,TRIM3#

main71490-20750-03iST184..GTS198909-199309

***,W(LEATHER SEAT),SHADOW GRAY,TRIM1#

main71490-20750-04iST184..GTS198909-199309

***,W(LEATHER SEAT),DARK BLUE,TRIM8#

main71490-20750-06iST184..GTS199008-199108

***,W(LEATHER SEAT),CHOCOLATE BROWN,TRIM4#

main71490-20790-03iST185198910-199108

***,W(LEATHER SEAT),SHADOW GRAY,TRIM1#

main71490-20800-02iST185198910-199008

***,RED,TRIM3#

main71490-20800-03iST185198910-199008

***,SHADOW GRAY,TRIM1#

main71490-20800-04iST185198910-199008

***,DARK BLUE,TRIM8#

main71490-2B040-02iST184..CP198909-199008

***,RED,TRIM3#

main71490-2B040-03iST184..CP198909-199309

***,SHADOW GRAY,TRIM1#

main71490-2B040-04iST184..CP198909-199309

***,DARK BLUE,TRIM8#

main71490-2B040-06iST184..CP199008-199108

***,CHOCOLATE BROWN,TRIM4#

main71490-2B190-03iST184..GTS199008-199108

***,SHADOW GRAY,TRIM1#

main71490-2B190-04iST184..GTS199008-199108

***,DARK BLUE,TRIM8#

main71490-2B190-06iST184..GTS199008-199108

***,CHOCOLATE BROWN,TRIM4#

main71490-2B191-B0iST184..GTS199108-199309

***,SHADOW GRAY,TRIM1#

main71490-2B191-J0iST184..GTS199108-199309

***,DARK BLUE,TRIM8#

main71490-2B200-03iST185199008-199108

***,SHADOW GARY,TRIM1#

main71490-2B200-04iST185199008-199108

***,DARK BLUE,TRIM8#

main71490-2B200-06iST185199008-199108

***,CHOCOLATE BROWN,TRIM4#

main71490-2B201-B0iST185199108-199309

***,SHADOW GRAY,TRIM1#

71611PAD, REAR SEAT CUSHION

main71611-20500iAT180,ST184..CP,LB198909-199309

main71611-20540iST184..CVT199006-199309

71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)

main71507-20190iST18#..CP,LB198909-199309

71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71508-20030iST18#..CP,LB198909-199309

71880ACARPET ASSY, REAR SEATBACK BOARD, RH

main71880-20120-03iST184..CP198909-199008

GRAY,TRIM1#,3#,8#

main71880-20120-03iST184..CP199008-199108

GRAY,TRIM1#,4#,8#

main71880-20120-C0iST184..CP199108-199309

BLACK,TRIM1#,8#

main71880-20130-02iST184..LB198909-199008

RED,TRIM3#

main71880-20130-03iST184..LB198909-199309

SHADOW GRAY,TRIM1#

main71880-20130-04iST184..LB198909-199309

DARK BLUE,TRIM8#

main71880-20130-06iST184..LB199008-199108

CHOCOLATE BROWN,TRIM4#

main71880-20150-02iST185198910-199008

RED,TRIM3#

main71880-20150-03iST185198910-199309

SHADOW GRAY,TRIM1#

main71880-20150-04iST185198910-199108

DARK BLUE,TRIM8#

main71880-20150-16iST185199008-199108

CHOCOLATE BROWN,TRIM4#

71880BCLIP(FOR REAR SEATBACK CARPET)

main90467-06016-33iST185198910-199008

GRAY,TRIM1#,3#,8#

sub90467-06016

sub90467-07049

main90467-06016-33iST185199008-199108

GRAY,TRIM1#,4#,8#

sub90467-06016

sub90467-07049

main90467-06016-33iST185199108-199309

GRAY,TRIM1#

sub90467-06016

sub90467-07049

71890ACARPET ASSY, REAR SEATBACK BOARD, LH

main71890-20060-03iST184..CP198909-199008

GRAY,TRIM1#,3#,8#

main71890-20060-03iST184..CP199008-199108

GRAY,TRIM1#,4#,8#

main71890-20060-C0iST184..CP199108-199309

BLACK,TRIM1#,8#

main71890-20070-02iST184..LB198909-199008

RED,TRIM3#

main71890-20070-03iST184..LB198909-199309

SHADOW GRAY,TRIM1#

main71890-20070-04iST184..LB198909-199309

DARK BLUE,TRIM8#

main71890-20070-06iST184..LB199008-199108

CHOCOLATE BROWN,TRIM4#

main71890-20090-02iST185198910-199008

RED,TRIM3#

main71890-20090-03iST185198910-199309

SHADOW GRAY,TRIM1#

main71890-20090-04iST185198910-199108

DARK BLUE,TRIM8#

main71890-20090-16iST185199008-199108

CHOCOLATE BROWN,TRIM4#

72067LEVER SUB-ASSY, REAR BACK LOCK CONTROL, RH

main72067-20040iST18#..CP,LB198909-199309

main72067-20050iST184..CVT199006-199309

72068LEVER SUB-ASSY, REAR BACK LOCK CONTROL, LH

main72068-20040iST18#..CP,LB198909-199309

main72068-20050iST184..CVT199006-199309

72069CABLE SUB-ASSY, REAR SEATBACK LOCK CONTROL

main72069-20060iST18#..CP,LB198909-199309

72603LOCK SUB-ASSY, REAR SEATBACK, RH

main72603-20050iST18#..CP,LB198909-199309

main72603-20070iST184..CVT199006-199309

72604LOCK SUB-ASSY, REAR SEATBACK, LH

main72604-20050iST18#..CP,LB198909-199309

main72604-20070iST184..CVT199006-199309

72610ASTRIKER ASSY, REAR SEATBACK LOCK

main72610-20020iST18#..CP,LB198909-199309

72646GROMMET, REAR SEATBACK STOP BUTTON

main72646-20020-03iST18#..CP,LB198909-199309

SHADOW GRAY,TRIM1#

sub72646-20020

main72646-20020-12iST18#..CP,LB198909-199008

RED,TRIM3#

sub72646-20020

main72646-20020-14iST18#..CP,LB198909-199309

DARK BLUE,TRIM8#

sub72646-20020

main72646-20020-26iST18#..CP,LB199008-199108

CHOCOLATE BROWN,TRIM4#

sub72646-20020

72653ASNAP, REAR SEATBACK LOCK ROD

main69759-20020iST184..CVT199006-199309

RH

main69759-20030iST184..CVT199006-199309

LH

main69759-24010iST18#..CP,LB198909-199309

RH

main69759-24020iST18#..CP,LB198909-199309

LH

72661CBUTTON, REAR SEATBACK LOCK RELEASE

main72656-20010-23iST18#..CP,LB199008-199108

GRAY,TRIM1#

sub72656-20010

main72656-20010-37iST18#..CP,LB199008-199108

CHOCOLATE BROWN,TRIM4#

sub72656-20010

main72656-20010-59iST185199008-199108

DARK BLUE

sub72656-20010

main72656-20010-59iST185199008-199108

DARK BLUE,TRIM8#

sub72656-20010

main72658-23010-23iST18#..CP,LB198909-199008

GRAY,TRIM1#

sub72658-23010

sub72658-32020

sub72661-13030

main72658-23010-32iST18#..CP,LB198909-199008

RED,TRIM3#

sub72658-23010

sub72658-32020

sub72661-13030

main72658-23010-J0iST18#..CP,LB198909-199008

DARK BLUE,TRIM8#

sub72658-23010

sub72658-32020

sub72661-13030

main72661-12010-03iST18#..CP,LB199108-199309

GRAY,TRIM1#

sub72661-12010

main72661-12010-24iST184..CP,LB199108-199309

DARK BLUE,TRIM8#

sub72661-12010

72679BEZEL, REAR SEATBACK LOCK CONTROL

main72679-16010-13iST18#..LB198909-199108

SHADOW GRAY,TRIM1#

sub72679-16010

sub72679-20020

main72679-16010-14iST18#..LB198909-199108

DARK BLUE,TRIM8#

sub72679-16010

sub72679-20020

main72679-16010-32iST18#..LB198909-199008

RED,TRIM3#

sub72679-16010

sub72679-20020

main72679-16010-33iST184..CP199008-199108

LIGHT GRAY,TRIM1#,4#,8#

sub72679-16010

sub72679-20020

main72679-16010-33iST184..CP198909-199008

LIGHT GRAY,TRIM1#,3#,8#

sub72679-16010

sub72679-20020

main72679-16010-36iST18#..LB199008-199108

CHOCOLATE BROWN,TRIM4#

sub72679-16010

sub72679-20020

main72679-16010-C0iST184..CP,LB199108-199309

BLACK,TRIM1#

sub72679-16010

sub72679-20020

main72679-16010-C0iST184..CP,LB199108-199309

BLACK,TRIM1#,8#

sub72679-16010

sub72679-20020

72693HOOK, REAR SEAT CUSHION LOCK

main72693-20030iAT180,ST184..CP,LB198909-199108

main72693-20031iAT180,ST184..CP,LB199108-199309

main72693-20050iST184..CVT199006-199309

sub72693-20060

main72693-24010iST185198910-199309

9010508102

main90105-08102

9011906172

main90119-06172

9011908786

main90119-08786

9015950268

main90159-50268

9016350010

main90163-50010

9046705083

main90467-05083

9151160816

main91511-60816

9162140608

main91621-40608

9165660616

main91656-60616

9166560820

main91665-60820

9353054010

main93530-54010

38 parts on this diagram · 3 diagrams in section
