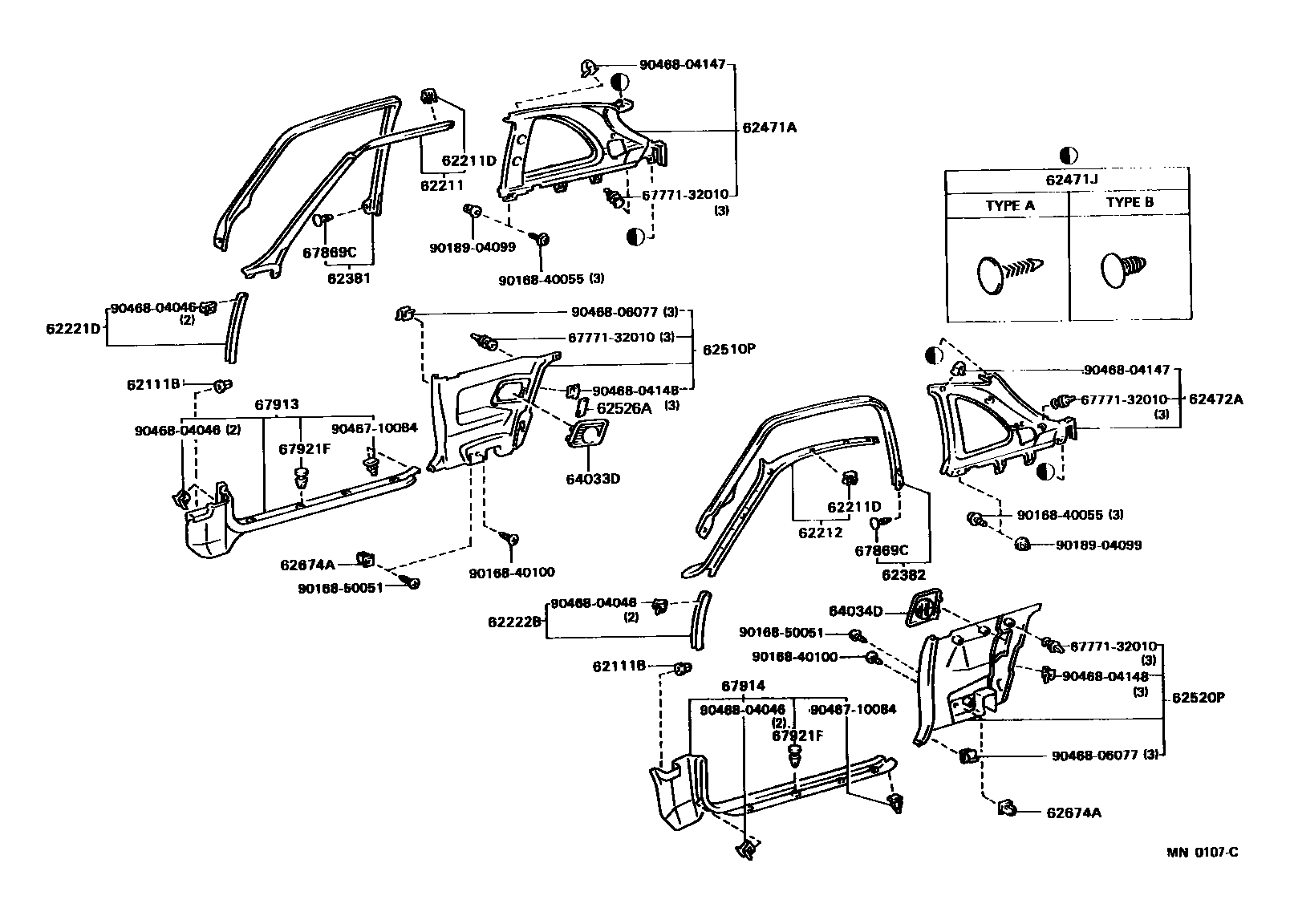

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

0001 1 0002 1 0003 1

62111BCLIP(FOR COWL SIDE TRIM)

main90467-06120iAT180,ST18#198909-199309

62211GARNISH, FRONT PILLAR, RH

main62210-20030-02iST18#..CP,LB198909-199008

RED,TRIM3#

sub62210-20030

main62210-20030-03iST18#198909-199309

SHADOW GRAY,TRIM1#

sub62210-20030

main62210-20030-04iST184..CP,LB198909-199309

DARK BLUE,TRIM8#

sub62210-20030

main62210-20030-16iST18#..CP,LB199008-199108

CHOCOLATE BROWN,TRIM4#

sub62210-20030

main62211-20190-02iAT180198909-199008

RED,TRIM3#

main62211-20190-03iAT180198909-199309

SHADOW GRAY,TRIM1#

main62211-20190-04iAT180198909-199309

DARK BLUE,TRIM8#

main62211-20190-16iAT180199008-199108

CHOCOLATE BROWN,TRIM4#

62211DCLIP(FOR FRONT BODY PILLAR GARNISH)

main90468-05077iAT180,ST18#198909-199309

62212GARNISH, FRONT PILLAR, LH

main62212-20190-02iAT180198909-199008

RED,TRIM3#

main62212-20190-03iAT180198909-199309

SHADOW GRAY,TRIM1#

main62212-20190-04iAT180198909-199309

DARK BLUE,TRIM8#

main62212-20190-16iAT180199008-199108

CHOCOLATE BROWN,TRIM4#

main62220-20030-02iST18#..CP,LB198909-199008

RED,TRIM3#

sub62220-20030

main62220-20030-03iST18#198909-199309

SHADOW GRAY,TRIM1#

sub62220-20030

main62220-20030-04iST18#..CP,LB198909-199309

DARK BLUE,TRIM8#

sub62220-20030

main62220-20030-16iST18#..CP,LB199008-199108

CHOCOLATE BROWN,TRIM4#

sub62220-20030

62221DCOVER, FRONT PILLAR GARNISH, RH

main62221-20020-02iAT180,ST18#..CP,LB198909-199008

RED,TRIM3#

sub62221-20020

main62221-20020-03iAT180,ST18#198909-199309

SHADOW GRAY,TRIM1#

sub62221-20020

main62221-20020-04iAT180,ST184..CP,LB198909-199309

DARK BLUE,TRIM8#

sub62221-20020

main62221-20020-26iAT180,ST18#..CP,LB199008-199108

CHOCOLATE BROWN,TRIM4#

sub62221-20020

62222BCOVER, FRONT PILLAR GARNISH, LH

main62222-20020-02iAT180,ST18#..CP,LB198909-199008

RED,TRIM3#

sub62222-20020

main62222-20020-03iAT180,ST18#198909-199309

SHADOW GRAY,TRIM1#

sub62222-20020

main62222-20020-04iAT180,ST184..CP,LB198909-199309

DARK BLUE,TRIM8#

sub62222-20020

main62222-20020-26iAT180,ST18#..CP,LB199008-199108

CHOCOLATE BROWN,TRIM4#

sub62222-20020

62381WEATHERSTRIP, ROOF SIDE RAIL, FRONT RH

main62381-20070iAT180,ST18#198909-199008

sub62381-20071

main62381-20071iAT180,ST18#199008-199103

sub62381-20072

main62381-20072iAT180,ST18#199103-199309

62382WEATHERSTRIP, ROOF SIDE RAIL, FRONT LH

main62382-20070iAT180,ST18#198909-199008

sub62382-20071

main62382-20071iAT180,ST18#199008-199103

sub62382-20072

main62382-20072iAT180,ST18#199103-199309

62471AGARNISH, ROOF SIDE, INNER RH

main62471-20350-02iST18#..LB198909-199008

RED,TRIM3#

main62471-20350-03iST18#..LB198909-199309

SHADOW GRAY,TRIM1#

main62471-20350-04iST18#..LB198909-199309

DARK BLUE,TRIM8#

main62471-20350-16iST18#..LB199008-199108

CHOCOLATE BROWN,TRIM4#

main62471-20390-02iAT180,ST184..CP198909-199008

RED,TRIM3#

main62471-20390-03iAT180,ST184..CP198909-199309

SHADOW GRAY,TRIM1#

main62471-20390-04iAT180,ST184..CP198909-199309

DARK BLUE,TRIM8#

main62471-20390-16iAT180,ST184..CP199008-199108

CHOCOLATE BROWN,TRIM4#

62471JCLIP (FOR ROOF SIDE GARNISH)

main90467-05020-01iAT180,ST184..CP,LB199108-199309

BLACK,TRIM1#,TYPE A

sub90467-05020

sub90467-05027

main90467-05020-01iAT180,ST18#..CP,LB198909-199008

BLACK,TRIM1#,3#,8#,TYPE A

sub90467-05020

sub90467-05027

main90467-05020-01iAT180,ST18#..CP,LB199008-199108

BLACK,TRIM1#,4#,8#,TYPE A

sub90467-05020

sub90467-05027

main90467-05020-01iST185199108-199309

BLACK,TRIM1#,8#,TYPE A

sub90467-05020

sub90467-05027

main90467-06119-02iAT180,ST18#..CP,LB198909-199008

RED,TRIM3#,TYPE B

sub90467-06119

main90467-06119-03iAT180,ST18#..CP,LB198909-199309

SHADOW GRAY,TRIM1#,TYPE B

sub90467-06119

main90467-06119-04iAT180,ST18#..CP,LB198909-199309

DARK BLUE,TRIM8#,TYPE B

sub90467-06119

main90467-06119-06iAT180,ST18#..CP,LB199008-199108

CHOCOLATE BROWN,TRIM4#,TYPE B

sub90467-06119

62472AGARNISH, ROOF SIDE, INNER LH

main62472-20370-02iST18#..LB198909-199008

RED,TRIM3#

main62472-20370-03iST18#..LB198909-199309

SHADOW GRAY,TRIM1#

main62472-20370-04iST184..LB198909-199309

DARK BLUE,TRIM8#

main62472-20370-16iST18#..LB199008-199108

CHOCOLATE BROWN,TRIM4#

main62472-20410-02iAT180,ST184..CP198909-199008

RED,TRIM3#

main62472-20410-03iAT180,ST184..CP198909-199309

SHADOW GRAY,TRIM1#

main62472-20410-04iAT180,ST184..CP198909-199309

DARK BLUE,TRIM8#

main62472-20410-16iAT180,ST184..CP199008-199108

CHOCOLATE BROWN,TRIM4#

62510PPANEL ASSY, QUARTER TRIM, FRONT RH

main62510-20510-02iAT180,ST18#..CP,LB198909-199008

RED,TRIM3#

main62510-20510-03iAT180,ST18#..CP,LB198909-199309

SHADOW GRAY,TRIM1#

main62510-20510-04iAT180,ST18#..CP,LB198909-199309

DARK BLUE,TRIM8#

main62510-20510-16iAT180,ST18#..CP,LB199008-199108

CHOCOLATE BROWN,TRIM4#

main62511-20180-03iST184..CVT199006-199309

SHADOW GRAY,TRIM1#

62520PPANEL ASSY, QUARTER TRIM, FRONT LH

main62512-20180-03iST184..CVT199006-199309

SHADOW GRAY,TRIM1#

main62520-20510-02iAT180,ST18#..CP,LB198909-199008

RED,TRIM3#

main62520-20510-03iAT180,ST18#..CP,LB198909-199309

SHADOW GRAY,TRIM1#

main62520-20510-04iAT180,ST18#..CP,LB198909-199309

DARK BLUE,TRIM8#

main62520-20510-16iAT180,ST18#..CP,LB199008-199108

CHOCOLATE BROWN,TRIM4#

62526APAD, QUARTER TRIM, UPPER NO.2

main62526-20060iAT180,ST184..CP,LB199107-199309

62674ARETAINER, QUARTER TRIM SET

main62674-20010iAT180,ST18#..CP,LB198909-199309

64033DGRILLE SUB-ASSY, REAR SPEAKER, RH

main64033-20210-02iAT180,ST18#..CP,LB198909-199008

RED,TRIM3#

main64033-20210-03iAT180,ST185198909-199309

SHADOW GRAY,TRIM1#

main64033-20210-04iAT180,ST18#..CP,LB198909-199108

DARK BLUE,TRIM8#

main64033-20210-16iAT180,ST18#..CP,LB199008-199108

CHOCOLATE BROWN,TRIM4#

main64033-20220-02iST18#..CP,LB198909-199008

W(TWITTER SPEAKER),RED,TRIM3#

main64033-20220-03iAT180,ST185198909-199309

W(TWITTER SPEAKER),SHADOW GRAY,TRIM1#

main64033-20220-03iST184..CP,LB199108-199309

SHADOW GRAY,TRIM1#

main64033-20220-04iST184..CP,LB199108-199309

DARK BLUE,TRIM8#

main64033-20220-04iST18#..CP,LB198909-199108

W(TWITTER SPEAKER),DARK BLUE,TRIM8#

main64033-20220-16iST18#..CP,LB199008-199108

W(TWITTER SPEAKER),CHOCOLATE BROWN,TRIM4#

main64033-20260-03iST184..CVT199006-199309

SHADOW GRAY,TRIM1#

64034DGRILLE SUB-ASSY, REAR SPEAKER, LH

main64033-20260-03iST184..CVT199006-199309

SHADOW GRAY,TRIM1#

main64034-20180-02iAT180,ST18#..CP,LB198909-199008

RED,TRIM3#

main64034-20180-03iAT180,ST185198909-199309

SHADOW GRAY,TRIM1#

main64034-20180-04iAT180,ST18#..CP,LB198909-199108

DARK BLUE,TRIM8#

main64034-20180-16iAT180,ST18#..CP,LB199008-199108

CHOCOLATE BROWN,TRIM4#

main64034-20190-02iST18#..CP,LB198909-199008

W(TWITTER SPEAKER),RED,TRIM3#

main64034-20190-03iST184..CP,LB199108-199309

SHADOW GRAY,TRIM1#

main64034-20190-03iAT180,ST185198909-199309

W(TWITTER SPEAKER),SHADOW GRAY,TRIM1#

main64034-20190-04iST184..CP,LB199108-199309

DARK BLUE,TRIM8#

main64034-20190-04iST18#..CP,LB198909-199108

W(TWITTER SPEAKER),DARK BLUE,TRIM8#

main64034-20190-16iST18#..CP,LB199008-199108

W(TWITTER SPEAKER),CHOCOLATE BROWN,TRIM4#

67869CCLIP, ROOF SIDE RAIL WEATHERSTRIP

main67869-20030iAT180,ST18#198909-199309

67913PLATE, FRONT DOOR SCUFF, RH

main67910-20020-02iAT180,ST18#..CP,LB198909-199008

RED,TRIM3#

sub67910-20020

main67910-20020-03iAT180,ST18#..CP,LB198909-199309

SHADOW GRAY,TRIM1#

sub67910-20020

main67910-20020-04iAT180,ST18#..CP,LB198909-199309

DARK BLUE,TRIM8#

sub67910-20020

main67910-20020-16iAT180,ST18#..CP,LB199008-199108

CHOCOLATE BROWN,TRIM4#

sub67910-20020

main67910-20050-03iST184..CVT199006-199309

SHADOW GRAY,TRIM1#

67914PLATE, FRONT DOOR SCUFF, LH

main67920-20030-02iAT180,ST18#..CP,LB198909-199008

RED,TRIM3#

sub67920-20030

main67920-20030-03iAT180,ST18#..CP,LB198909-199309

SHADOW GRAY,TRIM1#

sub67920-20030

main67920-20030-04iAT180,ST184..CP,LB198909-199309

DARK BLUE,TRIM8#

sub67920-20030

main67920-20030-16iAT180,ST18#..CP,LB199008-199108

CHOCOLATE BROWN,TRIM4#

sub67920-20030

main67920-20060-03iST184..CVT199006-199309

SHADOW GRAY,TRIM1#

67921FRETAINER, FRONT DOOR SCUFF PLATE

main67921-20020iAT180,ST18#..CP,LB198909-199309

FRONT

main67921-20060iST184..CVT199006-199309

REAR

main67921-20070iST184..CVT199006-199309

FRONT

main67921-95501iAT180,ST18#..CP,LB198909-199309

REAR

6777132010WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-32010

9016840055

main90168-40055

9016840100

main90168-40100

9016850051

main90168-50051

9018904099

main90189-04099

9046710084

main90467-10084

9046804046

main90468-04046

9046804147

main90468-04147

9046804148

main90468-04148

9046806077

main90468-06077

31 parts on this diagram · 3 diagrams in section
