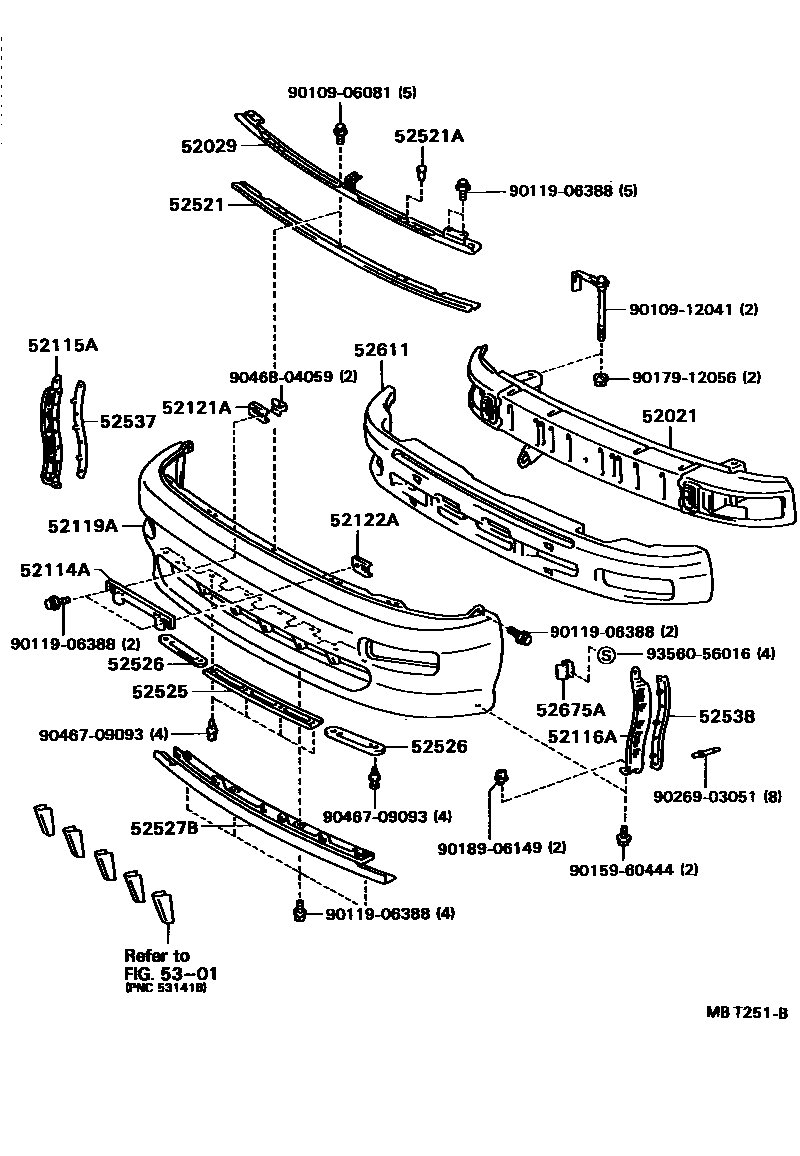

FRONT BUMPER & BUMPER STAY
52021REINFORCEMENT SUB-ASSY, FRONT BUMPER
52029REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER
52114ABRACKET, FRONT BUMPER EXTENSION MOUNTING
52115ASUPPORT, FRONT BUMPER SIDE, RH
52116ASUPPORT, FRONT BUMPER SIDE, LH
52119ACOVER, FRONT BUMPER
52121ABRACKET, FRONT LICENSE PLATE MOUNTING, RH
52122ABRACKET, FRONT LICENSE PLATE MOUNTING, LH
52521RETAINER, FRONT BUMPER, UPPER CENTER
52521ACLIP(FOR FRONT BUMPER RETAINER)
52525RETAINER, FRONT BUMPER, LOWER CENTER
52526RETAINER, FRONT BUMPER, LOWER SIDE
52527BRETAINER, FRONT BUMPER, LOWER NO.2
52537RETAINER, FRONT BUMPER END, RH
52538RETAINER, FRONT BUMPER END, LH
52611ABSORBER, FRONT BUMPER ENERGY
52675ASUPPORT, FRONT BUMPER SIDE, NO.1
5301
9010906081
main90109-06081
9010912041
main90109-12041
9011906388
main90119-06388
9015960444
main90159-60444
9017912056
main90179-12056
9018906149
main90189-06149
9026903051
main90269-03051
9046709093
main90467-09093
9046804059
main90468-04059
9356056016
main93560-56016
28 parts on this diagram · 3 diagrams in section
