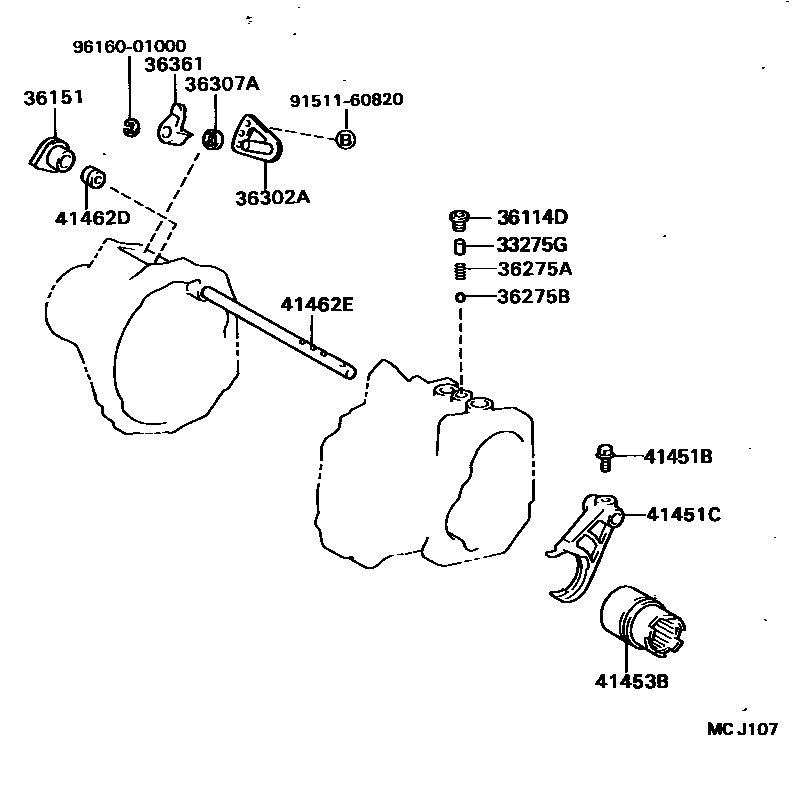

TRANSFER LEVER & SHIFT ROD

33275GSEAT, TRANSFER SHIFT DETENT BALL SPRING

main33275-16010iST185198910-199309

36114DPLUG, W/HEAD STRAIGHT SCREW

main90341-12004iST185198910-199309

36151BUSH, TRANSFER CASE UPPER COVER

main36151-20010iST185198910-199309

36275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL)

main90501-14110iST185198910-199309

36275BBALL, SHIFT DETENT

main90360-08009iST185198910-199309

OD=7.94,STEEL

36302ALEVER SUB-ASSY, TRANSFER SHIFT, NO.1

main36302-20010iST185198910-199309

36307ASEAL, OIL (FOR HIGH & LOW SHIFT INNER LEVER)

main90313-14001iST185198910-199309

36361LEVER, TRANSFER SHIFT, INNER

main36361-20010iST185198910-199309

41451BBOLT (FOR DIFFERENTIAL LOCK SHIFT FORK)

main90105-06094iST185198910-199309

41451CFORK, DIFFERENTIAL LOCK SHIFT

main41451-20030iST185198910-199309

41453BSLEEVE, DIFFERENTIAL LOCK

main41453-20030iST185198910-199309

41462DSEAL, OIL (FOR DIFFERENTIAL LOCK SHIFT FORK SHAFT)

main90311-14005iST185198910-199309

41462ESHAFT, DIFFERENTIAL LOCK SHIFT FORK

main41462-20020iST185198910-199309

9151160820

main91511-60820

9616001000

main96160-01000

15 parts on this diagram · 1 diagram in section
