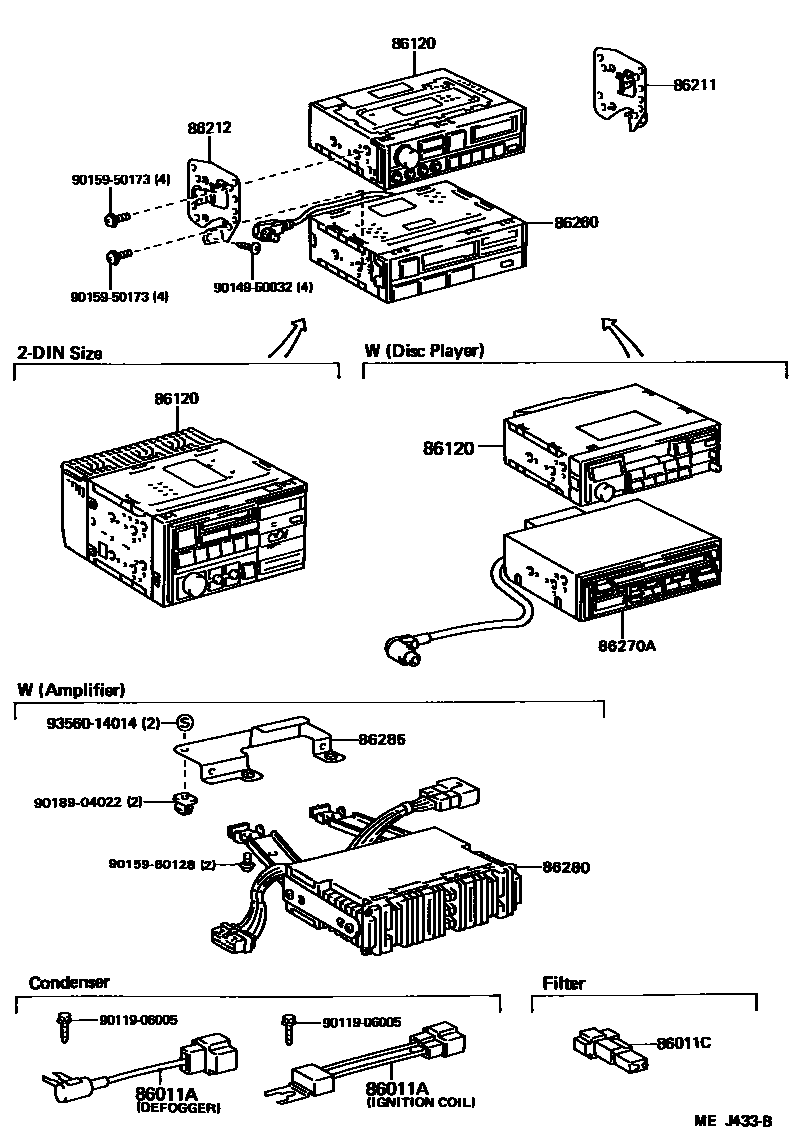

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1

86011ACONDENSER, RADIO SETTING

main90980-04041iST16#..GTS,TBO4W,TBOAT198708-198908

DEFOGGER

main90980-04043iST16#198708-198908

IGNITION COIL

86011CFILTER, NOISE

main90980-05073iST16#198708-198908

86120RECEIVER ASSY, RADIO

main86120-14770iST165..USA198808-198908

AM/FM MPX ETR *AF CASSETE 1DIN

main86120-14780iST162..(CP,LB)..(GT,GTS)..USA198808-198908

AM/FM MPX ETR *AF CASSETE 2DIN(AM=531-1602KHZ,FM=88.1-107.9MHZ)

main86120-16371iST162198708-198808

AM/FM MPX ETR 1DIN

main86120-16381iST162198708-198808

AM/FM MPX ETR CASSETE 2DIN

main86120-20332iST162..CP..(GT,GTS)198708-198808

AM/FM MPX ETR *AF CASSETE 2DIN(AM=530-1620KHZ,FM=87.9-107.9MHZ)

main86120-20342iST162..CVT,LB198708-198808

AM/FM MPX ETR *AF CASSETE 2DIN(AM=530-1620KHZ,FM=87.9-107.9MHZ)

main86120-20630iST165..USA198710-198808

AM/FM MPX ETR *AF CASSETE 1DIN

main86120-20670iST162..(CP,LB)..(GT,GTS)..USA198708-198808

AM/FM MPX ETR *AF CASSETE 2DIN(AM=531-1602KHZ,FM=88.1-107.9MHZ)

main86120-20680iST162..(CP,LB)..USA198708-198808

AM/FM MPX ETR 1DIN

main86120-20690iST165198710-198808

AM/FM MPX ETR *AF CASSETE 2DIN

main86120-20790iST162..CP..(GT,GTS)..USA198808-198908

AM/FM MPX ETR *AF CASSETE 2DIN(AM=530-1620KHZ,FM=87.9-107.9MHZ)

main86120-20800iST162..(CVT,LB)..USA198808-198908

AM/FM MPX ETR *AF CASSETE 2DIN(AM=530-1620KHZ,FM=87.9-107.9MHZ)

main86120-20810iST165..USA198808-198908

AM/FM MPX ETR *AF CASSETE 2DIN

main86120-20820iST162..CP..(GT,GTS)..CND198808-198908

AM/FM MPX ETR *AF CASSETE 2DIN

main86120-20830iST162..LB..CND198808-198908

AM/FM MPX ETR *AF CASSETE 2DIN

main86120-20840iST165..CND198808-198908

AM/FM MPX ETR *AF CASSETE 2DIN

main86120-28040iST162198808-198908

AM/FM MPX ETR 1DIN(AM=530-1620KHZ,FM=87.9-107.9MHZ)

main86120-28050iST165198808-198908

AM/FM MPX ETR CASSETE 2DIN

main86120-32390iST162..(CP,LB)..USA198808-198908

FUJITSU TEN,AM/FM MPX ETR 1DIN(AM=530-1620KHZ,FM=87.9-107.9MHZ)

86211BRACKET, RADIO, NO.1

main86211-20150iST162..ST198708-198908

main86211-20180iST16#..GT,GTS,TBO4W,TBOAT198708-198908

86212BRACKET, RADIO, NO.2

main86212-20190iST162..ST..USA198708-198908

main86212-20200iST162..ST..CND;ST16#..GT,GTS,TBO4W,TBOAT198708-198908

86260TAPE PLAYER ASSY

main86260-12180iST162..(CP,LB)..USA198805-198908

main86260-20170iST162198708-198805

DIN 13-P CONECTOR

main86260-30250iST162..(CP,LB)..USA198708-198805

DIN 8-P CONECTOR

86270ADISC PLAYER ASSY

main86270-14050iST165..USA198808-198908

main86270-20010iST165..USA198710-198806

main86270-20011iST165..USA198806-198808

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-20030iST165..USA198710-198805

main86280-20031iST165..USA198805-198908

86285BRACKET, AMPLIFIER, NO.1

main86285-20040iST165..USA198710-198908

9011906005

main90119-06005

9014950032

main90149-50032

9015950173

main90159-50173

9015960128

main90159-60128

9018904022

main90189-04022

9356014014

main93560-14014

15 parts on this diagram · 3 diagrams in section
