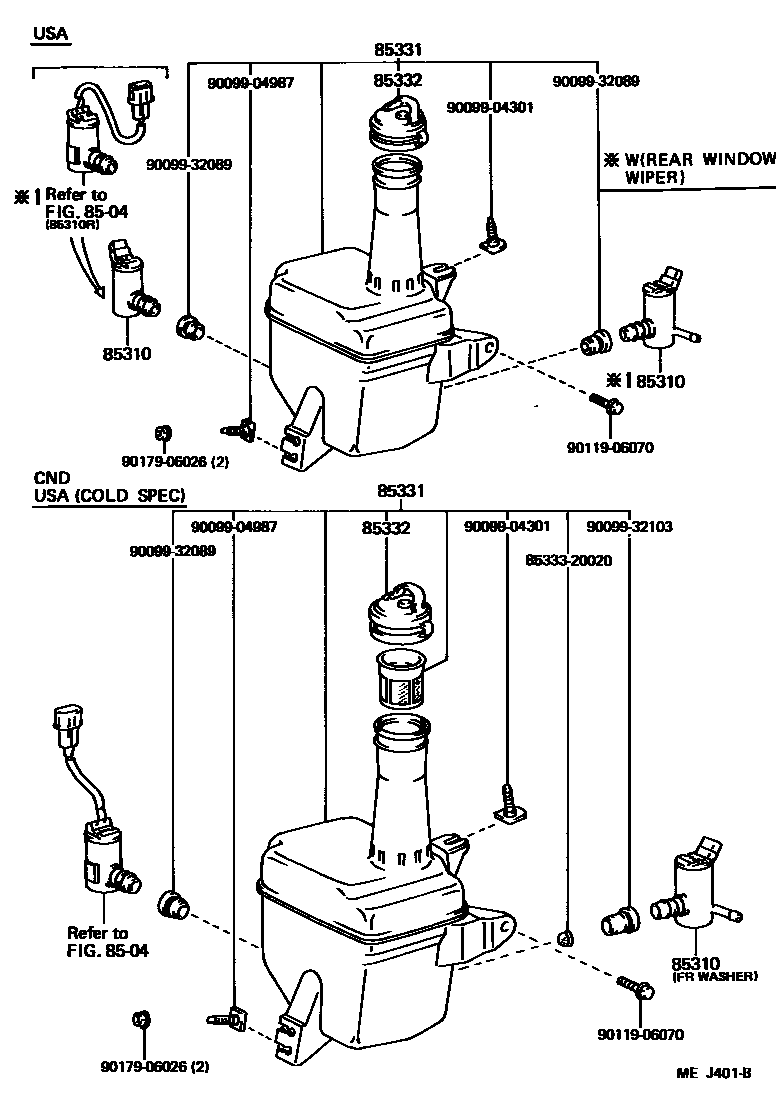

WINDSHIELD WASHER

0001 1 0002 1

8504

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-14080iST16#..CND;ST162..CVT198708-198908

COLD SPEC

sub85330-50020

main85310-16050iST16#..(CP,LB)..USA198708-198908

sub85330-60140

85331JAR SUB-ASSY, WINDSHIELD WASHER

main85331-20500iST162..CP..GTS..USA;ST162..(CP,LB)..(GT,ST)..USA198708-198908

main85331-20590iST162..CVT;ST162..(GT,ST)..CND;ST162..CP..GTS..CND198708-198908

COLD SPEC

main85331-20600iST16#..LB..(GTS,TBOAT)..USA198708-198908

W(REAR WINDOW WIPER)

main85331-20610iST16#..LB..(GTS,TBO4W)..CND198708-198908

W(REAR WINDOW WIPER)

main85331-20610iST16#..LB..(GTS,TBO4W)..CND198708-198908

COLD SPEC

main85331-20610iST16#..LB..(GTS,TBO4W)..CND198708-198908

COLD SPEC & W(REAR WINDOW WIPER)

85332CAP, WINDSHIELD WASHER JAR

main85332-32130iST16#198708-198908

8533320020FILTER, WINDSHIELD WASHER JAR

main85333-20020

9009904301

main90099-04301

9009904987

main90099-04987

9009932089

main90099-32089

9009932103

main90099-32103

9011906070

main90119-06070

9017906026

main90179-06026

11 parts on this diagram · 2 diagrams in section
