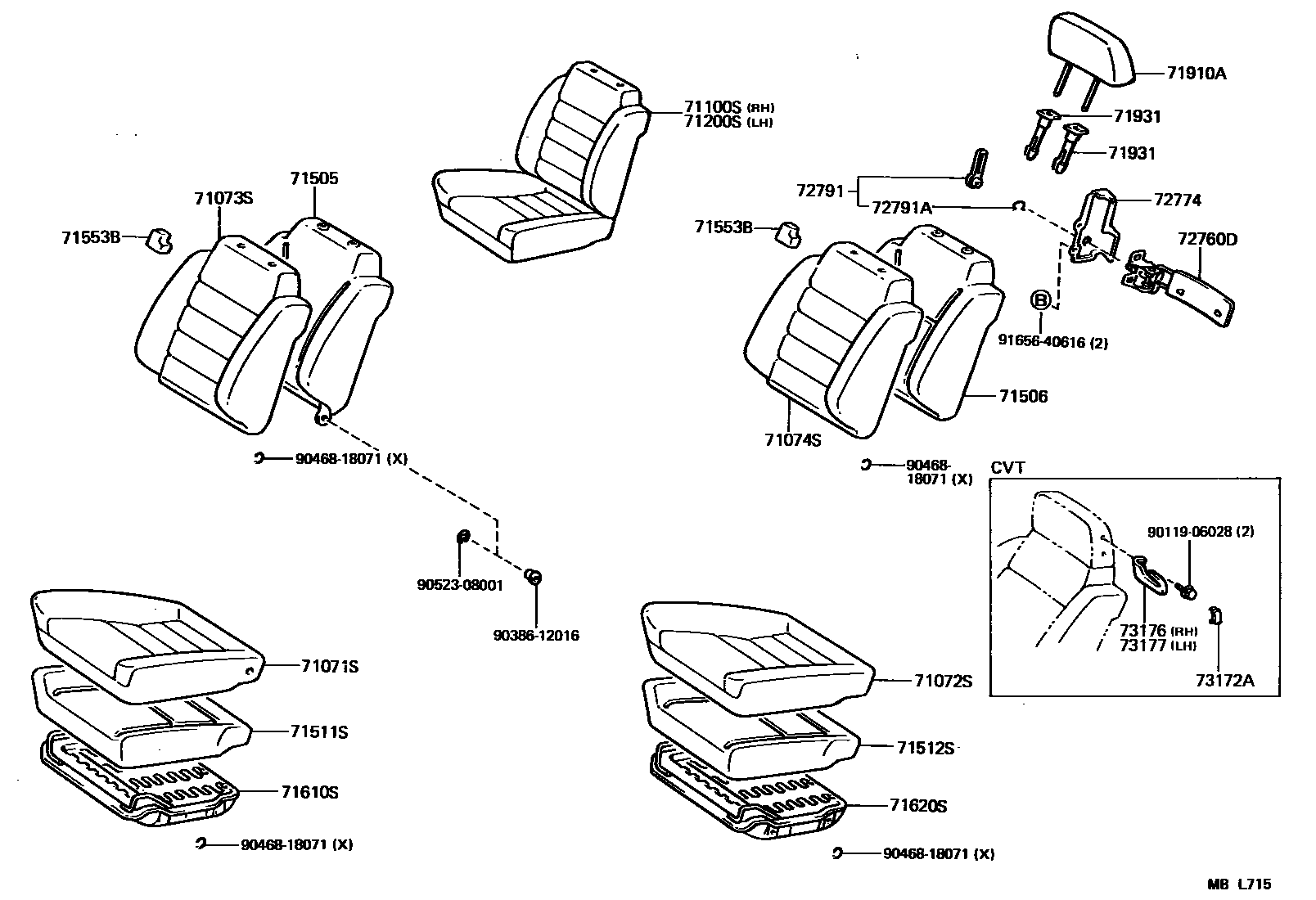

FRONT SEAT & SEAT TRACK

0001 1 0002 1 0003 1

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-2B550-01iST16#..GTS,TBO4W,TBOAT198808-198908

ST16#..GTS,TBOAT,TBO4W,BLACK,TRIM2#

main71071-2B550-04iST16#..5F..(GTS,TBO4W,TBOAT)198708-198808

W(LEATHER SEAT),DEEP BLUE,TRIM8#

main71071-2B550-12iST16#..5F..(GTS,TBO4W,TBOAT)198708-198808

W(LEATHER SEAT),RED,TRIM3#

main71071-2B711-01iST162..ST198708-198808

BLACK,TRIM2#

main71071-2B711-02iST162..ST198708-198808

RED,TRIM3#

main71071-2B711-04iST162..ST198708-198808

DEEP BLUE,TRIM8#

main71071-2B711-05iST162..ST198708-198808

DARK BEIGE,TRIM4#

main71071-2B721-02iST162..(CP,LB)..GT198708-198808

RED,TRIM3#

main71071-2B721-04iST162..(CP,LB)..GT198708-198808

DEEP BLUE,TRIM8#

main71071-2B721-05iST162..ST198808-198908

DARK BEIGE,TRIM4#

main71071-2B721-13iST162..(CP,LB)..GT198708-198808

GRAY,TRIM2#

main71071-2B840-13iST162..CVT198708-198808

GRAY,TRIM2#

main71071-2B841-03iST162..CVT198808-198908

GRAY,TRIM2#

main71071-2B860-02iST162..GTS198708-198808

RED,TRIM3#

main71071-2B860-04iST162..GTS198708-198808

DEEP BLUE,TRIM8#

main71071-2B860-05iST162..GTS198708-198808

DARK BEIGE,TRIM4#

main71071-2B860-13iST162..GTS198708-198808

GRAY,TRIM2#

main71071-2D380-02iST16#..GTS,TBO4W,TBOAT198808-198908

RED,TRIM3#

main71071-2D380-03iST16#..GTS,TBO4W,TBOAT198808-198908

GRAY,TRIM2#

main71071-2D380-04iST16#..GTS,TBO4W,TBOAT198808-198908

DEEP BLUE,TRIM8#

main71071-2D380-05iST162..GTS198808-198908

DARK BEIGE,TRIM4#

main71071-2D450-02iST162..(CP,LB)..GT198808-198908

RED,TRIM3#

main71071-2D450-03iST162..(CP,LB)..GT198808-198908

GRAY,TRIM2#

main71071-2D450-04iST162..(CP,LB)..GT198808-198908

DEEP BLUE,TRIM8#

main71071-2D450-05iST162..(CP,LB)..GT198808-198908

DARK BEIGE,TRIM4#

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-2B080-01iST16#..GTS,TBO4W,TBOAT198808-198908

W(LEATHER SEAT),BLACK,TRIM2#

main71072-2B080-04iST16#..5F..(GTS,TBO4W,TBOAT)198708-198808

W(LEATHER SEAT),DEEP BLUE,TRIM8#

main71072-2B080-12iST16#..5F..(GTS,TBO4W,TBOAT)198708-198808

W(LEATHER SEAT),RED,TRIM3#

main71072-2B121-01iST162..ST198708-198808

BLACK,TRIM2#

main71072-2B121-02iST162..ST198708-198808

RED,TRIM3#

main71072-2B121-04iST162..ST198708-198808

DEEP BLUE,TRIM8#

main71072-2B121-05iST162..ST198708-198808

DARK BEIGE,TRIM4#

main71072-2B141-02iST162..(CP,LB)..GT198708-198808

RED,TRIM3#

main71072-2B141-04iST162..ST198808-198908

DEEP BLUE,TRIM8#

main71072-2B141-05iST162..ST198808-198908

DARK BEIGE,TRIM4#

main71072-2B141-13iST162..ST198808-198908

GRAY,TRIM2#

main71072-2B202-02iST16#..GTS,TBO4W,TBOAT198708-198808

RED,TRIM3#

main71072-2B202-04iST16#..GTS,TBO4W,TBOAT198708-198808

DEEP BLUE,TRIM8#

main71072-2B202-13iST16#..GTS,TBO4W,TBOAT198708-198808

GRAY,TRIM2#

main71072-2B280-13iST162..CVT198708-198808

GRAY,TRIM2#

main71072-2B281-03iST162..CVT198808-198908

GRAY,TRIM2#

main71072-2B800-02iST16#..GTS,TBO4W,TBOAT198808-198908

RED,TRIM3#

main71072-2B800-03iST16#..GTS,TBO4W,TBOAT198808-198908

GRAY,TRIM2#

main71072-2B800-04iST16#..GTS,TBO4W,TBOAT198808-198908

DEEP BLUE,TRIM8#

main71072-2B800-05iST162..GTS198808-198908

DARK BEIGE,TRIM4#

main71072-2B880-02iST162..(CP,LB)..GT198808-198908

RED,TRIM3#

main71072-2B880-03iST162..(CP,LB)..GT198808-198908

GRAY,TRIM2#

main71072-2B880-04iST162..(CP,LB)..GT198808-198908

DEEP BLUE,TRIM8#

main71072-2B880-05iST162..(CP,LB)..GT198808-198908

DARK BEIGE,TRIM4#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-2B500-01iST162..5F..GTS198708-198710

W(LEATHER SEAT),BLACK(TRIM2),BLACK,TRIM2#

main71073-2B500-04iST162..5F..GTS198708-198710

W(LEATHER SEAT),DEEP BLUE,TRIM8#

main71073-2B500-12iST162..5F..GTS198708-198710

W(LEATHER SEAT),RED,TRIM3#

main71073-2B501-01iST16#..5F..(GTS,TBO4W,TBOAT)198710-198808

W(LEATHER SEAT),BLACK,TRIM2#

main71073-2B501-02iST16#..GTS,TBO4W,TBOAT198808-198908

W(LEATHER SEAT),RED,TRIM3#

main71073-2B501-04iST16#..GTS,TBO4W,TBOAT198808-198908

W(LEATHER SEAT),DEEP BLUE,TRIM8#

main71073-2B701-01iST162..ST198708-198808

BLACK,TRIM2#

main71073-2B701-02iST162..ST198708-198808

RED,TRIM3#

main71073-2B701-04iST162..ST198708-198808

DEEP BLUE,TRIM8#

main71073-2B701-05iST162..ST198708-198808

DARK BEIGE,TRIM4#

main71073-2B721-02iST162..ST198808-198908

RED,TRIM3#

main71073-2B721-04iST162..ST198808-198908

DEEP BLUE,TRIM8#

main71073-2B721-05iST162..ST198808-198908

DARK BEIGE,TRIM4#

main71073-2B721-13iST162..(CP,LB)..GT198708-198808

GRAY,TRIM2#

main71073-2B770-13iST162..CVT198708-198808

GRAY,TRIM2#

main71073-2B771-03iST162..CVT198808-198908

GRAY,TRIM2#

main71073-2B781-02iST162..GTS198708-198808

RED,TRIM3#

main71073-2B781-03iST162..GTS198708-198808

GRAY,TRIM2#

main71073-2B781-04iST162..GTS198708-198808

DEEP BLUE,TRIM8#

main71073-2B781-05iST162..GTS198708-198808

DARK BEIGE,TRIM4#

main71073-2D310-02iST16#..GTS,TBO4W,TBOAT198808-198908

RED,TRIM3#

main71073-2D310-03iST16#..GTS,TBO4W,TBOAT198808-198908

GRAY,TRIM2#

main71073-2D310-04iST16#..GTS,TBO4W,TBOAT198808-198908

DEEP BLUE,TRIM8#

main71073-2D310-05iST162..GTS198808-198908

DARK BEIGE,TRIM4#

main71073-2D350-02iST162..(CP,LB)..GT198808-198908

RED,TRIM3#

main71073-2D350-03iST162..(CP,LB)..GT198808-198908

GRAY,TRIM2#

main71073-2D350-04iST162..(CP,LB)..GT198808-198908

DEEP BLUE,TRIM8#

main71073-2D350-05iST162..(CP,LB)..GT198808-198908

DARK BEIGE,TRIM4#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-2B210-01iST162..5F..GTS198708-198710

W(LEATHER SEAT),BLACK(TRIM2),BLACK,TRIM2#

main71074-2B210-04iST162..5F..GTS198708-198710

W(LEATHER SEAT),DEEP BLUE,TRIM8#

main71074-2B210-12iST162..5F..GTS198708-198710

W(LEATHER SEAT),RED,TRIM3#

main71074-2B211-01iST16#..GTS,TBO4W,TBOAT198808-198908

W(LEATHER SEAT),BLACK(TRIM2),BLACK,TRIM2#

main71074-2B211-02iST16#..GTS,TBO4W,TBOAT198808-198908

W(LEATHER SEAT),RED,TRIM3#

main71074-2B211-04iST16#..GTS,TBO4W,TBOAT198808-198908

W(LEATHER SEAT),DEEP BLUE,TRIM8#

main71074-2B371-01iST162..ST198708-198808

BLACK,TRIM2#

main71074-2B371-02iST162..ST198708-198808

RED,TRIM3#

main71074-2B371-04iST162..ST198708-198808

DEEP BLUE,TRIM8#

main71074-2B371-05iST162..ST198708-198808

DARK BEIGE,TRIM4#

main71074-2B381-02iST162..ST198808-198908

RED,TRIM3#

main71074-2B381-04iST162..ST198808-198908

DEEP BLUE,TRIM8#

main71074-2B381-05iST162..ST198808-198908

DARK BEIGE,TRIM4#

main71074-2B381-13iST162..ST198808-198908

GRAY,TRIM2#

main71074-2B391-02iST162..(CP,LB)..GT198708-198808

RED,TRIM3#

main71074-2B391-04iST162..(CP,LB)..GT198708-198808

DEEP BLUE,TRIM8#

main71074-2B391-05iST162..(CP,LB)..GT198708-198808

DARK BEIGE,TRIM4#

main71074-2B391-13iST162..(CP,LB)..GT198708-198808

GRAY,TRIM2#

main71074-2B440-13iST162..CVT198708-198808

GRAY,TRIM2#

main71074-2B441-03iST162..CVT198808-198908

GRAY,TRIM2#

main71074-2B451-02iST162..GTS198708-198808

RED,TRIM3#

main71074-2B451-03iST162..GTS198708-198808

GRAY,TRIM2#

main71074-2B451-04iST162..GTS198708-198808

DEEP BLUE,TRIM8#

main71074-2B451-05iST162..GTS198708-198808

DARK BEIGE,TRIM4#

main71074-2B890-02iST16#..GTS,TBO4W,TBOAT198808-198908

RED,TRIM3#

main71074-2B890-03iST16#..GTS,TBO4W,TBOAT198808-198908

GRAY,TRIM2#

main71074-2B890-04iST16#..GTS,TBO4W,TBOAT198808-198908

DEEP BLUE,TRIM8#

main71074-2B890-05iST162..GTS198808-198908

DARK BEIGE,TRIM4#

main71074-2D040-02iST162..(CP,LB)..GT198808-198908

RED,TRIM3#

main71074-2D040-03iST162..(CP,LB)..GT198808-198908

GRAY,TRIM2#

main71074-2D040-04iST162..(CP,LB)..GT198808-198908

DEEP BLUE,TRIM8#

main71074-2D040-05iST162..(CP,LB)..GT198808-198908

DARK BEIGE,TRIM4#

71100SSEAT ASSY, FRONT RH

main71050-20783-02iST162..GTS198708-198808

RED,TRIM3#

main71050-20783-03iST162..GTS198708-198808

BLACK,TRIM2#

main71050-20783-04iST162..GTS198708-198808

DEEP BLUE,TRIM8#

main71050-20783-05iST162..GTS198708-198808

DARK BEIGE,TRIM4#

main71050-20784-02iST162..GTS198808-198908

RED,TRIM3#

main71050-20784-03iST162..GTS198808-198908

GRAY,TRIM2#

main71050-20784-04iST162..GTS198808-198908

DEEP BLUE,TRIM8#

main71050-20784-05iST162..GTS198808-198908

DARK BEIGE,TRIM4#

main71050-20791-01iST162..GTS198808-198908

W(LEATHER SEAT),BLACK(TRIM2),BLACK,TRIM2#

main71050-20791-02iST162..GTS198808-198908

W(LEATHER SEAT),RED,TRIM3#

main71050-20791-04iST162..GTS198808-198908

W(LEATHER SEAT),DEEP BLUE,TRIM8#

main71100-2B400-02iST165198710-198808

RED,TRIM3#

main71100-2B400-03iST165198710-198808

GRAY,TRIM2#

main71100-2B400-04iST165198710-198808

DEEP BLUE,TRIM8#

main71100-2B401-02iST165198808-198908

RED,TRIM3#

main71100-2B401-03iST165198808-198908

GRAY,TRIM2#

main71100-2B401-04iST165198808-198908

DEEP BLUE,TRIM8#

main71100-2B410-01iST165198710-198908

W(LEATHER SEAT),BLACK,TRIM2#

main71100-2B410-02iST165198710-198908

W(LEATHER SEAT),RED,TRIM3#

main71100-2B410-04iST165198710-198908

W(LEATHER SEAT),DEEP BLUE,TRIM8#

71200SSEAT ASSY, FRONT LH

main71200-2B163-02iST162..GTS198708-198808

RED,TRIM3#

main71200-2B163-03iST162..GTS198708-198808

GRAY,TRIM2#

main71200-2B163-04iST162..GTS198708-198808

DEEP BLUE,TRIM8#

main71200-2B163-05iST162..GTS198708-198808

DARK BEIGE,TRIM4#

main71200-2B164-02iST162..GTS198808-198908

RED,TRIM3#

main71200-2B164-03iST162..GTS198808-198908

GRAY,TRIM2#

main71200-2B164-04iST162..GTS198808-198908

DEEP BLUE,TRIM8#

main71200-2B164-05iST162..GTS198808-198908

DARK BEIGE,TRIM4#

main71200-2B171-01iST162..5F..GTS198708-198808

W(LEATHER SEAT),BLACK(TRIM2),BLACK,TRIM2#

main71200-2B171-02iST162..5F..GTS198708-198808

W(LEATHER SEAT),RED,TRIM3#

main71200-2B171-04iST162..5F..GTS198708-198808

W(LEATHER SEAT),DEEP BLUE,TRIM8#

main71200-2B710-02iST165198710-198808

RED,TRIM3#

main71200-2B710-03iST165198710-198808

GRAY,TRIM2#

main71200-2B710-04iST165198710-198808

DEEP BLUE,TRIM8#

main71200-2B711-02iST165198808-198908

RED,TRIM3#

main71200-2B711-03iST165198808-198908

GRAY,TRIM2#

main71200-2B711-04iST165198808-198908

DEEP BLUE,TRIM8#

main71200-2B720-01iST165198710-198908

W(LEATHER SEAT),BLACK,TRIM2#

main71200-2B720-02iST165198710-198908

W(LEATHER SEAT),RED,TRIM3#

main71200-2B720-04iST165198710-198908

W(LEATHER SEAT),DEEP BLUE,TRIM8#

71505PAD SUB-ASSY, FRONT SEATBACK W/FRAME, RH

main71505-20050iST162..GT,ST198708-198908

71506PAD SUB-ASSY, FRONT SEATBACK W/FRAME, LH

main71505-20050iST162..ST;ST162..CVT198708-198908

main71506-20030iST162..(CP,LB)..GT198708-198908

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-20400iST162..GT,ST198708-198908

main71511-20410iST16#..GTS,TBO4W,TBOAT198708-198908

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71511-20400iST162..GT,ST198708-198908

main71511-20410iST16#..GTS,TBO4W,TBOAT198708-198908

71553BPAD, FRONT SEATBACK, B

main71553-20130×2iST162..(CP,LB)..GT; ST162..ST;ST162..CVT198708-198908

71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71610-20270iST162..GT,ST198708-198908

main71610-20300iST16#..GTS,TBO4W,TBOAT198708-198908

71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71610-20270iST162..ST;ST162..CVT198708-198908

main71620-20170iST162..(CP,LB)..GT198708-198908

main71620-20180iST16#..GTS,TBO4W,TBOAT198708-198908

71910AHEADREST ASSY, FRONT SEAT

main71910-20580-01×2iST162..GTS198708-198710

BLACK,TRIM2#

main71910-20580-04×2iST162..GTS198708-198710

DEEP BLUE,TRIM8#

main71910-20580-05×2iST162..GTS198708-198710

DARK BEIGE,TRIM4#

main71910-20580-12×2iST162..GTS198708-198710

RED,TRIM3#

main71910-20590-01×2iST16#..5F..(GTS,TBO4W,TBOAT)198708-198808

W(LEATHER SEAT),BLACK,TRIM2#

main71910-20590-04×2iST16#..GTS,TBO4W,TBOAT198808-198908

W(LEATHER SEAT),DEEP BLUE,TRIM8#

main71910-20590-12×2iST16#..GTS,TBO4W,TBOAT198808-198908

W(LEATHER SEAT),RED,TRIM3#

main71910-20600-01×2iST162..ST198708-198808

BLACK,TRIM2#

main71910-20600-02×2iST162..ST..CND198808-198908

RED,TRIM3#

main71910-20600-04×2iST162..ST..CND198808-198908

DEEP BLUE,TRIM8#

main71910-20600-05×2iST162..ST..CND198808-198908

DARK BEIGE,TRIM4#

main71910-20621-01×2iST162..ST..USA198808-198908

GRAY,TRIM2#

main71910-20621-02×2iST162..(CP,LB)..GT198708-198808

RED,TRIM3#

main71910-20621-04×2iST162..ST..USA198808-198908

DEEP BLUE,TRIM8#

main71910-20621-05×2iST162..ST..USA198808-198908

DARK BEIGE,TRIM4#

main71910-20622-02×2iST162..(CP,LB)..GT198808-198908

RED,TRIM3#

main71910-20622-03×2iST162..(CP,LB)..GT198808-198908

GRAY,TRIM2#

main71910-20622-04×2iST162..(CP,LB)..GT198808-198908

DEEP BLUE,TRIM8#

main71910-20622-05×2iST162..(CP,LB)..GT198808-198908

DARK BEIGE,TRIM4#

main71910-20791-13iST162..CVT198708-198808

GRAY,TRIM2#,RH

main71910-20792-03iST162..CVT198808-198908

GRAY,TRIM2#,RH

main71910-2B230-02×2iST16#..GTS,TBO4W,TBOAT198808-198908

RED,TRIM3#

main71910-2B230-03×2iST16#..GTS,TBO4W,TBOAT198808-198908

GRAY,TRIM2#

main71910-2B230-04×2iST16#..GTS,TBO4W,TBOAT198808-198908

DEEP BLUE,TRIM8#

main71910-2B230-05×2iST162..GTS198808-198908

DARK BEIGE,TRIM4#

main71920-20151-13iST162..CVT198708-198808

GRAY,TRIM2#,LH

main71920-20152-03iST162..CVT198808-198908

GRAY,TRIM2#,LH

71931SUPPORT, FRONT SEAT HEADREST

main71930-10060-01×2iST162..GT,ST198708-198908

W(LOCK),BLACK,TRIM2#

main71930-10060-16×2iST162..(CP,LB)..(GT,ST)198708-198908

W(LOCK),SABLE,TRIM4#

main71930-10060-32×2iST162..(CP,LB)..(GT,ST)198708-198908

W(LOCK),RED,TRIM3#

main71930-10060-44×2iST162..(CP,LB)..(GT,ST)198708-198901

W(LOCK),DEEP BLUE,TRIM8#

main71930-14080-01×2iST16#..GTS,TBO4W,TBOAT198708-198908

W(LOCK),BLACK,TRIM2#

main71930-14080-06×2iST162..GTS198708-198908

W(LOCK),SABLE,TRIM4#

main71930-14080-14×2iST16#..GTS,TBO4W,TBOAT198708-198908

W(LOCK),DEEP BLUE,TRIM8#

main71930-14080-22×2iST16#..GTS,TBO4W,TBOAT198708-198908

W(LOCK),RED,TRIM3#

main71931-10010-01×2iST162..GT,ST198708-198908

W/O(LOCK),BLACK,TRIM2#

main71931-10010-16×2iST162..(CP,LB)..(GT,ST)198708-198908

W/O(LOCK),SABLE,TRIM4#

main71931-10010-32×2iST162..(CP,LB)..(GT,ST)198708-198908

W/O(LOCK),RED,TRIM3#

main71931-10010-44×2iST162..(CP,LB)..(GT,ST)198708-198901

W/O(LOCK),DEEP BLUE,TRIM8#

main71931-14010-01×2iST16#..GTS,TBO4W,TBOAT198708-198808

W/O(LOCK),BLACK,TRIM2#; W/O(LOCK),W(LEATHER SEAT),BLACK,TRIM2#

main71931-14010-06×2iST162..GTS198708-198808

W/O(LOCK),SABLE,TRIM4#

main71931-14010-14×2iST16#..GTS,TBO4W,TBOAT198708-198808

W/O(LOCK),DEEP BLUE,TRIM8#; W/O(LOCK),W(LEATHER SEAT),DEEP BLUE,TRIM8#

main71931-14010-22×2iST16#..GTS,TBO4W,TBOAT198708-198808

W/O(LOCK),RED,TRIM3#; W/O(LOCK),W(LEATHER SEAT),RED,TRIM3#

72760DADJUSTER ASSY, LUMBAR SUPPORT, LH

main72750-20070iST16#..GTS,TBO4W,TBOAT198708-198908

main72760-20030iST162..(CP,LB)..GT198708-198908

72774PROTECTOR, LUMBAR SUPPORT SPRING

main72775-12010iST162..(CP,LB)..GT198708-198908

72791LEVER, LUMBAR SUPPORT

main72791-20030-01iST162..(CP,LB)..GT198708-198908

BLACK,TRIM2#

main72791-20030-02iST162..(CP,LB)..GT198708-198908

RED,TRIM3#

main72791-20030-04iST162..(CP,LB)..GT198708-198908

DEEP BLUE,TRIM8#

main72791-20030-05iST162..(CP,LB)..GT198708-198908

DARK BEIGE,TRIM4#

72791ARING, SHAFT SNAP(FOR LUMBER SUPPORT LEVER)

main90520-01274iST162..(CP,LB)..GT198708-198908

73172ACAP, FRONT SHOULDER BELT HANGER

main73172-20010-01×2iST162..CVT198708-198908

BLACK,TRIM2#

73176HANGER, FRONT SHOULDER BELT, RH (FOR FRONT SEAT)

main73176-20030-01iST162..CVT198708-198908

BLACK,TRIM2#

73177HANGER, FRONT SHOULDER BELT, LH (FOR FRONT SEAT)

main73177-20030-01iST162..CVT198708-198908

BLACK,TRIM2#

9011906028

main90119-06028

9038612016

main90386-12016

9046818071

main90468-18071

9052308001

main90523-08001

9165640616

main91656-40616

27 parts on this diagram · 3 diagrams in section
