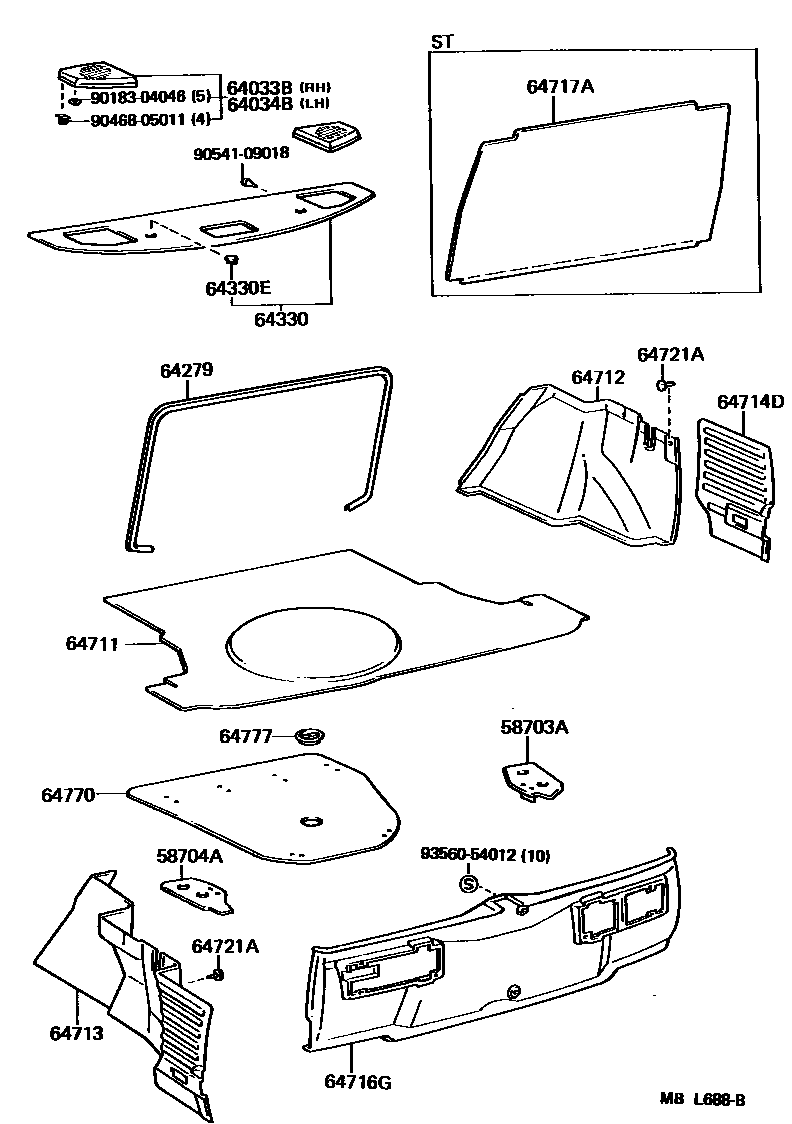

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

0001 1 0002 1

58703ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH

main58703-20080iST162..CP198708-198908

58704ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH

main58704-20040iST162..CP198708-198908

64033BGRILLE SUB-ASSY, REAR SPEAKER, RH

main64033-20020-01iST162..CP198708-198908

BLACK,TRIM2#

main64033-20020-02iST162..CP198708-198908

RED,TRIM3#

main64033-20020-04iST162..CP198708-198908

DEEP BLUE,TRIM8#

main64033-20020-05iST162..CP198708-198908

DARK BEIGE,TRIM4#

64034BGRILLE SUB-ASSY, REAR SPEAKER, LH

main64034-20020-01iST162..CP198708-198908

BLACK,TRIM2#

main64034-20020-02iST162..CP198708-198908

RED,TRIM3#

main64034-20020-04iST162..CP198708-198908

DEEP BLUE,TRIM8#

main64034-20020-05iST162..CP198708-198908

DARK BEIGE,TRIM4#

64279PROTECTOR, ROOM PARTITION

main64279-20030-01iST162..CP..(GT,GTS)198808-198908

BLACK,TRIM2#

main64279-20030-02iST162..CP..5F..GTS198708-198808

RED,TRIM3#

main64279-20030-04iST162..CP..(GT,GTS)198808-198908

DEEP BLUE,TRIM8#

main64279-20030-05iST162..CP..(GT,GTS)198808-198908

DARK BEIGE,TRIM4#

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-20690-01iST162..ST198808-198908

BLACK,TRIM2#

main64330-20690-02iST162..ST198808-198908

RED,TRIM3#

main64330-20690-04iST162..ST198708-198908

DEEP BLUE,TRIM8#

main64330-20690-05iST162..ST198808-198908

DARK BEIGE,TRIM4#

main64330-20710-01iST162..CP..(GT,GTS)198708-198908

BLACK,TRIM2#

main64330-20710-02iST162..CP..(GT,GTS)198708-198908

RED,TRIM3#

main64330-20710-04iST162..CP..(GT,GTS)198708-198908

DEEP BLUE,TRIM8#

main64330-20710-05iST162..CP..(GT,GTS)198708-198908

DARK BEIGE,TRIM4#

64330EPLUG(FOR PACKAGE TRAY TRIM PANEL)

main90950-01436-01×2iST162..CP198708-198908

BLACK,TRIM2#

main90950-01436-14×2iST162..CP198708-198908

DEEP BLUE,TRIM8#

main90950-01436-22×2iST162..CP198708-198908

RED,TRIM3#

main90950-01436-25×2iST162..CP198708-198908

DARK BEIGE,TRIM4#

64711MAT, LUGGAGE COMPARTMENT FLOOR

main64711-20310iST162..ST198708-198908

main64711-20360iST162..CP..(GT,GTS)198708-198908

main64711-20390-01iST162..CVT198708-198908

BLACK,TRIM2#

64712COVER, LUGGAGE COMPARTMENT TRIM, RH

main64712-20110iST162..ST198708-198908

main64712-20120iST162..CP..(GT,GTS)198708-198908

64713COVER, LUGGAGE COMPARTMENT TRIM, LH

main64072-20090iST162..ST198708-198908

main64072-20100iST162..CP..(GT,GTS)198708-198908

64714DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, RH

main64714-20200iST162..ST198708-198908

main64714-20210iST162..CP..(GT,GTS)198708-198908

64716GCOVER, LUGGAGE COMPARTMENT TRIM, REAR

main64716-20150iST162..ST198708-198712

main64716-20151-03iST162..ST198712-198908

GRAY,TRIM2#,3#,4#,8#

main64716-20170-01iST162..CVT198710-198712

BLACK,TRIM2#

main64716-20171-01iST162..CVT198712-198908

BRACK,TRIM2#

main64716-20171-03iST162..CP..5F..GTS198712-198808

GRAY,TRIM2#,3#,8#

64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT

main64717-20130iST162..ST198708-198908

main64717-20210-01iST162..CVT198708-198908

BLACK,TRIM2#

64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH

main64721-20120-01iST162..CVT198708-198908

BLACK,TRIM2#

64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)

main90467-07042-03×2iST162..CP198708-198807

GRAY,TRIM2#,3#,4#,8#

64770COVER ASSY, SPARE WHEEL

main64770-20080iST162..ST198708-198908

main64770-20090iST162..ST..CND; ST162..ST..USA198808-198908

W(ALUMINUM WHEEL)

64777CLAMP, SPARE WHEEL COVER

main64777-32030iST162..ST198708-198908

9018304046

main90183-04046

9046805011

main90468-05011

9054109018

main90541-09018

9356054012

main93560-54012

21 parts on this diagram · 2 diagrams in section
