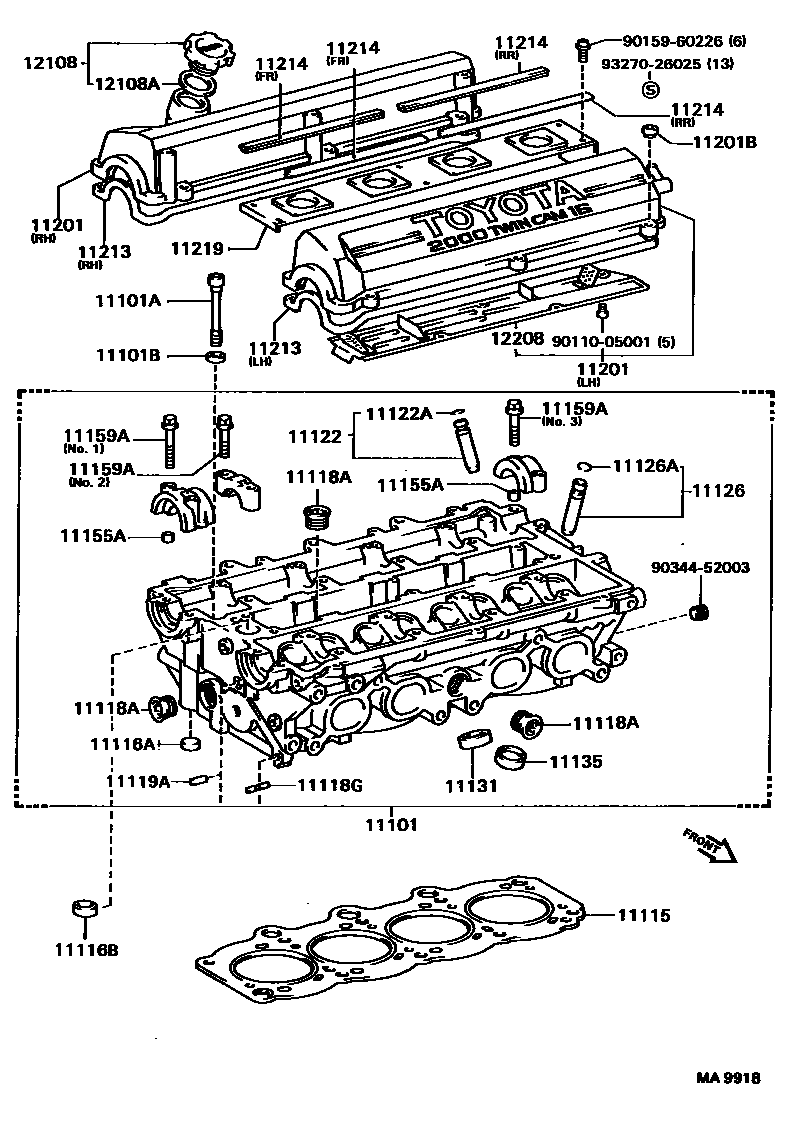

CYLINDER HEAD
11101ABOLT(FOR CYLINDER HEAD SET)
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
11116APLUG, TIGHT, NO.1
11116BPLUG, TIGHT, NO.2
11118APLUG, STRAIGHT, NO.1
NO.1 *53
NO.2
11118GPIN, SLOTTED SPRING, NO.1
11119APIN, STRAIGHT, NO.1
L=14,OD=6
11122BUSH, INTAKE VALVE GUIDE
STD
STD
O/S 0.05
O/S 0.05
11122ARING, SHAFT SNAP (FOR VALVE GUIDE BUSH)
11126BUSH, EXHAUST VALVE GUIDE
STD
STD
O/S 0.05
O/S 0.05
11126ARING, SHAFT SNAP(FOR VALVE GUIDE BUSH)
11131SEAT, INTAKE VALVE
STD
STD
O/S 0.03
O/S 0.03
11135SEAT, EXHAUST VALVE
STD
STD
O/S 0.03
11155APIN, RING W/HEAD
11201COVER SUB-ASSY, CYLINDER HEAD
11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)
11213GASKET, CYLINDER HEAD COVER
RH
LH
11214GASKET, CYLINDER HEAD COVER, NO.2
FR
RR
11219COVER, CYLINDER HEAD, NO.3
12108CAP SUB-ASSY, OIL FILLER
sub12180-55010
12108AGASKET(FOR OIL FILLER CAP)
12208PLATE SUB-ASSY, VENTILATION BAFFLE
9011005001
main90110-05001
9015960226
main90159-60226
9034452003
main90344-52003
9327026025
main93270-26025
29 parts on this diagram · 3 diagrams in section
