ENGINE OVERHAUL GASKET KIT

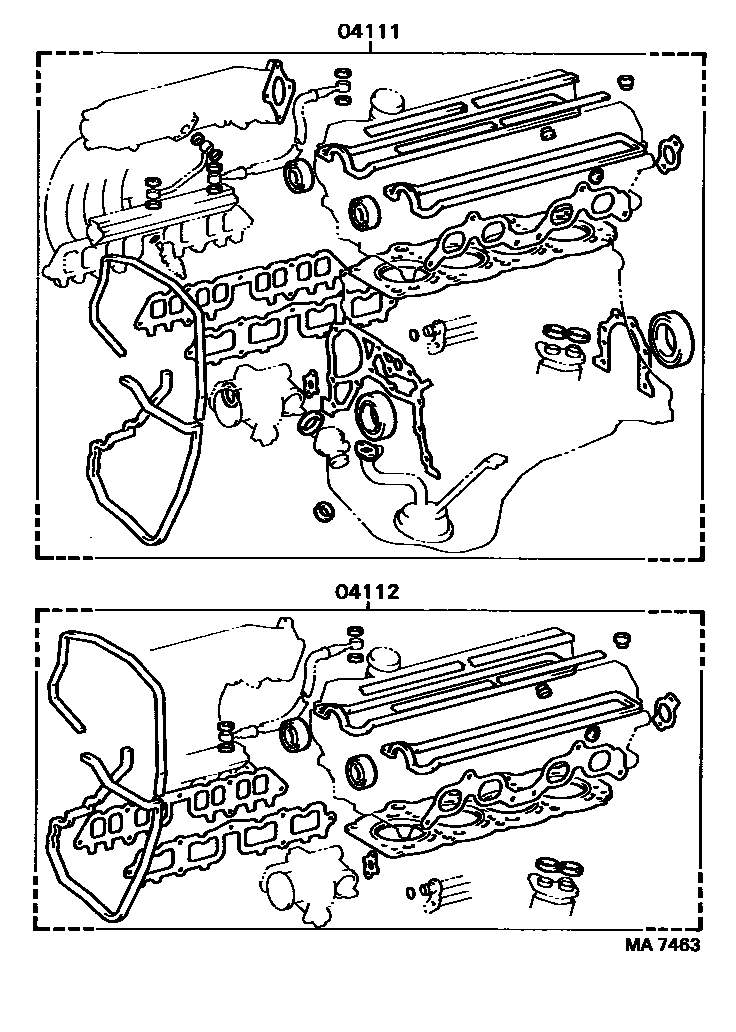

Parts diagram
04111GASKET KIT, ENGINE OVERHAUL
main04111-74042i198708-198910
sub04111-74043
main04111-74051i198708-198910
sub04111-74052
main04111-74063i198710-198908
sub04111-74064
04112GASKET KIT, ENGINE VALVE GRIND
main04112-74041i198708-198910
sub04112-74042
main04112-74050i198708-198908
sub04112-74051
main04112-74061i198710-198908
sub04112-74062

2 parts on this diagram · 3 diagrams in section
