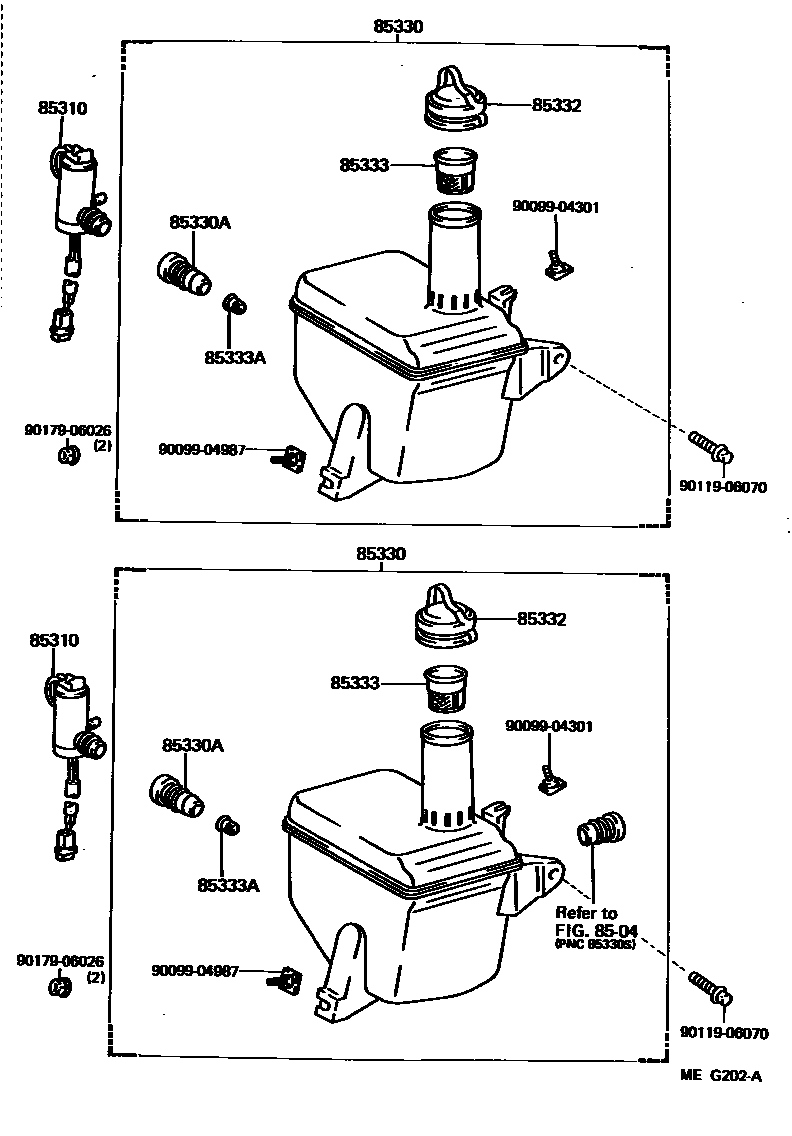

WINDSHIELD WASHER

0001 1 0002 1

8504

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-12150iST16#..(CP,LB)..USA198508-198708

sub85310-89114

main85310-22111iST162..CVT198608-198708

sub85330-12320

main85310-22111iST16#..CP,LB198508-198708

COLD SPEC

sub85330-12320

85330JAR ASSY, WINDSHIELD WASHER

main85331-20340iST16#..(CP,LB)..(GT,ST)..USA198508-198708

main85331-20380iST162..CP..GTS198508-198708

COLD SPEC

main85331-20430iST162..CP..GTS..USA198508-198708

main85331-20470iST16#..LB..USA198508-198708

W/RR WASHER

main85331-20480iST16#..LB198508-198708

W/RR WASHER,COLD SPEC

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iST16#..(CP,LB)..USA198508-198708

main90099-32103iST162..CVT198608-198708

main90099-32103iST16#..CP,LB198508-198708

COLD SPEC

85332CAP, WINDSHIELD WASHER JAR

main85332-20431iST16#..(CP,LB)..(GT,ST)..USA198508-198708

main85332-20441iST162..CVT198608-198708

main85332-20441iST16#..CP,LB198508-198708

W/RR WASHER OR COLD SPEC

85333FILTER, WINDSHIELD WASHER JAR

main85333-12470iST16#198508-198708

85333AFILTER, WINDSHIELD WASHER JAR, NO.2

main85333-20020iST16#198508-198708

9009904301

main90099-04301

9009904987

main90099-04987

9011906070

main90119-06070

9017906026

main90179-06026

11 parts on this diagram · 2 diagrams in section
