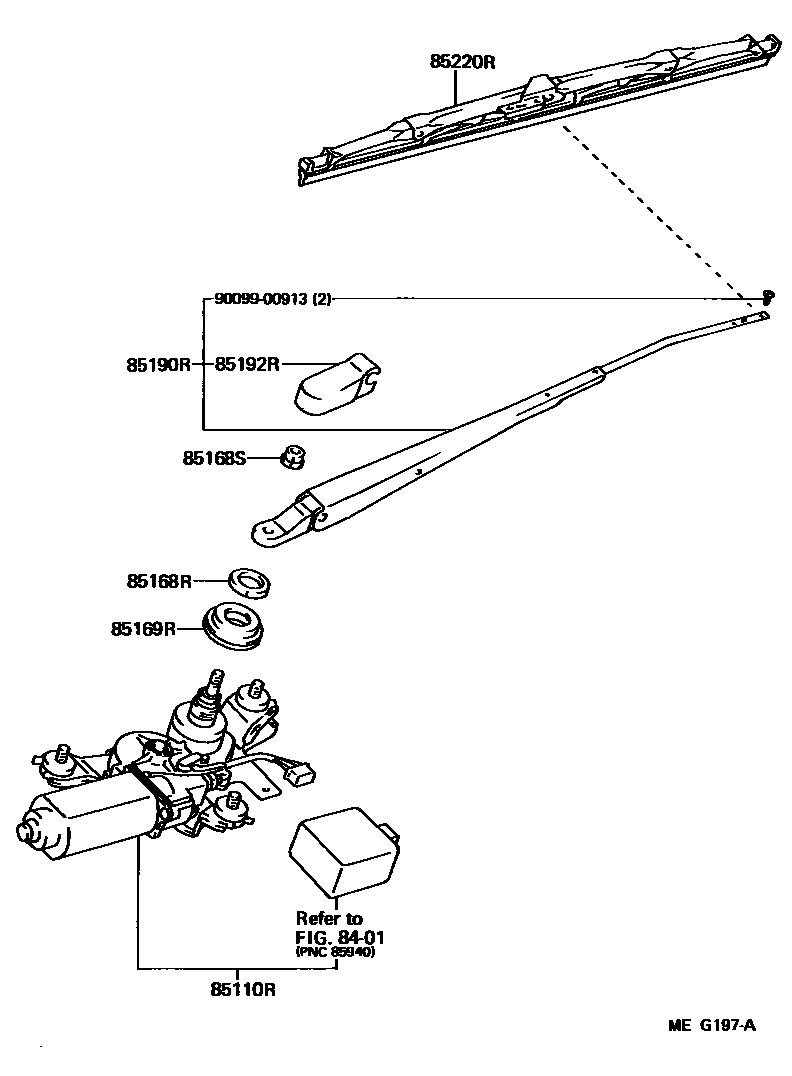

REAR WIPER

8401

85110RMOTOR ASSY, REAR WIPER

main85110-20290iST16#..LB198508-198708

85168RNUT, REAR WIPER LINK PIVOT, NO.1

main90099-05157iST16#..LB198508-198708

85168SNUT, REAR WIPER LINK PIVOT, NO.2

main90179-06158iST16#..LB198508-198708

85169RWASHER, REAR WIPER LINK PIVOT, NO.1

main85179-20280iST16#..LB198508-198708

85190RARM ASSY, REAR WIPER

main85190-20450iST16#..LB198508-198708

85192RCOVER, REAR WIPER ARM

main85192-32010iST16#..LB198508-198708

85220RBLADE ASSY, REAR WIPER

main85220-14340iST16#..LB198508-198708

sub85220-32120

9009900913

main90099-00913

9 parts on this diagram · 1 diagram in section
