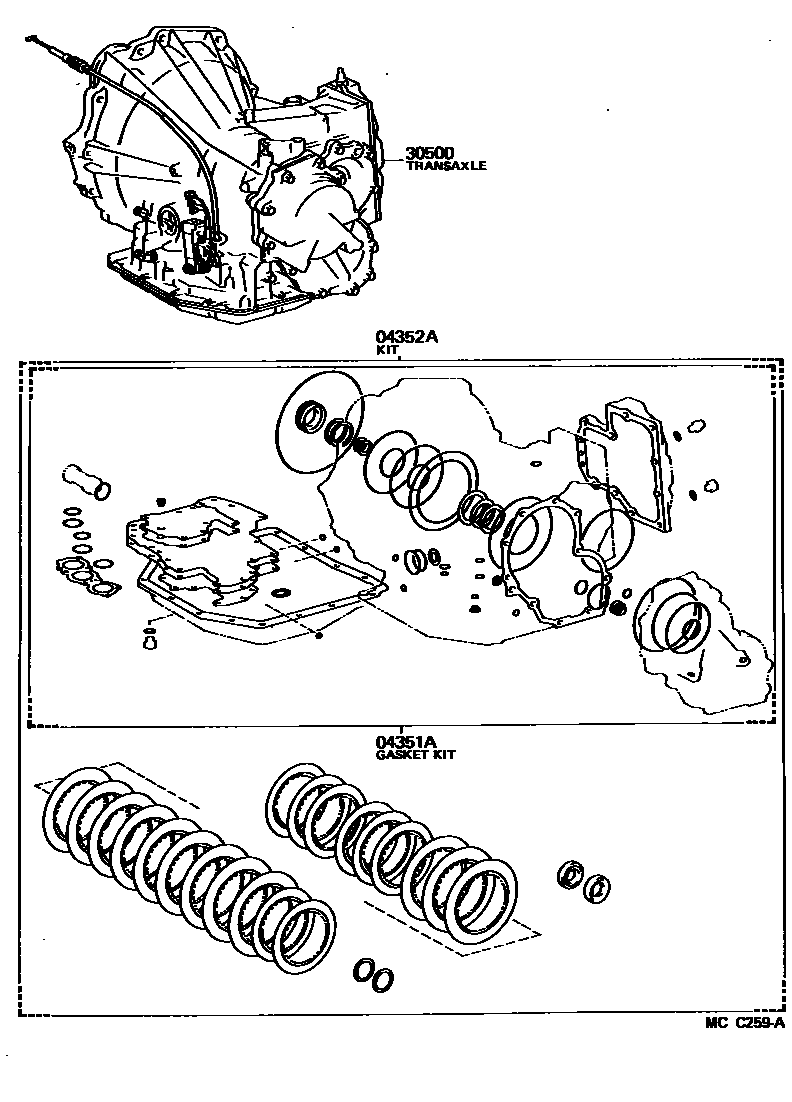

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

04351AGASKET KIT, TRANSAXLE OVERHAUL(ATM)

main04351-20080iST16#..4FC..(GT,ST)198508-198708

main04351-20090iST162..4FC..GTS198508-198708

04352AKIT, TRANSAXLE OVERHAUL(ATM)

main04352-20020iST16#..4FC..(GT,ST)198508-198708

main04352-20030iST162..4FC..GTS198508-198708

30500TRANSAXLE ASSY, AUTOMATIC

main30500-20180iST161..4FC198508-198608

main30500-20190iST162..4FC198508-198607

main30500-20191iST162..4FC..GTS198607-198609

main30500-20192iST162..4FC..GTS198609-198704

main30500-20310iST162..4FC..(GT,ST)198608-198609

main30500-20311iST162..4FC..(GT,ST)198609-198704

main30500-20400iST162..4FC..GTS198704-198708

main30500-20410iST162..4FC..(GT,ST)198704-198708

3 parts on this diagram · 1 diagram in section
