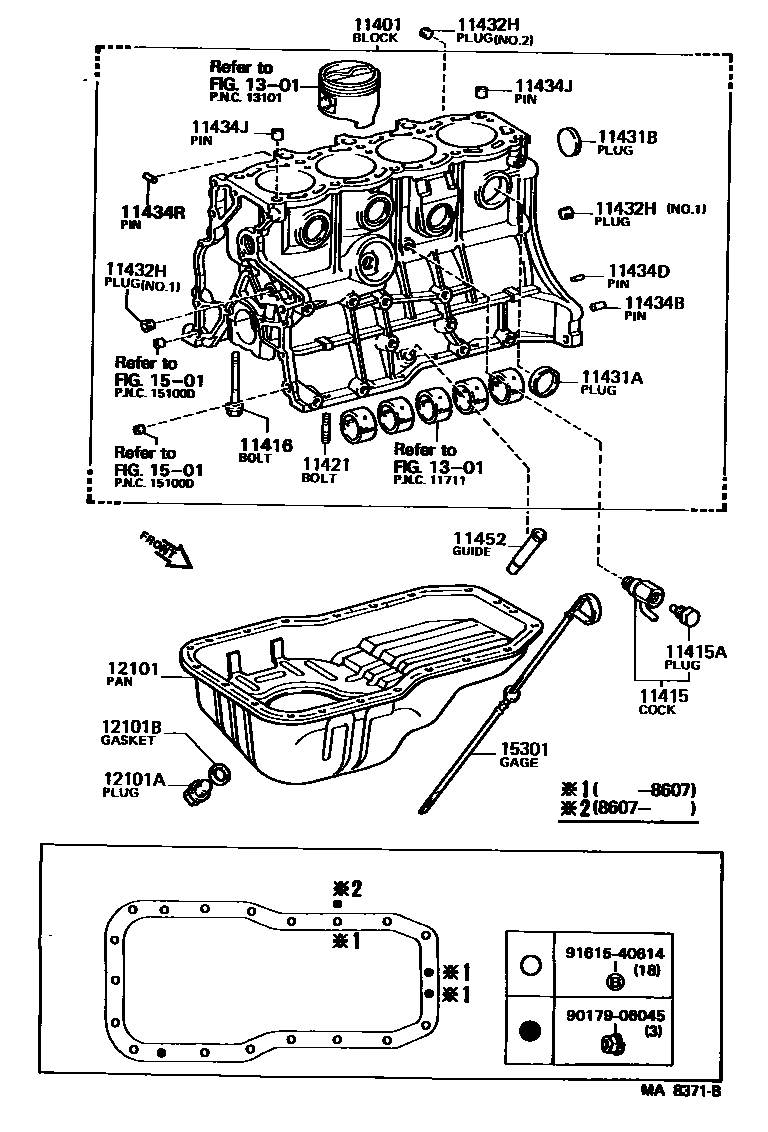

CYLINDER BLOCK
11401BLOCK SUB-ASSY, CYLINDER
sub11401-79176
11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
sub90345-52001
11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
11416BOLT(FOR CRANKSHAFT BEARING CAP SET)
*10-1.25PX67-18
11421BOLT, STUD(FOR OIL PAN)
11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
OD=35
11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
OD=40
11432HPLUG, W/HEAD TAPER SCREW, NO.5
NO.2
NO.1
11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)
L=22,OD=10
11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
L=14,OD=6
11434JPIN, RING (FOR CYLINDER HEAD SET)
11434RPIN, STRAIGHT(FOR DRIVE SHAFT BEARING BRACKET)
12101APLUG(FOR OIL PAN DRAIN)
sub90033-41020
12101BGASKET(FOR OIL PAN DRAIN PLUG)
sub90430-18023
1301
1501
9017906045
main90179-06045
9161540614
main91615-40614
21 parts on this diagram · 2 diagrams in section
