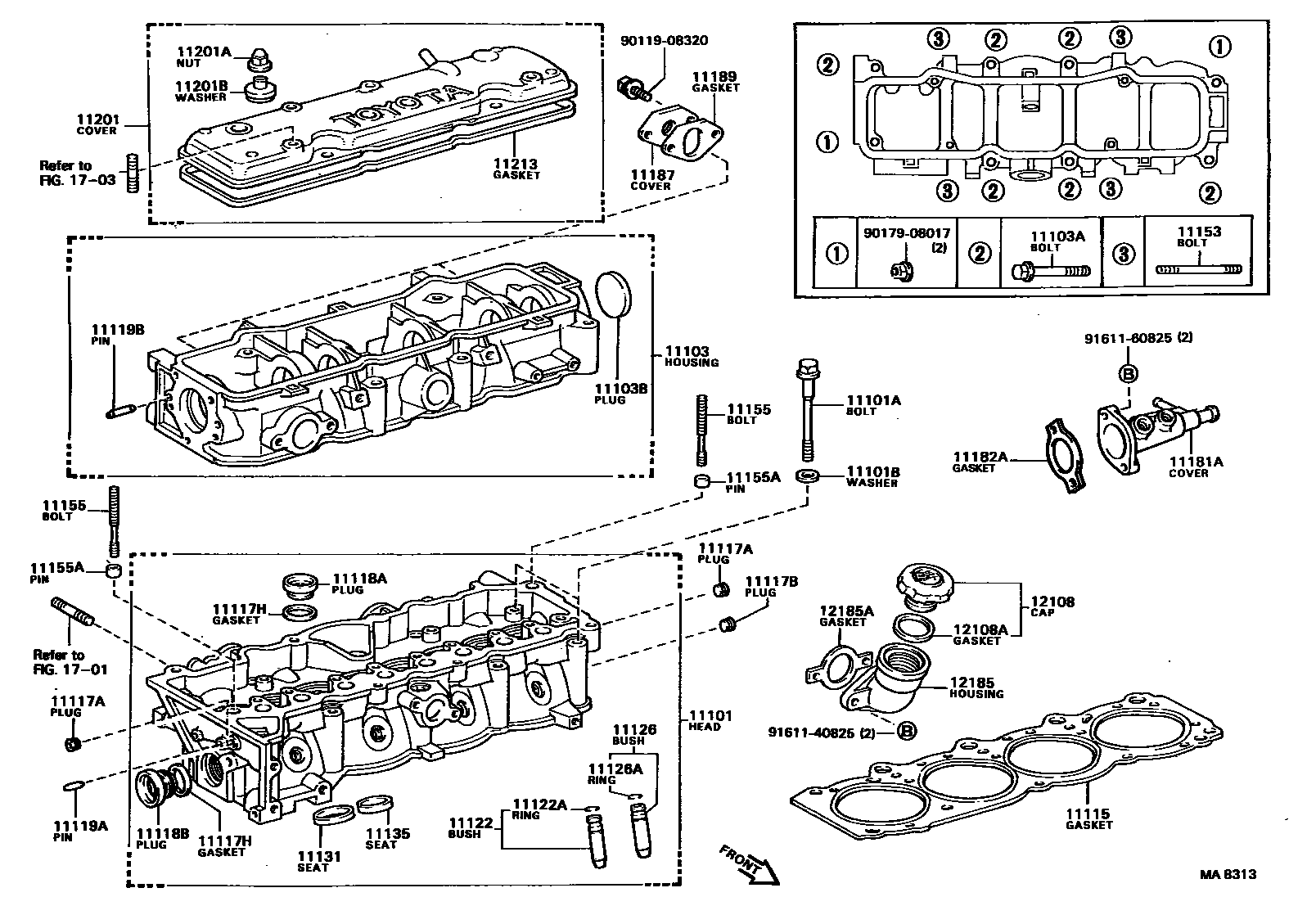

CYLINDER HEAD
11101ABOLT(FOR CYLINDER HEAD SET)
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
11103HOUSING SUB-ASSY, CAMSHAFT
11103ABOLT(FOR CAMSHAFT HOUSING SET)
11103BPLUG, TIGHT, NO.1(FOR CAM HOUSING)
11117BPLUG, W/HEAD TAPER SCREW, NO.2
11117HGASKET(FOR WATER HOLE)
PNC 11118A
PNC 11118B
11118APLUG, STRAIGHT, NO.1
NO.1
NO.2
11118BPLUG, STRAIGHT, NO.2
11119APIN, STRAIGHT, NO.1
L=14,OD=6
11119BPIN, STRAIGHT, NO.2
L=14,OD=6
11122BUSH, INTAKE VALVE GUIDE
STD,STD
STD,STD
STD,STD
O/S 0.05,O/S 0.05
O/S 0.05,O/S 0.05
O/S 0.05,O/S 0.05
11122ARING, SHAFT SNAP (FOR VALVE GUIDE BUSH)
11126BUSH, EXHAUST VALVE GUIDE
STD,STD
STD,STD
O/S 0.05,O/S 0.05
O/S 0.05,O/S 0.05
STD,STD
O/S 0.05,O/S 0.05
11126ARING, SHAFT SNAP(FOR VALVE GUIDE BUSH)
11131SEAT, INTAKE VALVE
STD,STD
STD,STD
STD,STD
O/S 0.03,O/S 0.03
O/S 0.03,O/S 0.03
O/S 0.03,O/S 0.03
11135SEAT, EXHAUST VALVE
STD,STD
STD,STD
O/S 0.03,O/S 0.03
O/S 0.03,O/S 0.03
11153BOLT, STUD(FOR CAMSHAFT HOUSING TO CYLINDER HEAD COVER)
11155BOLT, STUD(FOR HEAD TO CAMSHAFT HOUSING)
11155APIN, RING W/HEAD
11181ACOVER, CYLINDER HEAD, REAR
11182AGASKET, CYLINDER HEAD REAR COVER
sub16341-63011
11187COVER, CAMSHAFT HOUSING, REAR
11189GASKET, CAMSHAFT HOUSING REAR COVER
sub11117-63011
11201COVER SUB-ASSY, CYLINDER HEAD
11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)
12108AGASKET(FOR OIL FILLER CAP)
12185HOUSING, OIL FILLER CAP
12185AGASKET, OIL FILLER CAP HOUSING
sub16341-63011
1701
1703
9011908320
main90119-08320
9017908017
main90179-08017
9161140825
main91611-40825
9161160825
main91611-60825
41 parts on this diagram · 3 diagrams in section
