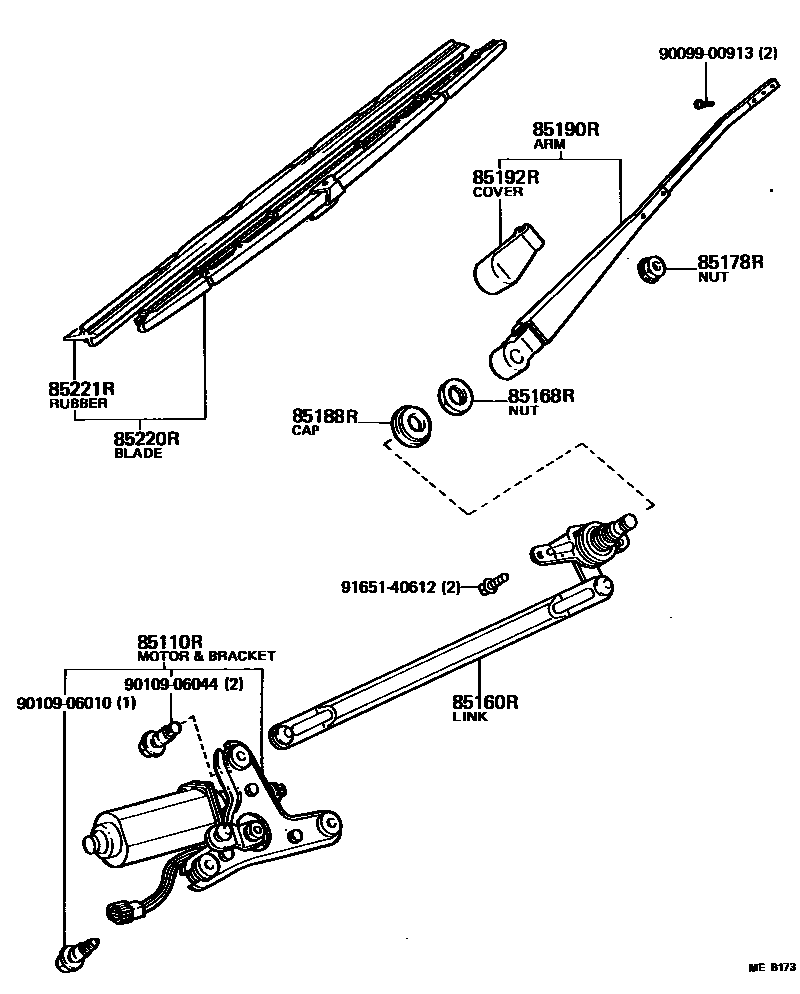

REAR WIPER

85110RMOTOR ASSY, REAR WIPER

main85120-14030iAA63,MA61,RA6#,SA63,TA60..LB198108-198512

85160RLINK ASSY, REAR WIPER

main85160-14290iMA61,RA6#,TA60..LB198108-198308

sub85160-14291

main85160-14291iAA63,MA61,RA6#,SA63,TA60..LB198308-198512

85168RNUT, REAR WIPER LINK PIVOT, NO.1

main90099-05157iAA63,MA61,RA6#,SA63,TA60..LB198108-198512

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iAA63,MA61,RA6#,SA63,TA60..LB198108-198512

85188RCAP, REAR WIPER PIVOT, NO.1

main85179-14220iAA63,MA61,RA6#,SA63,TA60..LB198108-198512

sub85179-16150

85190RARM ASSY, REAR WIPER

main85190-14390iMA61,RA6#,TA60..LB198108-198308

main85190-14421iAA63,MA61,RA6#,SA63,TA60..LB..(ARL,EUR,GEN,SAA)198308-198512

main85190-14580iMA61..SA198311-198512

85192RCOVER, REAR WIPER ARM

main85192-14070iMA61,RA6#,TA60..LB198108-198308

main85192-32010iAA63,MA61,RA6#,SA63,TA60..LB..(ARL,EUR,GEN,SAA)198308-198512

85220RBLADE ASSY, REAR WIPER

main85220-14340iMA61..SA198108-198512

sub85220-32120

main85220-32120iAA63,MA61,RA6#,SA63,TA60..LB..(ARL,EUR,GEN,SAA)198308-198512

85221RBLADE, REAR WIPER

main85221-14210iAA63,MA61,RA6#,SA63,TA60..LB198203-198512

sub85214-24H90

main85221-30080iMA61,RA6#,TA60..LB198108-198203

sub85223-12690

9009900913

main90099-00913

9010906010

main90109-06010

9010906044

main90109-06044

9165140612

main91651-40612

13 parts on this diagram · 1 diagram in section
