SWITCH & RELAY & COMPUTER

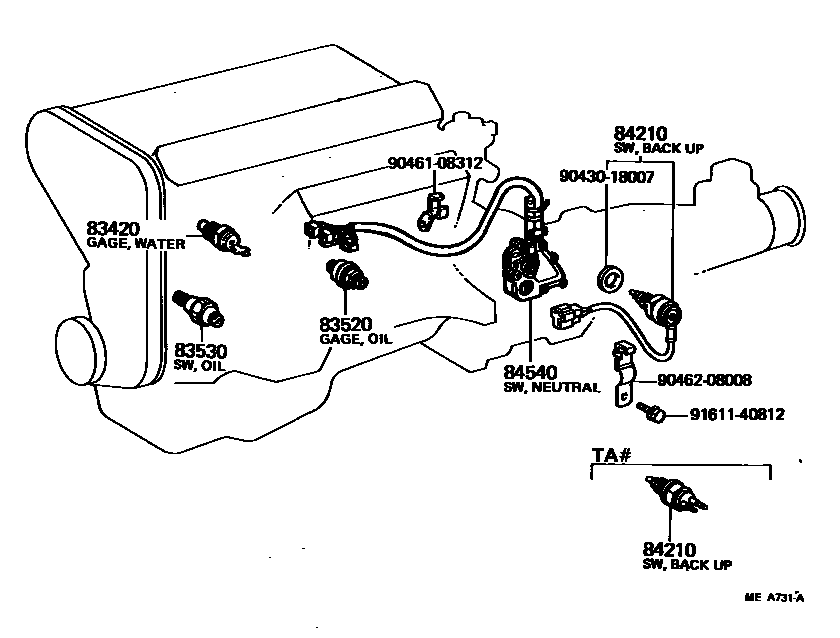

0001 1 0002 1 0003 1 0004 1 0005 1

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-20020iAA63,MA61,RA6#,SA63,TA60198108-198512

YAZAKI

83520GAGE ASSY,OIL PRESSURE SENDER

main83520-14021iRA61..RHD..XT;MA61,RA60,63..GEN,ME,SAA198108-198406

sub83520-14022

main83520-14022iRA61..RHD..EUG198406-198507

sub83520-14023

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-10020iTA60;RA63,SA63..ARL,EUR198108-198502

sub83530-14030

main83530-12040iAA63..EUG198308-198410

sub83530-14040

main83530-14010iRA65198108-198507

sub83530-14030

main83530-14020iMA61198308-198512

sub83530-30080

main83530-14030iTA60198502-198507

sub83530-28030

main83530-30042iMA61..LHD198112-198206

sub83530-30050

main83530-30050iMA61..LHD..EUG198206-198308

sub83530-30051

84210SWITCH ASSY, BACK-UP LAMP

main84210-10051iAA63,TA60..5F198108-198507

main84210-60010iMA61,RA6#,SA63..5F198108-198512

84540SWITCH ASSY, NEUTRAL START

main84540-14080iTA60..3FC198108-198512

main84540-14090iRA60,61,65..4FC198108-198507

main84540-24010iMA61..4FC..EUG198308-198512

sub84540-24011

9043018007

main90430-18007

9046108312

main90461-08312

9046208008

main90462-08008

9161140812

main91611-40812

9 parts on this diagram · 5 diagrams in section
