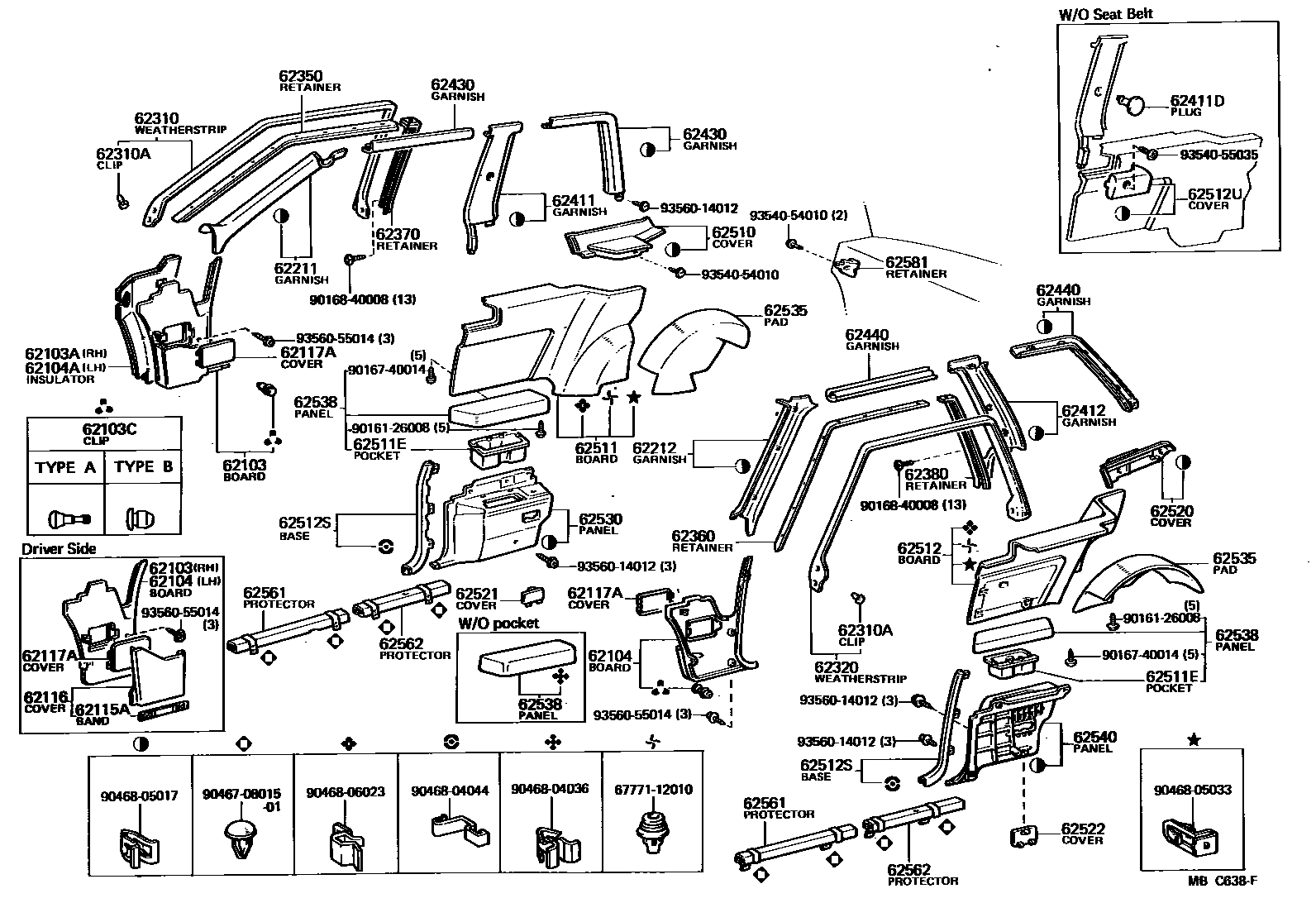

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

0001 1 0002 1

62103BOARD SUB-ASSY, COWL SIDE TRIM, RH

main62101-14130-01iMA61,RA6#..RHD198108-198201

BLACK,BLACK,TRIM2#

sub62101-14131

main62101-14130-04iMA61,RA6#..RHD198108-198201

BLUE,BLUE,TRIM8#

sub62101-14131

main62101-14130-06iMA61,RA6#..RHD198108-198201

DARK BROWN,BROWN,TRIM4#

sub62101-14131

main62101-14131-01iAA63,MA61,RA6#,SA63..RHD198201-198512

BLACK,BLACK,TRIM2#

sub62101-14131

main62101-14131-02iMA61..RHD198209-198308

GEN SPEC,TERRA COTTA,RED/MAROON,TRIM3#

sub62101-14131

main62101-14131-04iAA63,MA61,RA6#,SA63..RHD198201-198512

BLUE,BLUE,TRIM8#

sub62101-14131

main62101-14131-06iMA61..RHD..(EUR,SA)198201-198512

DARK BROWN,BROWN,TRIM4#

sub62101-14131

main62101-14131-12iMA61..RHD..(ARL,GEN)198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

sub62101-14131

main62101-14150-01iAA63,MA61,RA60,61,63,TA60..LHD198108-198512

BLACK,BLACK,TRIM2#

sub62101-14150

main62101-14150-02iMA61..LHD..EUG198209-198308

GEN SPEC,TERRA COTTA,RED/MAROON,TRIM3#

sub62101-14150

main62101-14150-02iMA61..SAA198208-198308

TERRA COTTA,RED/MAROON,TRIM3#

sub62101-14150

main62101-14150-04iAA63,MA61,RA60,61,63,TA60..LHD198108-198512

BLUE,BLUE,TRIM8#

sub62101-14150

main62101-14150-06iMA61..LHD..EUR198108-198512

DARK BROWN,BROWN,TRIM4#

sub62101-14150

main62101-14150-12iMA61..LHD..(GEN,SAA)198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

sub62101-14150

62103AINSULATOR SUB-ASSY, COWL SIDE, RH

main62105-14030iAA63,MA61,RA6#,SA63..RHD198108-198512

main62105-14040iAA63,MA61,RA60,61,63,TA60..LHD198108-198512

62103CCLIP, COWL SIDE TRIM BOARD SET

main90467-05015-01iMA61,RA6#..RHD198201-198512

TYPE A,BLACK,BLACK,TRIM2#

sub90467-05015

main90467-05015-02iMA61..EUG198209-198308

GEN SPEC,TYPE A,TERRA COTTA,RED/MAROON,TRIM3#

sub90467-05015

main90467-05015-02iMA61..SAA198208-198308

TYPE A,TERRA COTTA,RED/MAROON,TRIM3#

sub90467-05015

main90467-05015-04iMA61,RA6#..RHD198201-198512

TYPE A,BLUE,BLUE,TRIM8#

sub90467-05015

main90467-05015-06iMA61,RA6#..RHD198201-198512

TYPE A,DARK BROWN,BROWN,TRIM4#

sub90467-05015

main90467-05015-12iMA61..ARL,GEN,SAA198308-198512

TYPE A,DEEP MAROON,RED/MAROON,TRIM3#

sub90467-05015

main90467-08031-01iMA61,RA6#..RHD198201-198512

TYPE B,BLACK,BLACK,TRIM2#

sub90467-08031

main90467-08031-02iMA61..SAA198208-198308

TYPE B,TERRA COTTA,RED/MAROON,TRIM3#

sub90467-08031

main90467-08031-02iMA61..EUG198209-198308

GEN SPEC,TYPE B,TERRA COTTA,RED/MAROON,TRIM3#

sub90467-08031

main90467-08031-04iMA61,RA6#..RHD198201-198512

TYPE B,BLUE,BLUE,TRIM8#

sub90467-08031

main90467-08031-06iMA61,RA6#..RHD198201-198512

TYPE B,DARK BROWN,BROWN,TRIM4#

sub90467-08031

main90467-08031-12iMA61..ARL,GEN,SAA198308-198512

TYPE B,DEEP MAROON,RED/MAROON,TRIM3#

sub90467-08031

62104BOARD SUB-ASSY, COWL SIDE TRIM, LH

main62102-14160-01iAA63,MA61,RA6#,SA63..RHD198108-198512

BLACK,BLACK,TRIM2#

sub62102-14150

main62102-14160-02iMA61..RHD198209-198308

GEN SPEC,TERRA COTTA,RED/MAROON,TRIM3#

sub62102-14150

main62102-14160-04iAA63,MA61,RA6#,SA63..RHD198108-198512

BLUE,BLUE,TRIM8#

sub62102-14150

main62102-14160-06iMA61..RHD..(EUR,SA)198108-198512

DARK BROWN,BROWN,TRIM4#

sub62102-14150

main62102-14160-12iMA61..RHD..(ARL,GEN)198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

sub62102-14150

main62102-14170-01iMA61,RA6#,TA60..LHD198108-198211

BLACK,BLACK,TRIM2#

sub62102-14171

main62102-14170-02iMA61..SAA198208-198211

TERRA COTTA,RED/MAROON,TRIM3#

sub62102-14171

main62102-14170-04iMA61,RA6#,TA60..LHD198108-198211

BLUE,BLUE,TRIM8#

sub62102-14171

main62102-14170-06iMA61,RA6#,TA60..LHD198108-198211

DARK BROWN,BROWN,TRIM4#

sub62102-14171

main62102-14171-01iAA63,MA61,RA60,61,63,TA60..LHD198211-198512

BLACK,BLACK,TRIM2#

sub62102-14171

main62102-14171-02iMA61..SAA198211-198308

TERRA COTTA,RED/MAROON,TRIM3#

sub62102-14171

main62102-14171-02iMA61..LHD..EUG198209-198308

GEN SPEC,TERRA COTTA,RED/MAROON,TRIM3#

sub62102-14171

main62102-14171-04iAA63,MA61,RA60,61,63,TA60..LHD198211-198512

BLUE,BLUE,TRIM8#

sub62102-14171

main62102-14171-06iMA61..LHD..EUR198211-198512

DARK BROWN,BROWN,TRIM4#

sub62102-14171

main62102-14171-12iMA61..LHD..(GEN,SAA)198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

sub62102-14171

62104AINSULATOR SUB-ASSY, COWL SIDE, LH

main62106-14030iAA63,MA61,RA6#,SA63..RHD198108-198512

main62106-14040iAA63,MA61,RA60,61,63,TA60..LHD198108-198512

62115ABAND, COWL SIDE TRIM

main62115-14010iMA61,RA6#,TA60198108-198211

62116COVER, COWL SIDE TRIM, LOWER

main62113-14040-01iMA61,RA6#..RHD198108-198201

BLACK,BLACK,TRIM2#

sub62101-14131

main62113-14040-04iMA61,RA6#..RHD198108-198201

BLUE,BLUE,TRIM8#

sub62101-14131

main62113-14040-06iMA61,RA6#..RHD198108-198201

DARK BROWN,BROWN,TRIM4#

sub62101-14131

main62114-14030-01iMA61,RA6#,TA60..LHD198108-198211

BLACK,BLACK,TRIM2#

sub62102-14171

main62114-14030-04iMA61,RA6#,TA60..LHD198108-198211

BLUE,BLUE,TRIM8#

sub62102-14171

main62114-14030-06iMA61,RA6#,TA60..LHD198108-198211

DARK BROWN,BROWN,TRIM4#

sub62102-14171

62117ACOVER, COWL SIDE TRIM SERVICE HOLE

main62117-14010-01iMA61,RA6#..RHD198108-198308

BLACK,BLACK,TRIM2#

sub62117-14010

main62117-14010-02iMA61..RHD198209-198308

GEN SPEC,TERRA COTTA,RED/MAROON,TRIM3#

sub62117-14010

main62117-14010-04iMA61,RA6#..RHD198108-198308

BLUE,BLUE,TRIM8#

sub62117-14010

main62117-14010-06iMA61,RA6#..RHD198108-198308

DARK BROWN,BROWN,TRIM4#

sub62117-14010

main62117-14020-01iMA61,RA6#,TA60..LHD198108-198308

BLACK,BLACK,TRIM2#

sub62117-14020

main62117-14020-02iMA61..LHD..EUG198209-198308

GEN SPEC,TERRA COTTA,RED/MAROON,TRIM3#

sub62117-14020

main62117-14020-02iMA61..SAA198208-198308

TERRA COTTA,RED/MAROON,TRIM3#

sub62117-14020

main62117-14020-04iMA61,RA6#,TA60..LHD198108-198308

BLUE,BLUE,TRIM8#

sub62117-14020

main62117-14020-06iMA61,RA6#,TA60..LHD..(EUR,GEN,ME)198108-198308

DARK BROWN,BROWN,TRIM4#

sub62117-14020

main62117-14030-01iAA63,MA61,RA61,SA63..RHD198308-198408

BLACK,BLACK,TRIM2#

sub62117-14030

main62117-14030-04iAA63,MA61,RA61,SA63..RHD198308-198408

BLUE,BLUE,TRIM8#

sub62117-14030

main62117-14030-06iMA61..RHD..(EUR,SA)198308-198408

DARK BROWN,BROWN,TRIM4#

sub62117-14030

main62117-14030-12iMA61..RHD..(ARL,GEN)198308-198408

DEEP MAROON,RED/MAROON,TRIM3#

sub62117-14030

main62117-14031-01iAA63,MA61,RA6#..RHD198408-198512

BLACK,BLACK,TRIM2#

main62117-14031-02iMA61..RHD..(ARL,GEN)198408-198512

DEEP MAROON,DEEP MAROON,TRIM3#

main62117-14031-04iAA63,MA61,RA6#..RHD198408-198512

BLUE,BLUE,TRIM8#

main62117-14031-06iAA63,RA6#..RHD198408-198512

DARK BROWN,DARK BROWN,TRIM4#

main62117-14040-01iAA63,MA61,RA61,TA60..LHD198308-198512

BLACK,BLACK,TRIM2#

sub62117-14040

main62117-14040-04iAA63,MA61,RA61,TA60..LHD198308-198512

BLUE,BLUE,TRIM8#

sub62117-14040

main62117-14040-06iAA63,RA61,TA60..LHD198308-198512

DARK BROWN,BROWN,TRIM4#

sub62117-14040

main62117-14040-12iMA61..LHD..(GEN,SAA)198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

sub62117-14040

62211GARNISH, FRONT PILLAR, RH

main62210-14020-01iMA61198112-198512

BLACK,BLACK,TRIM2#

main62210-14020-02iMA61..SAA198208-198308

TERRA COTTA,RED/MAROON,TRIM3#

main62210-14020-02iMA61..EUG198209-198308

GEN SPEC,TERRA COTTA,RED/MAROON,TRIM3#

main62210-14020-04iMA61198112-198512

BLUE,BLUE,TRIM8#

main62210-14020-06iMA61..EUR,SA198112-198512

DARK BROWN,BROWN,TRIM4#

main62210-14020-12iMA61..ARL,GEN,SAA198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

main62211-14110-01iAA63,RA6#,SA63,TA60198108-198507

BLACK,BLACK,TRIM2#

sub62210-91D01

main62211-14110-04iAA63,RA6#,SA63,TA60198108-198507

BLUE,BLUE,TRIM8#

sub62210-91D01

main62211-14110-06iAA63,RA6#,SA63,TA60198108-198507

DARK BROWN,BROWN,TRIM4#

sub62210-91D01

62212GARNISH, FRONT PILLAR, LH

main62212-14110-01iAA63,RA6#,SA63,TA60198108-198507

BLACK,BLACK,TRIM2#

sub62220-91D01

main62212-14110-04iAA63,RA6#,SA63,TA60198108-198507

BLUE,BLUE,TRIM8#

sub62220-91D01

main62212-14110-06iAA63,RA6#,SA63,TA60198108-198507

DARK BROWN,BROWN,TRIM4#

sub62220-91D01

main62220-14020-01iMA61198112-198512

BLACK,BLACK,TRIM2#

main62220-14020-02iMA61..EUG198209-198308

GEN SPEC,TERRA COTTA,RED/MAROON,TRIM3#

main62220-14020-02iMA61..SAA198208-198308

TERRA COTTA,RED/MAROON,TRIM3#

main62220-14020-04iMA61198112-198512

BLUE,BLUE,TRIM8#

main62220-14020-06iMA61..EUR,SA198112-198512

DARK BROWN,BROWN,TRIM4#

main62220-14020-12iMA61..ARL,GEN,SAA198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

62310WEATHERSTRIP, ROOF SIDE RAIL, RH

main62381-14090iAA63,MA61,RA6#,SA63,TA60198108-198512

62310ACLIP, ROOF SIDE RAIL WEATHERSTRIP

main67869-30020iAA63,MA61,RA6#,SA63,TA60198108-198512

62320WEATHERSTRIP, ROOF SIDE RAIL, LH

main62382-14090iAA63,MA61,RA6#,SA63,TA60198108-198512

62350RETAINER ASSY, ROOF SIDE RAIL WEATHERSTRIP FRONT, RH

main62361-14040iAA63,MA61,RA6#,SA63,TA60198108-198512

62360RETAINER ASSY, ROOF SIDE RAIL WEATHERSTRIP FRONT, LH

main62362-14040iAA63,MA61,RA6#,SA63,TA60198108-198512

62370RETAINER ASSY, ROOF SIDE RAIL WEATHERSTRIP, RH

main62371-14050iAA63,MA61,RA6#,SA63,TA60198108-198512

62380RETAINER ASSY, ROOF SIDE RAIL WEATHERSTRIP, LH

main62372-14050iAA63,MA61,RA6#,SA63,TA60198108-198512

62411GARNISH, CENTER PILLAR, RH

main62413-14030-01iAA63,MA61,RA6#,SA63,TA60198108-198512

BLACK,BLACK,TRIM2#

sub62413-14030

main62413-14030-02iMA61..SAA198208-198308

TERRA COTTA,RED/MAROON,TRIM3#

sub62413-14030

main62413-14030-02iMA61..EUG198209-198308

GEN SPEC,TERRA COTTA,RED/MAROON,TRIM3#

sub62413-14030

main62413-14030-04iAA63,MA61,RA6#,SA63,TA60198108-198512

BLUE,BLUE,TRIM8#

sub62413-14030

main62413-14030-06iAA63,RA6#,SA63,TA60198108-198512

DARK BROWN,BROWN,TRIM4#

sub62413-14030

main62413-14030-12iMA61..ARL,GEN,SAA198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

sub62413-14030

62411DPLUG, HOLE (FOR CENTER PILLAR GARNISH)

main90950-01159-02iMA61..GEN198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

sub90950-01159

main90950-01159-11iAA63,MA61,RA60,61,63,TA60..GEN198108-198512

BLACK,BLACK,TRIM2#

sub90950-01159

main90950-01159-24iAA63,MA61,RA60,61,63,TA60..GEN198108-198512

BLUE,BLUE,TRIM8#

sub90950-01159

main90950-01159-26iAA63,RA60,61,63,TA60..GEN198108-198507

DARK BROWN,BROWN,TRIM4#

sub90950-01159

62412GARNISH, CENTER PILLAR, LH

main62414-14030-01iAA63,MA61,RA6#,SA63,TA60198108-198512

BLACK,BLACK,TRIM2#

sub62414-14030

main62414-14030-02iMA61..EUG198209-198308

GEN SPEC,TERRA COTTA,RED/MAROON,TRIM3#

sub62414-14030

main62414-14030-02iMA61..SAA198208-198308

TERRA COTTA,RED/MAROON,TRIM3#

sub62414-14030

main62414-14030-04iAA63,MA61,RA6#,SA63,TA60198108-198512

BLUE,BLUE,TRIM8#

sub62414-14030

main62414-14030-06iMA61..EUR,SA198108-198512

DARK BROWN,BROWN,TRIM4#

sub62414-14030

main62414-14030-12iMA61..ARL,GEN,SAA198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

sub62414-14030

62430GARNISH ASSY, ROOF SIDE RAIL, RH

main62431-14040-01iAA63,MA61,RA6#,SA63,TA60198108-198512

FR,BLACK,BLACK,TRIM2#

main62431-14040-02iMA61..SAA198208-198308

FR,TERRA COTTA,RED/MAROON,TRIM3#

main62431-14040-02iMA61..EUG198209-198308

GEN SPEC,FR,TERRA COTTA,RED/MAROON,TRIM3#

main62431-14040-04iAA63,MA61,RA6#,SA63,TA60198108-198512

FR,BLUE,BLUE,TRIM8#

main62431-14040-06iAA63,RA6#,SA63,TA60198108-198512

FR,DARK BROWN,BROWN,TRIM4#

main62431-14040-12iMA61..ARL,GEN,SAA198308-198512

FR,DEEP MAROON,RED/MAROON,TRIM3#

main62451-14040-01iAA63,RA6#,SA63,TA60..CP198108-198507

RR,BLACK,BLACK,TRIM2#

sub62451-14040

main62451-14040-04iAA63,RA6#,SA63,TA60..CP198108-198507

RR,BLUE,BLUE,TRIM8#

sub62451-14040

main62451-14040-06iAA63,RA6#,SA63,TA60..CP198108-198507

RR,DARK BROWN,BROWN,TRIM4#

sub62451-14040

62440GARNISH ASSY, ROOF SIDE RAIL, LH

main62431-14040-01iAA63,MA61,RA6#,SA63,TA60198108-198512

FR,BLACK,BLACK,TRIM2#

main62431-14040-02iMA61..SAA198208-198308

FR,TERRA COTTA,RED/MAROON,TRIM3#

main62431-14040-02iMA61..EUG198209-198308

GEN SPEC,FR,TERRA COTTA,RED/MAROON,TRIM3#

main62431-14040-04iAA63,MA61,RA6#,SA63,TA60198108-198512

FR,BLUE,BLUE,TRIM8#

main62431-14040-06iAA63,RA6#,SA63,TA60198108-198507

FR,DARK BRWON,BROWN,TRIM4#

main62431-14040-06iMA61..EUR,SA198112-198512

FR,DARK BROWN,BROWN,TRIM4#

main62431-14040-12iMA61..ARL,GEN,SAA198308-198512

FR,DEEP MAROON,RED/MAROON,TRIM3#

main62452-14030-01iAA63,RA6#,SA63,TA60..CP198108-198507

RR,BLACK,BLACK,TRIM2#

sub62452-14030

main62452-14030-04iAA63,RA6#,SA63,TA60..CP198108-198507

RR,BLUE,BLUE,TRIM8#

sub62452-14030

main62452-14030-06iAA63,RA6#,SA63,TA60..CP198108-198507

RR,DARK BROWN,BROWN,TRIM4#

sub62452-14030

62510COVER ASSY, BACK WINDOW SIDE GARNISH, RH

main62471-14210-01iAA63,MA61,RA6#,SA63,TA60..LB198108-198512

BLACK,BLACK,TRIM2#

sub62471-14210

main62471-14210-02iMA61..SAA198208-198308

TERRA COTTA,RED/MAROON,TRIM3#

sub62471-14210

main62471-14210-02iMA61..LHD..EUG198209-198308

GEN SPEC,TERRA COTTA,RED/MAROON,TRIM3#

sub62471-14210

main62471-14210-04iAA63,MA61,RA6#,SA63,TA60..LB198108-198512

BLUE,BLUE,TRIM8#

sub62471-14210

main62471-14210-06iMA61..EUR,SA198108-198512

DARK BROWN,BROWN,TRIM4#

sub62471-14210

main62471-14210-12iMA61..ARL,GEN,SAA198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

sub62471-14210

main62571-14120-01iRA61..CP..RHD;RA61..CP..LHD..4FC;AA63,RA60,63,TA60..CP;RA61..CP..LHD..5F..EUG;RA61..CP..5F..XT..(GEN,SAA)198108-198507

BLACK,BLACK,TRIM2#

main62571-14120-04iRA61..CP..RHD;RA61..CP..LHD..4FC;AA63,RA60,63,TA60..CP;RA61..CP..LHD..5F..EUG;RA61..CP..5F..XT..(GEN,SAA)198108-198507

BLUE,BLUE,TRIM8#

main62571-14120-06iRA61..CP..RHD;RA61..CP..LHD..4FC;AA63,RA60,63,TA60..CP;RA61..CP..LHD..5F..EUG;RA61..CP..5F..XT..(GEN,SAA)198108-198507

DARK BROWN,BROWN,TRIM4#

main62571-14130-01iAA63,RA6#,SA63,TA60..CP198108-198507

BLACK,W/RR SEAT BELT,BLACK,TRIM2#

main62571-14130-04iAA63,RA6#,SA63,TA60..CP198108-198507

BLUE,W/RR SEAT BELT,BLUE,TRIM8#

main62571-14130-06iAA63,RA6#,SA63,TA60..CP198108-198507

DARK BROWN,W/RR SEAT BELT,BROWN,TRIM4#

62511BOARD, QUARTER INSIDE TRIM, RH

main62510-14460-01iRA60,61..CP..XT198108-198308

W/SPORTS SEAT,BLACK,BLACK,TRIM2#

main62510-14460-01iRA63..CP198108-198308

BLACK,BLACK,TRIM2#

main62510-14460-04iRA60,61..CP..XT198108-198308

W/SPORTS SEAT,BLUE,BLUE,TRIM8#

main62510-14460-04iRA60,61..CP..XT198108-198308

BLUE,BLUE,TRIM8#

main62510-14460-06iRA63..CP198108-198308

W/SPORTS SEAT,DARK BROWN,BROWN,TRIM4#

main62510-14460-06iRA63..CP198108-198308

DARK BROWN,BROWN,TRIM4#

main62510-14550-01iRA63..CP198108-198208

BLACK,BLACK,TRIM2#

main62510-14550-04iRA63..CP198108-198208

BLUE,BLUE,TRIM8#

main62510-14550-06iRA63..CP198108-198208

DARK BROWN,BROWN,TRIM4#

main62510-14560-01iRA60,61,TA60..CP..(LT,ST)198108-198308

BLACK,BLACK,TRIM2#

main62510-14560-04iRA60,61,TA60..CP..(LT,ST)198108-198308

BLUE,BLUE,TRIM8#

main62510-14560-06iRA60,61,TA60..CP..(LT,ST)198108-198308

DARK BROWN,BROWN,TRIM4#

main62510-14560-11iAA63,RA6#,SA63,TA60..CP..(GTS,ST)198308-198507

BLACK,BLACK,TRIM2#

main62510-14560-14iAA63,RA6#,SA63,TA60..CP..(GTS,ST)198308-198507

BLUE,BLUE,TRIM8#

main62510-14560-16iAA63,RA6#,SA63,TA60..CP..(GTS,ST)198308-198507

DARK BROWN,BROWN,TRIM4#

main62510-14570-01iRA60,61,TA60..LB..ST198108-198308

BLACK,BLACK,TRIM2#

main62510-14570-04iRA60,61,TA60..LB..ST198108-198308

BLUE,BLUE,TRIM8#

main62510-14570-06iRA60,61,TA60..LB..ST198108-198308

DARK BROWN,BROWN,TRIM4#

main62510-14580-01iRA60,61..LB..XT198108-198308

W/SPORTS SEAT,BLACK,BLACK,TRIM2#

main62510-14580-01iRA60,61..LB..XT198108-198308

BLACK,BLACK,TRIM2#

main62510-14580-04iRA60,61..LB..XT198108-198308

BLUE,BLUE,TRIM8#

main62510-14580-04iRA60,61..LB..XT198108-198308

W/SPORTS SEAT,BLUE,BLUE,TRIM8#

main62510-14580-06iRA60,61..LB..XT198108-198308

DARK BROWN,BROWN,TRIM4#

main62510-14580-06iRA60,61..LB..XT198108-198308

W/SPORTS SEAT,DARK BROWN,BROWN,TRIM4#

main62510-14600-01iRA60,63..LB..GT198108-198208

BLACK,BLACK,TRIM2#

main62510-14600-04iRA60,63..LB..GT198108-198208

BLUE,BLUE,TRIM8#

main62510-14600-06iRA60,63..LB..GT198108-198208

DARK BROWN,BROWN,TRIM4#

main62510-14610-01iRA63..CP198208-198308

BLACK,BLACK,TRIM2#

main62510-14610-04iRA63..CP198208-198308

BLUE,BLUE,TRIM8#

main62510-14610-06iRA63..CP198208-198308

DARK BROWN,BROWN,TRIM4#

main62510-14640-01iMA61198112-198308

BLACK,BLACK,TRIM2#

main62510-14640-02iMA61..SAA198208-198308

TERRA COTTA,RED/MAROON,TRIM3#

main62510-14640-02iMA61..EUG198209-198308

GEN SPEC,TERRA COTTA,RED/MAROON,TRIM3#

main62510-14640-04iMA61198112-198308

BLUE,BLUE,TRIM8#

main62510-14640-06iMA61..EUG198112-198308

DARK BROWN,BROWN,TRIM4#

main62510-14650-01iRA60,63..LB..GT198208-198308

BLACK,BLACK,TRIM2#

main62510-14650-04iRA60,63..LB..GT198208-198308

BLUE,BLUE,TRIM8#

main62510-14650-06iRA60,63..LB..GT198208-198308

DARK BROWN,BROWN,TRIM4#

main62510-14780-01iAA63,RA61,TA60..LB..(GTS,ST)198308-198507

BLACK,BLACK,TRIM2#

main62510-14780-04iAA63,RA61,TA60..LB..(GTS,ST)198308-198507

BLUE,BLUE,TRIM8#

main62510-14780-06iAA63,RA61,TA60..LB..(GTS,ST)198308-198507

DARK BROWN,BROWN,TRIM4#

main62510-14790-01iAA63..CP..GT198308-198408

BLACK,BLACK,TRIM2#

main62510-14790-01iRA61..CP..XT198308-198408

W/SPORTS SEAT,BLACK,BLACK,TRIM2#

main62510-14790-04iAA63..CP..GT198308-198408

W/SPORTS SEAT,BLUE,BLUE,TRIM8#

main62510-14790-04iRA61..CP..XT198308-198408

BLUE,BLUE,TRIM8#

main62510-14790-06iRA61..CP..XT198308-198408

DARK BROWN,BROWN,TRIM4#

main62510-14790-06iAA63..CP..GT198308-198408

W/SPORTS SEAT,DARK BROWN,BROWN,TRIM4#

main62510-14800-01iAA63..CP..GT198308-198408

BLACK,BLACK,TRIM2#

main62510-14800-04iAA63..CP..GT198308-198408

BLUE,BLUE,TRIM8#

main62510-14800-06iAA63..CP..GT198308-198408

DARK BROWN,BROWN,TRIM4#

main62510-14801-01iAA63..CP..GT198408-198507

BLACK,BLACK,TRIM2#

main62510-14801-04iAA63..CP..GT198408-198507

BLUE,BLUE,TRIM8#

main62510-14801-06iAA63..CP..GT198408-198507

DARK BROWN,DARK BROWN,TRIM4#

main62510-14810-01iAA63..LB..GT198308-198408

W/SPORTS SEAT,BLACK,BLACK,TRIM2#

main62510-14810-01iAA63..LB..GT198308-198408

BLACK,BLACK,TRIM2#

main62510-14810-04iAA63..LB..GT198308-198408

BLUE,BLUE,TRIM8#

main62510-14810-04iRA61..LB..XT198308-198408

W/SPORTS SEAT,BLUE,BLUE,TRIM8#

main62510-14810-06iRA61..LB..XT198308-198408

W/SPORTS SEAT,DARK BROWN,BROWN,TRIM4#

main62510-14810-06iAA63..LB..GT198308-198408

DARK BROWN,BROWN,TRIM4#

main62510-14820-01iAA63,SA63..LB..(GT,XT)198308-198408

BLACK,BLACK,TRIM2#

main62510-14820-04iAA63,SA63..LB..(GT,XT)198308-198408

BLUE,BLUE,TRIM8#

main62510-14820-06iAA63,SA63..LB..(GT,XT)198308-198408

DARK BROWN,BROWN,TRIM4#

main62510-14821-01iAA63,RA65..LB..(GT,XT)198408-198507

BLACK,BLACK,TRIM2#

main62510-14821-04iAA63,RA65..LB..(GT,XT)198408-198507

BLUE,BLUE,TRIM8#

main62510-14821-06iAA63,RA65..LB..(GT,XT)198408-198507

DARK BROWN,DARK BROWN,TRIM4#

main62510-14850-01iMA61198308-198408

BLACK,BLACK,TRIM2#

main62510-14850-02iMA61..ARL,GEN,SAA198308-198408

DEEP MAROON,RED/MAROON,TRIM3#

main62510-14850-04iMA61198308-198408

BLUE,BLUE,TRIM8#

main62510-14850-06iMA61..EUR,SA198308-198408

DARK BROWN,BROWN,TRIM4#

main62510-14870-01iAA63..CP..GT198408-198507

W/SPORTS SEAT,BLACK,BLACK,TRIM2#

main62510-14870-01iRA61..CP..XT198408-198507

BLACK,BLACK,TRIM2#

main62510-14870-04iRA61..CP..XT198408-198507

BLUE,BLUE,TRIM8#

main62510-14870-04iRA61..CP..XT198408-198507

W/SPORTS SEAT,BLUE,BLUE,TRIM8#

main62510-14870-06iRA61..CP..XT198408-198507

W/SPORTS SEAT,DARK BROWN,DARK BROWN,TRIM4#

main62510-14870-06iRA61..CP..XT198408-198507

DARK BROWN,DARK BROWN,TRIM4#

main62510-14880-01iRA61..LB..XT198408-198507

BLACK,BLACK,TRIM2#

main62510-14880-01iRA61..LB..XT198408-198507

W/SPORTS SEAT,BLACK,BLACK,TRIM2#

main62510-14880-04iRA61..LB..XT198408-198507

BLUE,BLUE,TRIM8#

main62510-14880-04iRA61..LB..XT198408-198507

W/SPORTS SEAT,BLUE,BLUE,TRIM8#

main62510-14880-06iRA61..LB..XT198408-198507

DARK BROWN,DARK BROWN,TRIM4#

main62510-14880-06iRA61..LB..XT198408-198507

W/SPORTS SEAT,DARK BROWN,DARK BROWN,TRIM4#

main62510-14890-01iMA61198408-198512

BLACK,BLACK,TRIM2#

main62510-14890-02iMA61..ARL,GEN,SAA198408-198512

DEEP MAROON,DEEP MAROON,TRIM3#

main62510-14890-04iMA61198408-198512

BLUE,BLUE,TRIM8#

main62510-14890-06iMA61..EUR,SA198408-198512

DARK BROWN,DARK BROWN,TRIM4#

62511EPOCKET, QUARTER TRIM

main62594-14040iAA63..CP..GT;MA61,RA6#,SA63..GT,SPR,XT;AA63,RA60,61,TA60..LB..(GT,GTS,ST)..(EUR,GEN)198108-198512

62512BOARD, QUARTER INSIDE TRIM, LH

main62520-14500-01iRA60,61..CP..XT198108-198308

W/SPORTS SEAT,BLACK,BLACK,TRIM2#

main62520-14500-01iRA60,61..CP..XT198108-198308

BLACK,BLACK,TRIM2#

main62520-14500-04iRA63..CP198108-198308

BLUE,BLUE,TRIM8#

main62520-14500-04iRA63..CP198108-198308

W/SPORTS SEAT,BLUE,BLUE,TRIM8#

main62520-14500-06iRA60,61..CP..XT198108-198308

DARK BROWN,BROWN,TRIM4#

main62520-14500-06iRA63..CP198108-198308

W/SPORTS SEAT,DARK BROWN,BROWN,TRIM4#

main62520-14540-01iRA63..CP198108-198208

BLACK,BLACK,TRIM2#

main62520-14540-04iRA63..CP198108-198208

BLUE,BLUE,TRIM8#

main62520-14540-06iRA63..CP198108-198208

DARK BROWN,BROWN,TRIM4#

main62520-14550-01iRA60,61,TA60..CP..(LT,ST)198108-198308

BLACK,BLACK,TRIM2#

main62520-14550-04iRA60,61,TA60..CP..(LT,ST)198108-198308

BLUE,BLUE,TRIM8#

main62520-14550-06iRA60,61,TA60..CP..(LT,ST)198108-198308

DARK BROWN,BROWN,TRIM4#

main62520-14550-11iAA63,RA6#,SA63,TA60..CP..(GTS,ST)198308-198507

BLACK,BLACK,TRIM2#

main62520-14550-14iAA63,RA6#,SA63,TA60..CP..(GTS,ST)198308-198507

BLUE,BLUE,TRIM8#

main62520-14550-16iAA63,RA6#,SA63,TA60..CP..(GTS,ST)198308-198507

DARK BROWN,BROWN,TRIM4#

main62520-14560-01iRA60,61,TA60..LB..ST198108-198308

BLACK,BLACK,TRIM2#

main62520-14560-04iRA60,61,TA60..LB..ST198108-198308

BLUE,BLUE,TRIM8#

main62520-14560-06iRA60,61,TA60..LB..ST198108-198308

DARK BROWN,BROWN,TRIM4#

main62520-14570-01iRA63..LB198108-198308

BLACK,BLACK,TRIM2#

main62520-14570-01iRA60,61..LB..XT198108-198308

W/SPORTS SEAT,BLACK,BLACK,TRIM2#

main62520-14570-04iRA60,61..LB..XT198108-198308

BLUE,BLUE,TRIM8#

main62520-14570-04iRA60,61..LB..XT198108-198308

W/SPORTS SEAT,BLUE,BLUE,TRIM8#

main62520-14570-06iRA60,61..LB..XT198108-198308

DARK BROWN,BROWN,TRIM4#

main62520-14570-06iRA60,61..LB..XT198108-198308

W/SPORTS SEAT,DARK BROWN,BROWN,TRIM4#

main62520-14590-01iRA60,63..LB..GT198108-198208

BLACK,BLACK,TRIM2#

main62520-14590-04iRA60,63..LB..GT198108-198208

BLUE,BLUE,TRIM8#

main62520-14590-06iRA60,63..LB..GT198108-198208

DARK BROWN,BROWN,TRIM4#

main62520-14600-01iRA63..CP198208-198308

BLACK,BLACK,TRIM2#

main62520-14600-04iRA63..CP198208-198308

BLUE,BLUE,TRIM8#

main62520-14600-06iRA63..CP198208-198308

DARK BROWN,BROWN,TRIM4#

main62520-14630-01iMA61198112-198308

BLACK,BLACK,TRIM2#

main62520-14630-02iMA61..EUG198209-198308

GEN SPEC,TERRA COTTA,RED/MAROON,TRIM3#

main62520-14630-02iMA61..SAA198208-198308

TERRA COTTA,RED/MAROON,TRIM3#

main62520-14630-04iMA61198112-198308

BLUE,BLUE,TRIM8#

main62520-14630-06iMA61..EUG198112-198308

DARK BROWN,BROWN,TRIM4#

main62520-14640-01iRA60,63..LB..GT198208-198308

BLACK,BLACK,TRIM2#

main62520-14640-04iRA60,63..LB..GT198208-198308

BLUE,BLUE,TRIM8#

main62520-14640-06iRA60,63..LB..GT198208-198308

DARK BROWN,BROWN,TRIM4#

main62520-14770-01iAA63,RA61,TA60..LB..(GTS,ST)198308-198507

BLACK,BLACK,TRIM2#

main62520-14770-04iAA63,RA61,TA60..LB..(GTS,ST)198308-198507

BLUE,BLUE,TRIM8#

main62520-14770-06iAA63,RA61,TA60..LB..(GTS,ST)198308-198507

DARK BROWN,BROWN,TRIM4#

main62520-14780-01iAA63..CP..GT198308-198408

BLACK,BLACK,TRIM2#

main62520-14780-01iAA63..CP..GT198308-198408

W/SPORTS SEAT,BLACK,BLACK,TRIM2#

main62520-14780-04iRA61..CP..XT198308-198408

BLUE,BLUE,TRIM8#

main62520-14780-04iRA61..CP..XT198308-198408

W/SPORTS SEAT,BLUE,BLUE,TRIM8#

main62520-14780-06iAA63..CP..GT198308-198408

DARK BROWN,BROWN,TRIM4#

main62520-14780-06iAA63..CP..GT198308-198408

W/SPORTS SEAT,DARK BROWN,BROWN,TRIM4#

main62520-14790-01iAA63..CP..GT198308-198408

BLACK,BLACK,TRIM2#

main62520-14790-04iAA63..CP..GT198308-198408

BLUE,BLUE,TRIM8#

main62520-14790-06iAA63..CP..GT198308-198408

DARK BROWN,BROWN,TRIM4#

main62520-14791-01iAA63..CP..GT198408-198507

BLACK,BLACK,TRIM2#

main62520-14791-04iAA63..CP..GT198408-198507

BLUE,BLUE,TRIM8#

main62520-14791-06iAA63..CP..GT198408-198507

DARK BROWN,DARK BROWN,TRIM4#

main62520-14800-01iRA61..LB..XT198308-198408

W/SPORTS SEAT,BLACK,BLACK,TRIM2#

main62520-14800-01iRA61..LB..XT198308-198408

BLACK,BLACK,TRIM2#

main62520-14800-04iAA63..LB..GT198308-198408

BLUE,BLUE,TRIM8#

main62520-14800-04iAA63..LB..GT198308-198408

W/SPORTS SEAT,BLUE,BLUE,TRIM8#

main62520-14800-06iRA61..LB..XT198308-198408

DARK BROWN,BROWN,TRIM4#

main62520-14800-06iAA63..LB..GT198308-198408

W/SPORTS SEAT,DARK BROWN,BROWN,TRIM4#

main62520-14810-01iAA63,SA63..LB..(GT,XT)198308-198408

BLACK,BLACK,TRIM2#

main62520-14810-04iAA63,SA63..LB..(GT,XT)198308-198408

BLUE,BLUE,TRIM8#

main62520-14810-06iAA63,SA63..LB..(GT,XT)198308-198408

DARK BROWN,BROWN,TRIM4#

main62520-14811-01iAA63,RA65..LB..(GT,XT)198408-198507

BLACK,BLACK,TRIM2#

main62520-14811-04iAA63,RA65..LB..(GT,XT)198408-198507

BLUE,BLUE,TRIM8#

main62520-14811-06iAA63,RA65..LB..(GT,XT)198408-198507

DARK BROWN,DARK BROWN,TRIM4#

main62520-14840-01iMA61198308-198408

BLACK,BLACK,TRIM2#

main62520-14840-02iMA61..ARL,GEN,SAA198308-198408

DEEP MAROON,RED/MAROON,TRIM3#

main62520-14840-04iMA61198308-198408

BLUE,BLUE,TRIM8#

main62520-14840-06iMA61..EUR,SA198308-198408

DARK BROWN,BROWN,TRIM4#

main62520-14860-01iAA63..CP..GT198408-198507

W/SPORTS SEAT,BLACK,BLACK,TRIM2#

main62520-14860-01iRA61..CP..XT198408-198507

BLACK,BLACK,TRIM2#

main62520-14860-04iRA61..CP..XT198408-198507

BLUE,BLUE,TRIM8#

main62520-14860-04iRA61..CP..XT198408-198507

W/SPORTS SEAT,BLUE,BLUE,TRIM8#

main62520-14860-06iRA61..CP..XT198408-198507

DARK BROWN,DARK BROWN,TRIM4#

main62520-14860-06iRA61..CP..XT198408-198507

W/SPORTS SEAT,DARK BROWN,DARK BROWN,TRIM4#

main62520-14870-01iRA61..LB..XT198408-198507

BLACK,BLACK,TRIM2#

main62520-14870-01iRA61..LB..XT198408-198507

W/SPORTS SEAT,BLACK,BLACK,TRIM2#

main62520-14870-04iRA61..LB..XT198408-198507

BLUE,BLUE,TRIM8#

main62520-14870-04iRA61..LB..XT198408-198507

W/SPORTS SEAT,BLUE,BLUE,TRIM8#

main62520-14870-06iRA61..LB..XT198408-198507

DARK BROWN,DARK BROWN,TRIM4#

main62520-14870-06iRA61..LB..XT198408-198507

W/SPORTS SEAT,DARK BROWN,DARK BROWN,TRIM4#

main62520-14880-01iMA61198408-198512

BLACK,BLACK,TRIM2#

main62520-14880-02iMA61..ARL,GEN,SAA198408-198512

DEEP MAROON,DEEP MAROON,TRIM3#

main62520-14880-04iMA61198408-198512

BLUE,BLUE,TRIM8#

main62520-14880-06iMA61..EUR,SA198408-198512

DARK BROWN,DARK BROWN,TRIM4#

62512SBASE, QUARTER TRIM, FRONT

main62517-14050-01iAA63,MA61,RA6#,SA63,TA60198108-198512

RH,BLACK,BLACK,TRIM2#

sub62517-14050

main62517-14050-02iMA61..EUG198209-198308

GEN SPEC,RH,TERRA COTTA,RED/MAROON,TRIM3#

sub62517-14050

main62517-14050-02iMA61..SAA198208-198308

RH,TERRA COTTA,RED/MAROON,TRIM3#

sub62517-14050

main62517-14050-04iAA63,MA61,RA6#,SA63,TA60198108-198512

RH,BLUE,BLUE,TRIM8#

sub62517-14050

main62517-14050-06iMA61..EUR,SA198108-198512

RH,DARK BROWN,BROWN,TRIM4#

sub62517-14050

main62517-14050-12iMA61..ARL,GEN,SAA198308-198512

RH,DEEP MAROON,RED/MAROON,TRIM3#

sub62517-14050

main62518-14030-01iAA63,MA61,RA6#,SA63,TA60198108-198512

LH,BLACK,BLACK,TRIM2#

sub62518-14030

main62518-14030-02iMA61..EUG198209-198308

GEN SPEC,LH,TERRA COTTA,RED/MAROON,TRIM3#

sub62518-14030

main62518-14030-02iMA61..SAA198208-198308

LH,TERRA COTTA,RED/MAROON,TRIM3#

sub62518-14030

main62518-14030-04iAA63,MA61,RA6#,SA63,TA60198108-198512

LH,BLUE,BLUE,TRIM8#

sub62518-14030

main62518-14030-06iAA63,RA6#,SA63,TA60198108-198512

LH,DARK BROWN,BROWN,TRIM4#

sub62518-14030

main62518-14030-12iMA61..ARL,GEN,SAA198308-198512

LH,DEEP MAROON,RED/MAROON,TRIM3#

sub62518-14030

62512UCOVER,QUARTER TRIM UPPER BELT HOLE

main62537-14020-01iAA63,MA61,RA60,61,63,TA60..GEN198108-198512

RH,BLACK,BLACK,TRIM2#

sub62537-14020

main62537-14020-04iAA63,MA61,RA60,61,63,TA60..GEN198108-198512

RH,BLUE,BLUE,TRIM8#

sub62537-14020

main62537-14020-06iAA63,RA60,61,63,TA60..GEN198108-198507

RH,DARK BROWN,BROWN,TRIM4#

sub62537-14020

main62537-14020-12iMA61..GEN198308-198512

RH,DEEP MAROON,RED/MAROON,TRIM3#

sub62537-14020

main62538-14030-01iAA63,MA61,RA60,61,63,TA60..GEN198108-198512

LH,BLACK,BLACK,TRIM2#

sub62538-14030

main62538-14030-04iAA63,MA61,RA60,61,63,TA60..GEN198108-198512

LH,BLUE,BLUE,TRIM8#

sub62538-14030

main62538-14030-06iAA63,RA60,61,63,TA60..GEN198108-198507

LH,DARK BROWN,BROWN,TRIM4#

sub62538-14030

main62538-14030-12iMA61..GEN198308-198512

LH,DEEP MAROON,RED/MAROON,TRIM3#

sub62538-14030

62520COVER ASSY, BACK WINDOW SIDE GARNISH, LH

main62472-14180-01iAA63,MA61,RA6#,SA63,TA60..LB198108-198512

BLACK,BLACK,TRIM2#

sub62472-14180

main62472-14180-02iMA61..SAA198208-198308

TERRA COTTA,RED/MAROON,TRIM3#

sub62472-14180

main62472-14180-02iMA61..LHD..EUG198209-198308

GEN SPEC,TERRA COTTA,RED/MAROON,TRIM3#

sub62472-14180

main62472-14180-04iAA63,MA61,RA6#,SA63,TA60..LB198108-198512

BLUE,BLUE,TRIM8#

sub62472-14180

main62472-14180-06iMA61..EUR,SA198108-198512

DARK BROWN,BROWN,TRIM4#

sub62472-14180

main62472-14180-12iMA61..ARL,GEN,SAA198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

sub62472-14180

main62572-14090-01iRA61..CP..RHD;RA61..CP..LHD..4FC;AA63,RA60,63,TA60..CP;RA61..CP..LHD..5F..EUG;RA61..CP..5F..XT..(GEN,SAA)198108-198507

BLACK,BLACK,TRIM2#

main62572-14090-04iRA61..CP..RHD;RA61..CP..LHD..4FC;AA63,RA60,63,TA60..CP;RA61..CP..LHD..5F..EUG;RA61..CP..5F..XT..(GEN,SAA)198108-198507

BLUE,BLUE,TRIM8#

main62572-14090-06iRA61..CP..RHD;RA61..CP..LHD..4FC;AA63,RA60,63,TA60..CP;RA61..CP..LHD..5F..EUG;RA61..CP..5F..XT..(GEN,SAA)198108-198507

DARK BROWN,BROWN,TRIM4#

main62572-14100-01iAA63,RA6#,SA63,TA60..CP198108-198507

BLACK,W/RR SEAT BELT,BLACK,TRIM2#

main62572-14100-04iAA63,RA6#,SA63,TA60..CP198108-198507

BLUE,W/RR SEAT BELT,BLUE,TRIM8#

main62572-14100-06iAA63,RA6#,SA63,TA60..CP198108-198507

DARK BROWN,W/RR SEAT BELT,BROWN,TRIM4#

62521COVER, QUARTER INSIDE SERVICE HOLE, RH

main62538-14010-01iAA63,MA61,RA6#,SA63,TA60198108-198512

BLACK,BLACK,TRIM2#

sub62538-14010

main62538-14010-02iMA61..SAA198208-198308

TERRA COTTA,RED/MAROON,TRIM3#

sub62538-14010

main62538-14010-02iMA61..EUG198209-198308

GEN SPEC,TERRA COTTA,RED/MAROON,TRIM3#

sub62538-14010

main62538-14010-04iAA63,MA61,RA6#,SA63,TA60198108-198512

BLUE,BLUE,TRIM8#

sub62538-14010

main62538-14010-06iAA63,RA6#,SA63,TA60198108-198507

DARK BRWON,BROWN,TRIM4#

sub62538-14010

main62538-14010-06iMA61..EUR,SA198112-198512

DARK BROWN,BROWN,TRIM4#

sub62538-14010

main62538-14010-12iMA61..ARL,GEN,SAA198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

sub62538-14010

62522COVER, QUARTER INSIDE SERVICE HOLE, LH

main62538-14010-01iAA63,MA61,RA6#,SA63,TA60198108-198512

BLACK,BLACK,TRIM2#

sub62538-14010

main62538-14010-02iMA61..EUG198209-198308

GEN SPEC,TERRA COTTA,RED/MAROON,TRIM3#

sub62538-14010

main62538-14010-02iMA61..SAA198208-198308

TERRA COTTA,RED/MAROON,TRIM3#

sub62538-14010

main62538-14010-04iAA63,MA61,RA6#,SA63,TA60198108-198512

BLUE,BLUE,TRIM8#

sub62538-14010

main62538-14010-06iMA61..EUR,SA198108-198512

DARK BROWN,BROWN,TRIM4#

sub62538-14010

main62538-14010-12iMA61..ARL,GEN,SAA198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

sub62538-14010

62530PANEL ASSY, QUARTER TRIM, LOWER RH

main62513-14020-01iAA63,RA60,61,65,SA63,TA60..CP..(GTS,LT,ST)198108-198507

BLACK,BLACK,TRIM2#

sub62513-14020

main62513-14020-04iAA63,RA60,61,65,SA63,TA60..CP..(GTS,LT,ST)198108-198507

BLUE,BLUE,TRIM8#

sub62513-14020

main62513-14020-06iAA63,RA60,61,65,SA63,TA60..CP..(GTS,LT,ST)198108-198507

DARK BROWN,BROWN,TRIM4#

sub62513-14020

main62513-14040-01iAA63..CP..GT;MA61,RA6#,SA63..GT,SPR,XT;AA63,RA60,61,TA60..LB..(GT,GTS,ST)..(EUR,GEN)198108-198512

BLACK,BLACK,TRIM2#

sub62513-14040

main62513-14040-02iMA61..EUG198209-198308

GEN SPEC,TERRA COTTA,TERACOTTA,TRIM3#

sub62513-14040

main62513-14040-02iMA61..SAA198208-198308

TERRA COTTA,TERACOTTA,TRIM3#

sub62513-14040

main62513-14040-04iAA63..CP..GT;MA61,RA6#,SA63..GT,SPR,XT;AA63,RA60,61,TA60..LB..(GT,GTS,ST)..(EUR,GEN)198108-198512

BLUE,BLUE,TRIM8#

sub62513-14040

main62513-14040-06iAA63..CP..GT;MA61,RA6#,SA63..GT,SPR,XT;AA63,RA60,61,TA60..LB..(GT,GTS,ST)..(EUR,GEN)198108-198512

DARK BROWN,BROWN,TRIM4#

sub62513-14040

main62513-14040-12iMA61..ARL,GEN,SAA198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

sub62513-14040

62535PAD, QUARTER WHEEL HOUSE TRIM

main62611-14020iAA63,MA61,RA6#,SA63,TA60198108-198512

62538PANEL, QUARTER TRIM ARMREST

main74250-14040-01iAA63,RA60,61,65,SA63,TA60..CP..(GTS,LT,ST)198108-198507

RH,BLACK,BLACK,TRIM2#

main74250-14040-04iAA63,RA60,61,65,SA63,TA60..CP..(GTS,LT,ST)198108-198507

RH,BLUE,BLUE,TRIM8#

main74250-14040-06iAA63,RA60,61,65,SA63,TA60..CP..(GTS,LT,ST)198108-198507

RH,DARK BROWN,BROWN,TRIM4#

main74250-14050-01iAA63..CP..GT;MA61,RA6#,SA63..GT,SPR,XT;AA63,RA60,61,TA60..LB..(GT,GTS,ST)..(EUR,GEN)198108-198512

RH,BLACK,BLACK,TRIM2#

main74250-14050-02iMA61..EUG198209-198308

GEN SPEC,RH,TERRA COTTA,RED/MAROON,TRIM3#

main74250-14050-02iMA61..SAA198208-198308

RH,TERRA COTTA,RED/MAROON,TRIM3#

main74250-14050-04iAA63..CP..GT;MA61,RA6#,SA63..GT,SPR,XT;AA63,RA60,61,TA60..LB..(GT,GTS,ST)..(EUR,GEN)198108-198512

RH,BLUE,BLUE,TRIM8#

main74250-14050-06iMA61..EUR,SA198108-198512

RH,DARK BROWN,BROWN,TRIM4#

main74250-14050-12iMA61..ARL,GEN,SAA198308-198512

RH,DEEP MAROON,RED/MAROON,TRIM3#

main74260-14020-01iAA63..CP..GT;MA61,RA6#,SA63..GT,SPR,XT;AA63,RA60,61,TA60..LB..(GT,GTS,ST)..(EUR,GEN)198108-198512

LH,BLACK,BLACK,TRIM2#

main74260-14020-02iMA61..SAA198208-198308

LH,TERRA COTTA,RED/MAROON,TRIM3#

main74260-14020-02iMA61..EUG198209-198308

GEN SPEC,LH,TERRA COTTA,RED/MAROON,TRIM3#

main74260-14020-04iAA63..CP..GT;MA61,RA6#,SA63..GT,SPR,XT;AA63,RA60,61,TA60..LB..(GT,GTS,ST)..(EUR,GEN)198108-198512

LH,BLUE,BLUE,TRIM8#

main74260-14020-06iMA61..EUR,SA198108-198512

LH,DARK BROWN,BROWN,TRIM4#

main74260-14020-12iMA61..ARL,GEN,SAA198308-198512

LH,DEEP MAROON,RED/MAROON,TRIM3#

main74260-14050-01iAA63,RA60,61,65,SA63,TA60..CP..(GTS,LT,ST)198108-198507

LH,BLACK,BLACK,TRIM2#

main74260-14050-04iAA63,RA60,61,65,SA63,TA60..CP..(GTS,LT,ST)198108-198507

LH,BLUE,BLUE,TRIM8#

main74260-14050-06iAA63,RA60,61,65,SA63,TA60..CP..(GTS,LT,ST)198108-198507

LH,DARK BROWN,BROWN,TRIM4#

62540PANEL ASSY, QUARTER TRIM, LOWER LH

main62514-14020-01iAA63,RA60,61,65,SA63,TA60..CP..(GTS,LT,ST)198108-198507

BLACK,BLACK,TRIM2#

sub62514-14020

main62514-14020-04iAA63,RA60,61,65,SA63,TA60..CP..(GTS,LT,ST)198108-198507

BLUE,BLUE,TRIM8#

sub62514-14020

main62514-14020-06iAA63,RA60,61,65,SA63,TA60..CP..(GTS,LT,ST)198108-198507

DARK BROWN,BROWN,TRIM4#

sub62514-14020

main62514-14040-01iAA63..CP..GT;MA61,RA6#,SA63..GT,SPR,XT;AA63,RA60,61,TA60..LB..(GT,GTS,ST)..(EUR,GEN)198108-198512

BLACK,BLACK,TRIM2#

sub62514-14040

main62514-14040-02iMA61..EUG198209-198308

GEN SPEC,TERRA COTTA,RED/MAROON,TRIM3#

sub62514-14040

main62514-14040-02iMA61..SAA198208-198308

TERRA COTTA,RED/MAROON,TRIM3#

sub62514-14040

main62514-14040-04iAA63..CP..GT;MA61,RA6#,SA63..GT,SPR,XT;AA63,RA60,61,TA60..LB..(GT,GTS,ST)..(EUR,GEN)198108-198512

BLUE,BLUE,TRIM8#

sub62514-14040

main62514-14040-06iAA63..CP..GT;MA61,RA6#,SA63..GT,SPR,XT;AA63,RA60,61,TA60..LB..(GT,GTS,ST)..(EUR,GEN)198108-198512

DARK BROWN,BROWN,TRIM4#

sub62514-14040

main62514-14040-12iMA61..ARL,GEN,SAA198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

sub62514-14040

62561PROTECTOR, ROCKER PANEL, INNER FRONT

main62561-14070iAA63,MA61,RA6#,SA63,TA60198108-198512

RH

main62562-14070iAA63,MA61,RA6#,SA63,TA60198108-198512

LH

62562PROTECTOR, ROCKER PANEL, INNER REAR

main62563-14060iAA63,MA61,RA6#,SA63,TA60198108-198512

RH

main62564-14020iAA63,MA61,RA6#,SA63,TA60198108-198512

LH

62581RETAINER, QUARTER TRIM

main62533-14050iAA63,RA6#,SA63,TA60..CP198108-198507

RH

main62534-14040iAA63,RA6#,SA63,TA60..CP198108-198507

LH

6777112010WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-12010

9016126008

main90161-26008

9016740014

main90167-40014

9016840008

main90168-40008

9046708015

main90467-08015

9046804036

main90468-04036

9046804044

main90468-04044

9046805017

main90468-05017

9046805033

main90468-05033

9046806023

main90468-06023

9354054010

main93540-54010

9354055035

main93540-55035

9356014012

main93560-14012

9356055014

main93560-55014

52 parts on this diagram · 2 diagrams in section
