COWL PANEL & WINDSHIELD GLASS

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

55075COVER SUB-ASSY, HEATER AIR DUCT HOLE

main55791-14031iMA61,RA6#,TA60..LHD198108-198203

main55792-14030iMA61,RA6#..RHD198108-198203

55701PANEL SUB-ASSY, COWL

main55700-14470iRA60,61..LHD..4FC..(GEN,ME,SAA)198108-198504

main55700-14480iRA60..LHD..5F198108-198308

main55700-14500iTA60..3FC198108-198503

main55700-14530iRA61..LHD..4FC..EUG198108-198503

main55700-14550iAA63,RA63,TA60..EUG198108-198507

main55700-14560iRA61..LHD..5F..EUR198108-198507

main55700-14570iRA61..LHD..4FC..(GEN,SAA)198504-198507

main55700-14580iAA63,RA63,TA60..LHD..5F..GEN198108-198507

main55700-14590iRA6#,SA63..RHD198108-198507

main55700-14620iMA61..RHD198112-198512

main55700-14640iMA61..LHD..4FC..EUG198505-198512

main55700-14651iMA61..LHD..4FC..(GEN,SAA)198308-198505

main55700-14661iMA61..LHD..EUG198209-198308

GENERAL COUNTRIES SPEC

main55700-14700iMA61..4FC..SDZ198505-198512

main55700-14710iMA61..4FC..SDZ198308-198505

main55700-14720iMA61..LHD..4FC..EUG198308-198505

55713APANEL, COWL TOP SIDE, RH

main55713-14070iMA61198112-198512

main55713-14080iAA63,RA6#,SA63,TA60198108-198408

main55713-14090iAA63,RA6#,TA60198408-198507

55713BCOVER, COWL SIDE PANEL HOLE, RH

main62161-14010iAA63,MA61,RA6#,SA63,TA60198108-198512

55714APANEL, COWL TOP SIDE, LH

main55714-14070iMA61198112-198512

main55714-14080iAA63,RA6#,SA63,TA60198108-198408

main55714-14090iAA63,RA6#,TA60198408-198507

55714BCOVER, COWL SIDE PANEL HOLE, LH

main62161-14010iAA63,MA61,RA6#,SA63,TA60198309-198512

main62162-14010iAA63,MA61,RA6#,SA63,TA60198108-198309

55748BRACE, COWL TOP TO PILLAR, RH

main55748-14030iAA63,MA61,RA6#,SA63,TA60198108-198512

55749BRACE, COWL TOP TO PILLAR, LH

main55749-14060iMA61..RHD..GEN;MA61..ARL,EUR,SA;AA63,RA6#,SA63,TA60..ARL,EUR,GEN198108-198512

main55749-14070iMA61,RA60,61..ME,SAA198108-198512

55781DLOUVER, COWL TOP VENTILATOR, RH

main55781-14120iAA63,MA61,RA6#,SA63..RHD198108-198512

55782DLOUVER, COWL TOP VENTILATOR, LH

main55782-14040iAA63,MA61,RA60,61,63,TA60..LHD198108-198512

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55783-14080iAA63,MA61,RA6#,SA63,TA60198108-198512

55784BLOUVER, COWL TOP VENTILATOR, CENTER NO.2

main55784-14080iAA63,MA61,RA6#,SA63,TA60198108-198512

55792COVER, WIPER MOTOR SERVICE HOLE

main55793-24010iMA61,RA6#,TA60198108-198305

55950NOZZLE ASSY, DEFROSTER

main55950-14090iAA63,MA61,RA6#,SA63..RHD198108-198512

main55950-14100iAA63,MA61,RA60,61,63,TA60..LHD198108-198512

55956ADUCT, SIDE DEFROSTER NOZZLE, NO.1

main55971-14030iAA63,MA61,RA6#,SA63,TA60198108-198512

55956BDUCT, SIDE DEFROSTER NOZZLE, NO.2

main55971-14030iAA63,MA61,RA6#,SA63,TA60198108-198512

55959COVER, DEFROSTER NOZZLE OPENING, NO.1

main55959-14010×2iAA63,RA60,63,TA60..GEN,ME198108-198507

56111GLASS, WINDSHIELD

main56111-14310iRA61..RHD;RA61..5F..XT..GEN;RA61..LHD..5F..EUG;MA61..TWC..(EUR,GEN);RA61..LHD..4FC..(EUR,GEN);AA63,RA60,63,TA60..EUR,GEN198108-198512

T=5.0,*TZT

main56111-14320iAA63,MA61,RA60,61,63,TA60..EUR,GEN198108-198512

T=5.3,*TL

main56111-14340iMA61..TWC;RA61..RHD;RA61..LHD..4FC;RA61..LHD..5F..EUG;RA61..5F..XT..(GEN,SAA);AA63,RA60,63,TA60..EUR,GEN,ME198108-198512

T=5.3,W/SUN SHADE,*TL

main56111-14370iMA61,RA60,65,SA63..ARL198108-198512

T=5.3,*LAM,W/SUN SHADE

56116SPACER, WINDSHIELD GLASS

main56116-14020×2iAA63,MA61,RA6#,SA63,TA60198108-198512

LWR,20 X 7.5 X 11.5

main56116-14040iAA63,MA61,RA6#,SA63,TA60198108-198512

SIDE,20 X 8 X 9.2

56121KDAM KIT, WINDSHIELD GLASS

main04562-14010iMA61,RA6#,TA60198108-198308

main04562-30040iAA63,MA61,RA6#,SA63,TA60198308-198512

9016840038

main90168-40038

9018904030

main90189-04030

9018905024

main90189-05024

9046708023

main90467-08023

9048010006

main90480-10006

9165140814

main91651-40814

9356755016

main93567-55016

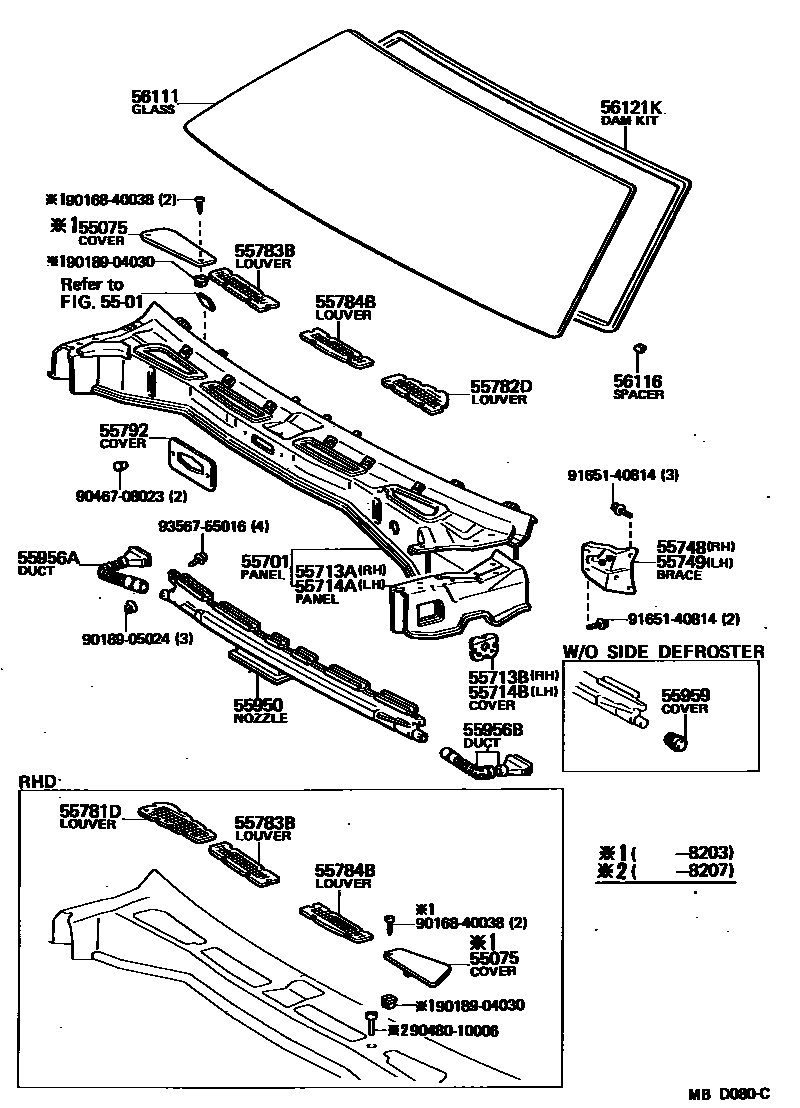

28 parts on this diagram · 1 diagram in section
