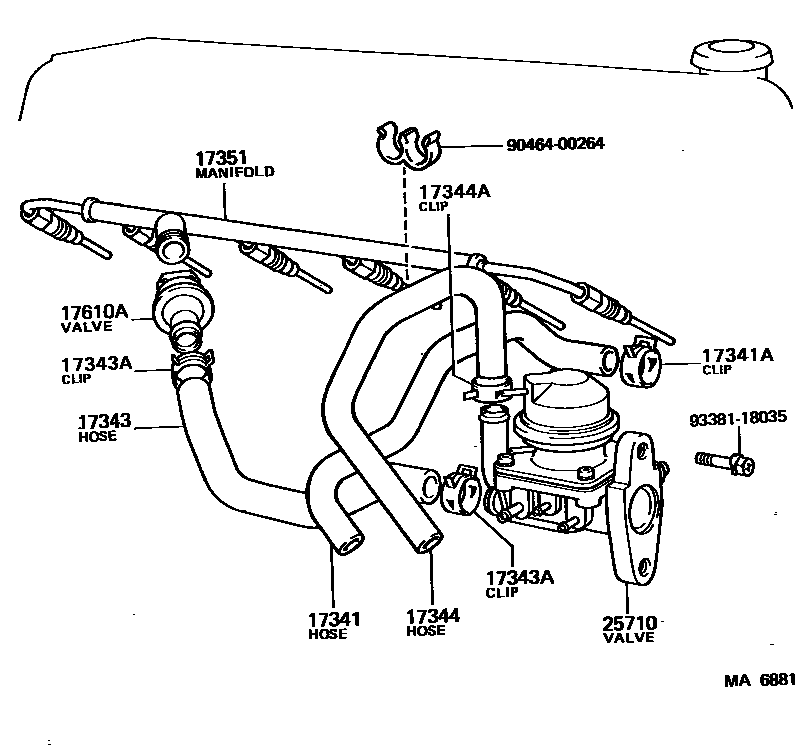

MANIFOLD AIR INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1 0005 1

17341HOSE, NO.1(FOR AIR INJECTION SYSTEM)

main17341-35060i22REC..RA65198408-198507

main17341-37050i21RC..RA61198408-198507

main17341-38040i21RC..RA60,61198108-198408

main17341-43040i5ME..MA61198308-198512

main17341-74020i2SC..SA63198308-198408

17341ACLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1)

main90467-28001i5ME..MA61198308-198512

sub90467-28007

main96111-10330i21RC..RA60,61198108-198507

17343HOSE, NO.3(FOR AIR INJECTION SYSTEM)

main17343-35050i22REC..RA65198408-198507

main17343-38040i21RC..RA60,61198108-198507

main17343-43010i5ME..MA61198308-198512

main17343-74020i2SC..SA63198308-198408

17343ACLAMP OR CLIP, NO.3(FOR AIR INJECTION SYSTEM HOSE, NO.3)

main90467-26001i5ME..MA61198308-198512

sub96134-52600

17344HOSE, NO.4(FOR AIR INJECTION SYSTEM)

main17342-74020i2SC..SA63198308-198408

main17344-38050i21RC..RA60,61198108-198507

main17344-43040i5ME..MA61198308-198512

17344ACLAMP OR CLIP, NO.4(FOR AIR INJECTION SYSTEM HOSE, NO.4)

main90467-21001i2SC..SA63198308-198309

sub90467-21006

main90467-23003i2SC..SA63198309-198408

sub96134-42300

main90467-26001i5ME..MA61198308-198512

sub96134-52600

17351MANIFOLD, AIR INJECTION

main17351-35030i22REC..RA65198408-198507

main17351-45060i5ME..MA61198308-198512

main17351-74010i2SC..SA63198308-198408

17610AVALVE, CHECK(FOR AIR INJECTION SYSTEM)

main90917-10028i21RC..RA60,61198208-198507

main90917-10045i2SC..SA63198308-198408

main90917-10051i5ME..MA61198308-198512

main90917-10058i21RC..RA60,61198108-198208

sub90917-10028

25710VALVE ASSY, AIR SWITCHING

main25710-35050i22REC..RA65198408-198507

main25710-37010i21RC..RA60,61198108-198501

main25710-37011i21RC..RA61198501-198507

main25710-41010i5ME..MA61198308-198512

main25710-74010i2SC..SA63198308-198408

9046400264

main90464-00264

9338118035

main93381-18035

11 parts on this diagram · 5 diagrams in section
