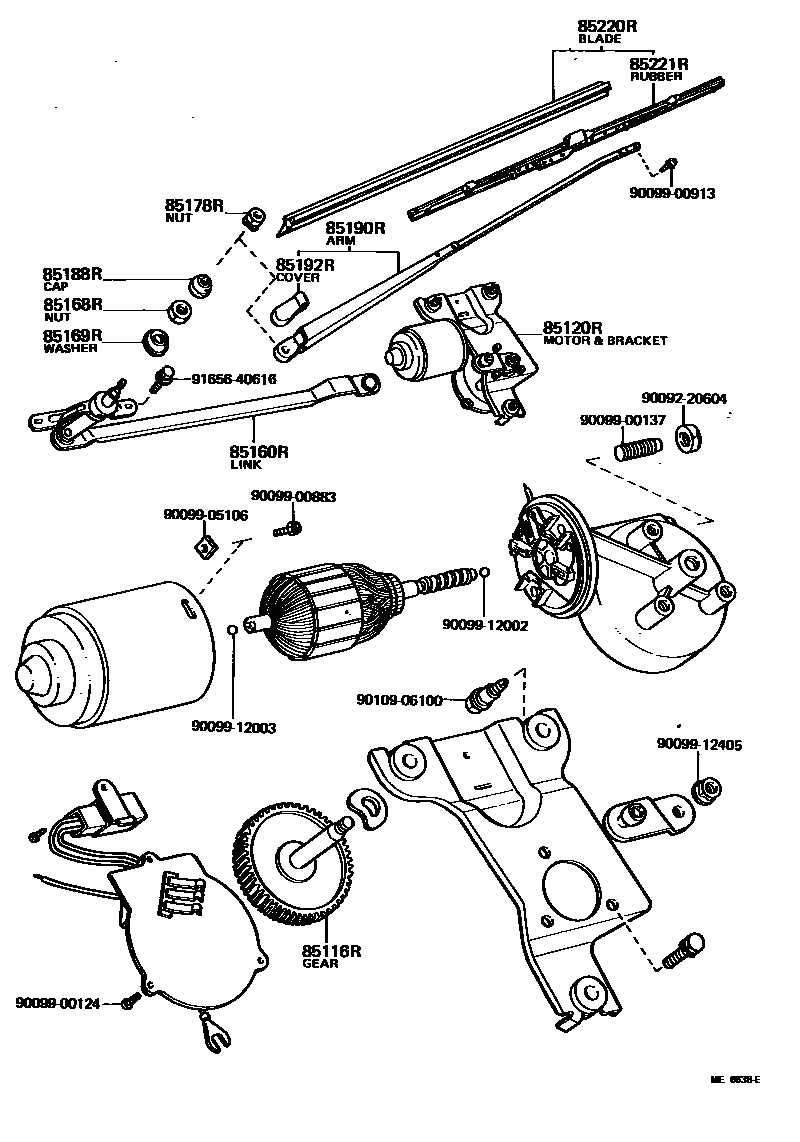

REAR WIPER

85116RGEAR, REAR WIPER MOTOR

main85116-95101iRA40,TA40..LB197708-198107

85120RMOTOR AND BRACKET ASSY, REAR WIPER

main85120-14010iRA40,TA40..LB197708-197804

main85120-14011iRA40,TA40..LB197804-198107

85160RLINK ASSY, REAR WIPER

main85160-14170iRA40,TA40..LB197708-198107

sub85160-14210

85168RNUT, REAR WIPER LINK PIVOT, NO.1

main90099-05120iRA40,TA40..LB197708-198107

85169RWASHER, REAR WIPER LINK PIVOT, NO.1

main85179-14170iRA40,TA40..LB197708-198107

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iRA40,TA40..LB197708-198107

85188RCAP, REAR WIPER PIVOT, NO.1

main85178-14170iRA40,TA40..LB197708-198107

85190RARM ASSY, REAR WIPER

main85190-14210iRA40,TA40..LB197708-198107

85192RCOVER, REAR WIPER ARM

main85192-14020iRA40,TA40..LB197708-198107

sub85192-13060

85220RBLADE ASSY, REAR WIPER

main85220-14110iRA40,TA40..LB197708-198107

sub85220-22370

85221RBLADE, REAR WIPER

main85221-20060iRA40,TA40..LB197708-198107

sub85221-14H90

9009220604

main90092-20604

9009900124

main90099-00124

9009900137

main90099-00137

9009900883

main90099-00883

9009900913

main90099-00913

9009905106

main90099-05106

9009912002

main90099-12002

9009912003

main90099-12003

9009912405

main90099-12405

9010906100

main90109-06100

9165640616

main91656-40616

22 parts on this diagram · 1 diagram in section
