INDICATOR

81850LAMP ASSY, INDICATOR

main81850-14220iRA40..(ST,XT)..EUR197708-197911

sub81850-14221

main81850-14221iTA40..LT..EUG197911-198107

main81850-14250iRA40..ARL197708-198107

main81850-14260iRA40,TA40..LHD..EUR197708-197908

W/RED INDICATOR

sub81850-14221

main81850-14460iTA40..(GT,ST)..EUG197908-198107

main81850-14480iRA40,TA40..(GT,XT)..GEN197908-198107

W/TILT STEERING

main81850-14510iTA40..(GT,ST)..EUG197908-198107

W/TILT STEERING

81850BBULB, INDICATOR LAMP

main90981-11018iRA40,TA40197708-198107

12V 1.2W W/O SOCKET,12V 1.4W

main99132-12034iRA40,TA40197708-198107

12V 3.4W,12V 3.4W

81855CSOCKET & WIRE, INDICATOR LAMP

main83101-10010iRA40,TA40197708-198003

12V 3.4W

sub83101-14030

main83101-14030iRA40,TA40198003-198107

12V 3.4W

main83101-22010iRA40,TA40197708-198107

12V 1.4W

sub83101-14040

81860BBULB, TRANSMISSION INDICATOR LAMP

main99132-11017iRA40,TA40..3FC197908-198107

12V 1.7W,12V 1.7W

main99132-11034iRA40,TA40..3FC197708-197908

12V 3.4W,12V 3.4W

81865SOCKET AND WIRE, TRANSMISSION INDICATOR LAMP

main35906-14010iRA40,TA40..3FC197708-198107

81930BBULB, HEATER CONTROL INDICATOR LAMP

main90981-11010iRA40,TA40197708-198107

12V 2W,12V 2W

81931LENS, HEATER CONTROL INDICATOR

main81943-14070iRA40,TA40..RHD197708-198107

W/HEATER,W/HEATER & COOLER

main81943-14110iRA40,TA40..RHD..(ARL,GEN)197708-198107

W/*BV,W/*BV & COOLER

main81943-14120iRA40,TA40..LHD..GEN197708-198008

W/*BV,W/*BV & COOLER

main81943-14130iRA40,TA40..LHD197708-198008

W/HEATER,W/HEATER & COOLER

main81943-14131iRA40,TA40..LHD198008-198107

W/HEATER,W/HEATER & COOLER

main81943-14200iRA40,TA40..LHD..GEN198008-198107

W/*BV,W/*BV & COOLER

9321913010

main93219-13010

9351014008

main93510-14008

9356614514

main93566-14514

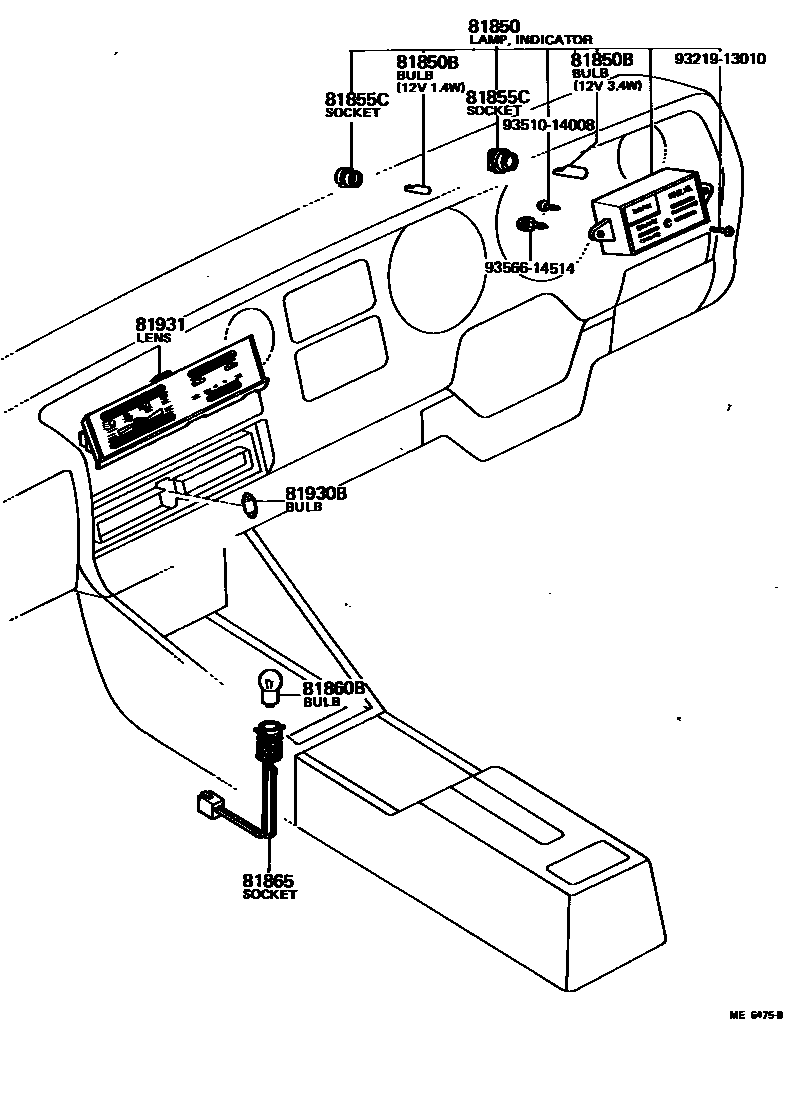

10 parts on this diagram · 1 diagram in section
