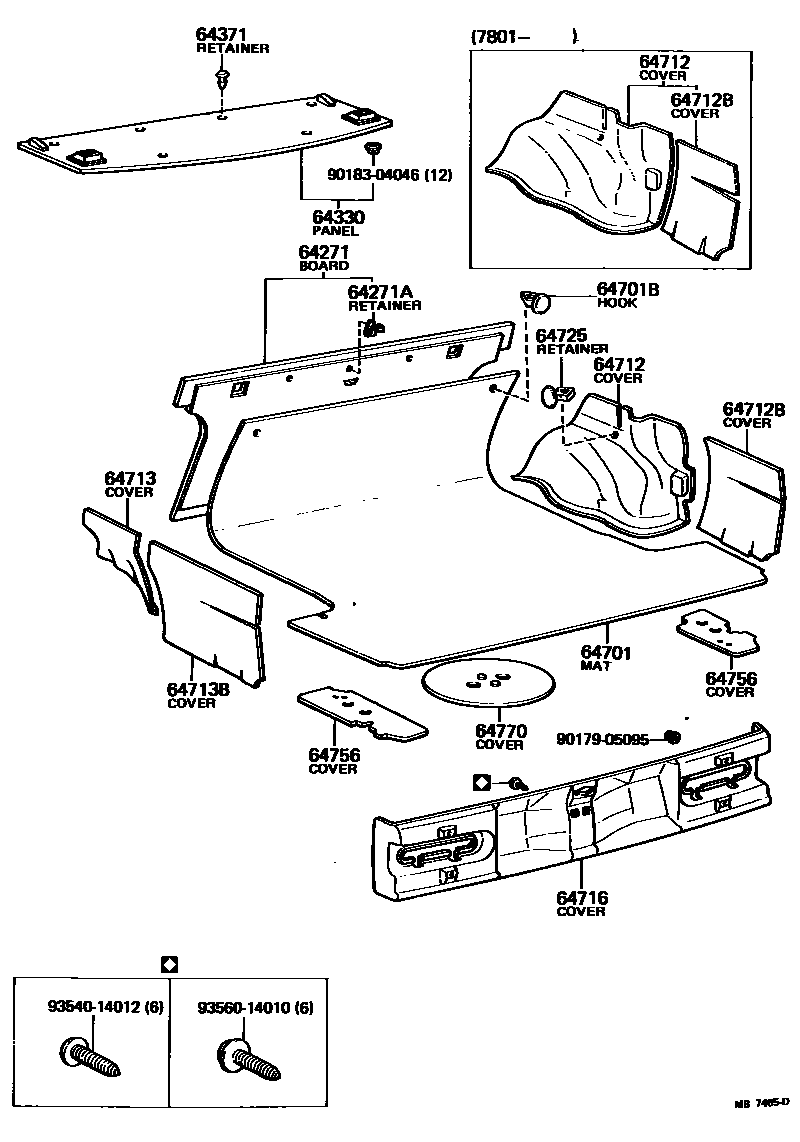

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

64271BOARD, ROOM PARTITION, NO.1

main64270-14040iRA40,TA40..CP197708-197712

main64270-14041iRA40,TA40..CP197712-197801

main64270-14042iRA40,TA40..CP197801-198107

64271ARETAINER, ROOM PARTITION BOARD

main62598-14020iRA40,TA40..CP197708-198107

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-14170-01iRA40,TA40..CP..(GT,LT,ST)..(EUR,GEN)197708-198107

BLACK,BLACK,TRIM2#

sub64330-14250

main64330-14170-04iRA40,TA40..CP..(GT,LT,ST)..(EUR,GEN)197708-198107

BLUE,BLUE,TRIM8#

sub64330-14250

main64330-14170-06iRA40,TA40..CP..(GT,LT,ST)..(EUR,GEN)197708-198107

LIGHT BROWN,BROWN,TRIM4#

sub64330-14250

main64330-14180-01iRA40..CP..XT197708-198107

BLACK,BLACK,TRIM2#

sub64330-14180

main64330-14180-04iRA40..CP..XT197708-198107

BLUE,BLUE,TRIM8#

sub64330-14180

main64330-14180-06iRA40..CP..XT197708-198107

LIGHT BROWN,BROWN,TRIM4#

sub64330-14180

main64330-14190-01iRA40..LT197708-198107

BLACK,BLACK,TRIM2#

sub64330-14170

main64330-14190-04iRA40..LT197708-198107

BLUE,BLUE,TRIM8#

sub64330-14170

main64330-14190-06iRA40..LT197708-198107

LIGHT BROWN,BROWN,TRIM4#

sub64330-14170

64371RETAINER, PACKAGE TRAY TRIM

main64371-12010-21iRA40,TA40..CP..(GT,LT,ST)197708-198107

BLACK,BLACK,TRIM2#

sub64371-12010

sub90467-09019

main64371-12010-34iRA40,TA40..CP..(GT,LT,ST)197708-198107

BLUE,BLUE,TRIM8#

sub64371-12010

sub90467-09019

main64371-12010-56iRA40,TA40..CP..(GT,LT,ST)197708-198107

LIGHT BROWN,BROWN,TRIM4#

sub64371-12010

sub90467-09019

main90467-09065-01iRA40..CP..XT197708-198107

BLACK,BLACK,TRIM2#

sub90467-09065

sub90467-09010

main90467-09065-04iRA40..CP..XT197708-198107

BLUE,BLUE,TRIM8#

sub90467-09065

sub90467-09010

main90467-09065-05iRA40..CP..XT197708-198107

LIGHT BROWN,BEIGE,TRIM4#

sub90467-09065

sub90467-09010

64701MAT SUB-ASSY, LUGGAGE COMPARTMENT

main64701-14070iRA40,TA40..CP..(LT,ST)197708-197712

main64701-14071iRA40,TA40..CP..(LT,ST)197712-197801

main64701-14072iRA40,TA40..CP..(LT,ST)197801-198107

main64701-14090iRA40,TA40..CP..(GT,XT)197708-197712

main64701-14091iRA40,TA40..CP..(GT,XT)197712-197801

main64701-14092iRA40,TA40..CP..(GT,XT)197801-198107

64701BHOOK, MALE(FOR LUGGAGE COMPARTMENT MAT)

main90467-07158-03iRA40,TA40..CP197801-198107

GRAY,GRAY,TRIM2#

sub90467-07158

64712COVER, LUGGAGE COMPARTMENT TRIM, RH

main64712-14060iRA40,TA40..CP197708-198107

64712BCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, RH

main64714-14030iRA40,TA40..CP197708-198107

64713COVER, LUGGAGE COMPARTMENT TRIM, LH

main64713-14040iRA40,TA40..CP197708-198107

64713BCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, LH

main64715-14030iRA40,TA40..CP197708-198107

64716COVER, LUGGAGE COMPARTMENT, REAR CENTER

main64716-14040iRA40,TA40..CP..(GT,XT)197708-197908

main64716-14041iRA40,TA40..CP..(GT,XT)197908-198107

64725RETAINER, LUGGAGE COMPARTMENT COVER, NO.1

main90467-07158-03iRA40,TA40..CP197803-198107

GRAY,GRAY,TRIM2#

sub90467-07158

main90467-11005iRA40,TA40..CP197712-197803

64756COVER, LUGGAGE COMPARTMENT SIDE

main58703-14020iRA40,TA40..CP197708-198107

RH

main58704-14020iRA40,TA40..CP197708-198107

LH

64770COVER ASSY, SPARE WHEEL

main64770-14010iRA40,TA40..CP197708-198107

9017905095

main90179-05095

9018304046

main90183-04046

9354014012

main93540-14012

9356014010

main93560-14010

18 parts on this diagram · 1 diagram in section
