INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

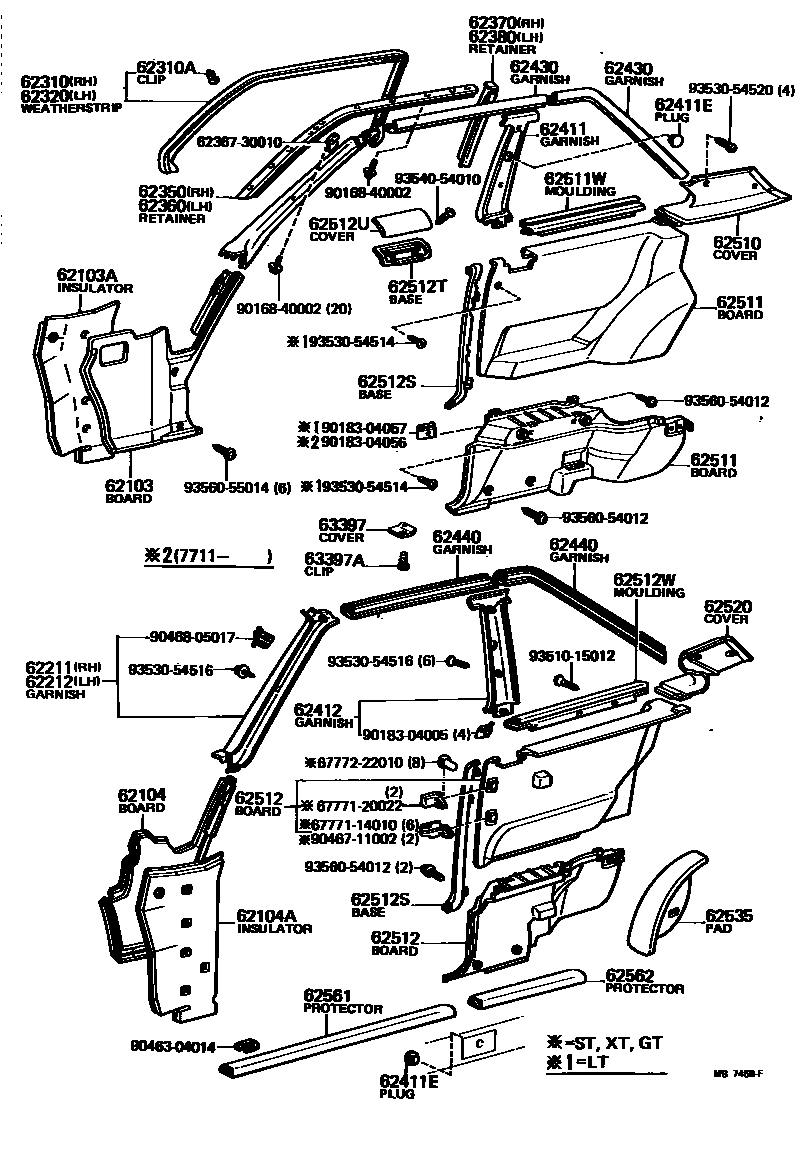

Parts diagram
62103BOARD SUB-ASSY, COWL SIDE TRIM, RH
main62101-14070-01i197708-198107
BLACK,BLACK,TRIM2#
sub62101-14070
main62101-14070-04i197708-197908
BLUE,BLUE,TRIM8#
sub62101-14070
main62101-14070-06i197708-198107
LIGHT BROWN,BROWN,TRIM4#
sub62101-14070
main62101-14070-14i197908-198107
BLUE,BLUE,TRIM8#
sub62101-14070
main62101-14080-01i197708-198107
BLACK,BLACK,TRIM2#
sub62101-14080
main62101-14080-04i197708-197908
BLUE,BLUE,TRIM8#
sub62101-14080
main62101-14080-06i197708-198107
LIGHT BROWN,BROWN,TRIM4#
sub62101-14080
main62101-14080-14i197908-198107
BLUE,BLUE,TRIM8#
sub62101-14080
62103AINSULATOR SUB-ASSY, COWL SIDE, RH
main62105-14020i197708-198107
62104BOARD SUB-ASSY, COWL SIDE TRIM, LH
main62102-14100-01i197708-198107
BLACK,BLACK,TRIM2#
sub62102-14090
main62102-14100-04i197708-197908
BLUE,BLUE,TRIM8#
sub62102-14090
main62102-14100-06i197708-198107
LIGHT BROWN,BROWN,TRIM4#
sub62102-14090
main62102-14100-14i197908-198107
BLUE,BLUE,TRIM8#
sub62102-14090
main62102-14110-01i197708-198107
BLACK,BLACK,TRIM2#
sub62102-14110
main62102-14110-04i197708-197908
BLUE,BLUE,TRIM8#
sub62102-14110
main62102-14110-06i197708-198107
LIGHT BROWN,BROWN,TRIM4#
sub62102-14110
main62102-14110-14i197908-198107
BLUE,BLUE,TRIM8#
sub62102-14110
62104AINSULATOR SUB-ASSY, COWL SIDE, LH
main62106-14020i197708-198107
62211GARNISH, FRONT PILLAR, RH
main62211-14080-01i197708-197908
BLACK,BLACK,TRIM2#
main62211-14080-04i197708-197908
BLUE,BLUE,TRIM8#
main62211-14080-06i197708-197908
LIGHT BROWN,BROWN,TRIM4#
main62211-14081-01i197908-198107
BLACK,BLACK,TRIM2#
main62211-14081-04i197908-198107
BLUE,BLUE,TRIM8#
main62211-14081-06i197908-198107
LIGHT BROWN,BROWN,TRIM4#
62212GARNISH, FRONT PILLAR, LH
main62212-14080-01i197708-197908
BLACK,BLACK,TRIM2#
main62212-14080-04i197708-197908
BLUE,BLUE,TRIM8#
main62212-14080-06i197708-197908
LIGHT BROWN,BROWN,TRIM4#
main62212-14081-01i197908-198107
BLACK,BLACK,TRIM2#
main62212-14081-04i197908-198107
BLUE,BLUE,TRIM8#
main62212-14081-06i197908-198107
LIGHT BROWN,BROWN,TRIM4#
62310WEATHERSTRIP, ROOF SIDE RAIL, RH
main62381-14050i197708-198107
62310ACLIP, ROOF SIDE RAIL WEATHERSTRIP
main67869-30020i197708-198107
62320WEATHERSTRIP, ROOF SIDE RAIL, LH
main62382-14050i197708-198107
62350RETAINER ASSY, ROOF SIDE RAIL WEATHERSTRIP FRONT, RH
main62361-14030i197708-198107
62360RETAINER ASSY, ROOF SIDE RAIL WEATHERSTRIP FRONT, LH
main62362-14030i197708-198107
62370RETAINER ASSY, ROOF SIDE RAIL WEATHERSTRIP, RH
main62053-14020i197708-197709
sub62371-14040
main62371-14040i197709-198107
62380RETAINER ASSY, ROOF SIDE RAIL WEATHERSTRIP, LH
main62054-14020i197708-197709
sub62372-14040
main62372-14040i197709-198107
62411GARNISH, CENTER PILLAR, RH
main62410-14010-01i197708-198107
BLACK,BLACK,TRIM2#
sub62410-14010
main62410-14010-04i197708-197908
BLUE,BLUE,TRIM8#
sub62410-14010
main62410-14010-06i197708-198107
LIGHT BROWN,BROWN,TRIM4#
sub62410-14010
main62410-14010-14i197908-198107
BLUE,BLUE,TRIM8#
sub62410-14010
main62413-14020-01i197708-198107
BLACK,BLACK,TRIM2#
main62413-14020-04i197708-197908
BLUE,BLUE,TRIM8#
main62413-14020-06i197708-198107
LIGHT BROWN,BROWN,TRIM4#
main62413-14020-14i197908-198107
BLUE,BLUE,TRIM8#
62411EPLUG, HOLE (FOR SEAT BELT)
main90950-01159-04i197708-198107
BLUE,BLUE,TRIM8#
sub90950-01159
main90950-01159-11i197708-198107
BLACK,BLACK,TRIM2#
sub90950-01159
main90950-01159-16i197708-198107
LIGHT BROWN,BROWN,TRIM4#
sub90950-01159
62412GARNISH, CENTER PILLAR, LH
main62414-14020-01i197708-198107
BLACK,BLACK,TRIM2#
main62414-14020-04i197708-197908
BLUE,BLUE,TRIM8#
main62414-14020-06i197708-198107
LIGHT BROWN,BROWN,TRIM4#
main62414-14020-14i197908-198107
BLUE,BLUE,TRIM8#
main62420-14010-01i197708-198107
BLACK,BLACK,TRIM2#
sub62420-14010
main62420-14010-04i197708-197908
BLUE,BLUE,TRIM8#
sub62420-14010
main62420-14010-06i197708-198107
LIGHT BROWN,BROWN,TRIM4#
sub62420-14010
main62420-14010-14i197908-198107
BLUE,BLUE,TRIM8#
sub62420-14010
62430GARNISH ASSY, ROOF SIDE RAIL, RH
main62431-14010-01i197708-198107
FR,BLACK,BLACK,TRIM2#
main62431-14010-04i197708-197908
FR,BLUE,BLUE,TRIM8#
main62431-14010-06i197708-198107
FR,LIGHT BROWN,BROWN,TRIM4#
main62431-14010-14i197908-198107
FR,BLUE,BLUE,TRIM8#
main62451-14010-01i197708-198107
RR,BLACK,BLACK,TRIM2#
main62451-14010-04i197708-197908
RR,BLUE,BLUE,TRIM8#
main62451-14010-06i197708-198107
RR,LIGHT BROWN,BROWN,TRIM4#
main62451-14010-14i197908-198107
RR,BLUE,BLUE,TRIM8#
main62451-14020-01i197708-198107
RR,BLACK,BLACK,TRIM2#
main62451-14020-04i197708-197908
RR,BLUE,BLUE,TRIM8#
main62451-14020-06i197708-198107
RR,LIGHT BROWN,BROWN,TRIM4#
main62451-14020-14i197908-198107
RR,BLUE,BLUE,TRIM8#
62440GARNISH ASSY, ROOF SIDE RAIL, LH
main62431-14010-01i197708-198107
FR,BLACK,BLACK,TRIM2#
main62431-14010-04i197708-197908
FR,BLUE,BLUE,TRIM8#
main62431-14010-06i197708-198107
FR,LIGHT BROWN,BROWN,TRIM4#
main62431-14010-14i197908-198107
FR,BLUE,BLUE,TRIM8#
main62451-14020-01i197708-198107
RR,BLACK,BLACK,TRIM2#
main62451-14020-04i197708-197908
RR,BLUE,BLUE,TRIM8#
main62451-14020-06i197708-198107
RR,LIGHT BROWN,BROWN,TRIM4#
main62451-14020-14i197908-198107
RR,BLUE,BLUE,TRIM8#
main62452-14010-01i197708-198107
RR,BLACK,BLACK,TRIM2#
main62452-14010-04i197708-197908
RR,BLUE,BLUE,TRIM8#
main62452-14010-06i197708-198107
RR,LIGHT BROWN,BROWN,TRIM4#
main62452-14010-14i197908-198107
RR,BLUE,BLUE,TRIM8#
62510COVER ASSY, BACK WINDOW SIDE GARNISH, RH
main62471-14100-01i197708-198107
BLACK,BLACK,TRIM2#
sub62471-14100
main62471-14100-04i197708-197908
BLUE,BLUE,TRIM8#
sub62471-14100
main62471-14100-06i197708-198107
LIGHT BROWN,BROWN,TRIM4#
sub62471-14100
main62471-14100-14i197908-198107
BLUE,BLUE,TRIM8#
sub62471-14100
main62471-14160-01i197908-198107
BLACK,BLACK,TRIM2#
main62471-14160-04i197908-198107
BLUE,BLUE,TRIM8#
main62471-14160-06i197908-198107
LIGHT BROWN,BROWN,TRIM4#
main62571-14040-01i197708-198107
BLACK,BLACK,TRIM2#
sub62571-14040
main62571-14040-04i197708-197908
BLUE,BLUE,TRIM8#
sub62571-14040
main62571-14040-06i197708-198107
LIGHT BROWN,BROWN,TRIM4#
sub62571-14040
main62571-14040-14i197908-198107
BLUE,BLUE,TRIM8#
sub62571-14040
62511BOARD, QUARTER INSIDE TRIM, RH
main62510-14390-01i197708-198107
UPR,BLACK,BLACK,TRIM2#
sub62510-14390
main62510-14390-04i197708-197908
UPR,BLUE,BLUE,TRIM8#
sub62510-14390
main62510-14390-06i197708-198107
UPR,LIGHT BROWN,BROWN,TRIM4#
sub62510-14390
main62510-14390-14i197908-198107
UPR,BLUE,BLUE,TRIM8#
sub62510-14390
main62510-14410-01i197708-198107
UPR,BLACK,BLACK,TRIM2#
sub62510-14410
main62510-14410-04i197708-197908
UPR,BLUE,BLUE,TRIM8#
sub62510-14410
main62510-14410-06i197708-197711
UPR,LIGHT BROWN,BROWN,TRIM4#
sub62510-14410
main62510-14410-14i197908-198107
UPR,BLUE,BLUE,TRIM8#
sub62510-14410
main62510-14410-16i197711-198107
UPR,LIGHT BROWN,BROWN,TRIM4#
sub62510-14410
main62510-14430-01i197708-198107
UPR,BLACK,BLACK,TRIM2#
sub62510-14430
main62510-14430-04i197708-197908
UPR,BLUE,BLUE,TRIM8#
sub62510-14430
main62510-14430-06i197708-197711
UPR,LIGHT BROWN,BROWN,TRIM4#
sub62510-14430
main62510-14430-14i197908-198107
UPR,BLUE,BLUE,TRIM8#
sub62510-14430
main62510-14430-16i197711-198107
UPR,LIGHT BROWN,BROWN,TRIM4#
sub62510-14430
main62513-14030-01i197708-198107
LWR,BLACK,BLACK,TRIM2#
sub62513-14030
main62513-14030-04i197708-197908
LWR,BLUE,BLUE,TRIM8#
sub62513-14030
main62513-14030-06i197708-198107
LWR,LIGHT BROWN,BROWN,TRIM4#
sub62513-14030
main62513-14030-14i197908-198107
LWR,BLUE,BLUE,TRIM8#
sub62513-14030
62511WMOULDING SUB-ASSY, QUARTER TRIM, RH
main62505-14010i197708-198107
main62505-14020i197708-197903
sub62505-14030
main62505-14030i197903-198107
62512BOARD, QUARTER INSIDE TRIM, LH
main62514-14030-01i197708-198107
LWR,BLACK,BLACK,TRIM2#
sub62514-14030
main62514-14030-04i197708-197908
LWR,BLUE,BLUE,TRIM8#
sub62514-14030
main62514-14030-06i197708-198107
LWR,LIGHT BROWN,BROWN,TRIM4#
sub62514-14030
main62514-14030-14i197908-198107
LWR,BLUE,BLUE,TRIM8#
sub62514-14030
main62520-14390-01i197708-198107
UPR,BLACK,BLACK,TRIM2#
sub62520-14390
main62520-14390-04i197708-197908
UPR,BLUE,BLUE,TRIM8#
sub62520-14390
main62520-14390-06i197708-198107
UPR,LIGHT BROWN,BROWN,TRIM4#
sub62520-14390
main62520-14390-14i197908-198107
UPR,BLUE,BLUE,TRIM8#
sub62520-14390
main62520-14410-01i197708-198107
UPR,BLACK,BLACK,TRIM2#
sub62520-14410
main62520-14410-04i197708-197908
UPR,BLUE,BLUE,TRIM8#
sub62520-14410
main62520-14410-06i197708-197711
UPR,LIGHT BROWN,BROWN,TRIM4#
sub62520-14410
main62520-14410-14i197908-198107
UPR,BLUE,BLUE,TRIM8#
sub62520-14410
main62520-14410-16i197711-198107
UPR,LIGHT BROWN,BROWN,TRIM4#
sub62520-14410
main62520-14480-01i197708-198107
UPR,BLACK,BLACK,TRIM2#
sub62520-14480
main62520-14480-04i197708-197908
UPR,BLUE,BLUE,TRIM8#
sub62520-14480
main62520-14480-06i197708-197711
UPR,LIGHT BROWN,BROWN,TRIM4#
sub62520-14480
main62520-14480-14i197908-198107
UPR,BLUE,BLUE,TRIM8#
sub62520-14480
main62520-14480-16i197711-198107
UPR,LIGHT BROWN,BROWN,TRIM4#
sub62520-14480
62512SBASE, QUARTER TRIM, FRONT
main62517-14030-01i197708-198107
RH,BLACK,BLACK,TRIM2#
sub62517-14030
main62517-14030-04i197708-197908
RH,BLUE,BLUE,TRIM8#
sub62517-14030
main62517-14030-06i197708-198107
RH,LIGHT BROWN,BROWN,TRIM4#
sub62517-14030
main62517-14030-14i197908-198107
RH,BLUE,BLUE,TRIM8#
sub62517-14030
main62518-14010-01i197708-198107
LH,BLACK,BLACK,TRIM2#
sub62518-14010
main62518-14010-04i197708-197908
LH,BLUE,BLUE,TRIM8#
sub62518-14010
main62518-14010-06i197708-198107
LH,LIGHT BROWN,BROWN,TRIM4#
sub62518-14010
main62518-14010-14i197908-198107
LH,BLUE,BLUE,TRIM8#
sub62518-14010
62512TBASE, QUARTER TRIM UPPER BELT HOLE COVER
main62529-14010i197708-198107
62512UCOVER,QUARTER TRIM UPPER BELT HOLE
main62539-14020-01i197708-198107
BLACK,BLACK,TRIM2#
sub62539-14020
main62539-14020-04i197708-197908
BLUE,BLUE,TRIM8#
sub62539-14020
main62539-14020-06i197708-198107
LIGHT BROWN,BROWN,TRIM4#
sub62539-14020
main62539-14020-14i197908-198107
BLUE,BLUE,TRIM8#
sub62539-14020
62512WMOULDING SUB-ASSY, QUARTER TRIM, LH
main62506-14010i197708-198107
main62506-14020i197708-197903
sub62506-14030
main62506-14030i197903-198107
62520COVER ASSY, BACK WINDOW SIDE GARNISH, LH
main62472-14060-01i197708-198107
BLACK,BLACK,TRIM2#
sub62472-14060
main62472-14060-04i197708-198107
BLUE,BLUE,TRIM8#
sub62472-14060
main62472-14060-06i197708-198107
LIGHT BROWN,BROWN,TRIM4#
sub62472-14060
main62472-14130-01i197908-198107
BLACK,BLACK,TRIM2#
main62472-14130-04i197908-198107
BLUE,BLUE,TRIM8#
main62472-14130-06i197908-198107
LIGHT BROWN,BROWN,TRIM4#
main62572-14010-01i197708-198107
BLACK,BLACK,TRIM2#
sub62572-14010
main62572-14010-04i197708-198107
BLUE,BLUE,TRIM8#
sub62572-14010
main62572-14010-06i197708-198107
LIGHT BROWN,BROWN,TRIM4#
sub62572-14010
62535PAD, QUARTER WHEEL HOUSE TRIM
main62611-14010i197708-198107
62561PROTECTOR, ROCKER PANEL, INNER FRONT
main62561-14060i197708-198107
62562PROTECTOR, ROCKER PANEL, INNER REAR
main62563-14030i197708-198107
63397COVER, REAR WINDOW ANTENNA CONNECTOR
main63399-14010-03i197708-197804
GRAY,GRAY,TRIM2#
main63399-14010-04i197708-197804
BLUE,BLUE,TRIM8#
main63399-14010-06i197708-197804
LIGHT BROWN,BROWN,TRIM4#
63397ACLIP(FOR REAR WINDOW ANTENNA CONNECTOR)
main67868-30030-03i197708-197804
GRAY,GRAY,TRIM2#
sub67868-30030
main67868-30030-04i197708-197804
BLUE,BLUE,TRIM8#
sub67868-30030
main67868-30030-06i197708-197804
LIGHT BROWN,BROWN,TRIM4#
sub67868-30030
6236730010CLIP, DOOR WINDOW GLASS, NO.1
main62367-30010
6777114010WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-14010
6777120022WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-20022
6777222010WEATHERSTRIP, BACK DOOR TRIM, LH
main67772-22010
9016840002
main90168-40002
9018304005
main90183-04005
9018304056
main90183-04056
9018304057
main90183-04057
9046304014
main90463-04014
9046711002
main90467-11002
9046805017
main90468-05017
9351015012
main93510-15012
9353054514
main93530-54514
9353054516
main93530-54516
9353054520
main93530-54520
9354054010
main93540-54010
9356054012
main93560-54012
9356055014
main93560-55014

50 parts on this diagram · 2 diagrams in section

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
