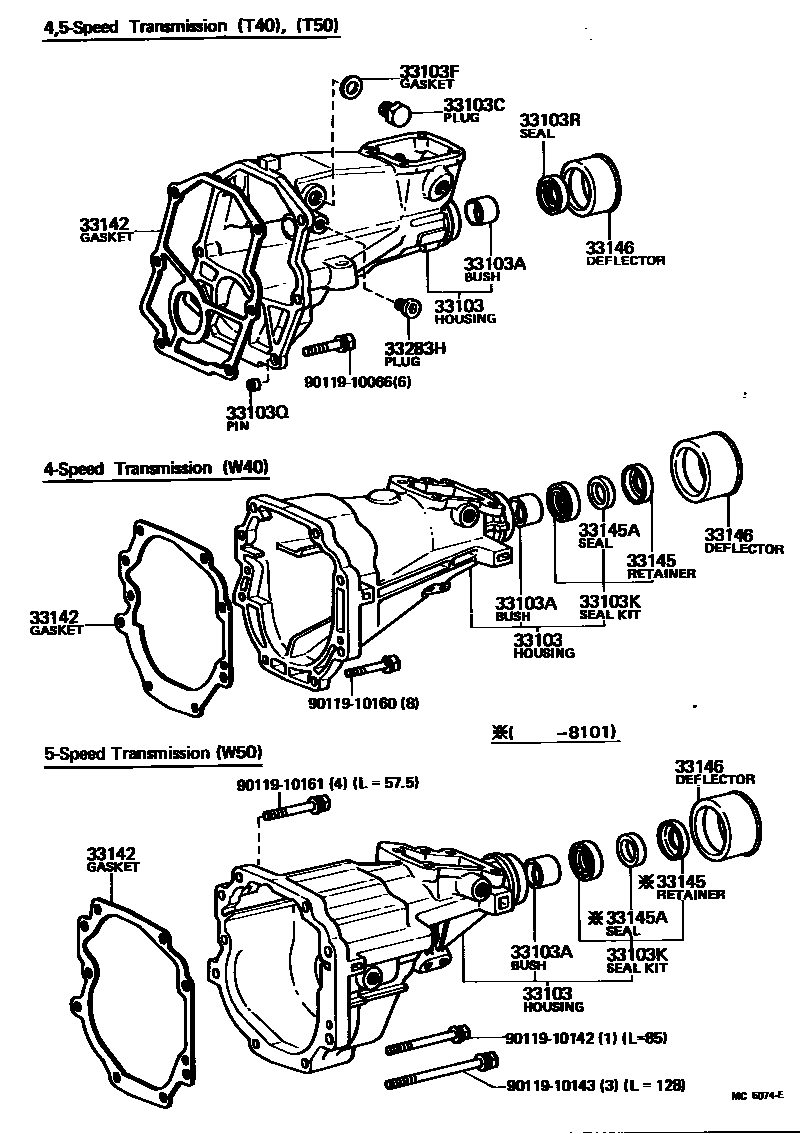

EXTENSION HOUSING (MTM)

33103HOUSING SUB-ASSY, EXTENSION(MTM)

main33103-14030iTA40..4F198106-198107

main33103-14040iTA40..5F198106-198107

main33103-20090iRA40..4F197708-198008

main33103-20100iRA40..5F197708-198107

main33103-20120iTA40..4F197708-198106

main33103-20130iTA40..5F197708-198106

33103ABUSH(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90999-72022iTA40..MTM197708-198107

main90999-72023iRA40..4F197708-198008

main90999-73062iRA40..5F197708-198107

33103CPLUG, NO.1(FOR EXTENSION HOUSING)

main90109-18001iTA40..4F198106-198107

main90341-18049iTA40..5F197708-198107

33103FGASKET(FOR EXTENSION HOUSING PLUG NO.1)

main12157-10010iTA40..5F197708-198107

main90430-18007iTA40..4F198106-198107

33103KSEAL KIT, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main04332-30010iRA40..MTM197708-198101

main90311-38043iRA40..5F198101-198107

33103QPIN, RING(FOR EXTENSION HOUSING)

main90253-13017×2iTA40..MTM197708-198107

33103RSEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90311-32086iTA40..MTM197708-198107

33142GASKET, EXTENSION HOUSING(MTM)

main33142-14010iTA40..MTM197708-198107

main33142-20020iRA40..5F197708-198107

main33142-31010iRA40..4F197708-198008

33145RETAINER, EXTENSION HOUSING DUST SEAL(MTM)

main33145-30010iRA40..MTM197708-198101

33145ASEAL, DUST(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90303-38010iRA40..MTM197708-198101

33146DEFLECTOR, EXTENSION HOUSING DUST(MTM)

main33146-12010iTA40..MTM197708-198107

main33146-30010iRA40..MTM197708-198107

33283HPLUG, W/HEAD STRAIGHT SCREW

main90341-10065iTA40..5F197708-198107

9011910066

main90119-10066

9011910142

main90119-10142

9011910143

main90119-10143

9011910160

main90119-10160

9011910161

main90119-10161

17 parts on this diagram · 1 diagram in section
