RADIO RECEIVER & AMPLIFIER & CONDENSER

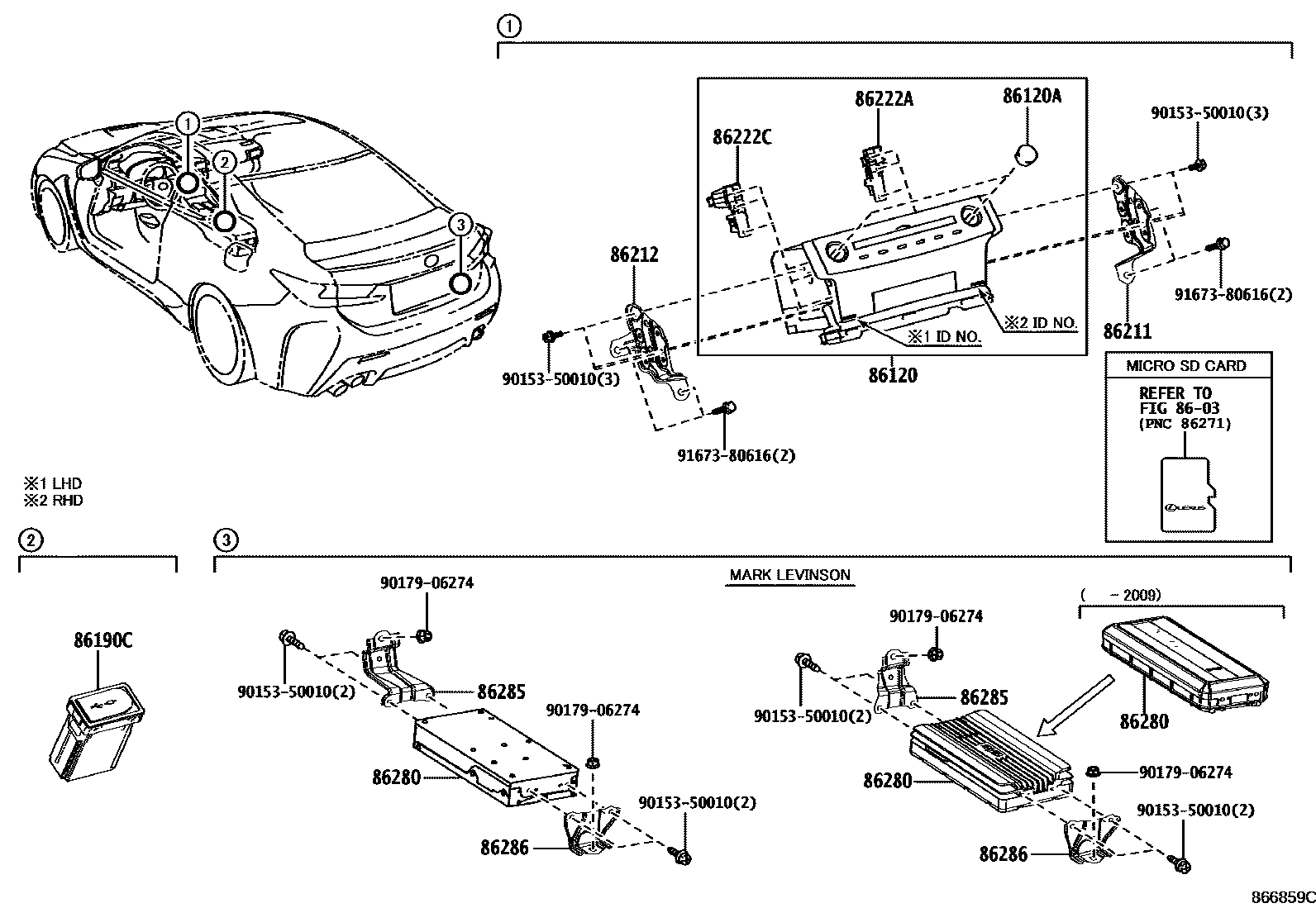

Parts diagram
8603
86120RECEIVER ASSY, RADIO
main86120-24620i201711-201902
PANASONIC
main86120-24620i201711-201902
PANASONIC,CYPRUS SPEC
main86120-24B00i201903-202009
PANASONIC
main86120-24E80i202009-202101
PANASONIC
sub86120-24E81
main86120-24E81i202102-202111
PANASONIC
main86120-24E91i202111-202301
PANASONIC
main86120-24F00i202009-202101
PANASONIC
sub86120-24F01
main86120-24F01i202102-202111
PANASONIC
main86120-24F11i202111-202301
PANASONIC
main86120-24K10i202301-202403
PANASONIC
main86120-24K20i202301-202403
PANASONIC
main86140-24130i201409-201711
FUJITSU TEN,ID100424,BOSNIA HERCEGOVINA SPEC&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH & WITHOUT(NAVIGATION)
main86140-24130i201409-201711
FUJITSU TEN,ID100424
main86140-24370i201711-201811
PIONEER,BOSNIA HERCEGOVINA SPEC&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH & WITHOUT(NAVIGATION)
sub86140-24372
main86140-24370i201711-201811
PIONEER
sub86140-24372
main86140-24371i201812-201902
PIONEER
sub86140-24372
main86140-24371i201812-201902
PIONEER,BOSNIA HERCEGOVINA SPEC&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH & WITHOUT(NAVIGATION)
sub86140-24372
main86140-24520i201903-201910
PIONEER
sub86140-24521
main86140-24521i201911-202009
PIONEER
main86804-24260i201409-201711
PIONEER,ID=P10753
main86804-24260i201409-201711
PIONEER,ID=P10753,CYPRUS SPEC
main86804-24260i201409-201711
PIONEER,ID=P10753,CYPRUS SPEC&AUDIO-EMV & DVD & 17SPEAKER
86120AKNOB, RADIO RECEIVER SWITCH
main90010-22096i201409-201711
BOSNIA HERCEGOVINA SPEC&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH & WITHOUT(NAVIGATION)
main90010-22096i201409-201711
CYPRUS SPEC
main90010-22097i202111-202403
main90010-22110i201711-201902
BOSNIA HERCEGOVINA SPEC&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH & WITHOUT(NAVIGATION)
main90010-22110i201711-201902
CYPRUS SPEC
main90010-22110i201903-202111
86190CADAPTER ASSY, STEREO JACK, NO.1
main86190-11010i201711-202009
main86190-24030i202009-202403
main86190-53051i201409-201712
86211BRACKET, RADIO, NO.1
main86211-24100i201711-202403
main86211-53050i201409-201711
86212BRACKET, RADIO, NO.2
main86212-24100i201711-202403
main86212-53050i201409-201711
86222ACLIP, RADIO RECEIVER BRACKET NO.1
main86222-53010i201409-201902
BOSNIA HERCEGOVINA SPEC&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH & WITHOUT(NAVIGATION)
main86222-53010i201409-201902
CYPRUS SPEC
main86222-53010i201903-202403
86222CCLIP, RADIO RECEIVER BRACKET NO.2
main86222-53020i201409-201902
CYPRUS SPEC
main86222-53020i201409-201902
BOSNIA HERCEGOVINA SPEC&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH & WITHOUT(NAVIGATION)
main86222-53020i201903-202403
86280AMPLIFIER ASSY, STEREO COMPONENT
main86280-0WK00i202111-202301
main86280-0WK70i202301-202403
main86280-24260i201409-201609
AUDIO-EMV & DVD & 10SPEAKER
sub86280-24261
main86280-24300i201609-201711
AUDIO-EMV & DVD & 10SPEAKER
sub86280-24301
main86280-24320i201903-202111
main86280-24320i201711-201902
AUDIO-EMV & DVD & 10SPEAKER
main86280-24321i202009-202111
86285BRACKET, AMPLIFIER, NO.1
main86285-24050i201712-201902
AUDIO-EMV & DVD & 10SPEAKER
main86285-24050i201903-202111
main86285-24070i202111-202403
main86285-53080i201409-201712
AUDIO-EMV & DVD & 10SPEAKER
86286BRACKET, AMPLIFIER, NO.2
main86286-53120i201409-201710
AUDIO-EMV & DVD & 10SPEAKER
sub86286-53121
main86286-53120i201409-201710
AUDIO-EMV & DVD & 17SPEAKER
sub86286-53121
main86286-53121i201711-201902
AUDIO-EMV & DVD & 10SPEAKER
main86286-53121i201711-201902
AUDIO-EMV & DVD & 17SPEAKER
main86286-53121i201903-202403
9015350010
main90153-50010
9017906274
main90179-06274
9167380616
main91673-80616

14 parts on this diagram · 2 diagrams in section
