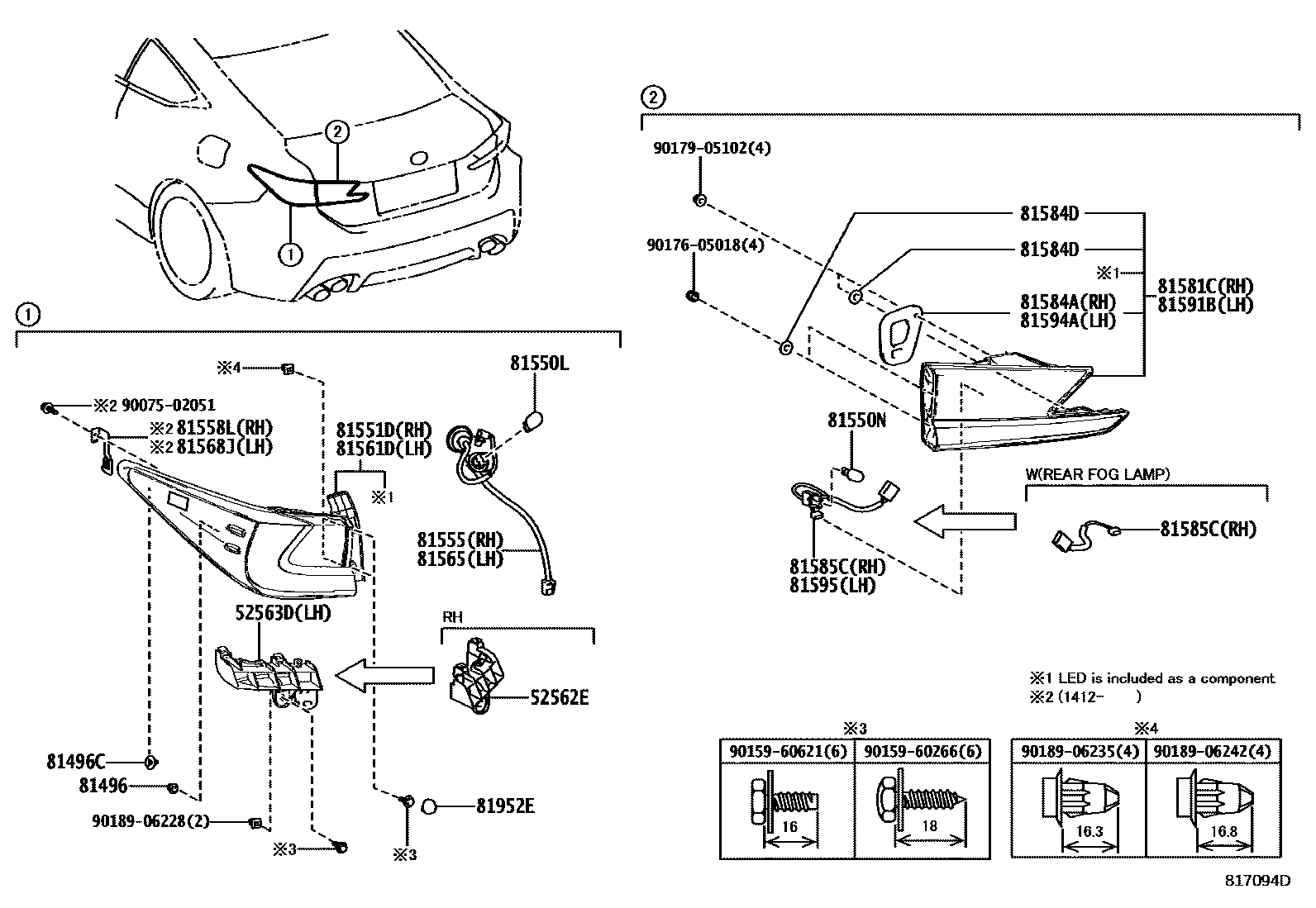

REAR COMBINATION LAMP

0001 1 0002 1

52562ERETAINER, REAR BUMPER, UPPER RH

main52562-24010iUSC10201409-201902

main52562-24020iUSC10201903-202403

52563DRETAINER, REAR BUMPER, UPPER LH

main52563-24010iUSC10201409-201902

main52563-24020iUSC10201903-202403

81496GUIDE, REAR COMBINATION LAMP

main81496-52020iUSC10201409-202403

81496CGUIDE, REAR COMBINATION LAMP, NO.2

main81496-60010iUSC10201409-202403

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15021iUSC10201409-201902

12V 21W,AMBER

81550NBULB, BACK UP LAMP

main90981-11059iUSC10201409-201902

12V 16W

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-24170iUSC10201409-201412

sub81551-24200

main81551-24200iUSC10201412-201902

main81551-24230iUSC10201903-202003

sub81551-24231

main81551-24231iUSC10202003-202403

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-24160iUSC10201409-201902

main81555-24230iUSC10201903-202403

81558LPROTECTOR, REAR COMBINATION LAMP, RH

main81558-24160iUSC10201412-201902

main81558-24220iUSC10201903-202403

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-24170iUSC10201409-201412

sub81561-24200

main81561-24200iUSC10201412-201902

main81561-24230iUSC10201903-202003

sub81561-24231

main81561-24231iUSC10202003-202403

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81565-24160iUSC10201409-201902

main81565-24230iUSC10201903-202403

81568JPROTECTOR, REAR COMBINATION LAMP, LH

main81568-24160iUSC10201412-201902

main81568-24220iUSC10201903-202403

81581CLENS AND BODY, REAR LAMP, RH

main81581-24040iUSC10..LHD201409-201412

sub81581-24070

main81581-24050iUSC10..RHD201409-201412

sub81581-24080

main81581-24070iUSC10..LHD201412-201902

main81581-24080iUSC10..RHD201412-201902

81584AGASKET, REAR LAMP RH

main81584-24060iUSC10201409-201902

main81584-24100iUSC10201903-202403

81584DGASKET, REAR LAMP

main81584-24050iUSC10201409-202403

81585CSOCKET & WIRE, REAR LAMP, RH

main81585-24040iUSC10..LHD201409-201902

main81585-24050iUSC10..RHD201409-201902

main81585-24100iUSC10201903-202403

81591BLENS AND BODY, REAR LAMP, LH

main81591-24040iUSC10..RHD201409-201412

sub81591-24070

main81591-24050iUSC10..LHD201409-201412

sub81591-24080

main81591-24070iUSC10..RHD201412-201902

main81591-24080iUSC10..LHD201412-201902

81594AGASKET, REAR LAMP LH

main81594-24060iUSC10201409-201902

main81594-24100iUSC10201903-202403

81595SOCKET & WIRE, REAR LAMP, LH

main81585-24040iUSC10..RHD201409-201902

main81585-24050iUSC10..LHD201409-201902

main81585-24100iUSC10201903-202403

81952ECOVER, REAR LAMP

main81952-22010iUSC10201409-201902

9007502051

main90075-02051

9015960266

main90159-60266

9015960621

main90159-60621

9017605018

main90176-05018

9017905102

main90179-05102

9018906228

main90189-06228

9018906235

main90189-06235

9018906242

main90189-06242

28 parts on this diagram · 2 diagrams in section
