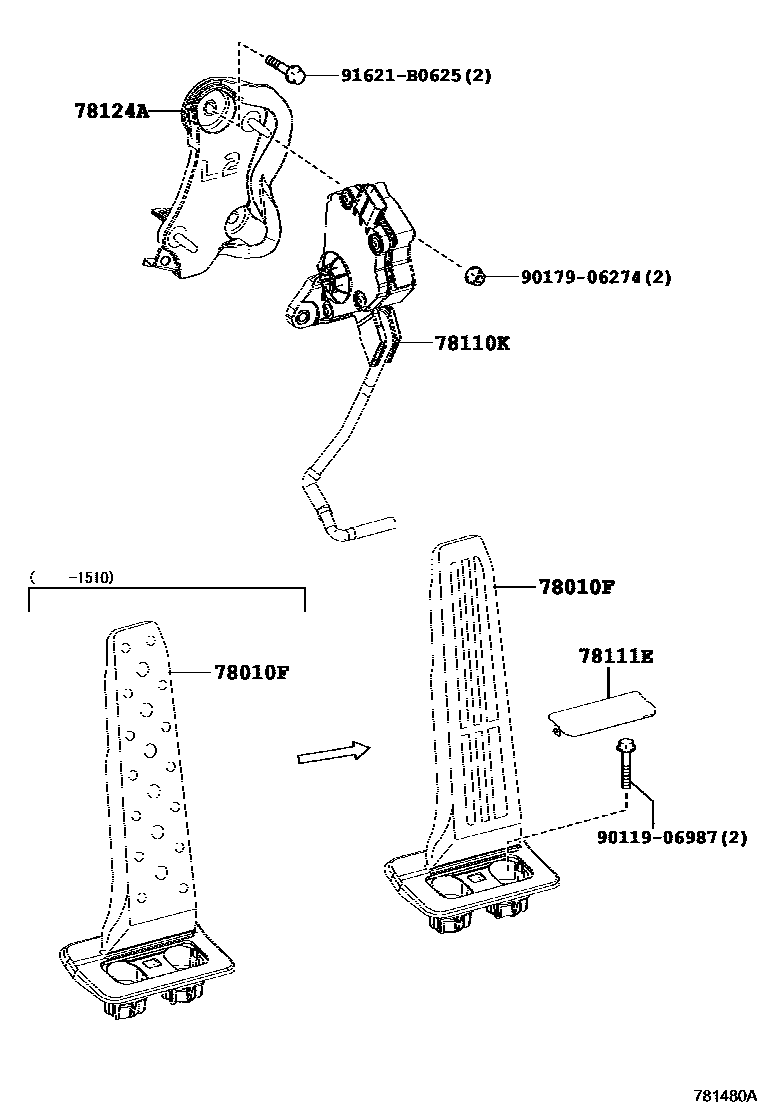

ACCELERATOR LINK

0001 1 0002 1

78010FPEDAL ASSY, ACCELERATOR

main78101-30061iUSC10201510-202403

main78101-53040iUSC10201409-201506

main78101-53041iUSC10201507-201510

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-30141iUSC10..RHD201409-201601

sub78110-30210

main78110-30151iUSC10..LHD201409-201601

sub78110-30170

main78110-30170iUSC10..LHD201602-202403

main78110-30210iUSC10..RHD201602-202403

78111EPAD, ACCELERATOR PEDAL

main78117-30030iUSC10201409-202403

78124ABRACKET, ACCELERATOR PEDAL ROD

main78124-30131iUSC10..RHD201409-202403

main78125-30081iUSC10..LHD201409-202403

9011906987

main90119-06987

9017906274

main90179-06274

91621B0625

main91621-B0625

7 parts on this diagram · 2 diagrams in section
