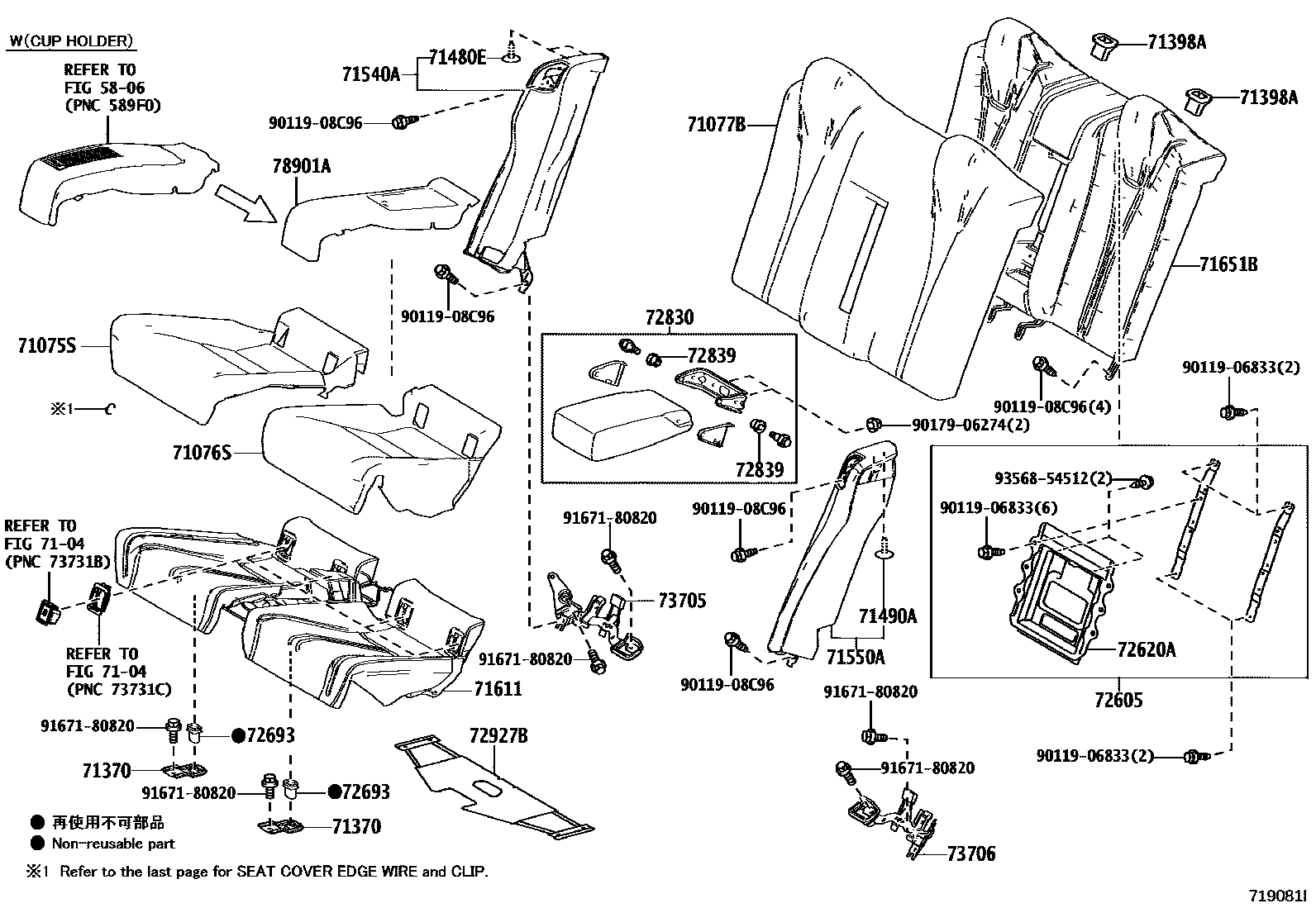

REAR SEAT & SEAT TRACK

5806CONSOLE BOX & BRACKET

→ Go to FIG 58-06

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

71075SCOVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE)

main71075-24480-C3i201409-201902

BLACK,TRIM2#

main71075-24540-C0i201903-202403

BLACK/WHITE/ECRU,TRIM0#

main71075-24540-C1i201903-202403

BLACK/RED/RED,TRIM3#

main71075-24540-C2i201903-202403

BLACK/BLACK/ECRU,TRIM2#

main71075-24470-A0i201409-201805

SEAT HEATER-WITH & WITH(SEAT VENTILATION SYSTEM),WHITE,TRIM0#

main71075-24470-B0i201409-201805

SEAT HEATER-WITH & WITH(SEAT VENTILATION SYSTEM),MOON STONE,TRIM1#

main71075-24470-C9i201409-201805

SEAT HEATER-WITH & WITH(SEAT VENTILATION SYSTEM),BLACK,TRIM2#

main71075-24470-D0i201409-201805

SEAT HEATER-WITH & WITH(SEAT VENTILATION SYSTEM),RED,TRIM3#

main71075-24471-20i201805-201902

SEAT HEATER-WITH & WITH(SEAT VENTILATION SYSTEM),BLACK/BLACK,TRIM8#

main71075-24471-A0i201805-201902

SEAT HEATER-WITH & WITH(SEAT VENTILATION SYSTEM),WHITE,TRIM0#

main71075-24471-B0i201805-201902

SEAT HEATER-WITH & WITH(SEAT VENTILATION SYSTEM),MOON STONE,TRIM1#

main71075-24471-C9i201805-201902

SEAT HEATER-WITH & WITH(SEAT VENTILATION SYSTEM),BLACK/ECRU,TRIM2#

main71075-24471-D0i201805-201902

SEAT HEATER-WITH & WITH(SEAT VENTILATION SYSTEM),RED,TRIM3#

main71075-24590-C0i202111-202403

"PERFORMANCE PACKAGE"*(H)&REAR SEAT-WITHOUT(CENTER CONSOLE)&SEAT COVER MATERIAL-ALCANTARA,BLACK,TRIM8#

main71075-24590-D2i201903-202111

"PERFORMANCE PACKAGE"*(H)&REAR SEAT-WITHOUT(CENTER CONSOLE)&SEAT COVER MATERIAL-ALCANTARA,RED,TRIM3#

71076SCOVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71076-24090-C2i201409-201902

BLACK,TRIM2#

main71076-24120-C0i201903-202403

BLACK/WHITE/ECRU,TRIM0#

main71076-24120-C1i201903-202403

BLACK/RED/RED,TRIM3#

main71076-24120-C2i201903-202403

BLACK/BLACK/ECRU,TRIM2#

main71076-24080-A0i201409-201805

SEAT HEATER-WITH & WITH(SEAT VENTILATION SYSTEM),WHITE,TRIM0#

main71076-24080-B0i201409-201805

SEAT HEATER-WITH & WITH(SEAT VENTILATION SYSTEM),MOON STONE,TRIM1#

main71076-24080-C5i201409-201805

SEAT HEATER-WITH & WITH(SEAT VENTILATION SYSTEM),BLACK,TRIM2#

main71076-24080-D0i201409-201805

SEAT HEATER-WITH & WITH(SEAT VENTILATION SYSTEM),RED,TRIM3#

main71076-24081-A0i201805-201902

SEAT HEATER-WITH & WITH(SEAT VENTILATION SYSTEM),WHITE,TRIM0#

main71076-24081-B0i201805-201902

SEAT HEATER-WITH & WITH(SEAT VENTILATION SYSTEM),MOON STONE,TRIM1#

main71076-24081-C5i201805-201902

SEAT HEATER-WITH & WITH(SEAT VENTILATION SYSTEM),BLACK/ECRU,TRIM2#

main71076-24081-C6i201805-201902

SEAT HEATER-WITH & WITH(SEAT VENTILATION SYSTEM),BLACK/BLACK,TRIM8#

main71076-24081-D0i201805-201902

SEAT HEATER-WITH & WITH(SEAT VENTILATION SYSTEM),RED,TRIM3#

main71076-24170-C0i202111-202403

"PERFORMANCE PACKAGE"*(H)&REAR SEAT-WITHOUT(CENTER CONSOLE)&SEAT COVER MATERIAL-ALCANTARA,BLACK,TRIM8#

main71076-24170-D2i201903-202111

"PERFORMANCE PACKAGE"*(H)&REAR SEAT-WITHOUT(CENTER CONSOLE)&SEAT COVER MATERIAL-ALCANTARA,RED,TRIM3#

71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)

main71077-24500-C5i201409-201902

BLACK,TRIM2#

main71077-24560-C0i201903-202403

BLACK/ECRU,TRIM0#

main71077-24560-C1i201903-202403

BLACK/RED,TRIM3#

main71077-24560-C2i201903-202403

BLACK/ECRU,TRIM2#

main71077-24490-20i201409-201805

SEAT HEATER-WITH & WITH(SEAT VENTILATION SYSTEM),BLACK,TRIM2#

main71077-24490-A3i201409-201805

SEAT HEATER-WITH & WITH(SEAT VENTILATION SYSTEM),WHITE,TRIM0#

main71077-24490-B2i201409-201805

SEAT HEATER-WITH & WITH(SEAT VENTILATION SYSTEM),MOON STONE,TRIM1#

main71077-24490-D5i201409-201805

SEAT HEATER-WITH & WITH(SEAT VENTILATION SYSTEM),RED,TRIM3#

main71077-24491-20i201805-201902

SEAT HEATER-WITH & WITH(SEAT VENTILATION SYSTEM),BLACK/ECRU,TRIM2#

main71077-24491-21i201805-201902

SEAT HEATER-WITH & WITH(SEAT VENTILATION SYSTEM),BLACK/BLACK,TRIM8#

main71077-24491-A3i201805-201902

SEAT HEATER-WITH & WITH(SEAT VENTILATION SYSTEM),WHITE,TRIM0#

main71077-24491-B2i201805-201902

SEAT HEATER-WITH & WITH(SEAT VENTILATION SYSTEM),MOON STONE,TRIM1#

main71077-24491-D5i201805-201902

SEAT HEATER-WITH & WITH(SEAT VENTILATION SYSTEM),RED,TRIM3#

main71077-24590-C0i202111-202403

"PERFORMANCE PACKAGE"*(H)&REAR SEAT-WITHOUT(CENTER CONSOLE)&SEAT COVER MATERIAL-ALCANTARA,BLACK,TRIM8#

main71077-24590-D2i201903-202111

"PERFORMANCE PACKAGE"*(H)&REAR SEAT-WITHOUT(CENTER CONSOLE)&SEAT COVER MATERIAL-ALCANTARA,RED,TRIM3#

71370BRACKET SUB-ASSY, REAR SEAT CUSHION HOLDER

main71385-24010×2i201409-201902

71398AHOLDER, REAR SEATBACK

main71398-30010×2i201409-201902

71480ECLIP, REAR SEATBACK, RH

main90467-05045-22×2i201802-201902

BLACK

main90467-05161-C0×2i201409-201801

BLACK

71490ACLIP, REAR SEATBACK, LH

main90467-05045-22×2i201802-201902

BLACK

main90467-05161-C0×2i201409-201801

BLACK

71540ABACK ASSY, REAR SIDE SEAT, RH

main71540-24060-C3i201409-201805

BLACK,TRIM2#

main71540-24061-C0i201805-201902

BLACK,TRIM2#

main71540-24110-A1i201903-202403

WHITE,TRIM0#

main71540-24110-C1i201903-202403

BLACK,TRIM2#

main71540-24110-D1i201903-202403

RED,TRIM3#

main71540-24060-A4i201409-201805

SEAT HEATER-WITH & WITH(SEAT VENTILATION SYSTEM),WHITE,TRIM0#

main71540-24060-B1i201409-201805

SEAT HEATER-WITH & WITH(SEAT VENTILATION SYSTEM),MOON STONE,TRIM1#

main71540-24060-D3i201409-201805

SEAT HEATER-WITH & WITH(SEAT VENTILATION SYSTEM),RED,TRIM3#

main71540-24061-A0i201805-201902

SEAT HEATER-WITH & WITH(SEAT VENTILATION SYSTEM),WHITE,TRIM0#

main71540-24061-B0i201805-201902

SEAT HEATER-WITH & WITH(SEAT VENTILATION SYSTEM),MOON STONE,TRIM1#

main71540-24061-D0i201805-201902

SEAT HEATER-WITH & WITH(SEAT VENTILATION SYSTEM),RED,TRIM3#

main71540-24061-J0i201805-201902

SEAT HEATER-WITH & WITH(SEAT VENTILATION SYSTEM),BLUE,TRIM8#

main71540-24090-D1i201903-202111

"PERFORMANCE PACKAGE"*(H)&REAR SEAT-WITHOUT(CENTER CONSOLE)&SEAT COVER MATERIAL-ALCANTARA,RED,TRIM3#

main71540-24090-J0i202111-202403

"PERFORMANCE PACKAGE"*(H)&REAR SEAT-WITHOUT(CENTER CONSOLE)&SEAT COVER MATERIAL-ALCANTARA,BLACK,TRIM8#

71550ABACK ASSY, REAR SIDE SEAT, LH

main71550-24060-C3i201409-201805

BLACK,TRIM2#

main71550-24061-C0i201805-201902

BLACK,TRIM2#

main71550-24110-A1i201903-202403

WHITE,TRIM0#

main71550-24110-C1i201903-202403

BLACK,TRIM2#

main71550-24110-D1i201903-202403

RED,TRIM3#

main71550-24060-A4i201409-201805

SEAT HEATER-WITH & WITH(SEAT VENTILATION SYSTEM),WHITE,TRIM0#

main71550-24060-B1i201409-201805

SEAT HEATER-WITH & WITH(SEAT VENTILATION SYSTEM),MOON STONE,TRIM1#

main71550-24060-D3i201409-201805

SEAT HEATER-WITH & WITH(SEAT VENTILATION SYSTEM),RED,TRIM3#

main71550-24061-A0i201805-201902

SEAT HEATER-WITH & WITH(SEAT VENTILATION SYSTEM),WHITE,TRIM0#

main71550-24061-B0i201805-201902

SEAT HEATER-WITH & WITH(SEAT VENTILATION SYSTEM),MOON STONE,TRIM1#

main71550-24061-D0i201805-201902

SEAT HEATER-WITH & WITH(SEAT VENTILATION SYSTEM),RED,TRIM3#

main71550-24061-J0i201805-201902

SEAT HEATER-WITH & WITH(SEAT VENTILATION SYSTEM),BLUE,TRIM8#

main71550-24090-D1i201903-202111

"PERFORMANCE PACKAGE"*(H)&REAR SEAT-WITHOUT(CENTER CONSOLE)&SEAT COVER MATERIAL-ALCANTARA,RED,TRIM3#

main71550-24090-J0i202111-202403

"PERFORMANCE PACKAGE"*(H)&REAR SEAT-WITHOUT(CENTER CONSOLE)&SEAT COVER MATERIAL-ALCANTARA,BLACK,TRIM8#

71611PAD, REAR SEAT CUSHION

main71503-24090supersedes 71503-24070i201903-202403

"PERFORMANCE PACKAGE"*(H)&REAR SEAT-WITHOUT(CENTER CONSOLE)&SEAT COVER MATERIAL-ALCANTARA

71651BPAD, REAR SEATBACK(FOR BENCH TYPE)

main71507-24060supersedes 71507-24040i201903-202403

"PERFORMANCE PACKAGE"*(H)&REAR SEAT-WITHOUT(CENTER CONSOLE)&SEAT COVER MATERIAL-ALCANTARA

72605FRAME SUB-ASSY, REAR SEATBACK PROTECTOR

main72605-24010-C0i201409-201603

BLACK,TRIM0#,1#,2#,3#

main72605-24011-C0i201604-201902

BLACK,TRIM0#,1#,2#,3#,8#

72620APROTECTOR ASSY, REAR SEATBACK

main72620-24010-C0i201409-201603

BLACK,TRIM0#,1#,2#,3#

main72620-24011-C0i201604-201902

BLACK,TRIM0#,1#,2#,3#,8#

72693HOOK, REAR SEAT CUSHION LOCK

main72693-12080×2i201409-201902

72830ARMREST ASSY, REAR SEAT, CENTER

main72830-24160-C4i201409-201902

BLACK/DK.GRAY,TRIM0#,1#,2#,3#,8#

72839SHIM, REAR SEAT ARMREST HINGE

main72839-12010×2i201903-202403

72927BCOVER, REAR SEAT CUSHION UNDER

main72927-24010i201409-201902

73705BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH

main73705-24020i201409-201902

73706BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH

main73706-24020i201409-201902

78901ATRAY,SUB-ASSY, REAR SEAT UNDER

main78950-24010-C0i201903-202403

"PERFORMANCE PACKAGE"*(H)&REAR SEAT-WITHOUT(CENTER CONSOLE)&SEAT COVER MATERIAL-ALCANTARA,BLACK,TRIM3#,8#

9011906833

main90119-06833

9011908C96

main90119-08C96

9017906274

main90179-06274

9167180820

main91671-80820

9356854512

main93568-54512

27 parts on this diagram · 2 diagrams in section
