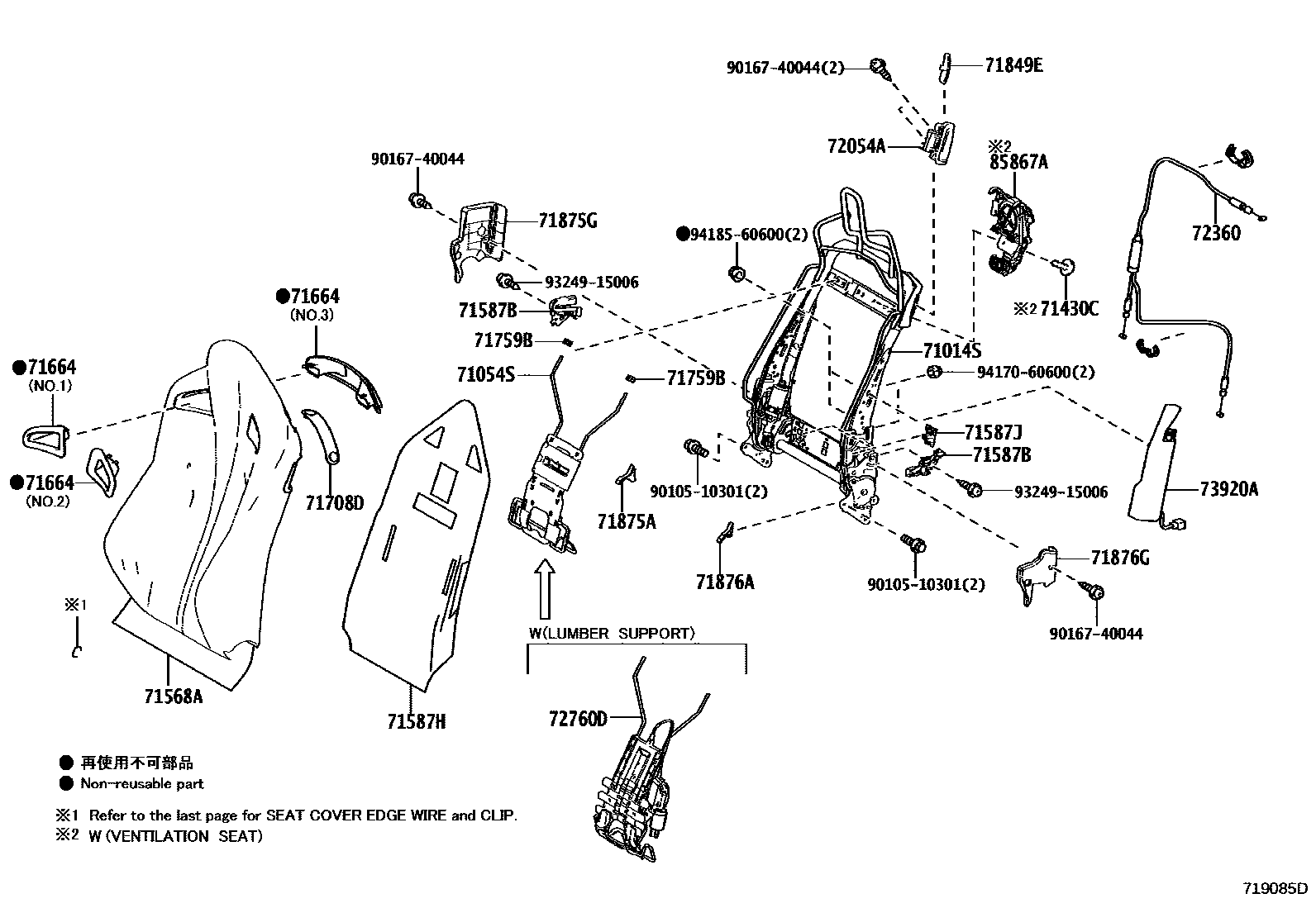

FRONT SEAT & SEAT TRACK

71014SFRAME SUB-ASSY, FRONT SEATBACK, LH

main71014-24090i201409-201704

main71014-24091i201705-201902

main71014-24110i201903-202403

71054SSPRING SUB-ASSY, FRONT SEATBACK, LH

main71053-76010i201409-201902

71430CCLIP

main90467-08186-C0×2supersedes 90467-08188i201409-201610

SEAT HEATER-WITH & WITH(SEAT VENTILATION SYSTEM),BLACK

71568APAD, FRONT SEATBACK W/COVER, LH

main71402-24161-42i201903-202403

BLACK/WHITE/ECRU,TRIM0#

main71402-24161-43i201903-202403

BLACK/RED/RED,TRIM3#

main71402-24161-44i201903-202403

BLACK/BLACK/ECRU,TRIM2#

main71402-24160-23supersedes 71402-24180-C4i201409-201805

SEAT HEATER-WITH & WITH(SEAT VENTILATION SYSTEM),BLACK/ECRU,TRIM2#

main71402-24160-25supersedes 71402-24180-C5i201805-201902

SEAT HEATER-WITH & WITH(SEAT VENTILATION SYSTEM),BLACK/ECRU,TRIM2#

main71402-24160-A3i201409-201805

SEAT HEATER-WITH & WITH(SEAT VENTILATION SYSTEM),WHITE/BLACK,TRIM0#

main71402-24160-A4i201805-201902

SEAT HEATER-WITH & WITH(SEAT VENTILATION SYSTEM),WHITE/BLACK,TRIM0#

main71402-24160-B2i201409-201805

SEAT HEATER-WITH & WITH(SEAT VENTILATION SYSTEM),MOON STONE,TRIM1#

main71402-24160-B3i201805-201902

SEAT HEATER-WITH & WITH(SEAT VENTILATION SYSTEM),MOON STONE,TRIM1#

main71402-24160-D2i201409-201805

SEAT HEATER-WITH & WITH(SEAT VENTILATION SYSTEM),RED/BLACK,TRIM3#

main71402-24160-D3i201805-201902

SEAT HEATER-WITH & WITH(SEAT VENTILATION SYSTEM),RED/BLACK,TRIM3#

main71402-24160-J0i201805-201902

SEAT HEATER-WITH & WITH(SEAT VENTILATION SYSTEM),BLUE,TRIM8#

main71402-24200-C0i202111-202403

"PERFORMANCE PACKAGE"*(H)&REAR SEAT-WITHOUT(CENTER CONSOLE)&SEAT COVER MATERIAL-ALCANTARA,BLACK,TRIM8#

main71402-24200-D2i201903-202111

"PERFORMANCE PACKAGE"*(H)&REAR SEAT-WITHOUT(CENTER CONSOLE)&SEAT COVER MATERIAL-ALCANTARA,RED,TRIM3#

71587PROTECTOR, FRONT SEATBACK EDGE

main71587-24050i201409-201902

OUTER

main71587-24060i201903-202403

INNER

71587BPROTECTOR, FRONT SEATBACK EDGE

main71587-24070i201409-201902

OUTER

main71587-24080i201903-202403

INNER

71587HPROTECTOR, FRONT SEATBACK EDGE

main71587-30060×2i201903-202403

71587JPROTECTOR, FRONT SEATBACK EDGE

main71587-52030×4i201409-201902

71664GUIDE, SEAT BELT

main73187-24060-B0×2i201903-202403

SILVER,TRIM0#,2#,3#,8#,NO.1:REFER ILLUST.

main73187-24070-B0×2i201903-202403

SILVER,TRIM0#,2#,3#,8#,NO.2:REFER ILLUST.

main73187-24080-B0×2i201409-201902

SILVER,TRIM0#,1#,2#,3#,8#,NO.3:REFER ILLUST.

71708DSTRAP SUB-ASSY, SEAT COVER, LH

main71788-24020-C0i201409-201902

BLACK,TRIM2#

main71788-24020-C2i201903-202403

BLACK,TRIM0#,2#,3#

main71788-24020-A0i201409-201902

SEAT HEATER-WITH & WITH(SEAT VENTILATION SYSTEM),WHITE,TRIM0#

main71788-24020-B0i201409-201902

SEAT HEATER-WITH & WITH(SEAT VENTILATION SYSTEM),MOON STONE,TRIM1#

main71788-24020-D0i201409-201902

SEAT HEATER-WITH & WITH(SEAT VENTILATION SYSTEM),RED,TRIM3#

main71788-24020-D2i201903-202111

"PERFORMANCE PACKAGE"*(H)&REAR SEAT-WITHOUT(CENTER CONSOLE)&SEAT COVER MATERIAL-ALCANTARA,RED,TRIM3#

71759BHOOK, FRONT SEATBACK

main71759-47011×4i201409-201902

71849CAP, SEAT ADJUSTER COVER, LH

main71848-76010×2i201409-201902

71849ECAP, RECLINING REMOTE CONTROL, LH

main71849-24010-C0i201409-201902

BLACK,TRIM0#,1#,2#,3#,4#,8#

main71849-24010-D0i201903-202111

RED,TRIM32

71875ACOVER, RECLINING ADJUSTER INSIDE, RH

main71875-24090-C0×2i201409-201902

BLACK,TRIM0#,1#,2#,3#,4#,8#

71875GCOVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)

main71875-24110i201409-201902

71876ACOVER, RECLINING ADJUSTER INSIDE, LH

main71876-24040-C0×2i201409-201902

BLACK,TRIM0#,1#,2#,3#,4#,8#

71876GCOVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)

main71876-24060i201409-201902

72054ALEVER SUB-ASSY, RECLINING REMOTE CONTROL, LH

main72054-24020-C0i202111-202403

BLACK,TRIM0#,2#,3#,8#

main72054-24020-D0i201903-202111

RED,TRIM32

72360CABLE ASSY, RECLINING ADJUSTER EQUALIZING

main72360-24010×2i201409-201902

72760DADJUSTER ASSY, LUMBAR SUPPORT, LH

main72750-76010i201409-201902

73920AAIRBAG ASSY, FRONT SEAT, LH

main73920-24030i201409-201410

main73920-53030i201411-201902

85867BLOWER, SEATBACK CLIMATE CONTROL, RH

main85867-53020

main85867-53030

85867ABLOWER, SEATBACK CLIMATE CONTROL, LH

9010510301

main90105-10301

9016740044

main90167-40044

9324915006

main93249-15006

9417060600

main94170-60600

9418560600

main94185-60600

28 parts on this diagram · 7 diagrams in section
