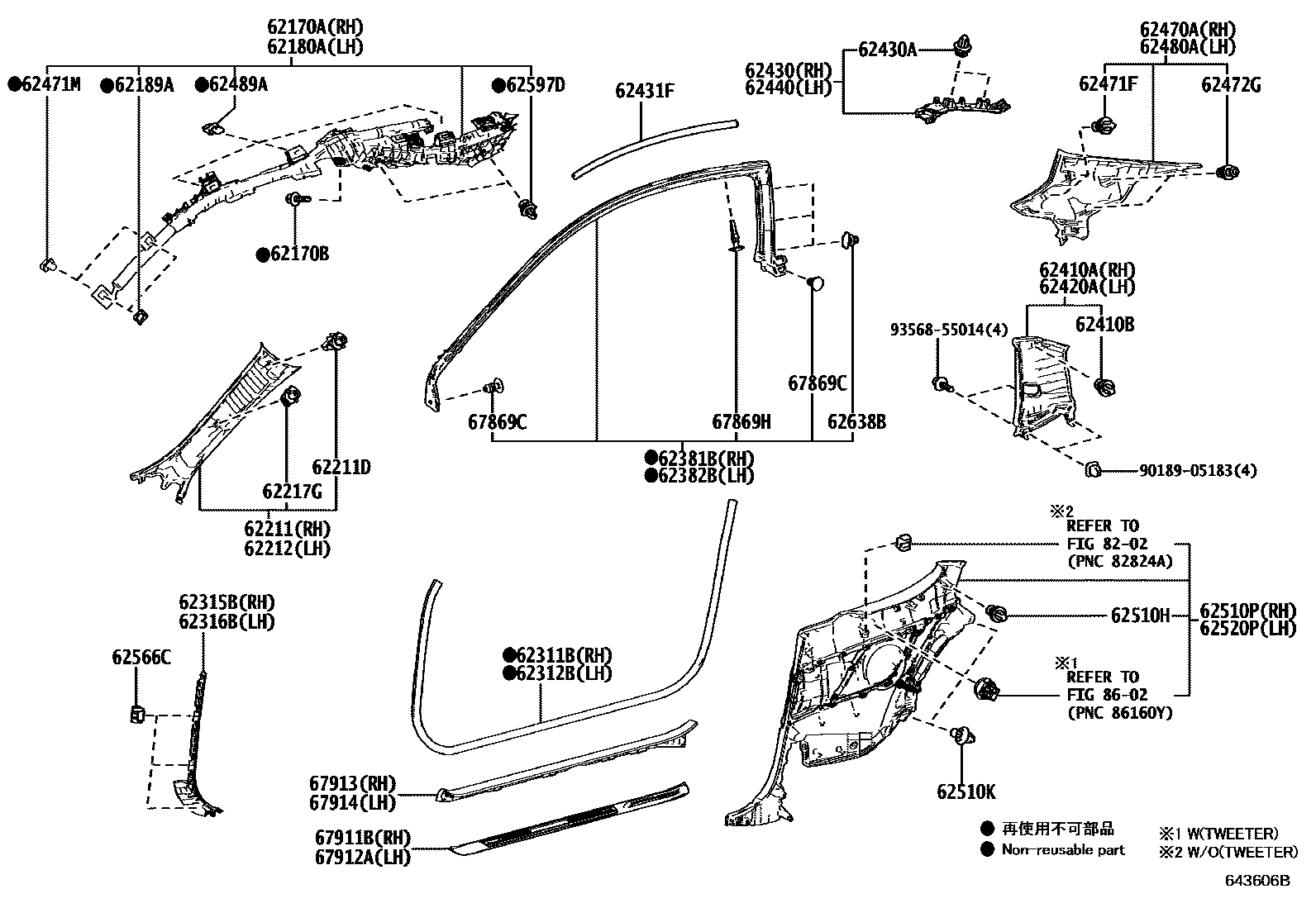

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-24010iUSC10201409-202403

62170BBOLT, W/WASHER

main90119-06869iUSC10201409-202403

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-24010iUSC10201409-202403

62189ASPACER, CURTAIN SHIELD AIRBAG CLIP

main62189-42010iUSC10201409-202403

62211GARNISH, FRONT PILLAR, RH

main62210-24070-C1iUSC10201409-201506

BLACK,TRIM0#,1#,2#,3#,4#

sub62210-24071

main62210-24071-C1iUSC10201507-201902

BLACK,TRIM0#,1#,2#,3#,8#

main62210-24071-C1iUSC10201903-202403

BLACK,TRIM0#,2#,3#,8#

62211DCLIP(FOR FRONT BODY PILLAR GARNISH)

main62217-24020iUSC10201409-202403

62212GARNISH, FRONT PILLAR, LH

main62220-24070-C1iUSC10201409-201506

BLACK,TRIM0#,1#,2#,3#,4#

sub62220-24071

main62220-24071-C1iUSC10201507-201902

BLACK,TRIM0#,1#,2#,3#,8#

main62220-24071-C1iUSC10201903-202403

BLACK,TRIM0#,2#,3#,8#

62217GCLIP, FRONT PILLAR GARNISH

main62217-24030iUSC10201505-202403

main62217-52120iUSC10201409-201504

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-24040iUSC10201409-202403

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-24030iUSC10201409-202403

62315BCOVER, FRONT DOOR OPENING TRIM, RH

main62315-24050-C0iUSC10201409-201902

BLACK,TRIM0#,1#,2#,3#,4#,8#

main62315-24050-C0iUSC10201903-202403

BLACK,TRIM0#,2#,3#,8#

62316BCOVER, FRONT DOOR OPENING TRIM, LH

main62316-24050-C0iUSC10201409-201902

BLACK,TRIM0#,1#,2#,3#,4#,8#

main62316-24050-C0iUSC10201903-202403

BLACK,TRIM0#,2#,3#,8#

62381BWEATHERSTRIP, ROOF SIDE RAIL, RH

main62381-24090iUSC10201409-202403

62382BWEATHERSTRIP, ROOF SIDE RAIL, LH

main62382-24110iUSC10201409-202403

62410AGARNISH ASSY, CENTER PILLAR, RH

main62410-24040-C0iUSC10201409-201902

BLACK,TRIM0#,1#,2#,3#,4#,8#

main62410-24040-C0iUSC10201903-202403

BLACK,TRIM0#,2#,3#,8#

62410BCLIP

main90467-10188iUSC10201409-202403

62420AGARNISH ASSY, CENTER PILLER, LH

main62420-24040-C0iUSC10201409-201902

BLACK,TRIM0#,1#,2#,3#,4#,8#

main62420-24040-C0iUSC10201903-202403

BLACK,TRIM0#,2#,3#,8#

62430GARNISH ASSY, ROOF SIDE RAIL, RH

main62430-24050-C0iUSC10201409-201902

BLACK,TRIM0#,1#,2#,3#,8#

main62430-24050-C0iUSC10201903-202403

BLACK,TRIM0#,2#,3#,8#

62430ACLIP, ROOF SIDE RAIL GARNISH

main90467-10161iUSC10201409-202403

62431FGARNISH, ROOF SIDE RAIL

main62431-24010iUSC10201409-202403

62440GARNISH ASSY, ROOF SIDE RAIL, LH

main62440-24050-C0iUSC10201409-201902

BLACK,TRIM0#,1#,2#,3#,8#

main62440-24050-C0iUSC10201903-202403

BLACK,TRIM0#,2#,3#,8#

62470AGARNISH ASSY, ROOF SIDE, INNER RH

main62470-24060-C2iUSC10201409-201602

BLACK,TRIM0#,1#,2#,3#

sub62470-24070

main62470-24070-C0iUSC10201603-201902

BLACK,TRIM0#,1#,2#,3#,8#

main62470-24070-C0iUSC10201903-202403

BLACK,TRIM0#,2#,3#,8#

62471FCLIP (FOR ROOF SIDE, INNER UPPER GARNISH)

main90467-10188iUSC10201409-202403

62471MCLIP

main90467-18017iUSC10201409-202403

62472GCLIP (FOR ROOF SIDE GARNISH)

main90467-09236iUSC10201409-202403

62480AGARNISH ASSY, ROOF SIDE, INNER LH

main62480-24060-C2iUSC10201409-201602

BLACK,TRIM0#,1#,2#,3#

sub62480-24070

main62480-24070-C0iUSC10201603-201902

BLACK,TRIM0#,1#,2#,3#,8#

main62480-24070-C0iUSC10201903-202403

BLACK,TRIM0#,2#,3#,8#

62489ACLIP, ROOF SIDE INNER GARNISH

main62489-28010iUSC10201409-202403

62510HCLIP(FOR QUARTER TRIM FRONT PANEL)

main90467-09206iUSC10201409-202403

62510KCLIP(FOR QUARTER TRIM FRONT PANEL)

main90467-10216iUSC10201409-202403

62510PPANEL ASSY, QUARTER TRIM, FRONT RH

main62510-24220-22iUSC10201805-201902

BLACK/BLACK,TRIM8#

main62510-24220-26iUSC10201903-202111

BLACK/BLACK/RED,TRIM30,31

main62510-24220-27iUSC10201903-202111

BLACK/RED/RED,TRIM32

main62510-24220-C2iUSC10201409-201902

BLACK/RED,TRIM3#

main62510-24220-C4iUSC10201409-201902

BLACK/ECRU,TRIM0#,1#,2#

main62510-24220-C4iUSC10201903-202111

BLACK/ECRU,TRIM0#,2#

main62510-24280-C1iUSC10202111-202403

BLACK/ECRU,TRIM0#,2#

main62510-24280-C2iUSC10202111-202403

BLACK/BLACK/RED,TRIM3#

main62510-24280-C3iUSC10202111-202403

BLACK/BLACK/BLACK,TRIM8#

62520PPANEL ASSY, QUARTER TRIM, FRONT LH

main62520-24200-22iUSC10201805-201902

BLACK/BLACK,TRIM8#

main62520-24200-26iUSC10201903-202111

BLACK/BLACK/RED,TRIM30,31

main62520-24200-27iUSC10201903-202111

BLACK/RED/RED,TRIM32

main62520-24200-C2iUSC10201409-201902

BLACK/RED,TRIM3#

main62520-24200-C4iUSC10201409-201902

BLACK/ECRU,TRIM0#,1#,2#

main62520-24200-C4iUSC10201903-202111

BLACK/ECRU,TRIM0#,2#

main62520-24260-C1iUSC10202111-202403

BLACK/ECRU,TRIM0#,2#

main62520-24260-C2iUSC10202111-202403

BLACK/BLACK/RED,TRIM3#

main62520-24260-C3iUSC10202111-202403

BLACK/BLACK/BLACK,TRIM8#

62566CCLAMP, COWL SIDE TRIM

main62566-30010iUSC10201409-202403

62597DCLIP

main90467-09240iUSC10201409-202403

62638BCLIP

main90467-04034iUSC10201409-202403

67869CCLIP, ROOF SIDE RAIL WEATHERSTRIP

main67869-20030iUSC10201409-202403

67869HCLIP, ROOF SIDE RAIL WEATHERSTRIP

main67869-20070iUSC10201409-202403

67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH

main67911-24040-C0iUSC10201409-201902

BLACK,TRIM0#,1#,2#,3#,4#,8#

main67911-24040-C0iUSC10201903-202111

BLACK,TRIM0#,2#,3#,8#

main67911-24070-C0iUSC10202111-202403

BLACK,TRIM0#,2#,3#,8#

67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH

main67912-24040-C0iUSC10201409-201902

BLACK,TRIM0#,1#,2#,3#,4#,8#

main67912-24040-C0iUSC10201903-202111

BLACK,TRIM0#,2#,3#,8#

main67912-24070-C0iUSC10202111-202403

BLACK,TRIM0#,2#,3#,8#

67913PLATE, FRONT DOOR SCUFF, RH

main67913-24070-C0iUSC10201409-201902

BLACK,TRIM0#,1#,2#,3#,4#,8#

main67913-24070-C0iUSC10201903-202403

BLACK,TRIM0#,2#,3#,8#

67914PLATE, FRONT DOOR SCUFF, LH

main67914-24060-C0iUSC10201409-201902

BLACK,TRIM0#,1#,2#,3#,4#,8#

main67914-24060-C0iUSC10201903-202403

BLACK,TRIM0#,2#,3#,8#

8202

8602

9018905183

main90189-05183

9356855014

main93568-55014

44 parts on this diagram · 1 diagram in section
