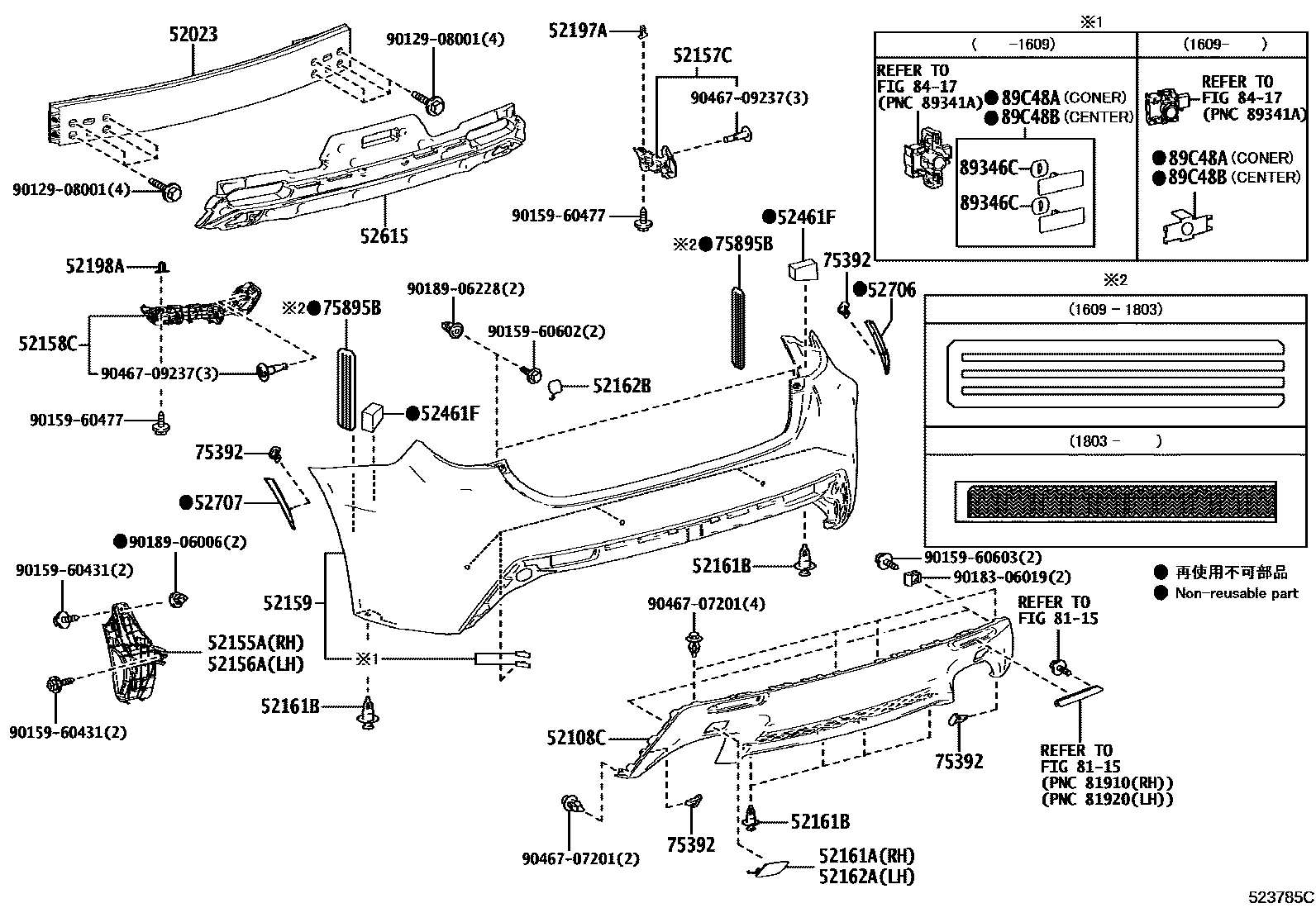

REAR BUMPER & BUMPER STAY
52023REINFORCEMENT SUB-ASSY, REAR BUMPER
52108CEXTENSION SUB-ASSY, REAR BUMPER, CENTER
52155ASUPPORT, REAR BUMPER SIDE, RH
52156ASUPPORT, REAR BUMPER SIDE, LH
52157CSUPPORT, REAR BUMPER SIDE, NO.2 RH
52158CSUPPORT, REAR BUMPER SIDE, NO.2 LH
52159COVER, REAR BUMPER
PAINT REQ.
PAINT REQ.
52161BPIECE, REAR BUMPER
52162BPLATE, REAR BUMPER, NO.1
WHITE NOVA GF.,083
MERCURY GRAY MC.,1H9
SONIC SILVER,1J2
SONIC TITANIUM,1J7
BLACK,212
STARLIGHT BLACK GF.,217
GRAPHITE BLACK GF.,223
RED,3T5
ORANGE,4W7
NAPLES YELLOW,5C1
BLUE,8X1
MARCURY GRAY MC.MATT,1K7
52197ABRACKET, REAR BUMPER SEAL, RH
52198ABRACKET, REAR BUMPER SEAL, LH
52615ABSORBER, REAR BUMPER ENERGY
52706MOULDING SUB-ASSY, REAR BUMPER SIDE, RH
WHITE NOVA GF.,083
MERCURY GRAY MC.,1H9
SONIC SILVER,1J2
SONIC TITANIUM,1J7
MARCURY GRAY MC.MATT,1K7
BLACK,212
STARLIGHT BLACK GF.,217
GRAPHITE BLACK GF.,223
RED,3T5
ORANGE,4W7
NAPLES YELLOW,5C1
BLUE,8X1
52707MOULDING SUB-ASSY, REAR BUMPER SIDE, LH
WHITE NOVA GF.,083
MERCURY GRAY MC.,1H9
SONIC SILVER,1J2
SONIC TITANIUM,1J7
MARCURY GRAY MC.MATT,1K7
BLACK,212
STARLIGHT BLACK GF.,217
GRAPHITE BLACK GF.,223
RED,3T5
ORANGE,4W7
NAPLES YELLOW,5C1
BLUE,8X1
8115REFLEX REFLECTOR
8417CLEARANCE & BACK SONAR
89346CADJUSTER, ULTRASONIC SENSOR
89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER
89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER
9012908001
main90129-08001
9015960431
main90159-60431
9015960477
main90159-60477
9015960602
main90159-60602
9015960603
main90159-60603
9018306019
main90183-06019
9018906006
main90189-06006
9018906228
main90189-06228
9046707201
main90467-07201
9046709237
main90467-09237
34 parts on this diagram · 2 diagrams in section
