BRAKE PEDAL & BRACKET

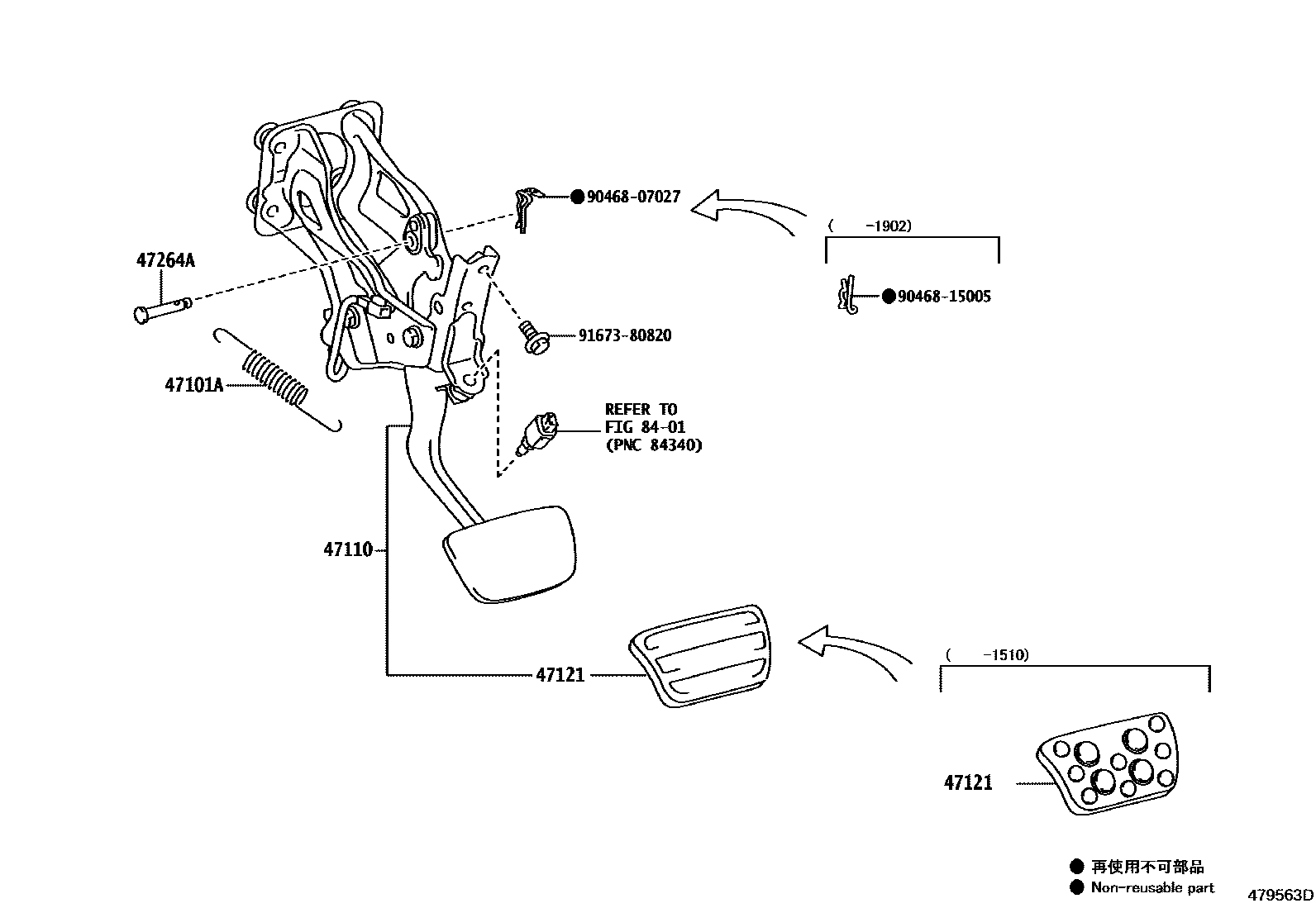

Parts diagram

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-13009i201409-201902

main90507-13012i201903-202403

main90507-13013i201903-202310

STEERING COLUMN-MANUAL(TILT & TELESCOPIC); STEERING COLUMN-MANUAL(TILT & TELESCOPIC), W(PROTECTOR)

47110SUPPORT ASSY, BRAKE PEDAL

main47110-24080i201409-201510

REFER TO PNC 47121

main47110-24090i201409-201510

REFER TO PNC 47121

main47110-24230i201903-202009

main47110-24231i202009-202403

main47110-24240i201903-202009

main47110-24241i202009-202403

main47110-30470i201510-201902

REFER TO PNC 47121

main47110-30480i201510-201902

REFER TO PNC 47121

47121PAD, BRAKE PEDAL

main47121-11010i201903-202009

main47121-11020i202009-202403

main47121-24010i201510-201902

main47121-30090i201409-201510

47264APIN(FOR PUSH ROD)

main90249-06180i201409-201902

main90249-08308i201903-202403

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9046807027

main90468-07027

9046815005

main90468-15005

9167380820

main91673-80820

8 parts on this diagram · 2 diagrams in section
