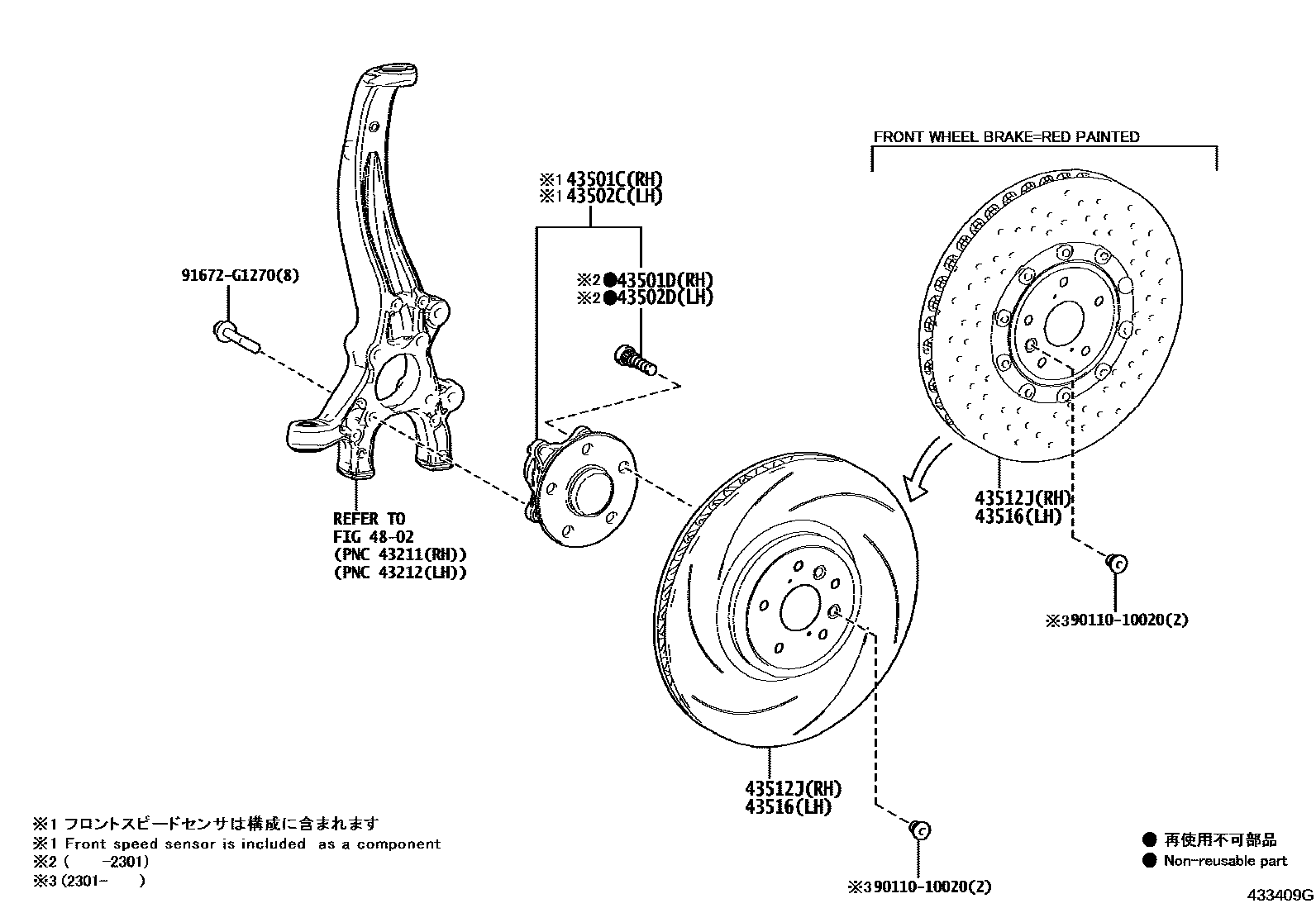

FRONT AXLE HUB

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-24010iUSC10201409-201504

sub43550-24011

main43550-24011iUSC10201505-202301

main43550-24020iUSC10202301-202403

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049iUSC10201505-202301

main90942-02070iUSC10201409-201504

sub90942-02049

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-24010iUSC10201409-201504

sub43550-24011

main43550-24011iUSC10201505-202301

main43550-24020iUSC10202301-202403

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049iUSC10201505-202301

main90942-02070iUSC10201409-201504

sub90942-02049

43512JDISC, FRONT RH

main43512-0W100iUSC10201409-202009

main43512-0W120iUSC10202009-202212

main43512-0W121iUSC10202301-202403

43516DISC, FRONT LH

main43516-0W020iUSC10201409-202009

main43516-0W040iUSC10202009-202212

main43516-0W041iUSC10202301-202403

4802

9011010020

main90110-10020

91672G1270

main91672-G1270

9 parts on this diagram · 1 diagram in section
