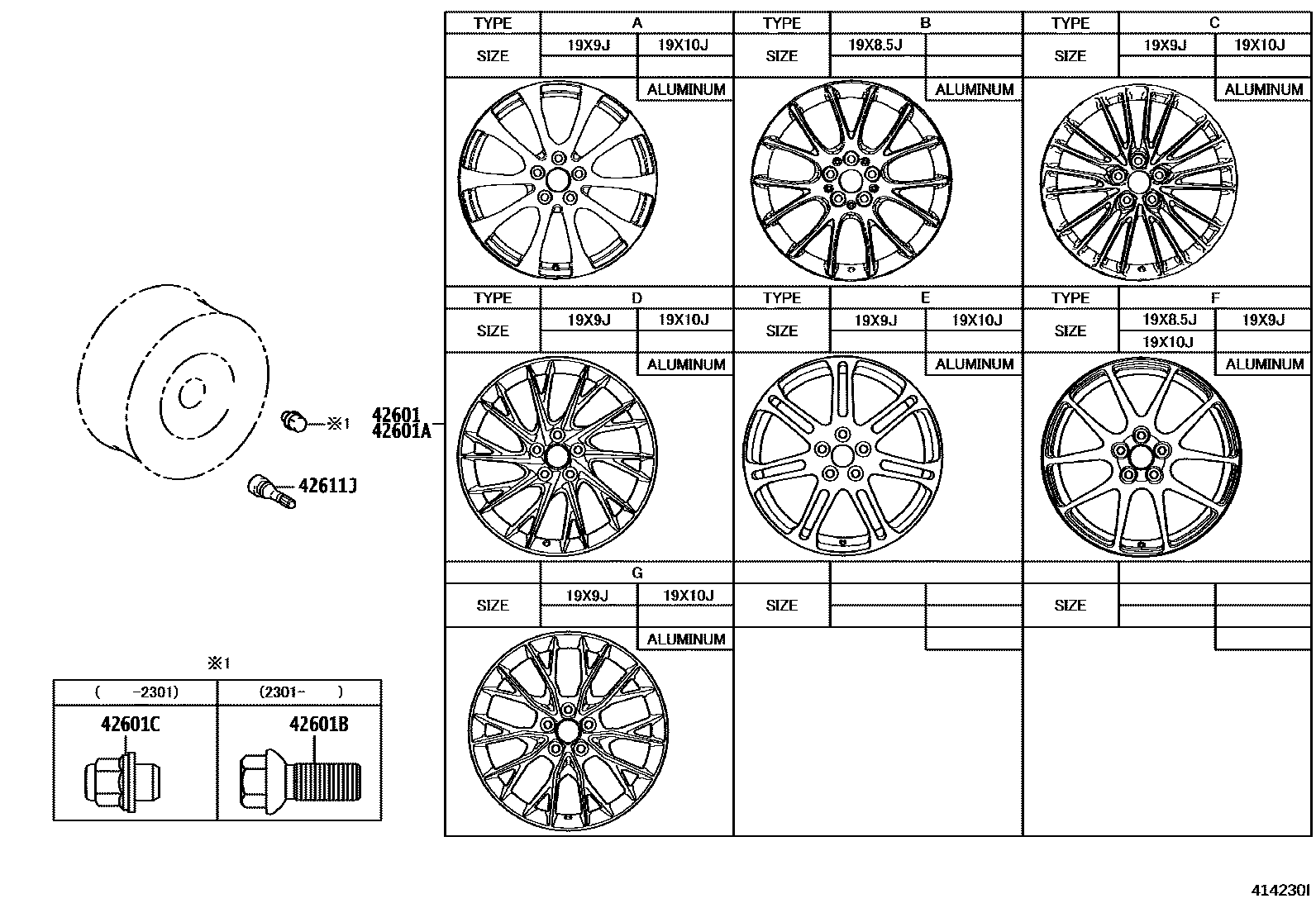

DISC WHEEL & WHEEL CAP

42601WHEEL, DISC

main42611-24771×2i202111-202301

19X9J, #,FR,T/P D:SEE ILLUST

main42611-24781×2i202111-202301

19X10J, #,RR,T/P D:SEE ILLUST

main42611-24860×2i201609-201902

19X9J, #,FR,T/P E:SEE ILLUST

main42611-24870×2i201609-201902

19X10J, #,RR,T/P E:SEE ILLUST

main4261A-24060×2i201409-201609

19X9J, #,FR,T/P A:SEE ILLUST

main4261A-24070×2i201409-201609

19X10J, #,RR,T/P A:SEE ILLUST

main42611-24750×2i201409-201902

19X9J, #,BULGARIA SPEC&TIRE & DISC WHEEL-255/35R19 + 275/35R19,MACHINING TYPE,FR,T/P C:SEE ILLUST

main42611-24760×2i201409-201902

19X10J, #,BULGARIA SPEC&TIRE & DISC WHEEL-255/35R19 + 275/35R19,MACHINING TYPE,RR,T/P C:SEE ILLUST

main42611-24770×2i201903-201908

19X9J, #,BULGARIA SPEC&TIRE & DISC WHEEL-255/35ZR19 & 275/35ZR19, POLISHED TYPE,FR,T/P D:SEE ILLUST

main42611-24780×2i201903-201908

19X10J, #,RUSSIA SPEC&TIRE & DISC WHEEL-255/35ZR19 & 275/35ZR19, POLISHED TYPE,RR,T/P D:SEE ILLUST

main42611-24880×2i201805-201902

19X9J, #,TIRE & DISC WHEEL-FOR F10 PACKAGE,FR,T/P D:SEE ILLUST

sub42611-24881

main42611-24890×2i201805-201902

19X10J, #,ENGLAND SPEC&TIRE & DISC WHEEL-FOR F10 PACKAGE,RR,T/P D:SEE ILLUST

sub42611-24891

main42611-24A00×2i201903-201908

19X9J, #,KAZAKHSTAN SPEC&TIRE & DISC WHEEL-255/35ZR19 & 275/35ZR19, MACHINING TYPE,FR,T/P F:SEE ILLUST

main42611-24A01×2i201909-202301

19X9J, #,TURKEY SPEC&TIRE & DISC WHEEL-255/35ZR19 & 275/35ZR19, MACHINING TYPE,FR,T/P F:SEE ILLUST

main42611-24A10×2i201903-201908

19X10J, #,ISRAEL SPEC&TIRE & DISC WHEEL-255/35ZR19 & 275/35ZR19, MACHINING TYPE,RR,T/P F:SEE ILLUST

main42611-24A11×2i201909-202301

19X10J, #,ISRAEL SPEC&TIRE & DISC WHEEL-255/35ZR19 & 275/35ZR19, MACHINING TYPE,RR,T/P F:SEE ILLUST

main42611-24A50×2i202301-202310

19X9J, #,TURKEY SPEC&TIRE & DISC WHEEL-255/35ZR19 & 275/35ZR19, MACHINING TYPE,FR,T/P F:SEE ILLUST

main42611-24A60×2i202301-202310

19X10J, #,ISRAEL SPEC&TIRE & DISC WHEEL-255/35ZR19 & 275/35ZR19, MACHINING TYPE,RR,T/P F:SEE ILLUST

main4261A-24080×2i201903-201908

19X9J, #,BULGARIA SPEC&TIRE & DISC WHEEL-255/35ZR19 & 275/35ZR19, CHROME PAINTED,FR,T/P D:SEE ILLUST

main4261A-24081×2i201909-202009

19X9J, #,RUSSIA SPEC&TIRE & DISC WHEEL-255/35ZR19 & 275/35ZR19, CHROME PAINTED,FR,T/P D:SEE ILLUST

main4261A-24090×2i201903-201908

19X10J, #,ISRAEL SPEC&TIRE & DISC WHEEL-255/35ZR19 & 275/35ZR19, CHROME PAINTED,RR,T/P D:SEE ILLUST

main4261A-24091×2supersedes 42611-24870i201909-202111

19X10J, #,ISRAEL SPEC&TIRE & DISC WHEEL-255/35ZR19 & 275/35ZR19, CHROME PAINTED,RR,T/P D:SEE ILLUST

main4261A-24170×2i202310-202403

19X9J, #,TIRE & DISC WHEEL-255/35R19 & 275/35R19, MATT BLACK,TYPE G:REFER ILLUST.

main4261A-24180×2i202310-202403

19X10J, #,TIRE & DISC WHEEL-255/35R19 & 275/35R19, MATT BLACK,TYPE G:REFER ILLUST.

main4261A-24190×4supersedes 42611-24A80i202301-202310

19X8.5J, #,BULGARIA SPEC&TIRE & DISC WHEEL-235/40R19, 8.5J,TYPE B:REFER ILLUST.

main4261A-53270×4i201903-201908

19X8.5J, #,KAZAKHSTAN SPEC&TIRE & DISC WHEEL-235/40R19, 8.5J,TYPE B:REFER ILLUST.

main4261A-53271×4i201909-202301

19X8.5J, #,ISRAEL SPEC&TIRE & DISC WHEEL-235/40R19, 8.5J,TYPE B:REFER ILLUST.

42601AWHEEL, DISC (FOR SPARE)

main42611-24790i201409-201601

19X8.5J, #,BULGARIA SPEC,TYPE B:REFER ILLUST.

main42611-24A20i201903-202009

19X8.5J,RUSSIA SPEC&TIRE & DISC WHEEL-235/40R19, 8.5J,TYPE F:REFER ILLUST.

main42611-24B10i202301-202310

19X8.5J, #,ISRAEL SPEC&TIRE & DISC WHEEL-255/35ZR19 & 275/35ZR19, MACHINING TYPE,TYPE F:REFER ILLUST.

main42611-30G10i201609-201902

19X8.5J, #,TURKEY SPEC&TIRE & DISC WHEEL-255/35R19 + 275/35R19,POLISHED TYPE,TYPEB:REFER ILLUST.

42601BBOLT, HUB (FOR AXLE)

main90942-02103×20i202301-202403

42601CNUT, HUB (FOR AXLE)

main90942-01033×20i201409-201805

main90942-01115×20i201805-201902

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05028i201409-201711

UKRAINE SPEC&TIRE & DISC WHEEL-255/35R19 + 275/35R19,MACHINING TYPE

5 parts on this diagram · 2 diagrams in section
