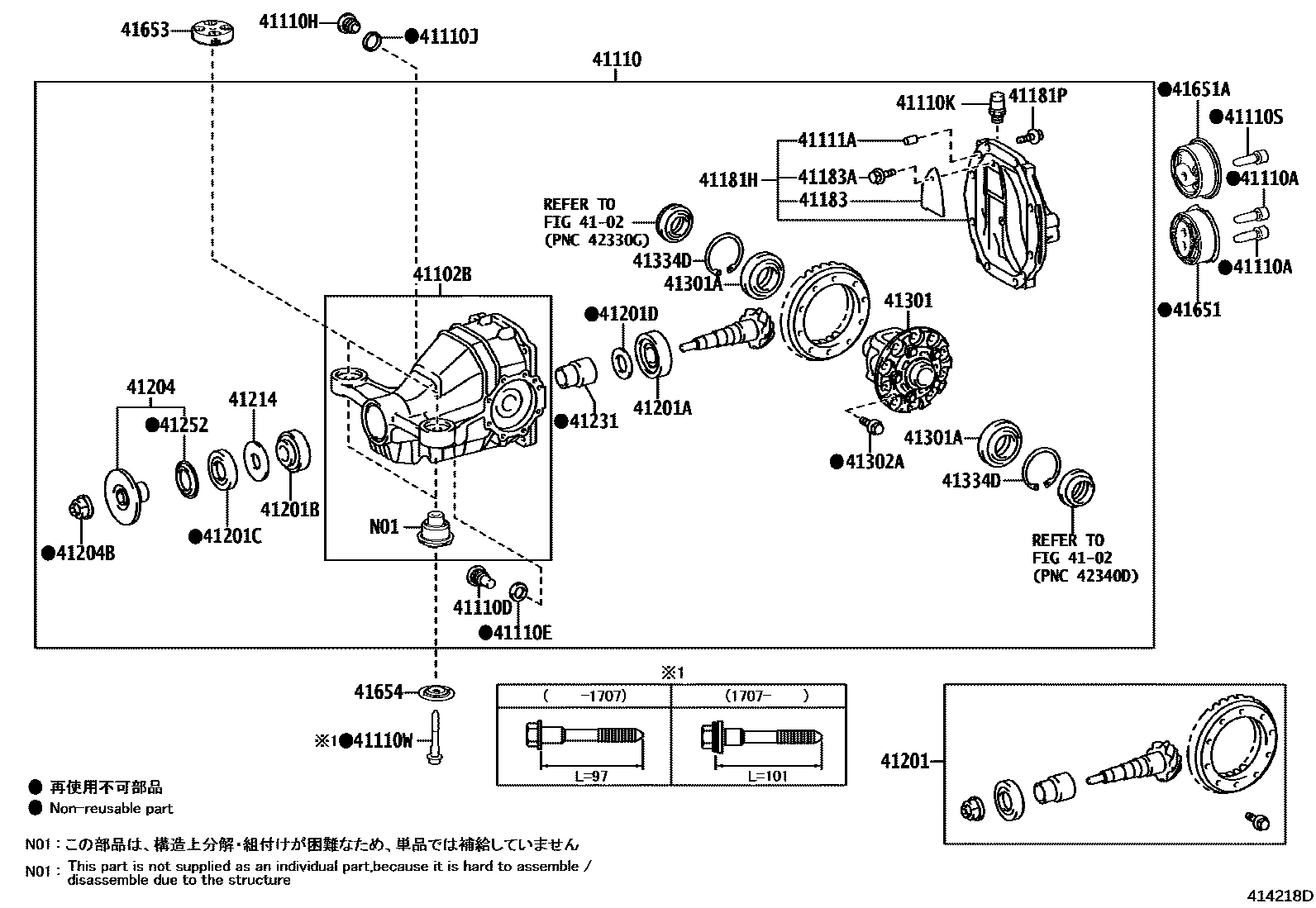

REAR AXLE HOUSING & DIFFERENTIAL
4102
41102BCARRIER SUB-ASSY, DIFFERENTIAL W/MOUNT
REAR DIFFERENTIAL-TORQUE VECTORING DIFFERENTIAL
41110CARRIER ASSY, DIFFERENTIAL, REAR
*FGR=47:16=2.937
41110ABOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
*14-2.0PX47.3-35
41110DPLUG (FOR REAR DIFFERENTIAL DRAIN)
REAR DIFFERENTIAL-TORQUE VECTORING DIFFERENTIAL,NO.1:REFER ILLUST.
41110EGASKET (FOR REAR DIFFERENTIAL DRAIN PLUG)
REAR DIFFERENTIAL-TORQUE VECTORING DIFFERENTIAL
41110HPLUG (FOR REAR DIFFERENTIAL FILLER)
REAR DIFFERENTIAL-TORQUE VECTORING DIFFERENTIAL,NO.2:REFER ILLUST.
41110JGASKET (FOR REAR DIFFERENTIAL FILLER PLUG)
REAR DIFFERENTIAL-TORQUE VECTORING DIFFERENTIAL
41110KPLUG, BREATHER (FOR REAR DIFFERENTIAL)
REAR DIFFERENTIAL-TORQUE VECTORING DIFFERENTIAL
41110SBOLT, NO.2 (FOR REAR DIFFERENTIAL CARRIER SET)
41110WBOLT, NO.4 (FOR REAR DIFFERENTIAL CARRIER SET)
41111APIN, STRAIGHT (FOR REAR DIFFERENTIAL CARRIER)
41181HCOVER, REAR DIFFERENTIAL CARRIER
41181PBOLT (FOR REAR DIFFERENTIAL CARRIER COVER SETTING)
41183DEFLECTOR, REAR DIFFERENTIAL BREATHER PLUG OIL
41183ABOLT (FOR REAR DIFFERENTIAL BREATHER PLUG OIL DEFLECTOR)
41201FINAL GEAR KIT, DIFFERENTIAL, REAR
*FGR=47:16=2.937
*FGR=47:16=2.937
41201ABEARING (FOR REAR DRIVE PINION REAR)
41201BBEARING (FOR REAR DRIVE PINION FRONT)
41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)
41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)
T=1.88,MARK 88
T=1.90,MARK 90
T=1.92,MARK 92
T=1.94,MARK 94
T=1.96,MARK 96
T=1.98,MARK 98
T=2.00,MARK 00
T=2.02,MARK 02
T=2.04,MARK 04
T=2.06,MARK 06
T=2.08,MARK 08
T=2.10,MARK 10
T=2.12,MARK 12
T=2.14,MARK 14
T=2.16,MARK 16
T=2.18,MARK 18
T=2.20,MARK 20
T=2.22,MARK 22
T=2.24,MARK 24
T=2.26,MARK 26
T=2.28,MARK 28
41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR
41204BNUT (FOR REAR DRIVE PINION)
OD=40.4
41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL
41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)
41301CASE SUB-ASSY, REAR DIFFERENTIAL
41301ABEARING(FOR REAR DIFFERENTIAL CASE)
41302ABOLT(FOR REAR DIFFERENTIAL CASE)
41334DRING, SHAFT SNAP (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
T=3.66,MARK 66
T=3.68,MARK 68
T=3.70,MARK 70
T=3.72,MARK 72
T=3.74,MARK 74
T=3.76,MARK 76
T=3.78,MARK 78
T=3.80,MARK 80
T=3.82,MARK 82
T=3.84,MARK 84
T=3.86,MARK 86
T=3.88,MARK 88
T=3.90,MARK 90
T=3.92,MARK 92
T=3.94,MARK 94
T=3.96,MARK 96
T=3.98,MARK 98
T=4.00,MARK 00
T=4.02,MARK 02
T=4.04,MARK 04
T=4.06,MARK 06
T=4.08,MARK 08
T=4.10,MARK 10
T=4.12,MARK 12
T=4.14,MARK 14
T=4.16,MARK 16
T=4.18,MARK 18
T=4.20,MARK 20
T=4.22,MARK 22
T=4.24,MARK 24
T=4.26,MARK 26
T=4.28,MARK 28
T=4.30,MARK 30
T=4.32,MARK 32
T=4.34,MARK 34
T=4.36,MARK 36
T=4.38,MARK 38
T=4.40,MARK 40
T=4.42,MARK 42
41651CUSHION, REAR DIFFERENTIAL MOUNT, NO.1
41651ACUSHION, REAR DIFFERENTIAL MOUNT, NO.2
41653STOPPER, REAR DIFFERENTIAL MOUNT, UPPER
34 parts on this diagram · 2 diagrams in section
