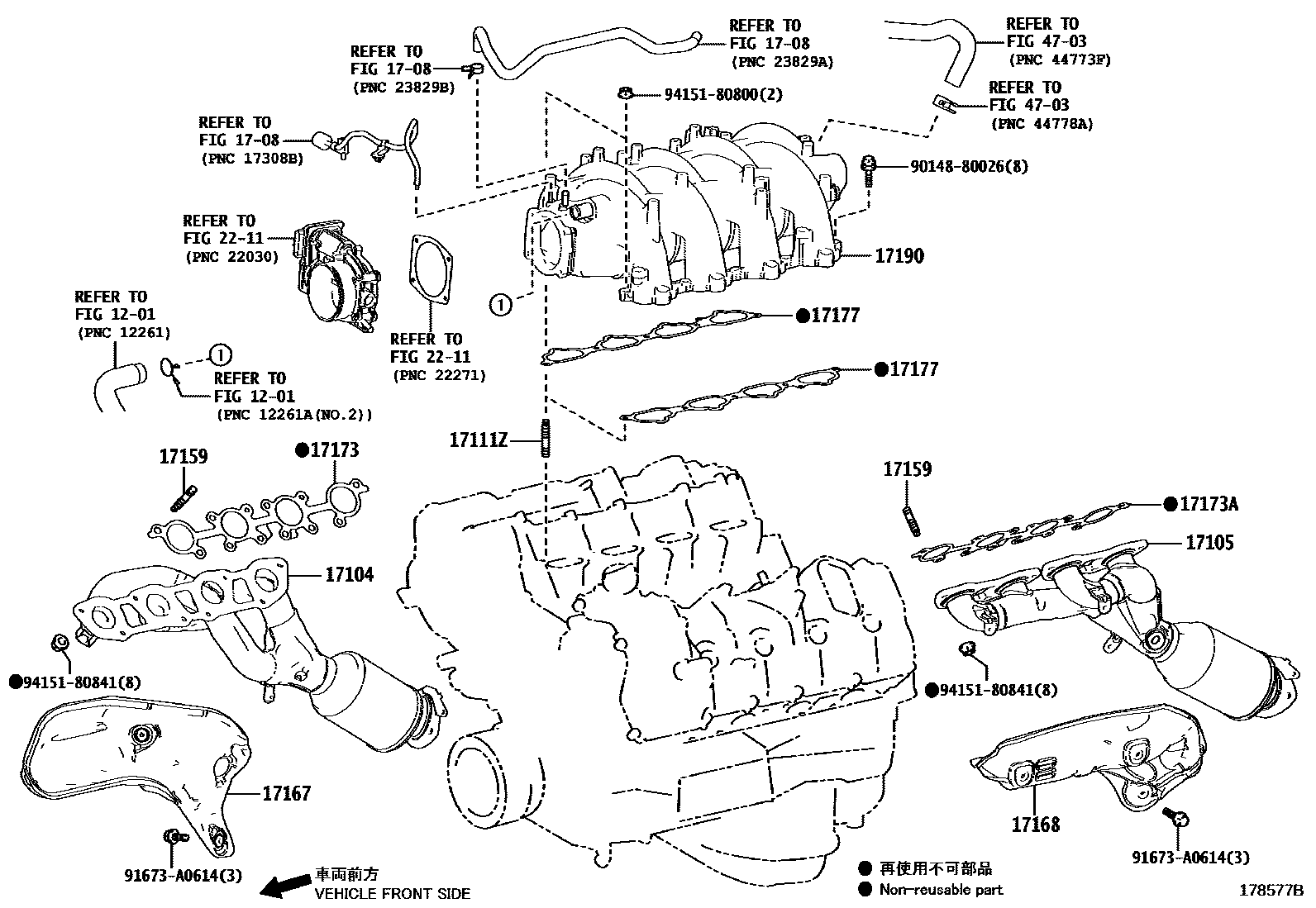

MANIFOLD

1201VENTILATION HOSE

→ Go to FIG 12-01

1708VACUUM PIPING

→ Go to FIG 17-08

17104MANIFOLD SUB-ASSY, EXHAUST, RH

main17104-38090i2URGSE..USC10201409-201711

*114=TOYOTA/R38090/Y

main17104-38110i2URGSE..USC10201711-201902

*114=TOYOTA/R38110/Y

17105MANIFOLD SUB-ASSY, EXHAUST, LH

main17105-38090i2URGSE..USC10201409-201711

*114=TOYOTA/L38090/Y

main17105-38110i2URGSE..USC10201711-201902

*114=TOYOTA/L38110/Y

17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)

main90126-08026×2i2URGSE..USC10201409-201902

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90126-08052×16i2URGSE..USC10201409-201902

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-38110i2URGSE..USC10201409-201902

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-38110i2URGSE..USC10201409-201902

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-38050i2URGSE..USC10201409-201902

17173AGASKET, EXHAUST MANIFOLD TO HEAD, LH

main17173-38050i2URGSE..USC10201409-201902

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-38030×2i2URGSE..USC10201409-201902

17190TANK ASSY, INTAKE AIR SURGE

main17190-38010i2URGSE..USC10201409-201902

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

9014880026

main90148-80026

91673A0614

main91673-A0614

9415180800

main94151-80800

9415180841

main94151-80841

18 parts on this diagram · 1 diagram in section
